| Sensor |
1/2.9 inch HD color CMOS |
| Horizontal Resolution |
1080P 60/50/30/25,1080i 60/50,720P 60/50 |
| Lens |
F=5.35-107.0mm F1.6(W)-2.7(T) |

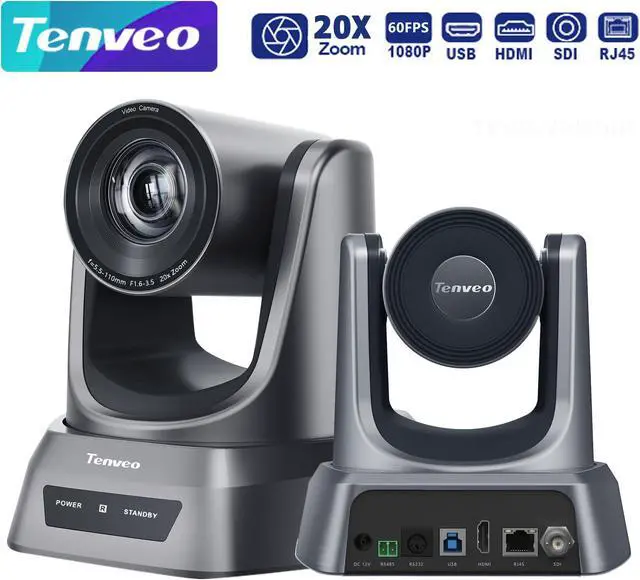

| Video output |
USB 2.0, HDMI , SDI, LAN |
| Pan/Tilt Movement Range |

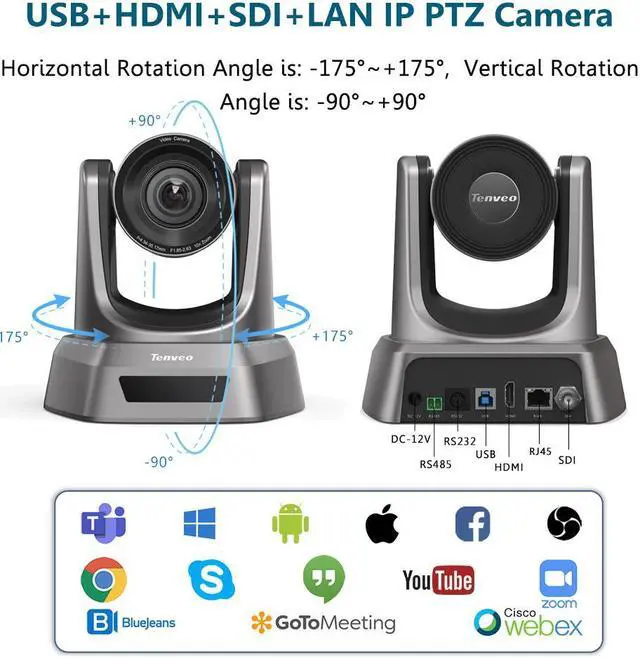

Pan: +-175°(max speed 80°/S), Tilt: -35°~+55°(max speed 60°/S) |

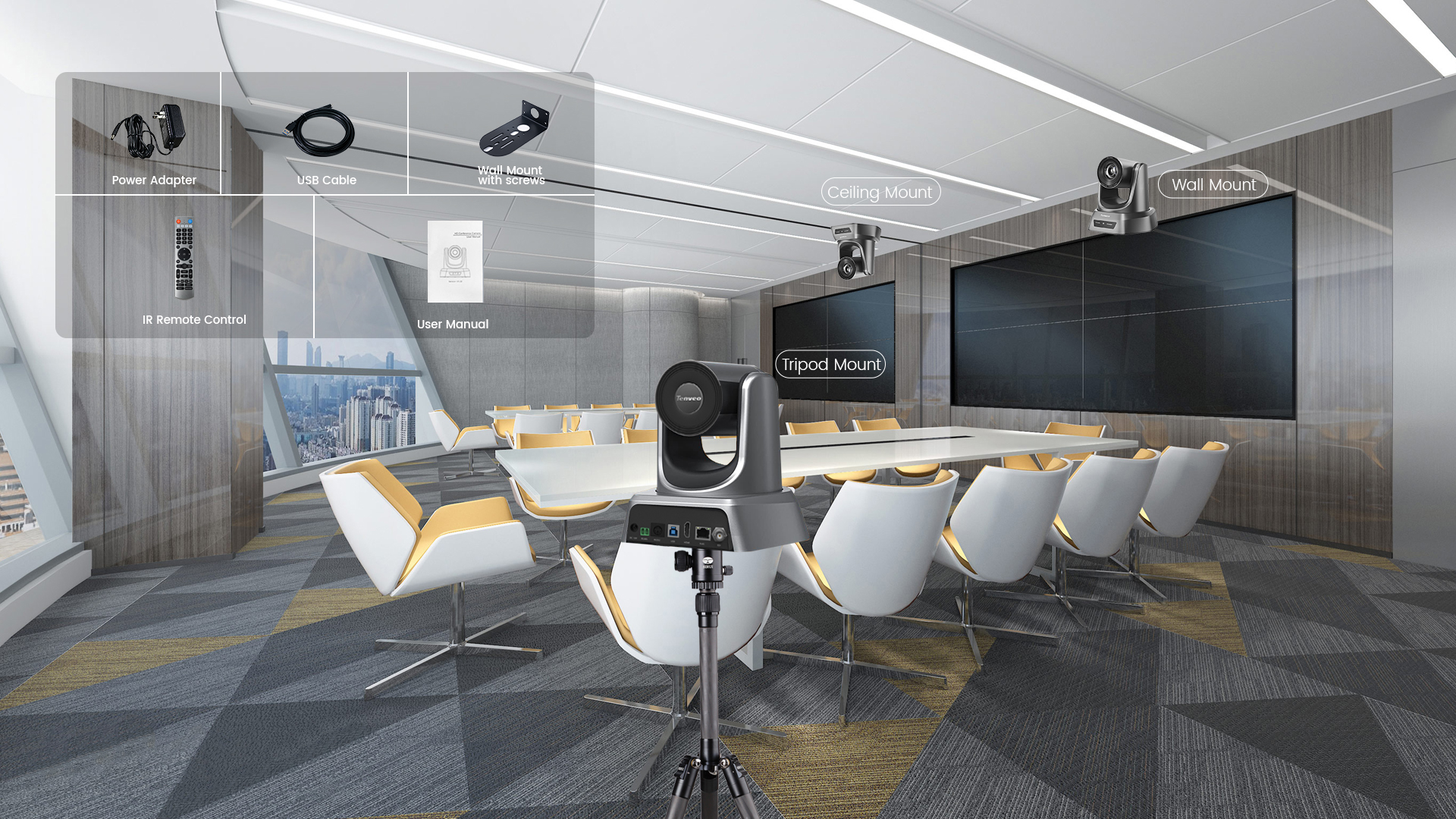

| Installation |
Support Desktop, Tripod, Wall Mount and Ceiling Mount(Only ceiling bracket and screws included) |
| Camera Weight |
3.3 lbs / 1.5 kg |

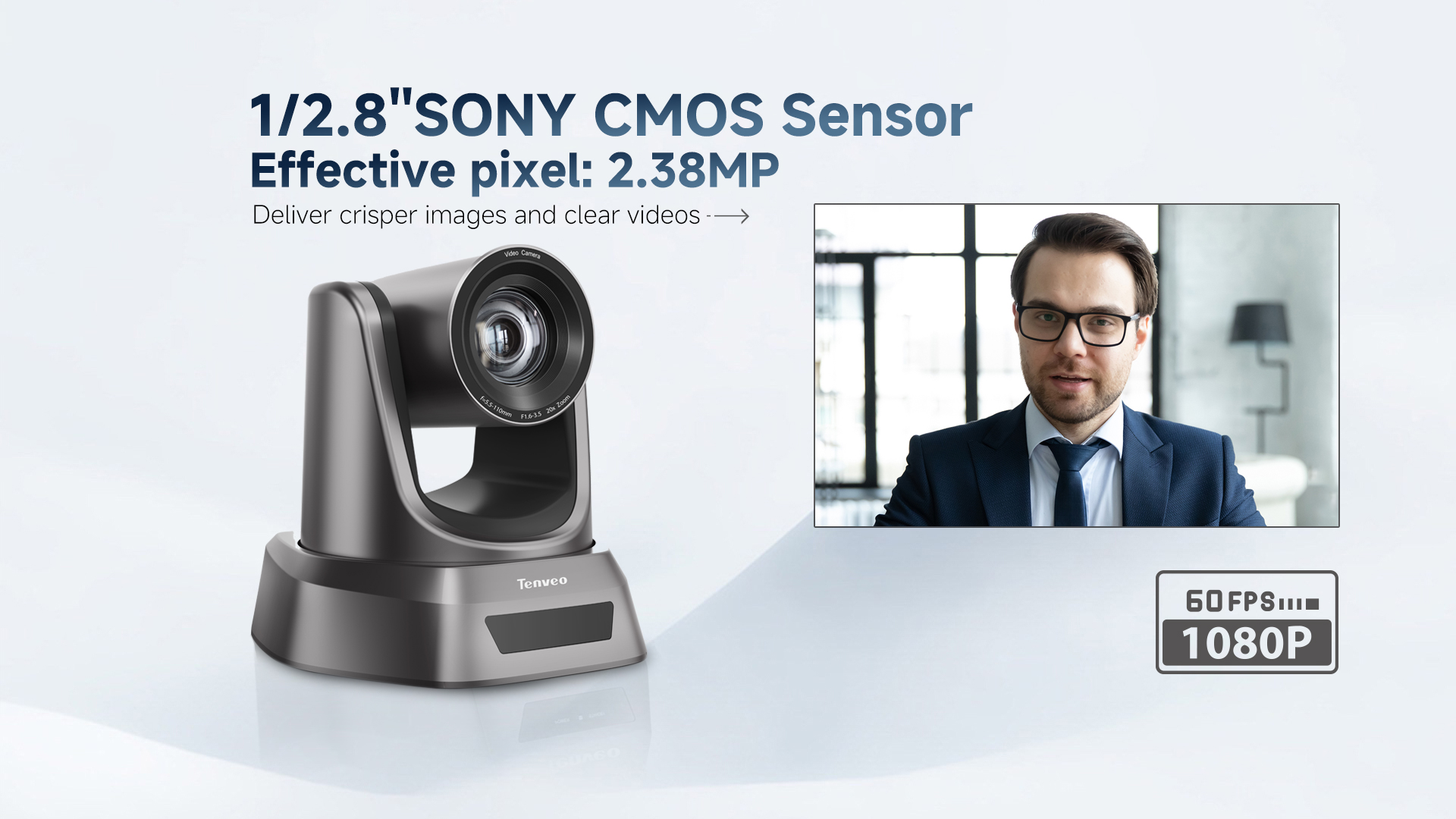

| Effective pixel |
2.38 megapixel (16:9) |
| Zoom |
20x optical zoom |
| Horizontal angle |
Near-end 54.7°--Far-end 3.3° |
| Preset position |
IR remote control supports 9 presets, PELCO Protocol supports 255 presets; VISCA Protocol supports 6 |
| Power supply |
DC 12V/2A |
| Accessories |
DC 12V power adaptor, IR remote control, manual, USB 2.0 cable, Wall Mount bracket and screws |
| Camera Size |
7.17"x7.17"x7.17" (L x W x H) |
Tips1: Press the Number(1-9) directly to call the reserved preset.
Fast and Smooth PRESET+Number: To set preset position of this number.
RESET+Number: To clear preset position of this number.
Tip2: SDI support 328ft (100m) 3G-SDI video transfer, HDMI support 98ft (30m) HD video transfer and USB support 66ft (20m) HD video transfer.
Tip 3: Image Flip and Image Mirror. Press MENU - IMAGE - Mirror, and adjust Left/Right/UP/DOWN to manipulate image flip and Mirror. 20x optical zoom Sleek and intelligent design Plug & Play USB Connectivity Accurate, smooth and silent PTZ
Movement Preset: 9 via IR remote setting (255 via RS232) Wide field of view with no video distortion 1/3 inch high quality, 2.1MP ( 16:9 ) CMOS sensor Superior quality with Full Glass Lens Material Support HD1080P60/50/30/25, 720P60/50, etc. Support USB, HDMI and SDI 3 video output at the same time Support ceiling mount, wall mount and tripod mount (Reverse mountable) 2D and 3D NR for best video quality in different lighting conditions Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control Compatible with most leading video conferencing software and platform
