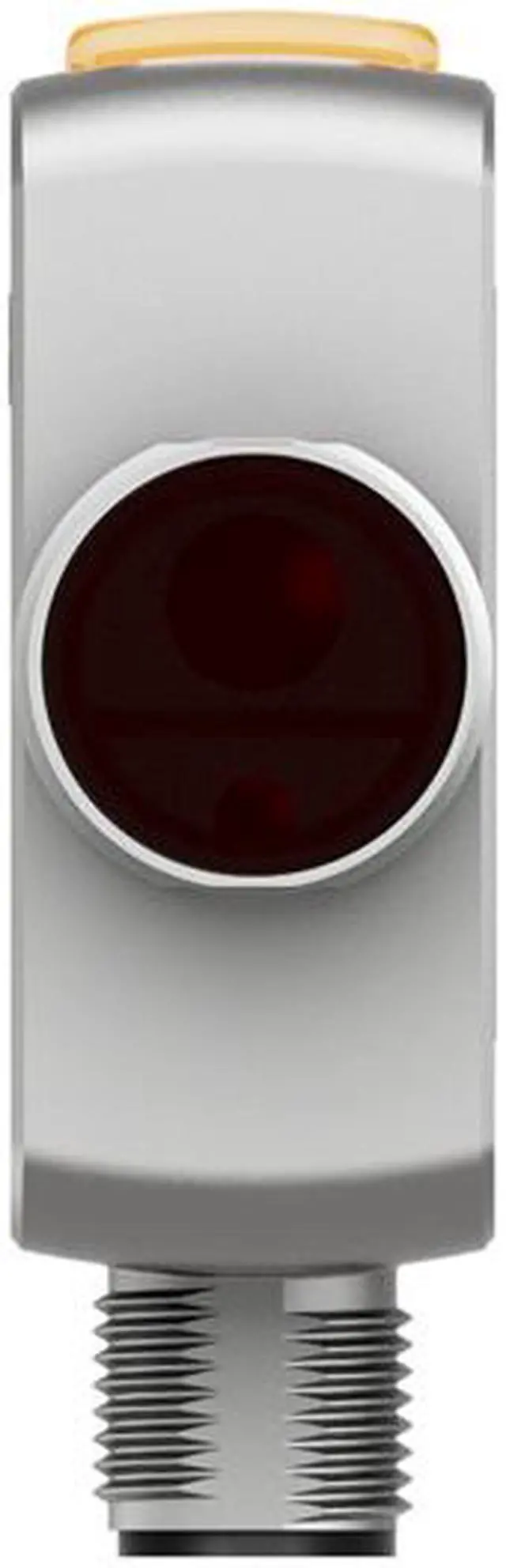

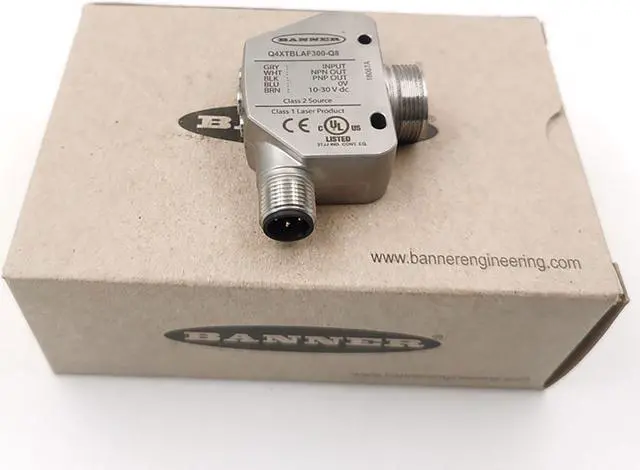

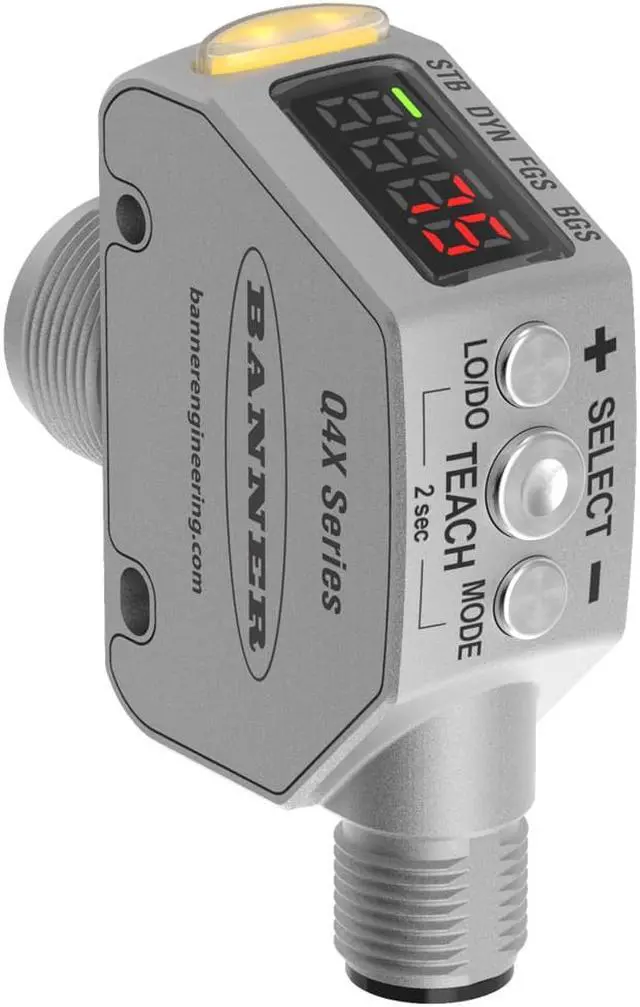

BANNER Q4XTBLAF300-Q8 10-30VDC Rugged Distance Laser Sensor Range 300mm

Sensing Beam Visible Red Laser
PC Configurable No
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background/Foreground Suppression
Housing Style Rectangular w/M18 Mount
Device Type Sensor
Primary Housing Material Stainless Steel
Laser Classification Class 1
Input/Output Discrete
Indicator Display; LED(s)
Connection Integral QD
Analog Resolution/Discrete Repeatability 25 mm to 50 mm: +/-0.5; 50 mm to 300 mm: +/- 1% of range
Quick Disconnect Type M12 (Euro)
Max Sensing Distance (mm) 300
Minimum Sensing Distance (mm) 25
Sensing Beam Visible Red Laser
Power Supply 10-30 V dc
Delay at Power-up (ms) 750
Sensing Beam Wavelength (nm) 655
Adjustments Push Button; Remote Teach
Temperature Effect (mm/°C) +/- 0.05 mm/°C from 25 to 125 mm, +/- 0.35 mm/°C at 300 mm
Number of Pins 5
Vibration MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Mechanical Shock MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
Output Saturation Voltage NPN Outputs <1.0 V @ 100 mA
Output Saturation Voltage PNP Outputs <1.5 V @ 100 mA
Max Discrete (Switched) Output (mA) 100
Discrete (Switched) Outputs Bipolar (NPN & PNP)
Output Protection Protected against continuous overload and short circuit
IP Rating IP67; IP68; IP69
Storage Temperature (°C) -25 to 75
Max Operating Temperature (°C) 50
Min Operating Temperature (°C) -10
Max Op. Relative Humidity Non-Condensing (%) 95 at 55°C
Window Material Acrylic
Warm-up Time (minutes) 10
Minimum Response Time (ms) 1.5
Spot Size (@ Reference Distance) 2.0 mm x 0.8 mm @ 300 mm
Barrel Diameter (mm) 18
Minimum Window Size (mm) 0.4
Discrete Output Hysteresis (mm) Automatically adjusted
Laser Control Yes
Alarm Output (mA) 100
Max Ambient Light (Lux) 5000
Max Off-state Leakage Current (µA) 5 @ 30 V dc
Power/Current Consumption (exclusive of load) < 675 mW
Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
