PoE Extender & Injector
PoE Extender
Cat 6 Cable & PoE Splitter

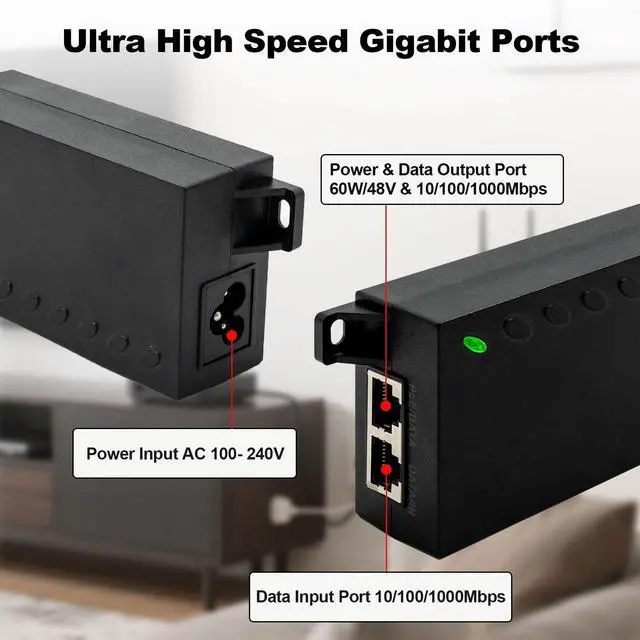

Gigabit PoE Ports Ensure Faster Connections
Both The Gigabit 10/100/1000 Input and Output Port Ensure Faster, More Reliable Connections for All Applications.
Fanless Design Reduces Power Consumption And Works Silently In Its Location, Making It Ideal For Noise-Sensitive Environments.

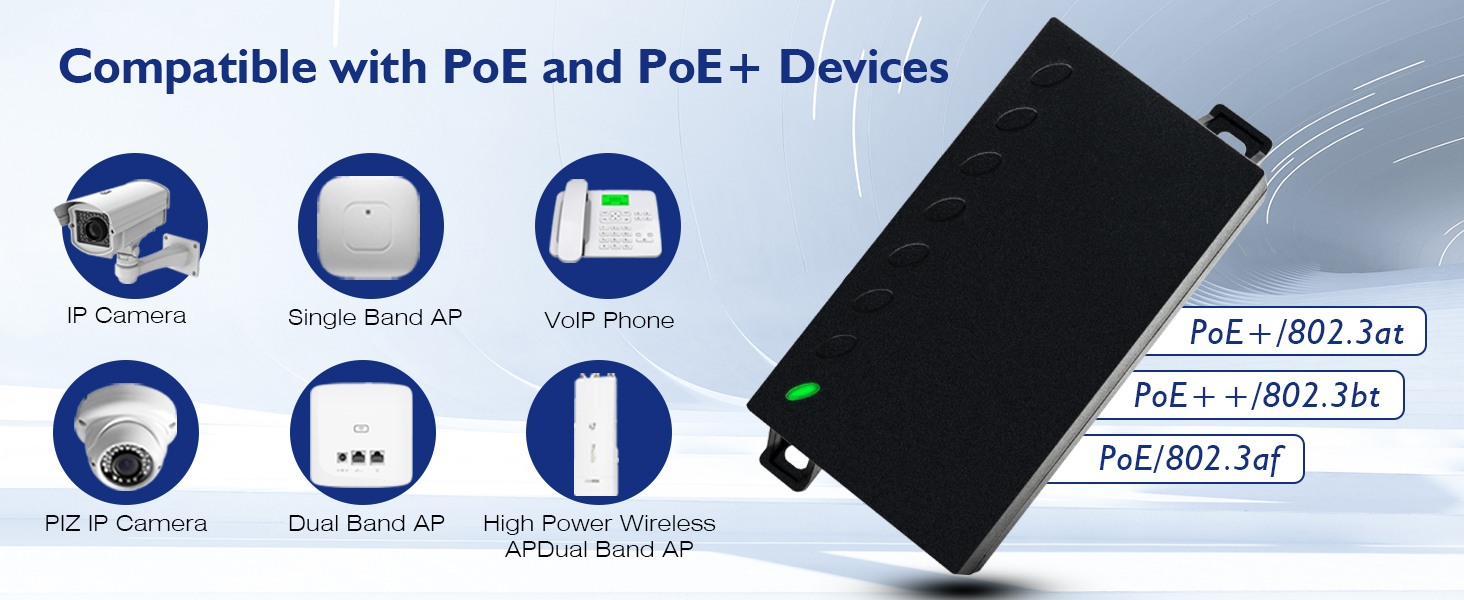

Compatible with PoE / PoE+ and PoE++ Devices
Easier Network Deployment,Higher Power Supply

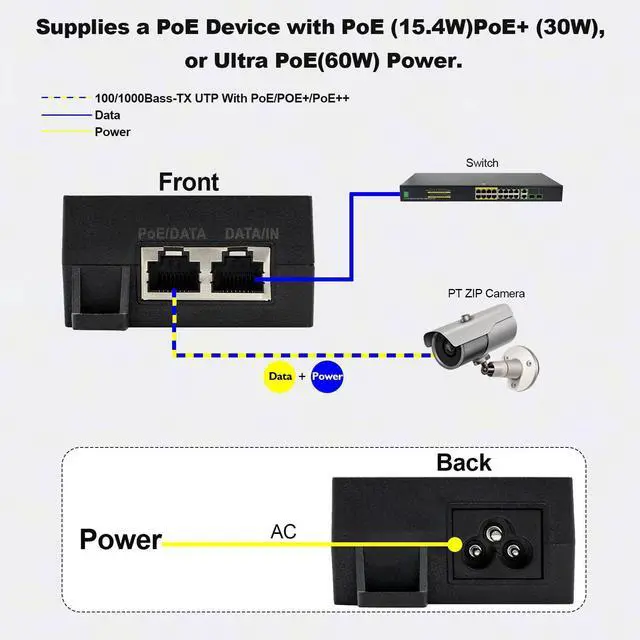

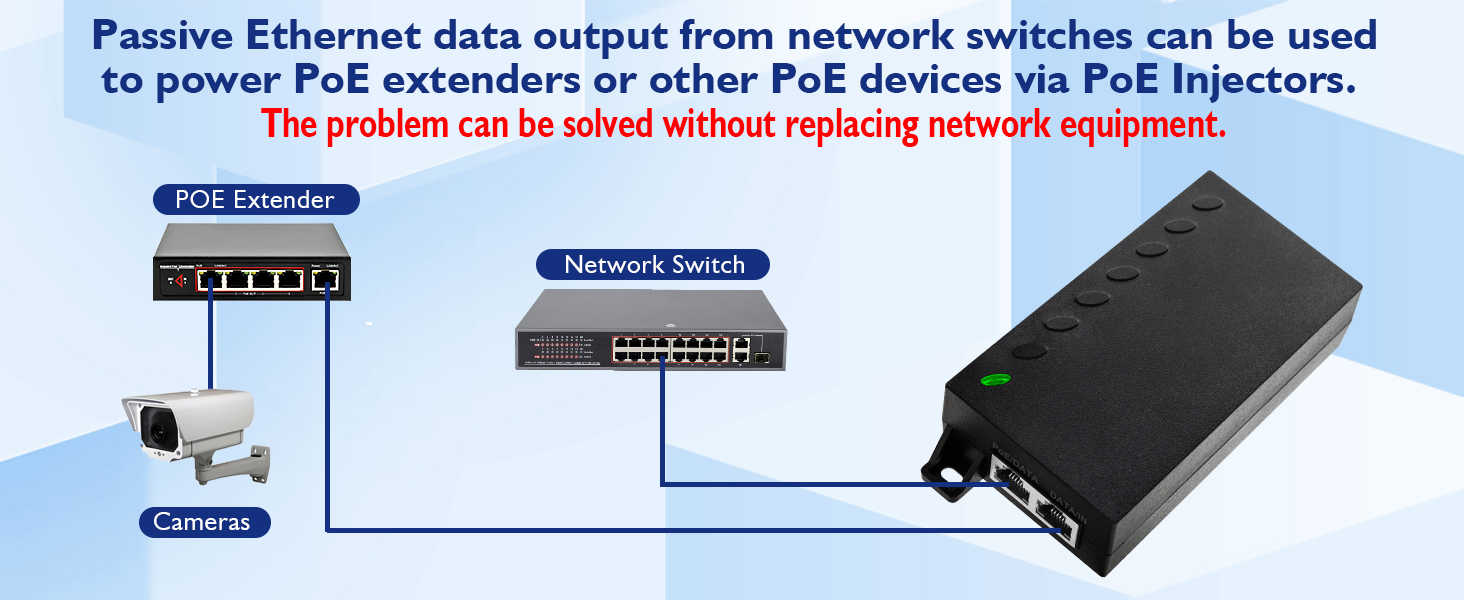

PoE Injector++ Simultaneously Transmits Data and Powers a Standard PoE Device (60W Max.) Through One Ethernet Cable, Ideal for Surveillance, Wi-Fi Coverage, and More Applications.
The PoE Injector is a single port PoE injector offer a compact and cost effective, It can convert standard 100~240V/AC power into lowvoltage. DC that runs over existing LAN cable to power up IEEE 802.3af&at&bt compliant network accessories.
Surveillance Networksafe Enough To Usefor Any Security Needs

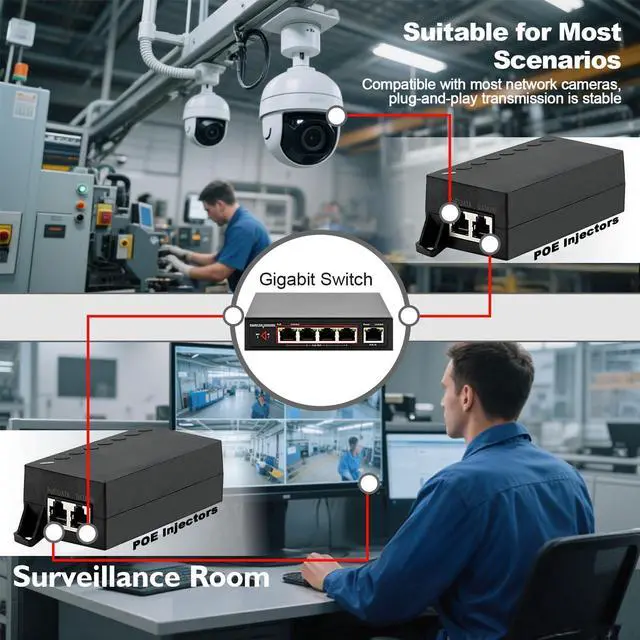

Remote powering of wireless LAN(WAN) access points, IP Security cameras, VoIP telephone and other low port density installations.
Works With Ip Cameras For Home And Office, Small Business
The PoE Injector PoE Mid-spans eliminate the need for external power supply and its associated AC/DC power cabling, providing a compact, affordable, safe and reliable power solution over existing Ethernet infrastructure.office network functional to use in any size office
Product Specification
Is the POE passive or active?
This POE is an active power supply.
Can I use a PoE injector with my PoE wifi?
Yes, it can work for all PoE devices below 60W.

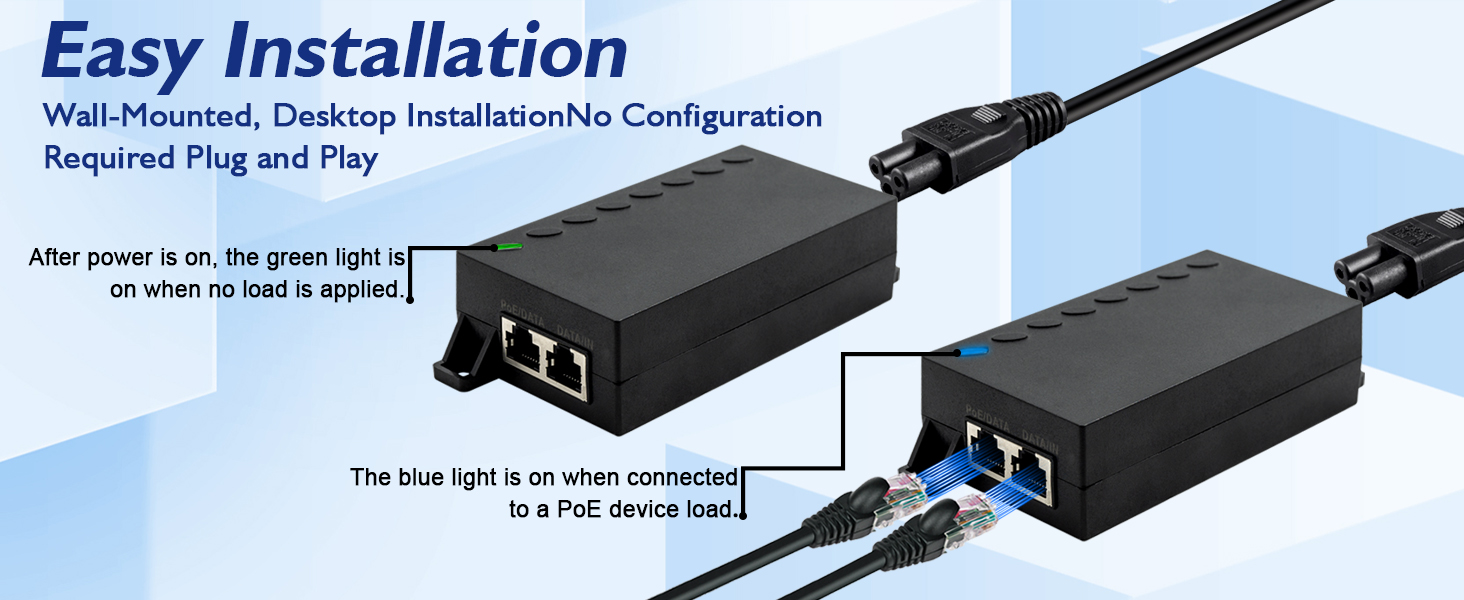

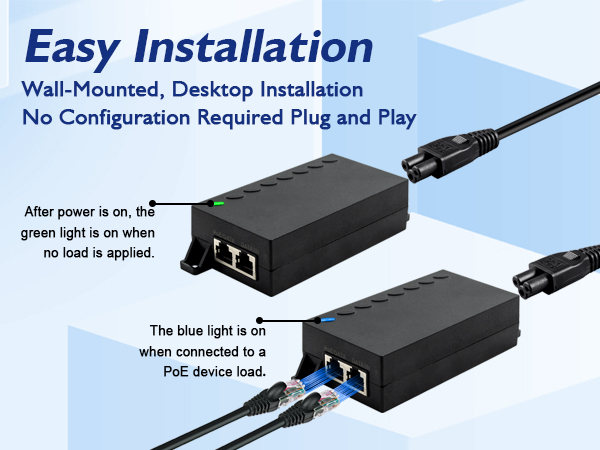

Are the lights the same color when the PoE is powered on and when it is loaded?
The PoE injector lights up green when powered on and lights up blue when it is loaded.
Can this 60W PoE injector power my 30W PoE WIFI?
Of course, this 60W PoE injector is 48V standard IEEE 802.3bt, 30W is of course no problem.
Gigabit PoE Ports Ensure Faster Connections
Both The Gigabit 10/100/1000 Input and Output Port Ensure Faster, More Reliable Connections for All Applications.
Fanless Design Reduces Power Consumption And Works Silently In Its Location, Making It Ideal For Noise-Sensitive Environments.

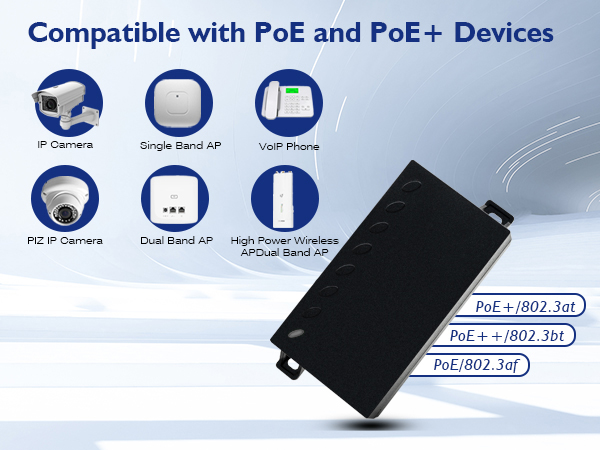

Compatible with PoE / PoE+ and PoE++ Devices
Easier Network Deployment,Higher Power Supply
PoE Injector++ Simultaneously Transmits Data and Powers a Standard PoE Device (60W Max.) Through One Ethernet Cable, Ideal for Surveillance, Wi-Fi Coverage, and More Applications.
The PoE Injector is a single port PoE injector offer a compact and cost effective, It can convert standard 100~240V/AC power into lowvoltage. DC that runs over existing LAN cable to power up IEEE 802.3af&at&bt compliant network accessories.
Surveillance Networksafe Enough To Usefor Any Security Needs
Remote powering of wireless LAN(WAN) access points, IP Security cameras, VoIP telephone and other low port density installations.
Works With Ip Cameras For Home And Office, Small Business
The PoE Injector PoE Mid-spans eliminate the need for external power supply and its associated AC/DC power cabling, providing a compact, affordable, safe and reliable power solution over existing Ethernet infrastructure.office network functional to use in any size office
Product Specification
| Data Transfer Rate | 10/100/1000Mbps |
|---|---|
| Pin Assignment and Polarity | 1/2(-)3/6(+),4/5(+)7/8(-) |
| Output Power Voltage: 54VDC | User Port Power: 30W&60W |
| AC Input Voltage | 100 to 240 Vac |
| AC Input Current | 1A 100~240V |
| System indicator | AC Power |
| Connectors | Shielded RJ-45, EIA 568A and 568B |
| Operating Ambient Temperature | 0 to 40? |
| Storage Temperature | -10 to 50? |
| Supporting Devices | PoE/PoE+/PoE++ |
| User Indicator | Channel Power |
Is the POE passive or active?
This POE is an active power supply.
Can I use a PoE injector with my PoE wifi?
Yes, it can work for all PoE devices below 60W.
Are the lights the same color when the PoE is powered on and when it is loaded?
The PoE injector lights up green when powered on and lights up blue when it is loaded.
Can this 60W PoE injector power my 30W PoE WIFI?
Of course, this 60W PoE injector is 48V standard IEEE 802.3bt, 30W is of course no problem.
