Thermal Grizzly DeltaMate Mycro Pro II - AM5 CPU Block (TG-DM-CPU-001)

The Thermal Grizzly DeltaMate CPU Block - MPII AM5 is a premium CPU water block engineered for high-performance custom liquid cooling systems using AMD AM5 processors while retaining backward compatibility with AM4. Its construction combines an Ultra-High-Performance nickel-plated copper cold plate, solid nickel-plated brass housing, Schott BOROFLOAT® borosilicate glass viewing window, and anodized aluminum cover.

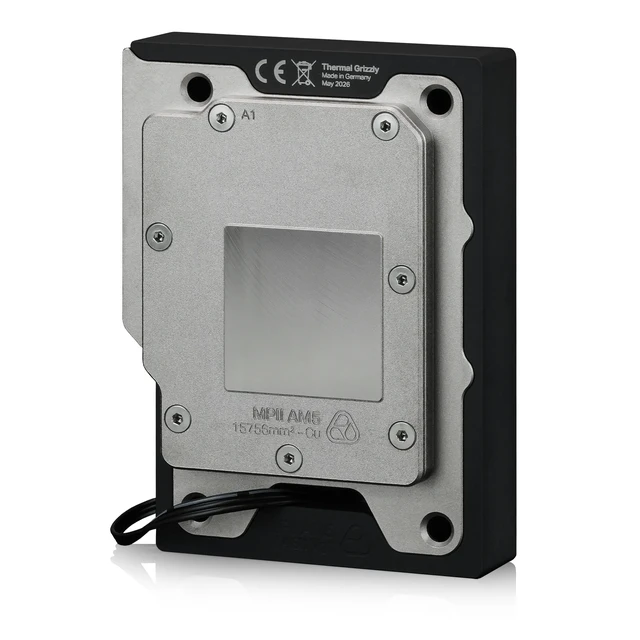

At the heart of the DeltaMate is Thermal Grizzly's Ultra-High-Performance cold plate with a hybrid microfin structure specifically optimized around AMD's chiplet layout. Directly above the CPU's CCDs, 25 extremely fine cooling fins feature 0.2mm fin widths and 0.2mm channels. This dense microfin structure creates a large heat-transfer surface where cooling performance is most critical. Above the I/O die, 29 larger 0.4mm fins optimize coolant distribution through the block.

The solid nickel-plated brass housing provides a robust foundation for the coolant connections. Two standard G1/4" ports are positioned toward the upper-right portion of the block, keeping the central area open for an unobstructed view through the glass window. Each G1/4" thread is 6mm deep, providing durable threaded connections for standard custom water cooling fittings.

Instead of a conventional acrylic viewing window, the DeltaMate uses genuine Schott BOROFLOAT® borosilicate glass. The glass is highly scratch resistant and UV resistant, while its hand-finished edges interact with the integrated lighting to create a distinctive appearance. Addressable RGB LEDs illuminate the water block and connect to a standard 3-pin +5V/DATA/GND aRGB header for motherboard-controlled lighting.

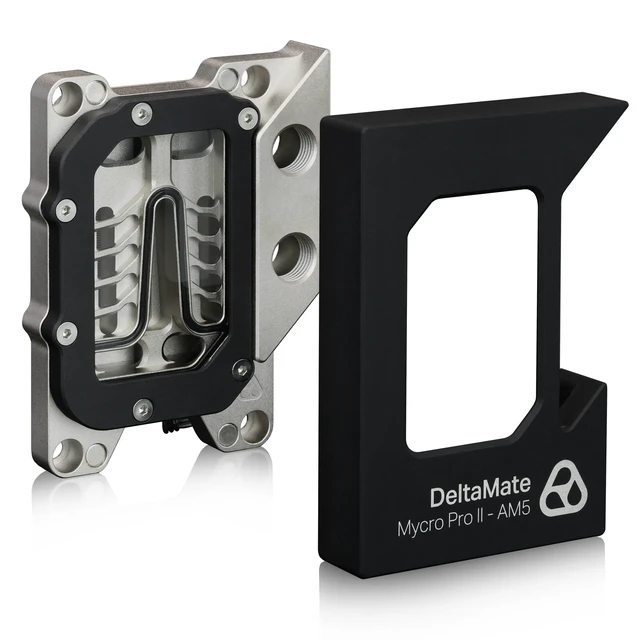

High-quality EPDM O-rings provide the internal seals and offer excellent resistance to coolant, heat, aging, and long-term use. An included magnetic cover can be installed over the block to conceal the mounting hardware and screws, allowing the finished system to be configured with either an exposed mechanical appearance or a cleaner, streamlined presentation.

The DeltaMate CPU Block - MPII AM5 is also compatible with Thermal Grizzly's AM5 High Performance Heatspreader, making it suitable for performance-focused AMD systems where premium materials, optimized heat transfer, and high-end construction are priorities.

Compatibility

• AMD Socket AM5
• AMD Socket AM4
• Compatible with Thermal Grizzly AM5 High Performance Heatspreader

Important Water Cooling Notes

• Do not combine with aluminum water cooling components where aluminum comes into direct contact with the coolant
• Use an appropriate coolant containing corrosion inhibitors and biocides
• Particle-containing coolants that may restrict or clog the cooling loop are not recommended
• Leak-test the completed loop with an air pressure tester at a maximum of 0.5 bar for at least one hour before filling
• Check the system regularly for leaks during the first 24 hours after filling
• Maximum specified operating pressure: 0.6 bar

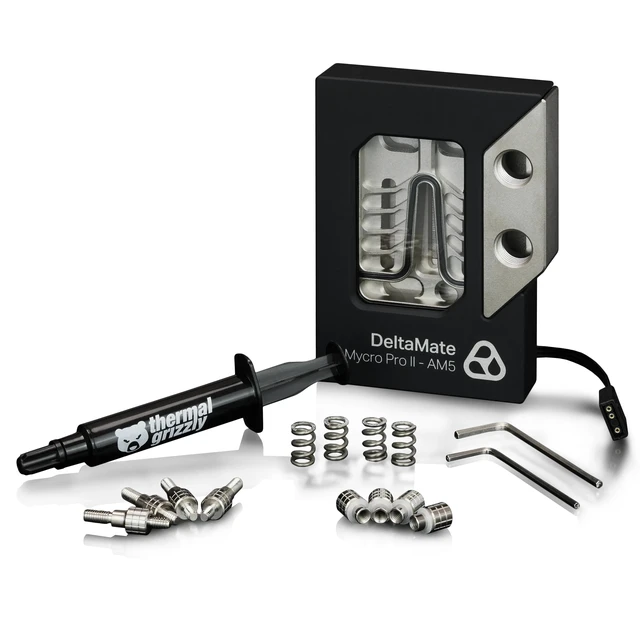

Package Includes

• 1x Thermal Grizzly DeltaMate CPU Block - MPII AM5
• 1x Thermal Grizzly Duronaut Thermal Paste, 6g
• 1x Pressure Test Certificate for 1 Bar
• 1x 2mm Allen Key
• 1x 2.5mm Allen Key
• 4x Knurled Nuts
• 4x #6-32 Standoff Screws
• 4x Steel Springs
• 4x Polyamide M4 Washers
