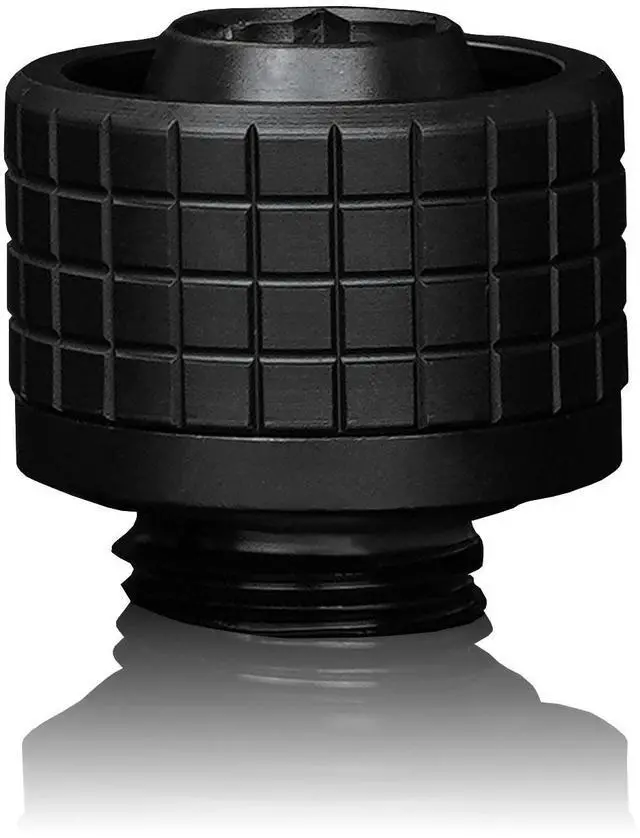

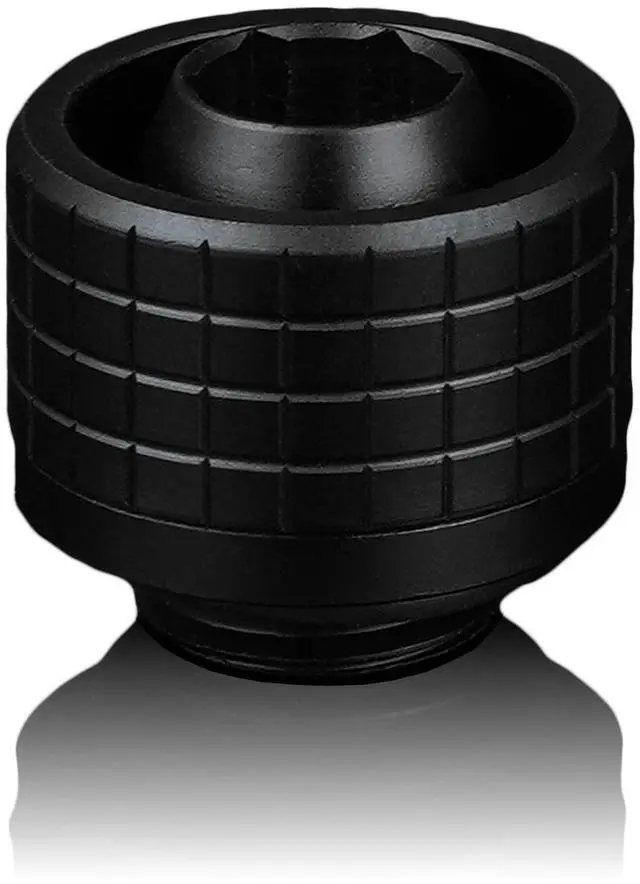

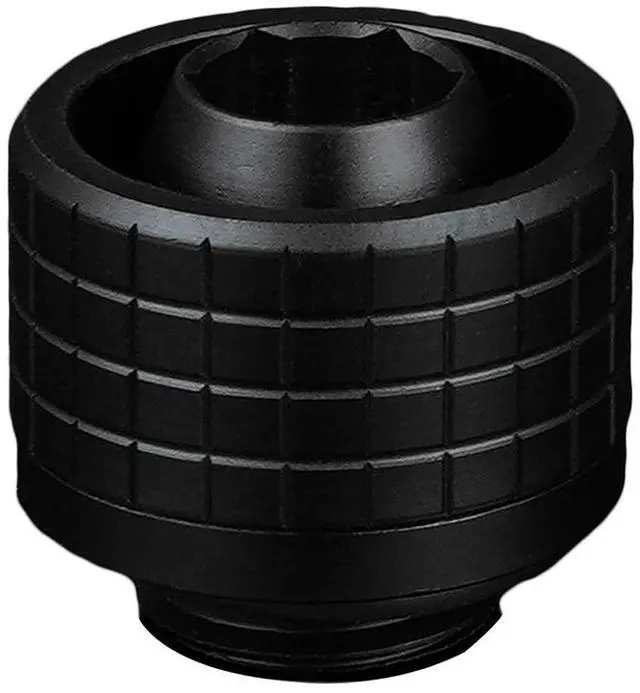

    Thermal Grizzly TG-DM-FIT-0001 DeltaMate ST16 Soft-Tube Water Cooling Compression Fitting G1/4'' Thread, CNC-Machined Brass Matte - Black

    #1 Best Seller
    Best Seller
    in Fittings & Couplings
    • Single tapered barb allows straightforward installation for a wide range of flexible tubes.
    • Knurled compression ring securely grips the tubing with high retention force.
    • Compact overall dimensions facilitate installation in almost any watercooling loop.
    • Consistent outer diameter with all DeltaMate fittings for completely seamless integration.
    • Robust design allows installation with an 8mm hex key.
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

    Thermal Grizzly's DeltaMate 16/10mm SoftTube Compression Fitting ST16 in Black is a G1/4" compression fitting for soft tubes with a 10/16 mm diameter. It also comes in matte nickel and as a 6 pack, and for 13/10 mm soft tubing there is the ST13.

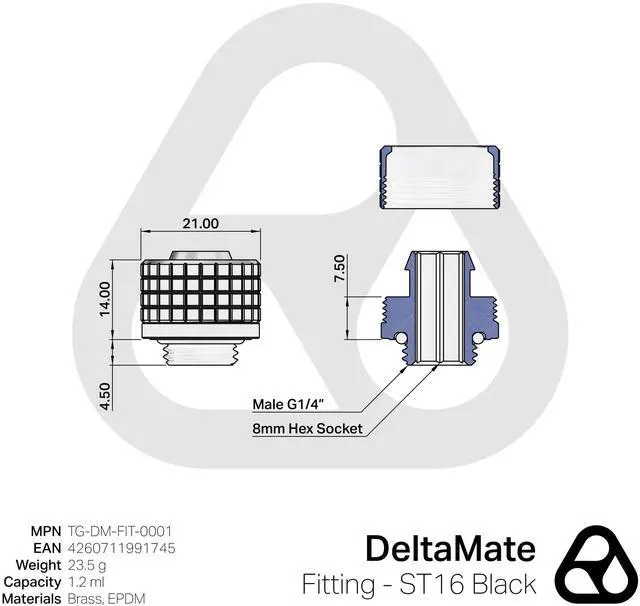

    Properties

    • Tubing: Soft tube, 10 mm inner / 16 mm outer diameter
    • Thread: G1/4" male
    • Material: Brass, matte black chromium
    • O-ring: EPDM
    • Install: 8 mm hex key
    • Weight: 24 g, 26 g boxed

    General information

    DeltaMate fittings are water cooling connectors that Thermal Grizzly designed for the individual components of a custom water cooling loop. They are precisely machined from brass, as expected from Thermal Grizzly quality. Brass is an alloy of copper and zinc. It offers the advantage of being anodically compatible with other metals while being harder and more corrosion-resistant than copper. The sealing rings (O-rings) are made from EPDM (ethylene propylene diene rubber), a highly elastic material which is resistant to ozone and UV radiation. The fittings are coated with matte black chromium, which Thermal Grizzly calls a premium finish that is also easy to clean.

    Tube installation

    The ST16 fitting in black is suitable for soft tubes made of flexible plastics. Its single tapered barb allows straightforward installation for a wide range of flexible tubes. In combination with the barb, a knurled compression ring securely grips the tubing with high retention force, and that allows for easy and secure tube installation.

    Note: Only hoses with a 10 mm inner diameter / 16 mm outer diameter fit this one.

    Fit in the loop

    Installation is done using an 8 mm hex key (8mm), which the robust design of the DeltaMate fittings allows for. The compact overall dimensions facilitate installation in almost any watercooling loop. All DeltaMate fittings share one uniform, consistent outer diameter, which ensures completely seamless integration of the individual components.

    In the box

    • 1x DeltaMate ST16 16/10mm SoftTube compression fitting, black
