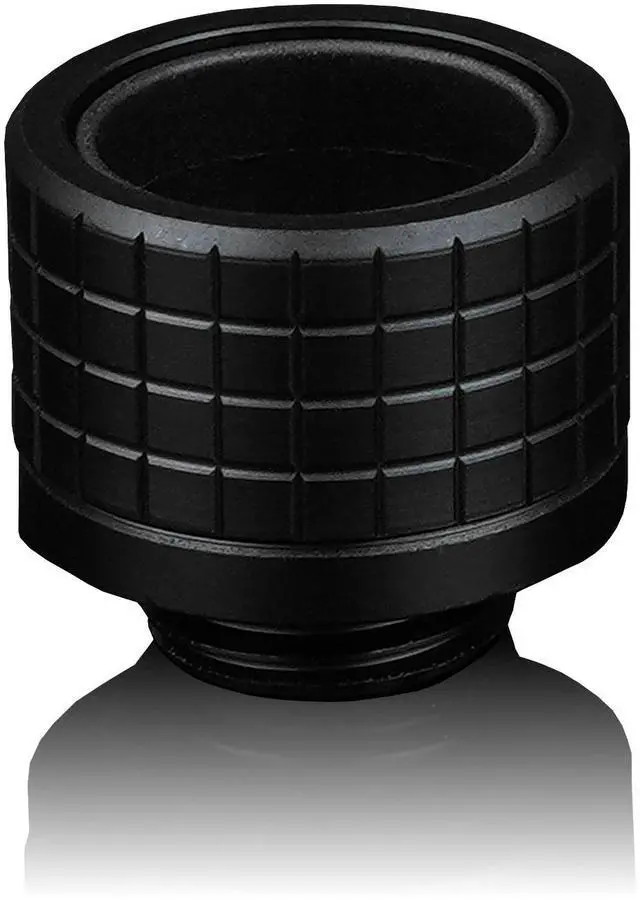

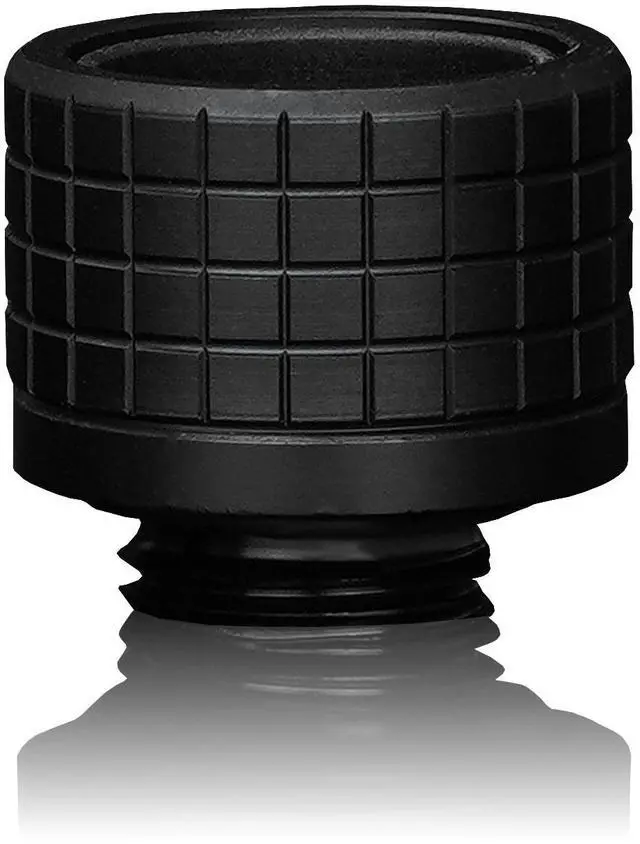

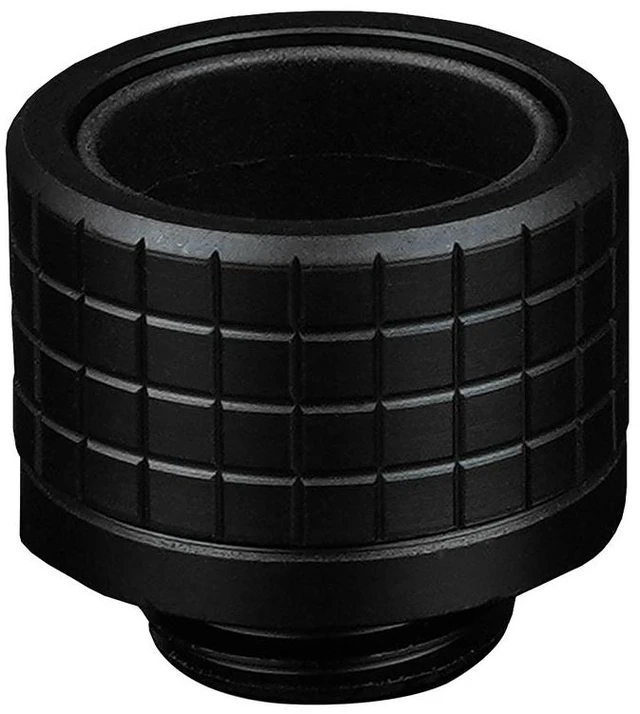

    Thermal Grizzly TG-DM-FIT-0002 DeltaMate HT16 Hard-Tube Water Cooling Fitting G1/4'' Thread, CNC-Machined Brass Matte-Black, Knurled Compression Ring for 16 mm OD Hard Tubing

    • Flat base enables tubing to be installed from any direction with complete visibility.
    • High surface area custom O-ring securely grips the tubing with high retention force.
    • Compact overall dimensions facilitate installation in almost any watercooling loop.
    • Consistent outer diameter with all DeltaMate fittings for completely seamless integration.
    • Robust design allows installation with an 8mm hex key.
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

    Thermal Grizzly's DeltaMate 16mm HardTube Compression Fitting HT16 in Black is a G1/4" compression fitting for hard tubes with a 16 mm outer diameter. It also comes in matte nickel and as a 6 pack, and for 14 mm hard tubes there is the HT14.

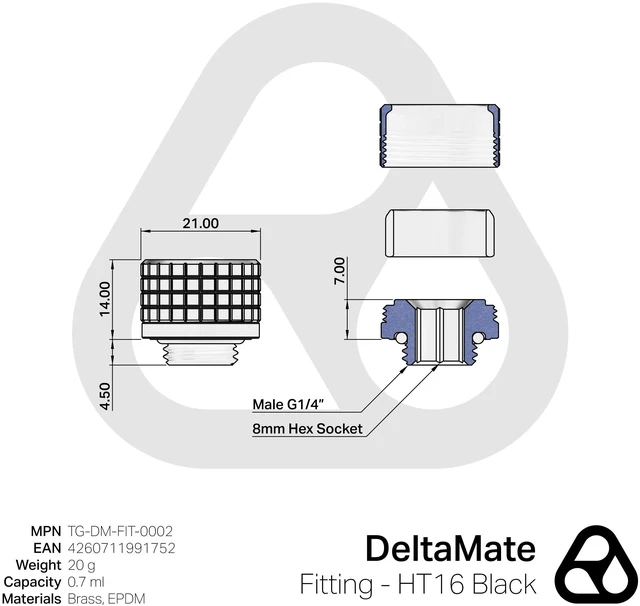

    Properties

    • Tubing: Hard tube, 16 mm outer diameter
    • Thread: G1/4" male
    • Material: Brass, matte black chromium
    • O-ring: EPDM
    • Install: 8 mm hex key
    • Weight: 20 g, 22 g boxed

    General information

    DeltaMate fittings are water cooling connectors that Thermal Grizzly designed for the individual components of a custom water cooling loop. They are precisely machined from brass, as expected from Thermal Grizzly quality. Brass is an alloy of copper and zinc. It offers the advantage of being anodically compatible with other metals while being harder and more corrosion-resistant than copper. The sealing rings (O-rings) are made from EPDM (ethylene propylene diene rubber), a highly elastic material which is resistant to ozone and UV radiation. The fittings are coated with matte black chromium, which Thermal Grizzly calls a premium finish that is also easy to clean.

    Tube installation

    The HT16 fitting in black is designed for tubes (hard tubes) made of rigid plastics or metals. Thermal Grizzly designed it for ease of tube measuring and installation. For this, the tube does not penetrate into the fitting but sits mounted on top of it. That flat base enables tubing to be installed from any direction with complete visibility. A custom O-ring with a high surface area securely grips the tubing with high retention force.

    Note: Only hard tubes with 16mm outer diameter fit this one.

    Fit in the loop

    Installation is done using an 8 mm hex key (8mm), which the robust design of the DeltaMate fittings allows for. The compact overall dimensions facilitate installation in almost any watercooling loop. All DeltaMate fittings share one uniform, consistent outer diameter, which ensures completely seamless integration of the individual components.

    In the box

    • 1x DeltaMate HT16 16mm HardTube compression fitting, black
