Thermal Grizzly TG-DM-FIT-0004 DeltaMate Rotary T Fitting G1/4 Male + Dual Female Tee Connector for Custom PC WaterCooling-Black

Thermal Grizzly's DeltaMate Rotary Fitting - T - Black is a T-shaped rotary fitting for custom water cooling loops, with one male and two female G1/4" threads. The same fitting comes in matte nickel.

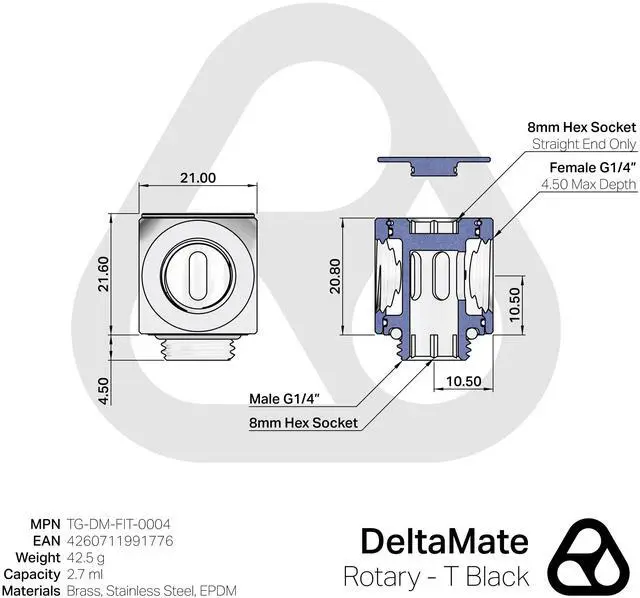

Properties

• Shape: T rotary
• Threads: G1/4", 1 male and 2 female
• Thread depth: 4.5 mm maximum
• Material: Brass, matte black chromium plating
• Install: 8mm hex key, straight end
• Weight: 43 g, 45 g boxed

Threads and combinations

The fitting has one male and two female G1/4" threads. Its small dimensions allow modular combination with other DeltaMate Rotary fittings and, due to the compact size, with Extender Fittings such as the MF7. Subsequent fittings also secure it: when using additional ones, they mechanically lock the rotary joint together for maximum security. The box includes an optional aesthetic cover with the DeltaMate logo. The included cover can be rotated to any orientation. Note the maximum thread depth: 4.5mm! The other Rotary shapes in black are the 90°, the FF90° and the 45°.

General information

DeltaMate Rotary Fittings are the water cooling connectors Thermal Grizzly designed for the individual components of a custom water cooling loop. As expected from Thermal Grizzly quality, the fitting is precisely machined from brass. Brass is an alloy of copper and zinc. It offers the advantage of being anodically compatible with other metals while being harder and more corrosion-resistant than copper. The sealing rings (O-rings) are made from EPDM (ethylene propylene diene rubber), which is highly elastic and resistant to ozone and UV radiation. The finish takes the form of a matte black chromium plating that is premium in appearance, in Thermal Grizzly's words, and also easy to clean.

Installation

The robust design allows for installation using an 8 mm hex key, which makes the fitting easy to install in tight places and SFF builds. Thermal Grizzly notes that this requires an 8mm Straight End Hex Key. All DeltaMate fittings share one uniform outer diameter, which ensures seamless integration of the individual components. The elegant and minimal design of the rotary integrates seamlessly with all of them.

In the box

• 1x DeltaMate Rotary T fitting, black
• Optional cover with DeltaMate logo
