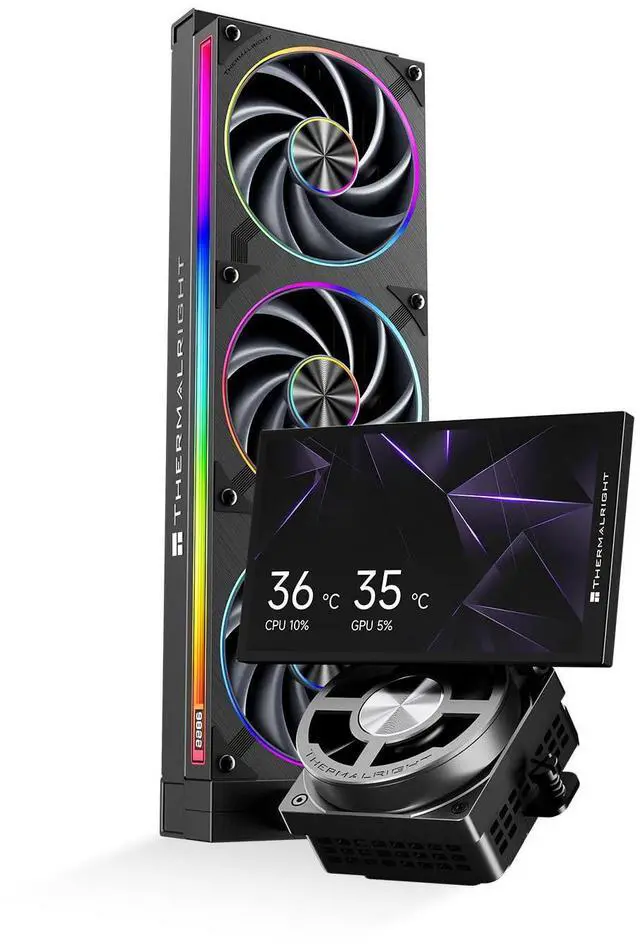

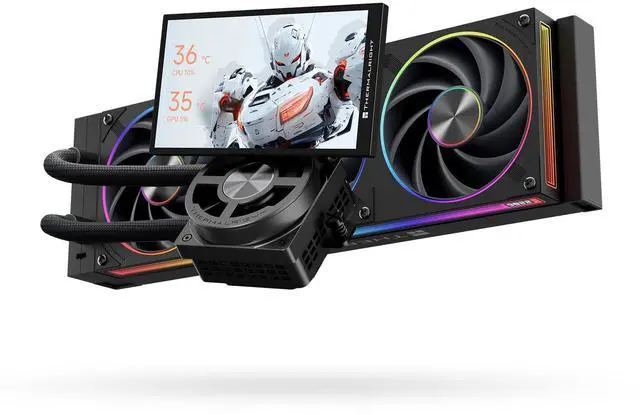

Thermalright Dynamic Vision PRO 360 ARGB AIO CPU Cooler, 5.5" Screen, Black

Thermalright Dynamic Vision PRO 360 ARGB is a 360mm all-in-one liquid CPU cooler designed for high-end gaming and showcase PC builds. It combines a 5.5-inch magnetic display, a 6400RPM high-speed pump, a dedicated pump-block cooling fan, and the TL-UC36 integrated 360mm ARGB fan module in one cooling system.

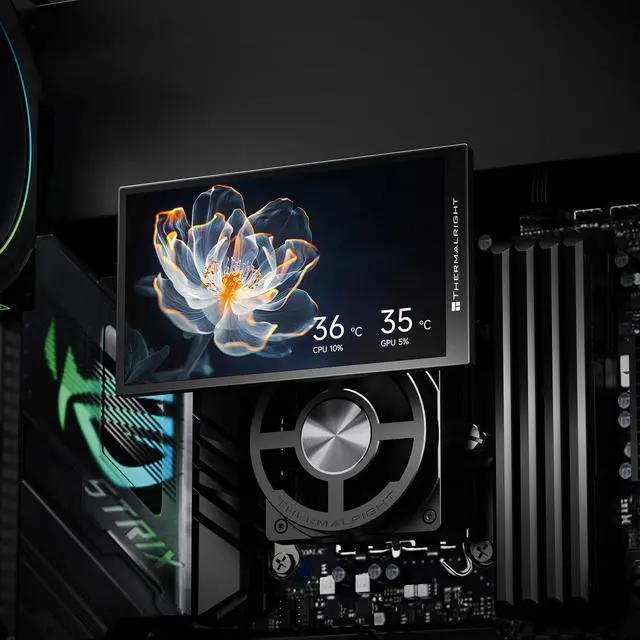

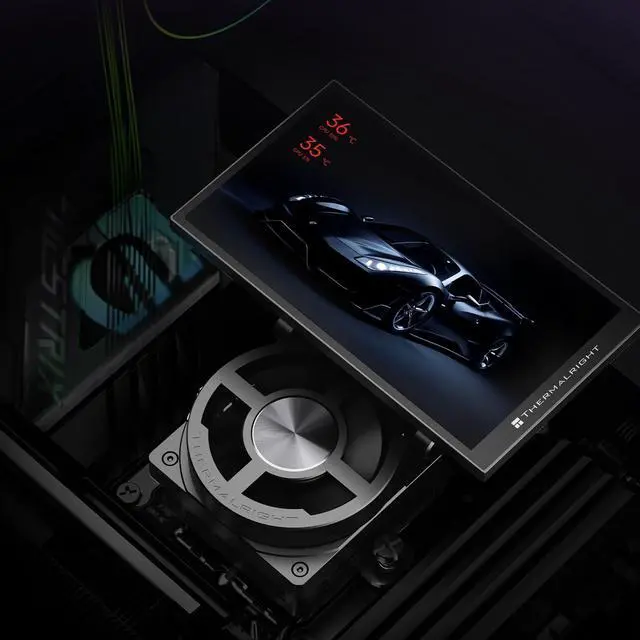

5.5-Inch Magnetic Display

The 960 × 540 display attaches magnetically to the pump block and can be detached, rotated, and angle-adjusted to suit different case layouts and viewing positions. Connected through an internal 9-pin USB header, the display works with Thermalright TRCC software on Windows 10 and Windows 11. It can show CPU and GPU temperature and usage information while supporting custom themes, images, GIFs, and videos.

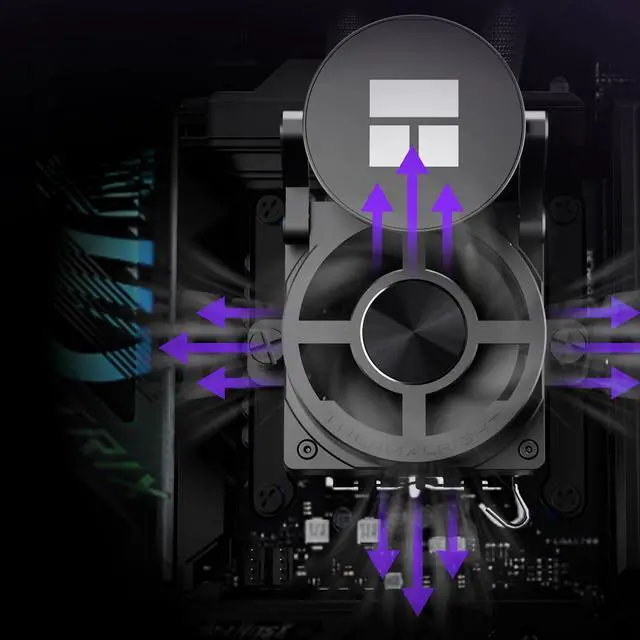

Pump-Block Auxiliary Cooling Fan

In addition to the liquid cooling loop, Dynamic Vision PRO 360 ARGB integrates a dedicated fan directly into the pump head. The auxiliary fan runs at up to 2500RPM with 20.8CFM airflow and 2.3mmH2O static pressure, adding airflow around the CPU socket area and surrounding motherboard components.

6400RPM High-Speed Pump

The pump operates at up to 6400RPM and is designed to maintain rapid coolant circulation through the cooling loop. Combined with the 360mm aluminum radiator and dedicated pump-block airflow, the cooling system is built for performance-focused desktop configurations.

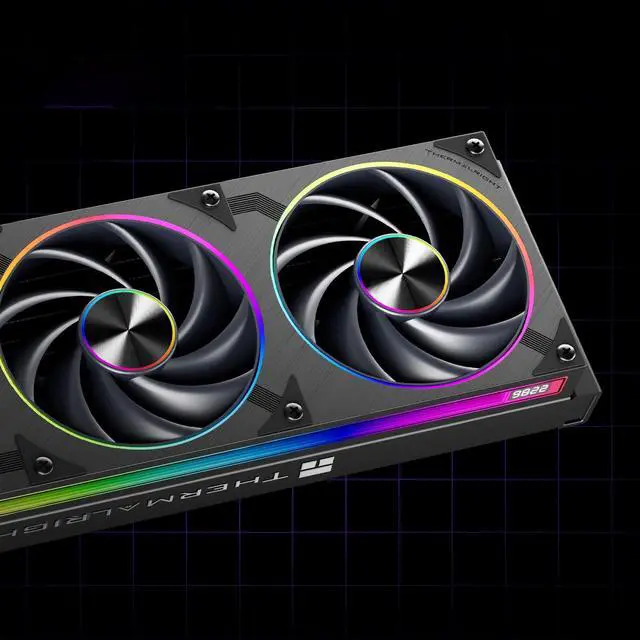

TL-UC36 Integrated 360mm Fan Module

The radiator uses Thermalright's TL-UC36 one-piece 360mm fan assembly instead of three separately mounted fans. The integrated design keeps the three fans aligned while simplifying installation and cable routing. Only one 4-pin PWM connection and one 3-pin 5V ARGB connection are required for the fan module, with support for compatible motherboard lighting synchronization.

Each TL-UC36 fan operates at up to 2400RPM and delivers up to 71.5CFM airflow with 2.69mmH2O static pressure. S-FDB V2 bearings support stable operation, while the 360mm fan module pairs with a 402 × 120 × 27mm aluminum radiator.

Intel and AMD Platform Support

Compatible with Intel LGA115X, LGA1200, LGA1700 and LGA1851 sockets, as well as AMD AM4 and AM5 platforms. Please confirm that your PC case supports a 360mm radiator before installation.

Technical Specifications

Model: Dynamic Vision PRO 360 ARGB BLACK

Product Type: 360mm AIO Liquid CPU Cooler

Color: Black

Pump Dimensions: 69 × 76 × 92mm

Pump Rated Speed: 6400RPM ±10% Max

Pump Rated Voltage: 12V DC

Pump-Block Fan Speed: 2500RPM ±200RPM Max

Pump-Block Fan Airflow: 20.8CFM Max

Pump-Block Fan Static Pressure: 2.3mmH2O Max

Pump-Block Fan Connector: 4-Pin PWM

Radiator Dimensions: 402 × 120 × 27mm

Radiator Material: Aluminum

Display Size: 5.5 Inches

Display Resolution: 960 × 540

Display Connection: Internal 9-Pin USB

Display Software: Thermalright TRCC

Operating System: Windows 10 / Windows 11

TL-UC36 Fan Specifications

Structure: Integrated One-Piece 360mm Fan Module

Dimensions: 360 × 120 × 25mm

Rated Speed: 2400RPM ±10% Max

Airflow: 71.5CFM Per Fan Max

Static Pressure: 2.69mmH2O Max

Noise Level: 34.59dBA Max

Connector: 4-Pin PWM

ARGB Connector: 3-Pin 5V

Bearing Type: S-FDB V2 Bearing

CPU Socket Compatibility

Intel: LGA115X / LGA1200 / LGA1700 / LGA1851

AMD: AM4 / AM5

Package Contents

Dynamic Vision PRO 360 ARGB Liquid Cooler

TL-UC36 Integrated 360mm Fan Module

Intel Mounting Hardware

AMD Mounting Hardware

Thermal Paste

USB Cable

PWM and ARGB Cables

Installation Manual

Warranty

5 Years
