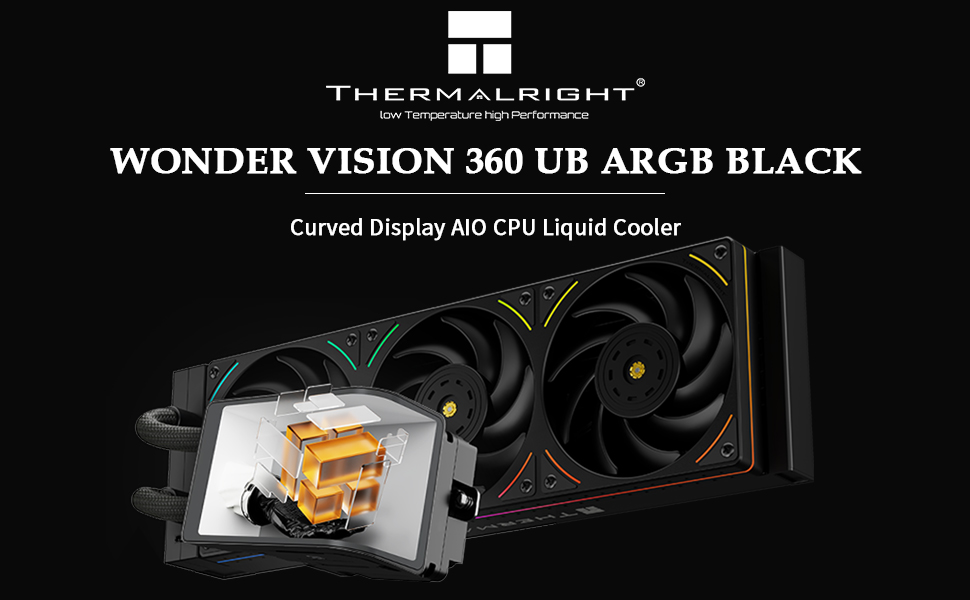

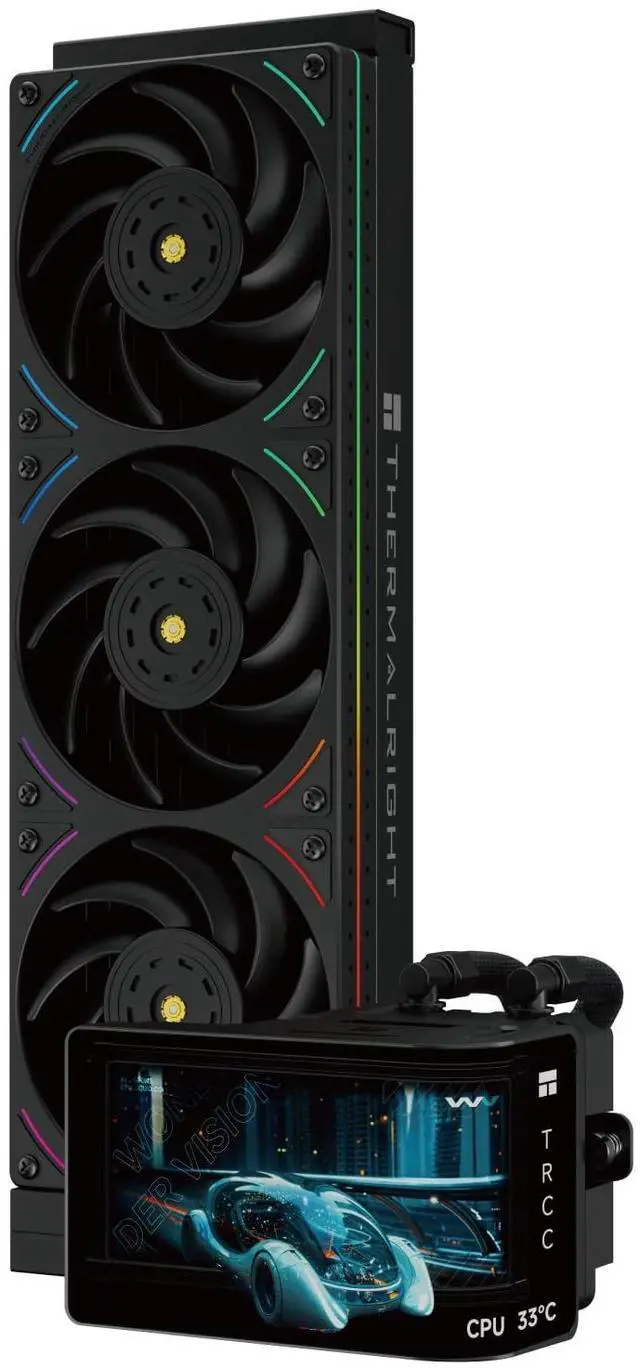

Thermalright Wonder Vision 360 UB ARGB Black CPU AIO Liquid Cooler - Rotatable 6.67'' Curved Screen 3D Effect, 2K Resolution, 2150RPM TL-UB36 Fans, for AM4/AM5 & Intel 1700/1851

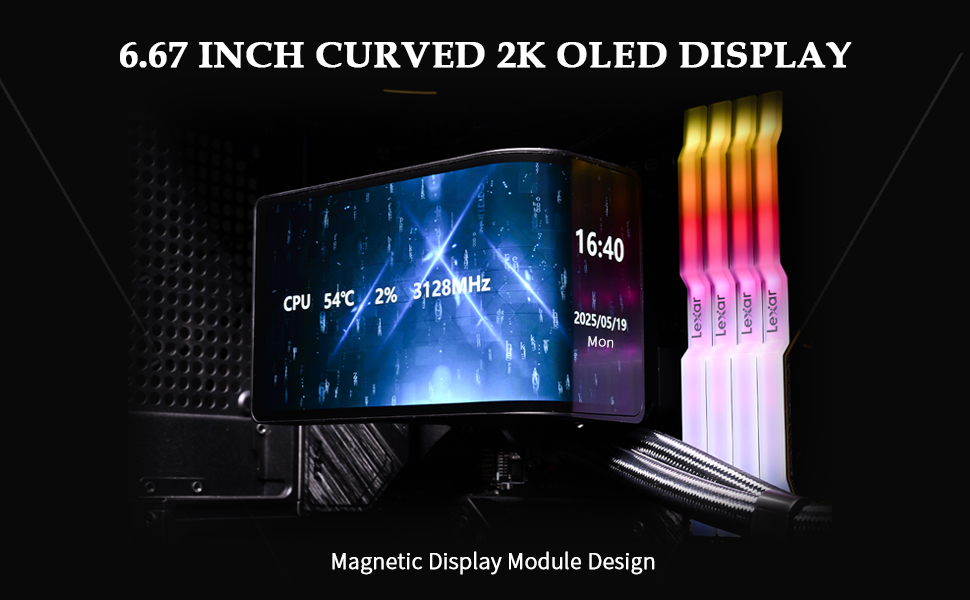

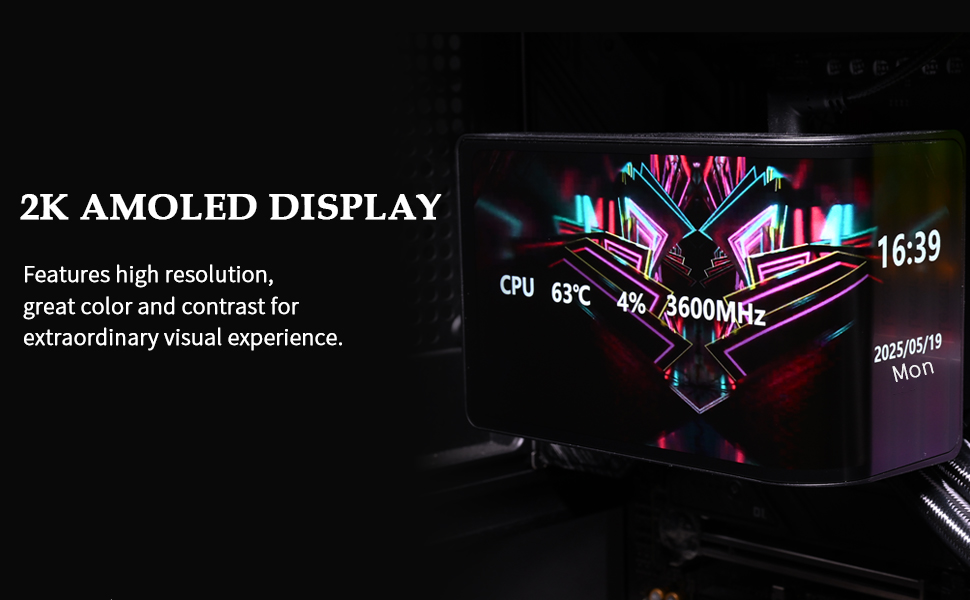

- ROTATAVLE AND CUSTOMIZABLE 6.67'' CURVED SCREEN: Thermalright Wonder Vision 360 UB ARGB Black CPU water cooler equipped with a large 6.67'' Curved Screen 3D Anamorphic Effect, which features sharp 2400*1800 pixel resolution provides a visually stunning view in PC case.
- ALL-IN-ONE FAN DESIGN:2150RPM TL-UB36 fans streamlines installation and lighting controlReduce wiring clutter,no need to connect individual fans.
- NEW DESIGN PUMP: Accumulating several generations of solutions and recasting new structure, give efficient heat transfer, and optimized pump design features a strong nine-pole rotor motor, new fluid impeller that rotates up to 6400RPM while staying under a quiet 27. dB(A).
- LIQUID LEAK PROOF: Thermalright AIO water cooling system all adopt the brand's patented anti-leak technology.
- COMPATIBILITY: Quick and simple installation on the latest Intel and AMD motherboard sockets Intel:LGA1851/1700/1200/115X/2011/2066, AMD:AM4/AM5.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

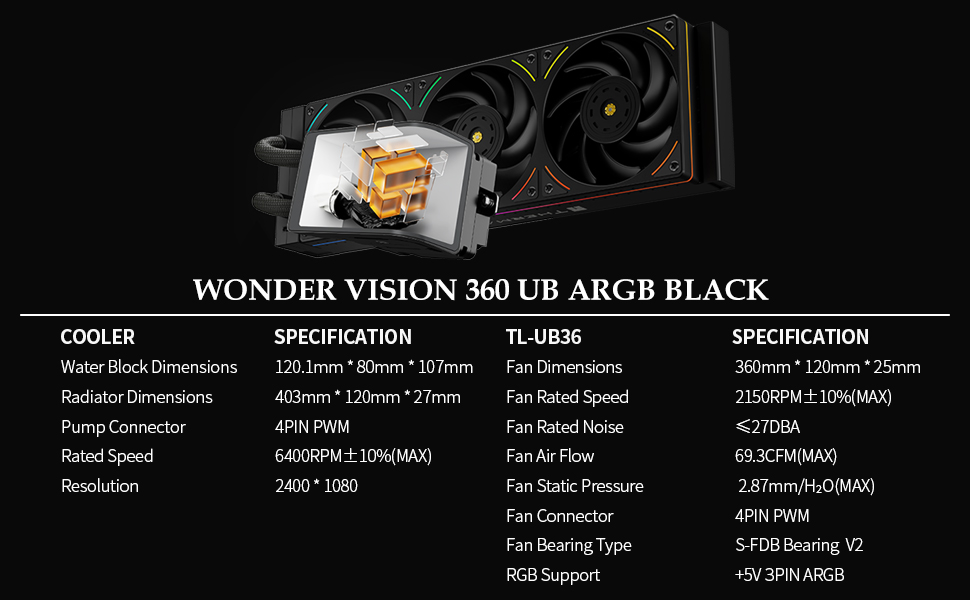

Specification:
Pump Dimensions120.1 mm x 80 mm x 107 mm
Radiator Dimensions403 mm x 120 mm x 27 mm
Tube Length: 400MM
Pump Speed6400 RPM±10% (MAX)
Screen Resolution2400*1800
Screen Size: 6.67inch
Pump Rated Voltage12V DC
Connector4 PIN PWM
RadiatorAluminum
Warranty: 6 year
FAN Description
TL-UB36 (Daisy-Chain Connection)
DimensionL360 mm x W120 mm x H25 mm
Rated Speed2150 RPM±10% (MAX)
Noise Level27 dBA (MAX)
Air Flow69*3 CFM (MAX)
Air Pressure2.87 mm H2O (MAX)
Connector4 PIN PWM
RGB Support : +5V ADDRESSABLE RGB
Bearing TypeS-FDB Bearing
CMPATIBILITY
AMD: AM5/AM4/
IntelLGA1851/1700/1200/115X/2011/2066
Pump Dimensions120.1 mm x 80 mm x 107 mm
Radiator Dimensions403 mm x 120 mm x 27 mm
Tube Length: 400MM
Pump Speed6400 RPM±10% (MAX)
Screen Resolution2400*1800
Screen Size: 6.67inch
Pump Rated Voltage12V DC
Connector4 PIN PWM
RadiatorAluminum
Warranty: 6 year
FAN Description
TL-UB36 (Daisy-Chain Connection)
DimensionL360 mm x W120 mm x H25 mm
Rated Speed2150 RPM±10% (MAX)
Noise Level27 dBA (MAX)
Air Flow69*3 CFM (MAX)
Air Pressure2.87 mm H2O (MAX)
Connector4 PIN PWM
RGB Support : +5V ADDRESSABLE RGB
Bearing TypeS-FDB Bearing
CMPATIBILITY
AMD: AM5/AM4/
IntelLGA1851/1700/1200/115X/2011/2066
