Question 1

Is this fan used for in-take of out-take? Thanks!

Accepted Answer

It can be used for either. I personally used it for intake. It is on a NZXT Source 530 full tower. It provides cooling for my hdd's as out pulls air into the case, and its even helping the liquid cooler buy pushing air into the radiator the intake fan. Works great and is very quiet compared to other fans. For the price though, this fan's a great addition to any case that can fit it. I zip tied mine in place since I do not plan to move it.

Question 2

Will this fan fit in the front fan space on a Thermaltake a71, I would like to replace the plain black fan with a led. It says the fan that comes with the case is 200x200x20, says this one is 200x200x30. 10mm difference will fit? maybe?

Accepted Answer

Here are the specs from Thermaltake web site on Chaser A71.  Hope yours is the same.

It says that the  Front (intake) :
200 x 200 x 30 mm fan (600rpm, 13dBA)

DesignGallerySpecificationSupportReviews

Case TypeFull Tower
Dimension (H x W x D)537 x 221 x 565mm (21.1 x 8.7 x 22.2 inch)
Net Weight10 kg/22.1 lb
Side PanelTransparent Window
ColorExterior & Interior : Black
MaterialSECC
Cooling SystemFront (intake) :
200 x 200 x 30 mm fan (600rpm, 13dBA)
Rear (exhaust) :
120 x 120 x 25 mm Turbo fan (1000rpm,16dBA)
Top (exhaust) :
200 x 200 x 30 mm Blue LED fan (600rpm, 13dBA)
Side (intake):
200 x 200 x 20 mm Blue LED fan (600rpm, 13dBA)
Bottom (intake) : (Optional)
120 x 120 x 25 mm or 140 x 140 x 25 mm
Drive Bays- Accessible : 3 x 5.25’’, 1 x 3.5’’
- Hidden : 5 x 3.5’’ or 2.5’’
- HDD Docking : 1 x 3.5” or 2.5”

Expansion Slots8
Motherboards9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (Extend ATX)
I/O PortsUSB 3.0 x 2, USB 2.0 x 2, HD Audio x 1
PSUStandard PS2 PSU (Optional)
LCS UpgradableSupports 1/2”?3/8”?1/4” water tube
RadiatorTop: 1 x 120mm or 2 x 120mm
Rear: 1 x 120mm
OtherCPU cooler height limitation: 160mm
VGA length limitation: 344 mm

Question 3

Is this fan used for in-take or out-take? Thanks!

Accepted Answer

I bought them for either, at the moment I replaced the side intake fan of my Haf-X case with this fan.  It works as advertise, I would purchase again.

Question 4

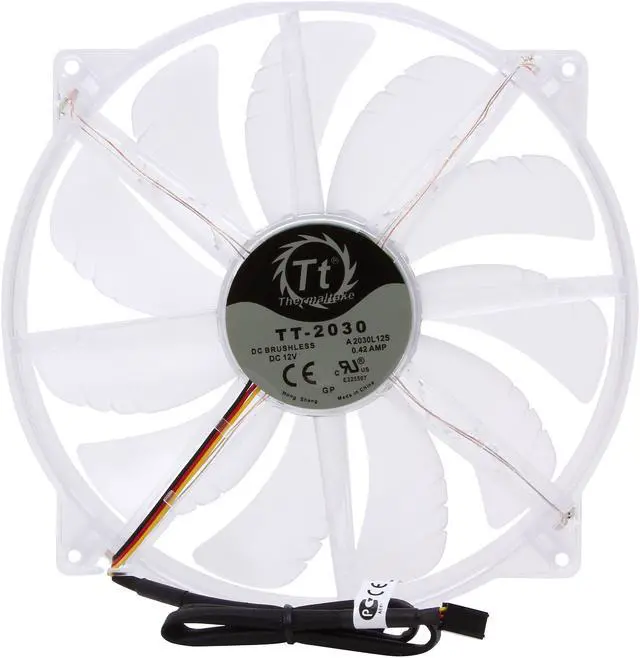

Does the label on the back of this fan (not the packaging) read "A203012S"?

Is the label on the back of the fan EXACTLY, completely  identical to the 200 mm fans that ship with the Thermaltake Core V71 case?

Accepted Answer

Yes!! I don't understand why this fan is only blue but the one that comes with the case changes different colors. The labels are exactly the same. It doesn't bother me too much but it would be nice if this did the same as the one that was pre-installed

Question 5

what code is required to buy the longer screws which would pass through the fan's corners to connect it to the case? I prefer using the long screws instead of the short ones provided but do not know the code to order them. Thanks in advance.

Accepted Answer

Sorry but I don't know I used the screws that came with the fan.

Question 6

Can this be used as a replacement for the 230mm top, side or front fans in the Coolermaster HAF 932 case?

Accepted Answer

i really used for a solar ac bucket, is quiet  i but 4 of this and i got 2 on used for replacement  i pay 19.99 plus shipping  i  sale to you if you like  e mail me    caserio1027  at aol com    is a good item  i did the email like this so u can get it  this ancer system  don lead me do e mails  take care  att hector

Question 7

Will this fit the thermaltake overseer rx-i?

Accepted Answer

Yes.  It will fit the front or both top exhaust locations.

Question 8

What type and size of screw is needed for this in order for it to be secured to your Thermaltake Chaser case? The thermaltake Chaser case has 200 MM fans already and I took 2 of the screws from that in order to secure this fan. It does come with traditional screws however, I need screws that insert from the top and can be easily screwed into the case. Please let me know so I can buy the types of screws I need.

Thanks!

Accepted Answer

I also used the screws from the stock fan. I installed the screws on the top, on opposite corners to each other for stability. I have used it this way since I installed the fan, so far with no noticeable vibrations. If you feel you need all four screws you could take a screw to your local hardware store or contact thermal take directly.  I hope this helped.

Question 9

Will this work as a replacement fan for a thermal take armor a90?  Thermal take claims the original fan to be a 200mm.  I purchased another 200mm fan.  Which does not fit.  Its not even close.

Accepted Answer

As far as I can tell, these fans do fit properly but are lacking the extra screw holes for mounting... I personally had to use a drill and small bit to get mine to mount properly.

Question 10

Will this fan work on a Thermaltake Armor+MX VH8000BWS with the screws that come with the fan?

Accepted Answer

Hello,

Thank you for contacting us in regards to your question.
No, it will not fit. The Thermaltake Armor+MX uses a 230mm fan.

Thank you,
Newegg Support

Brand	Thermaltake
Model	CL-F016-PL20BU-A

Fan Counts	1 Fan
Fan Controller	No Controller
Type	Case Fan
Compatibility	Case
Fan Size	200 mm
Fan Thickness	30mm
RPM	800 R.P.M
Air Flow	129.639 CFM
Noise Level	28.2 dB-A
Power Connector	3 Pin
Color	Blue
LED	Blue

Meet Your Seller

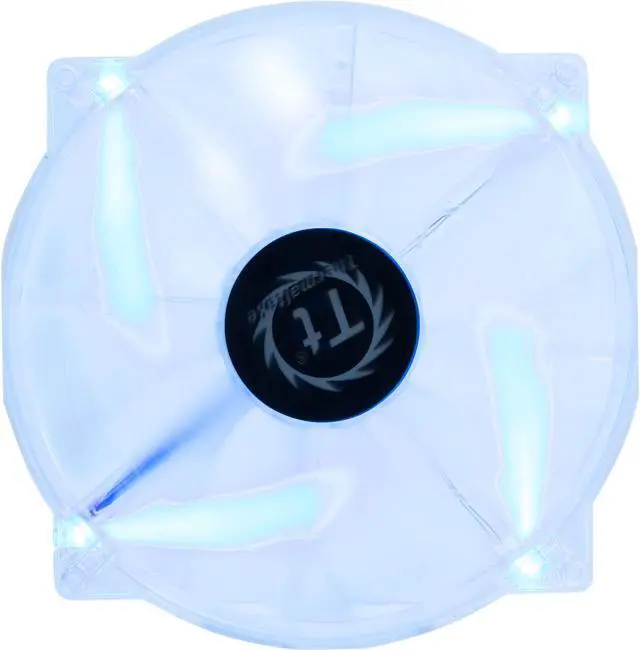

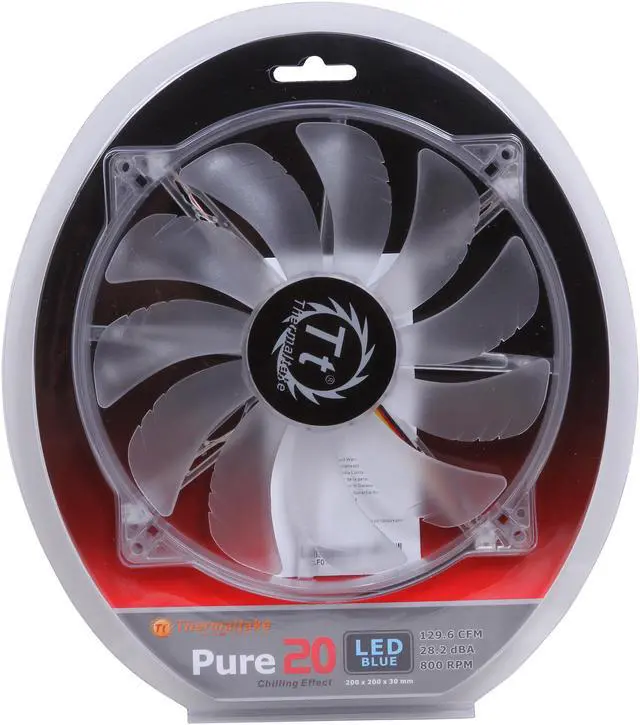

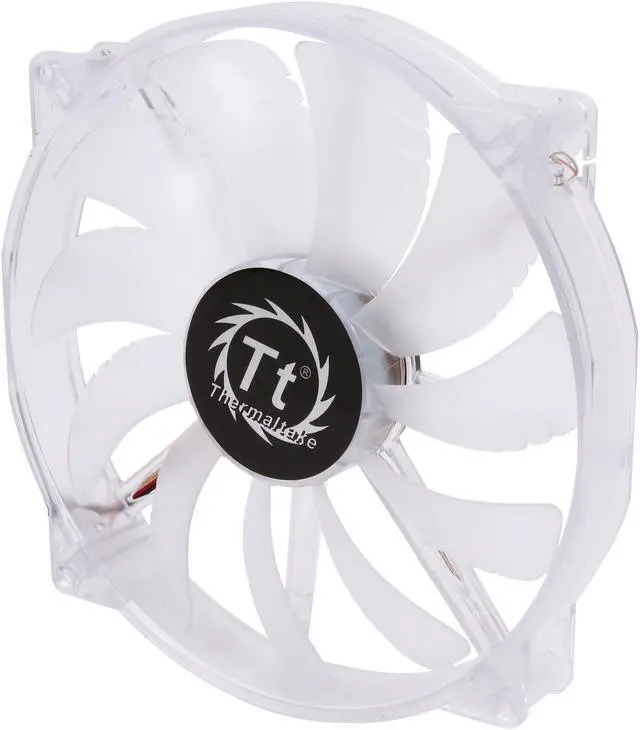

Thermaltake CL-F016-PL20BU-A 200 mm Blue LED Pure Series Quiet High Airflow Case Fan
