Will this cpu cooler fits on my z170 ?

This question would be better answered by your motherboard manufacturer. Technically, this cooler will fit all i7 processors, but there are sometimes issues with placement of ram and cooling devices on specific motherboards. In addition, this thing is HUGE and potentially LOUD. minimum fan speed is 1200 rpm and we are talking two fans at that speed. When it ramps up to full speed it sounds like twin jet turbines, so if noise bothers you, well... Did I mention this thing is HUGE? I wear a headset so the noise does not bother me at all.

can this fit on a sabertooth fx rev2 with a fx8350 ? and a gtx770 cm stryker full tower

There are two universal mounts in it, one for amd and one for Intel. It should mount no problem. The cooler itself is approximately 6.5 inches cubed with the fans on it. And it suits about three inches off the motherboard. You will ABSOLUTELY need low profile memory

Will this fit a LGA 1150 socket.?

The cooler mounts are the same for both sockets. The problem here is size. This cooler is very tall and will not fit a standard mid-tower or full tower case due to how tall it sits on the MB. Also, if your ram is close to the socket you will not be able to use any memory that has cooling fins on top. I just took the cooling fins off of my corsair memory and ran it without the fins. I kind of think the fins are just for show anyway since they are mounted to the memory with double-sided sticky tape that acts as an insulator between the fins and the memory. I am also using a Blackhawk ultra case.

is the airflow 106 cfm per fan or for the cooler as a whole?

I believe that is total unit. I don't use the fan anymore because it is huge. I do recommend Thermal Take in general.

How much space is between the 2 sets of fins?

Between the tower fins, I would say spacing would be about 25mm, or close to 1 inch, or slightly more since the fins are a little flexible. The fan dimensions that comes with this are 140mm x 140mm x 25mm.

will this fit an asus z97m plus 1150 motherboard?

Larry, I have a z79 deluxe and this heatsink fit, although it covered almost all of the ram slots.

GIGABYTE X870E AORUS ELITE X3D ICE AM5 AMD X870E ATX Motherboard

(3)

$359^.99 –
Save: 7%

$74^.99

Free 30-day Returns

Limit 99999 per customer.

Sold by Thermaltake

Top Rated

4.1 (926 seller ratings)

Shipped by Thermaltake

Price alert

Add to Wish List

Meet Your Seller

Thermaltake

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

Thermaltake CLP0587 140mm CPU Cooler

(14) Write a Review

1200-1800 RPM
106.2 CFM
Aluminum Fins, Aluminum & Copper Base

Overview

Specs

Reviews (14)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Frio Extreme

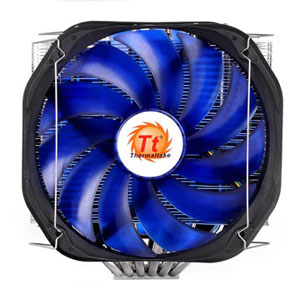

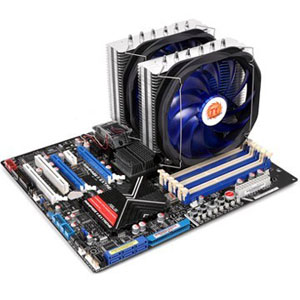

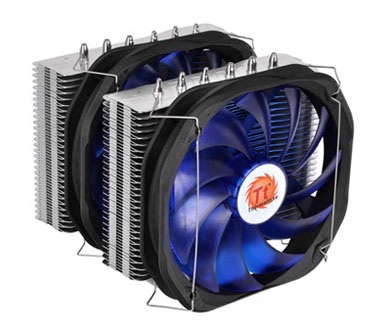

Keep your system in top condition and maximize the life of your CPU with the Thermaltake Frio Extreme CLP0587 140mm CPU Cooler. It features dual-tower heat-sink with 0.4mm aluminum fins, six pieces of ⌀ 6mm U-shaped copper heatpipes, and a mirror-finished copper base, delivering rapid, highly effective heat dissipation. It comes equipped with two high-performance 140mm fans to produce voluminous airflow to maximize cooling performance. And the fans offer the combination of VR mode and PWM Control Function, striking a perfect balance between airflow performance and noise level. Plus, it provides great socket compatibility with both Intel and AMD platforms.

Detailed Feature

Constructed for Overclocking with Support for up to 250W TDP

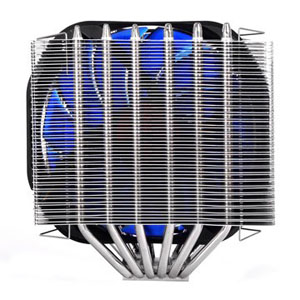

Dual-tower heatsink with 0.4mm aluminum fins provide large surface for heat dissipation.
6 x ⌀ 6mm U-shaped copper heat pipes accelerate heat conductivity.
The mirror-finished copper base provides perfect contact with CPU.
Premium thermal grease maximizes heat transfer from CPU onto the copper base for faster dissipation.

The Combination of VR and PWM Control Function Fan

With high spin speeds from 1,200 to 1,800RPM, the included dual 140mm blue blade fans generate a large volume of airflow, achieving optimal cooling performance.
You can choose the PWM function or VR (manual fan controller) mode to fulfill from the silent operation to high performance operation.
Tool-less and easy installation design for quicker disassemble and assemble of the fan module.

Universal Socket Compatibility & Accessory Package

All-in-one back-plate design
Support for all Intel and AMD platform
Universal socket support:

- Intel: LGA 2011, 1366, 1155, 1156, 775

- AMD: FM1, AM3+, AM3, AM2+, AM2

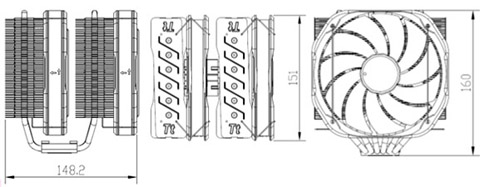

Dimension

general information

Installation

Intel Motherboard Installation

Step 1

Insert the four long screws through the back-plate into the four holes on the motherboard and secure them with the four plastic spacers evenly.

Step 2

Put the two Intel mounting bars along with the four long screws and secure them with the four nuts.

Step 3

For LGA2011: Screwing the LGA 2011 screw onto motherboard tightly and put the two Intel mounting bars on the LGA 2011 screws. Fasten the four nuts onto the mounting bars tightly.

Step 4

Install the fan clips onto the heat-sink separately.

Step 5

Applying a thin layer of thermal grease onto the CPU.

Step 6

Screw the heat-sink onto the motherboard with the mounting plate tightly.

Step 7

Fix the two fans onto the heat-sink with fan clips separately.

Step 8

Connect two fan cords to the controller close to the VR Knob. Link the power cord to the CPU FAN slot and the right slot of the controller.

Step 9

Connect the 4-pin wire of controller to the motherboard's CPU fan connector. Installation is done.

AMD Motherboard Installation

Step 1

Insert the four long screws through the back-plate into the four holes on the motherboard and secure them with the four plastic spacers evenly.

Step 2

Put the two AMD mounting bars along with the four long screws and secure them with the four nuts.

Step 3

Install the fan clips onto the heat-sink separately.

Step 4

Apply a thin layer of thermal grease onto the CPU.

Step 5

Screw the heat-sink onto the motherboard with the mounting plate tightly.

Step 6

Fix the two fans onto the heat-sink with fan clips separately.

Step 7

Connect two fan cords to the controller close to the VR Knob. Link the power cord to the CPU FAN slot and the right slot of the controller.

Step 8

Connect the 4-pin wire of controller to the motherboard's CPU fan connector. Installation is done.

Model
Brand	Thermaltake
Series	Frio Extreme
Model	CLP0587

Details
Color	Blue Fans
Type	Fan & Heatsinks
Fan Size	140mm
CPU Socket Compatibility	AMD Socket AM2 / AMD Socket AM2+ / AMD Socket AM3 / AMD Socket AM3+ / AMD Socket FM1 / AMD Socket FM2 / Intel LGA 1150 / Intel LGA 1151 / Intel LGA 1155 / Intel LGA 1156 / Intel LGA 1366 / Intel LGA 2011 / Intel LGA 2011-v3 / Intel LGA 2066 / Intel LGA 775 / 771
RPM	1200-1800 RPM
Air Flow	106.2 CFM
Noise Level	39 dBA (Max)
Power Connector	4 Pin
Heatsink Material	Aluminum Fins, Aluminum & Copper Base
Fan Mounting Types to Heatsink	Horizontal

Dimensions & Weight
Max CPU Cooler Height	160 mm
Fan Dimensions	140(L) x 140(H) x 25(W) mm
Weight	1230g

Features
Features	Heatpipe: 6mm x 6 PCS Power: Rated Voltage: 12 V Rated Current: 0.5 A Power Input: 7.2 W Ultimate Over-clocking Design Structure, support up to 250W The Combination of VR and PWM Control Function Fan Universal Socket Compatibility & Accessory Package.
