This LED strip does not include power supply, do you have any good recommendations?
For the power supply, you can use our 5V 3A or 4A power supply; ASIN(B078RXZM4C).
This LED strip does not include controller, do you have any good recommendations?

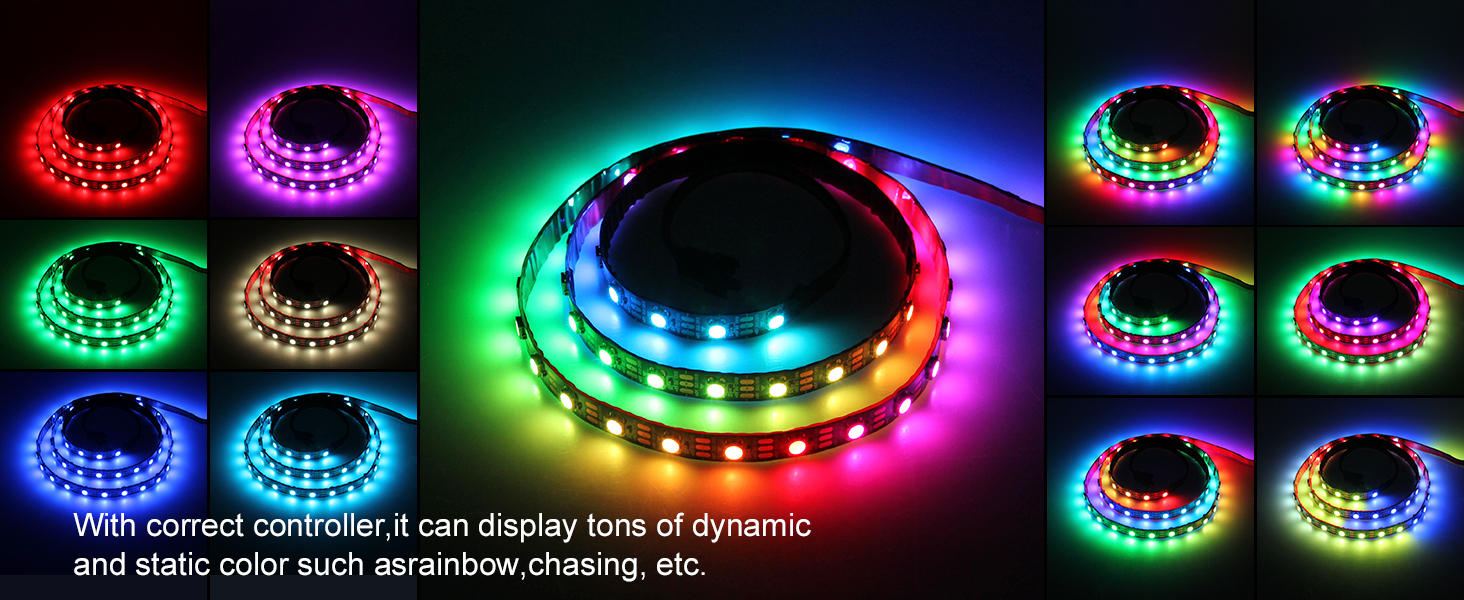

A: For the controller, your can use our SP105E SP601E SP611E bluetooth app controllers, SP107E music controllers, SP108E smart WiFi Controllers; ASIN(B01LW1J10W, B089Q4TW3J, B0CCNNG1ZX, B07H15ZC8D, B07DDB6JHJ)
If one pixel dies, does the rest still work? Or only the ones before the dead pixel?
Just cut off the bad pixels and reconnect them, and the rest can work normally.
More Choice Available

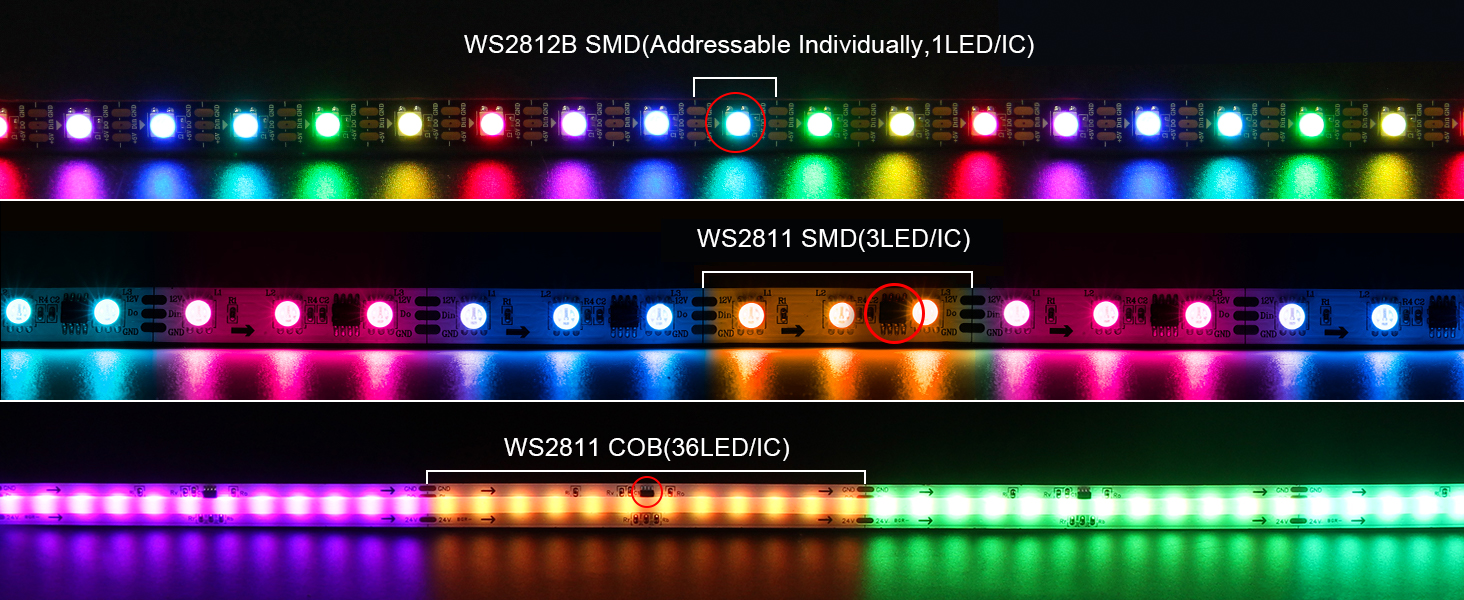

 1M WS2812B 60LEDs IP20 |  1M WS2812B 144LEDs IP20 |  2M WS2812B 120LEDs IP20 |  5M WS2812B 150LEDs IP20 |  2160LEDs COB LED Strip |  5M WS2815 300LEDs IP20 |  WS2811 LED pixel Lights | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
Input Voltage | DC5V | DC5V | DC5V | DC5V | DC12V | DC12V | DC12V |
Color | Full Color | Full Color | Full Color | Full Color | Full Color | Full Color | Full Color |
Length | 3.28FT/1M | 3.28FT/1M | 6.56FT/2M | 16.4FT/5M | 16.4FT/5M | 16.4FT/5M | 32.8FT / 10M |
LED Quantity | 60LEDs/M | 144LEDs/M | 60LEDs/M, 120LEDs/2M | 30LEDs/M, 150LEDs/M | 432LEDs/M, 2160LEDs/5M | 60LEDs/M, 300LEDs/5M | 10LEDs/M, 50LEDs/10M |

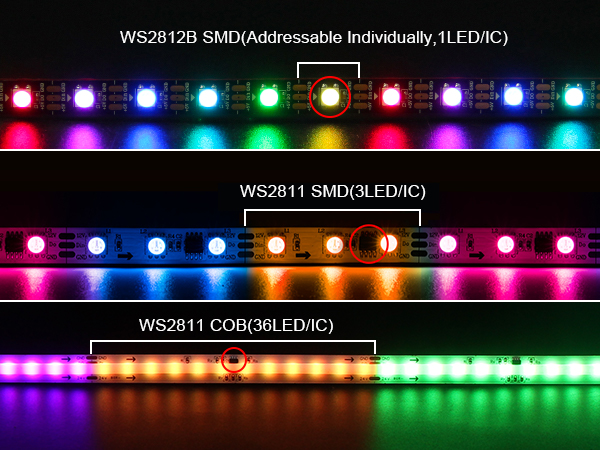

IC Model | WS2811 IC; 60ICs/M | WS2812B IC; 144ICs/M | WS2811 IC; 60ICs/M; 120ICs/2M | WS2811 IC; 30ICs/M; 150ICs/5M | WS2811 IC; 12ICs/M; 60ICs/5M | WS2815 IC; 60ICs/M; 300ICs/5M | WS2811 IC; 10ICs/M; 50ICs/5M |
Waterproof Level | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 | IP68 |
ALITOVE is a professional manufacturer of LED lighting & control system and power supply system.
We are willing to customize products according to customers' personalized requirements.
If you are a lighting designer, lighting retailer, advertising light box manufacturer or other lighting enthusiast, we will try our best to contribute to your unlimited lighting creativity.
5V~24V Addressable LED Strip
WS2811 LED Neon Light Strip
5V 12V WS2811 LED Pixels Light
Addressable LED Controller
5V 12V Power Adapter
5~24V Power Supply
ALITOVE is a professional manufacturer of LED lighting & control system and power supply system.
We are willing to customize products according to customers' personalized requirements.
If you are a lighting designer, lighting retailer, advertising light box manufacturer or other lighting enthusiast, we will try our best to contribute to your unlimited lighting creativity.
5V~24V Addressable LED Strip
WS2811 LED Neon Light Strip
5V 12V WS2811 LED Pixels Light
Addressable LED Controller
5V 12V Power Adapter
5~24V Power Supply

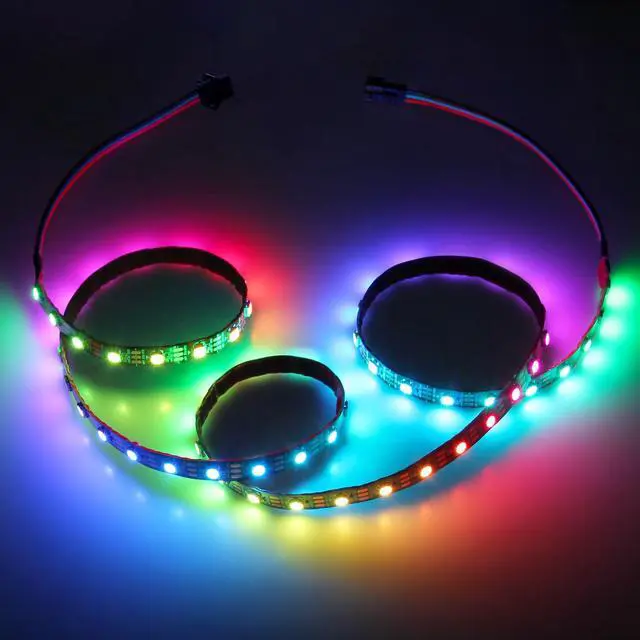

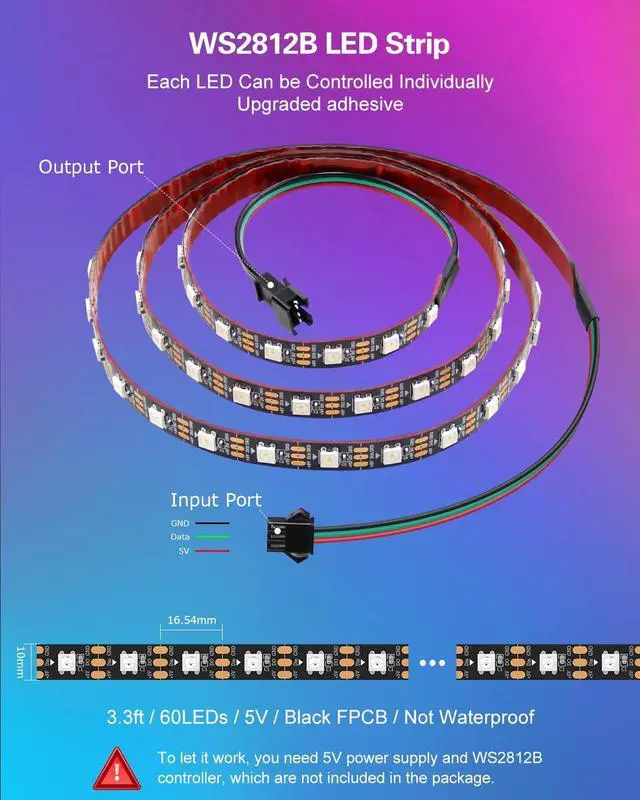

| Product Name | ALITOVE WS2812B Individually Addressable LED Strip Light |
|---|---|
| Working voltage & power | DC 5V; 0.25W/LED; 15W/Roll |
| Wave length | R,620~625nm ; G,515~525nm; B,465~475nm ; |
| Led Qty | 60LEDs/Meter(Roll) |
| IC Model | WS2812B IC |
| Waterproof level | Waterproof IP20 |

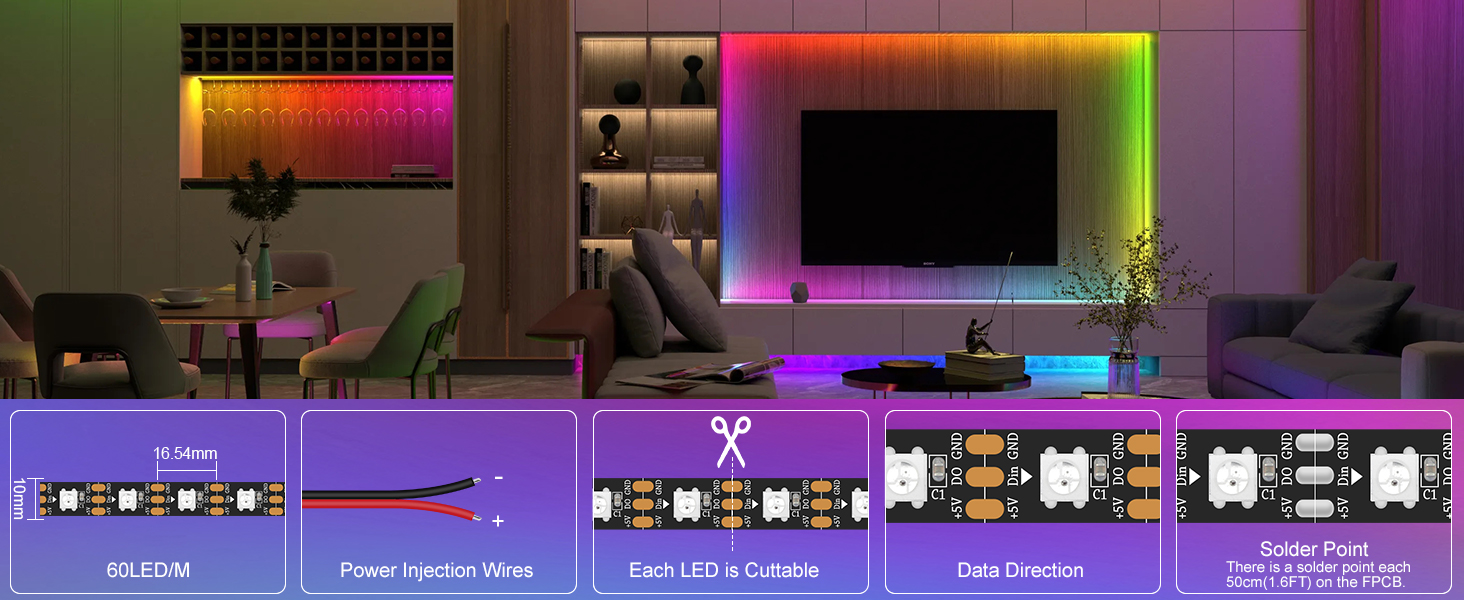

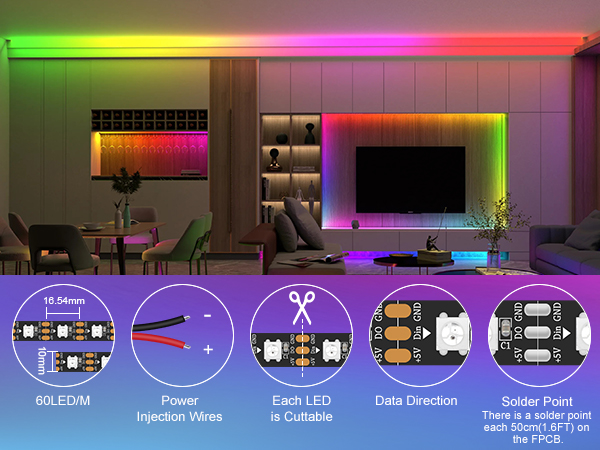

| Dimension | (L)1000mm * (W)10mm * (H)2mm; 3.2ft/1m per roll |

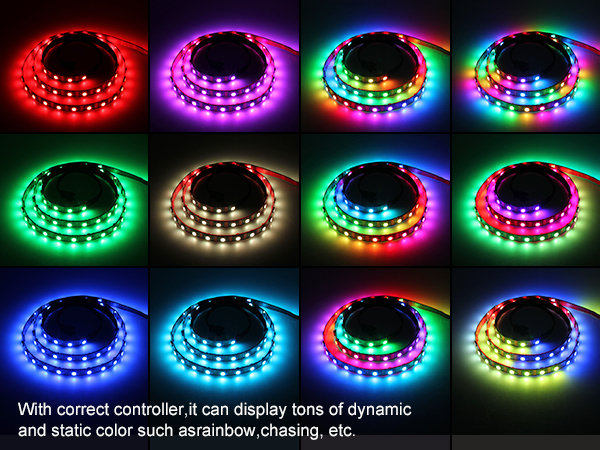

| Color | 24 bit full color ; 256 gray levels ; |
| Life Span | >55000hrs |
| Data Transmitting Speed | 800Kbps |
| RGB Order | GRB (Not RGB) ( Please set up the controller before you use it) |
| Wire Instruction | Red wire: 5V+ ; Black Wire: GDN ; Green wire: Data |
| FPCB Color | Black |
| Package List | 1x 3.2ft Non-Waterproof WS2812B LED Strip (Power supply and controller are not included) |
| Warm Tip 1 | You must use a 5V DC power supply to power these strips, do not use higher than 5V or you can destroy the entire strip. |

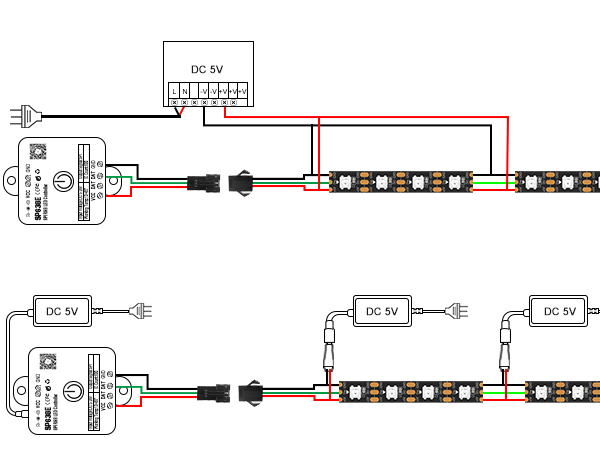

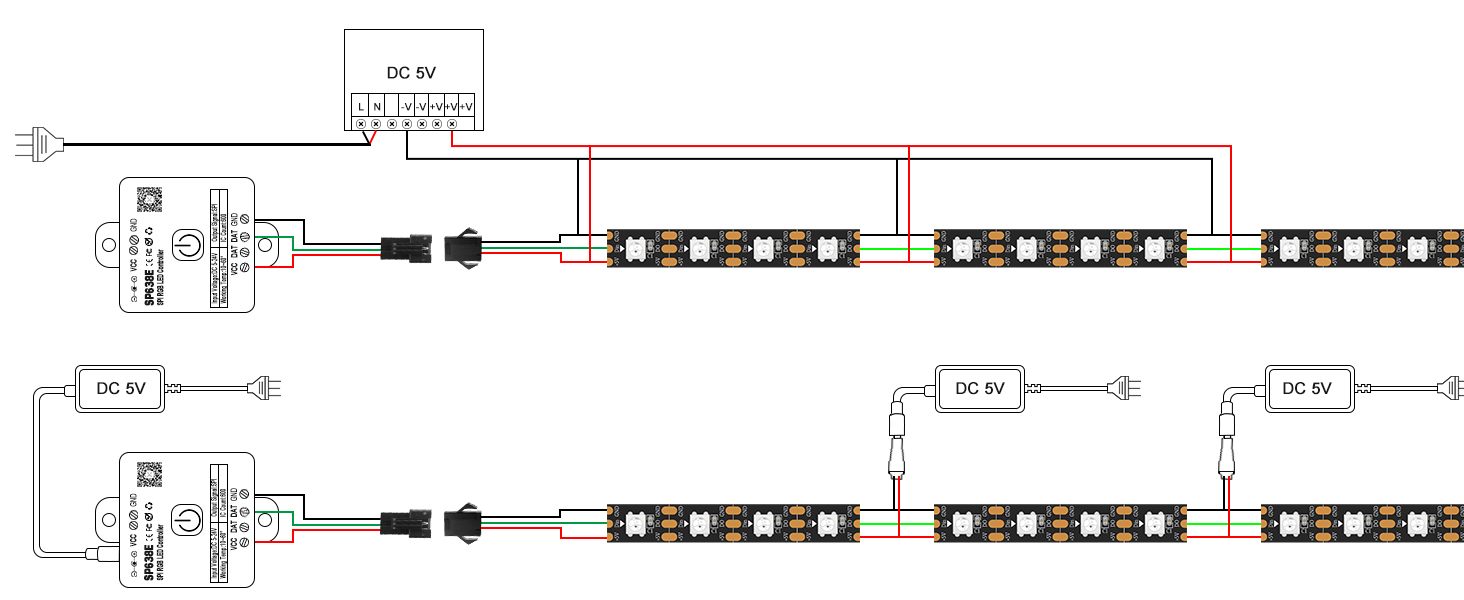

| Warm Tip 2 | If the light strip is turned on full white, it will become orange gradually. It is not quality issue but voltge drop. Injecting power on both ends will solve this issue. |
This LED strip does not include power supply, do you have any good recommendations?
For the power supply, you can use our 5V 3A or 4A power supply; ASIN(B078RXZM4C).
This LED strip does not include controller, do you have any good recommendations?
A: For the controller, your can use our SP105E SP601E SP611E bluetooth app controllers, SP107E music controllers, SP108E smart WiFi Controllers; ASIN(B01LW1J10W, B089Q4TW3J, B0CCNNG1ZX, B07H15ZC8D, B07DDB6JHJ)
If one pixel dies, does the rest still work? Or only the ones before the dead pixel?
Just cut off the bad pixels and reconnect them, and the rest can work normally.
More Choice Available
1M WS2812B 60LEDs IP20 | 1M WS2812B 144LEDs IP20 | 2M WS2812B 120LEDs IP20 | 5M WS2812B 150LEDs IP20 | 2160LEDs COB LED Strip | 5M WS2815 300LEDs IP20 | WS2811 LED pixel Lights |
|---|---|---|---|---|---|---|
| Customer Reviews | ||||||
| — | — | — | — | — | — | — |
| Price | ||||||
| — | — | — | — | — | — | — |
| Input Voltage | ||||||
| DC5V | DC5V | DC5V | DC5V | DC12V | DC12V | DC12V |
| Color | ||||||
| Full Color | Full Color | Full Color | Full Color | Full Color | Full Color | Full Color |
| Length | ||||||
| 3.28FT/1M | 3.28FT/1M | 6.56FT/2M | 16.4FT/5M | 16.4FT/5M | 16.4FT/5M | 32.8FT / 10M |
| LED Quantity | ||||||
| 60LEDs/M | 144LEDs/M | 60LEDs/M, 120LEDs/2M | 30LEDs/M, 150LEDs/M | 432LEDs/M, 2160LEDs/5M | 60LEDs/M, 300LEDs/5M | 10LEDs/M, 50LEDs/10M |
| IC Model | ||||||
| WS2811 IC; 60ICs/M | WS2812B IC; 144ICs/M | WS2811 IC; 60ICs/M; 120ICs/2M | WS2811 IC; 30ICs/M; 150ICs/5M | WS2811 IC; 12ICs/M; 60ICs/5M | WS2815 IC; 60ICs/M; 300ICs/5M | WS2811 IC; 10ICs/M; 50ICs/5M |
| Waterproof Level | ||||||
| IP20 | IP20 | IP20 | IP20 | IP20 | IP20 | IP68 |
