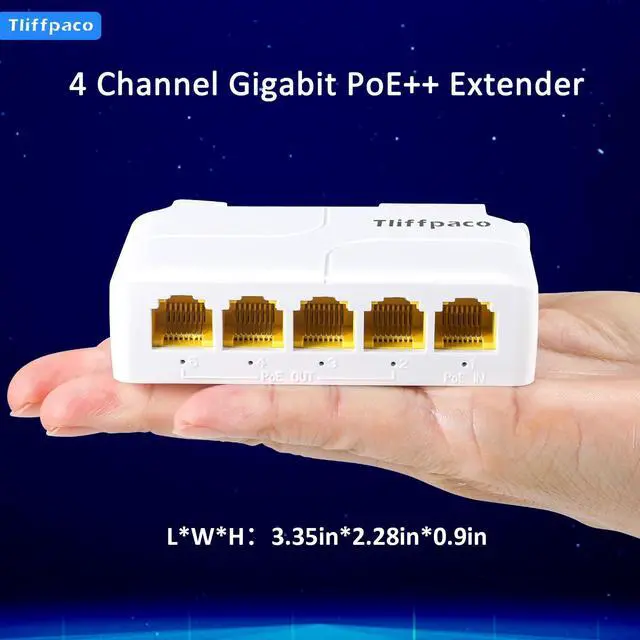

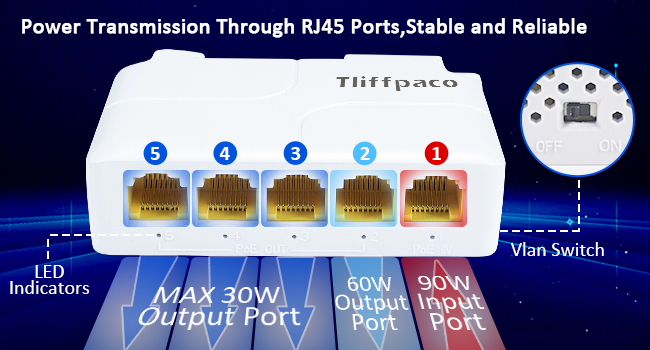

5 PoE RJ45 Ports
Total 5 RJ45 ports. One 90W PoE In and four 30-60W PoE out. Each port is equipped with an LED indicator light, making the working status clearly visible at a glance.
Wide Applications
It can power standard PoE devices like IP phones, Security System, AP Network and etc. Its applications range from attics and warehouses to hotels, DMX Christmas lighting, IoT setups, and smart communities.
Stable Operation
It features short-circuit protection, over-current protection, over voltage protection and circuit isolation protection, ensuring the device's stable operation and safety.

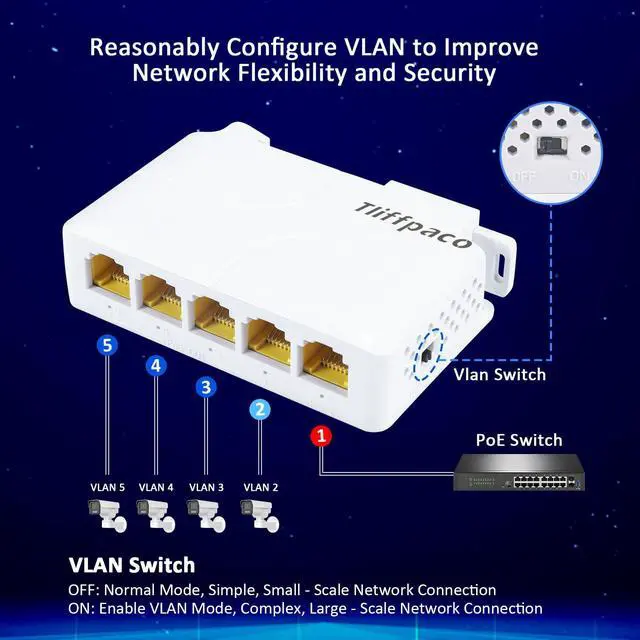

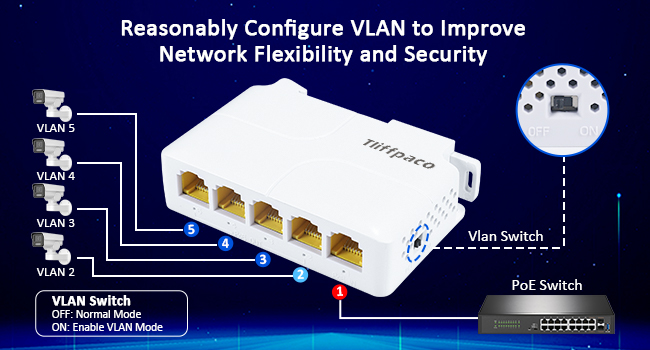

Support VLAN Mode
Normal Mode: Suitable for simple, small-scale network connections.
VLAN Mode: Better suited for large or complex network topologies. It isolates different broadcast domains, preventing broadcast storms, and helps reduce network congestion while enhancing data transfer.

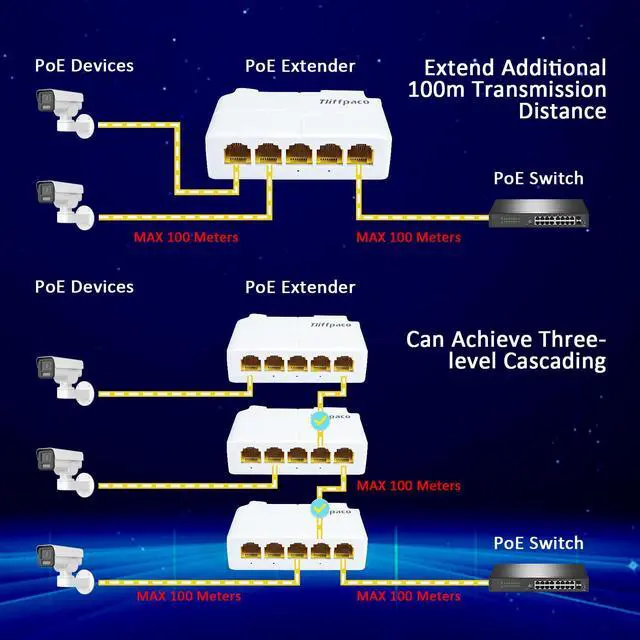

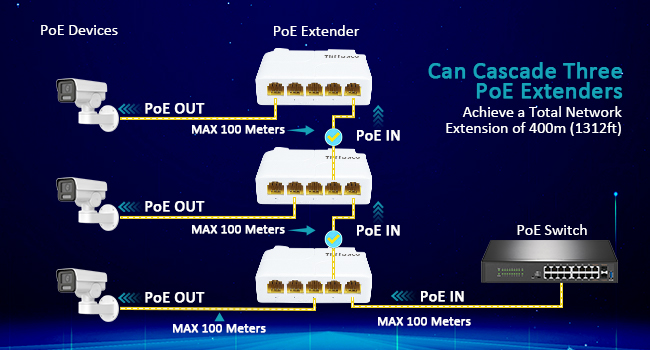

Support 3 Level Cascading

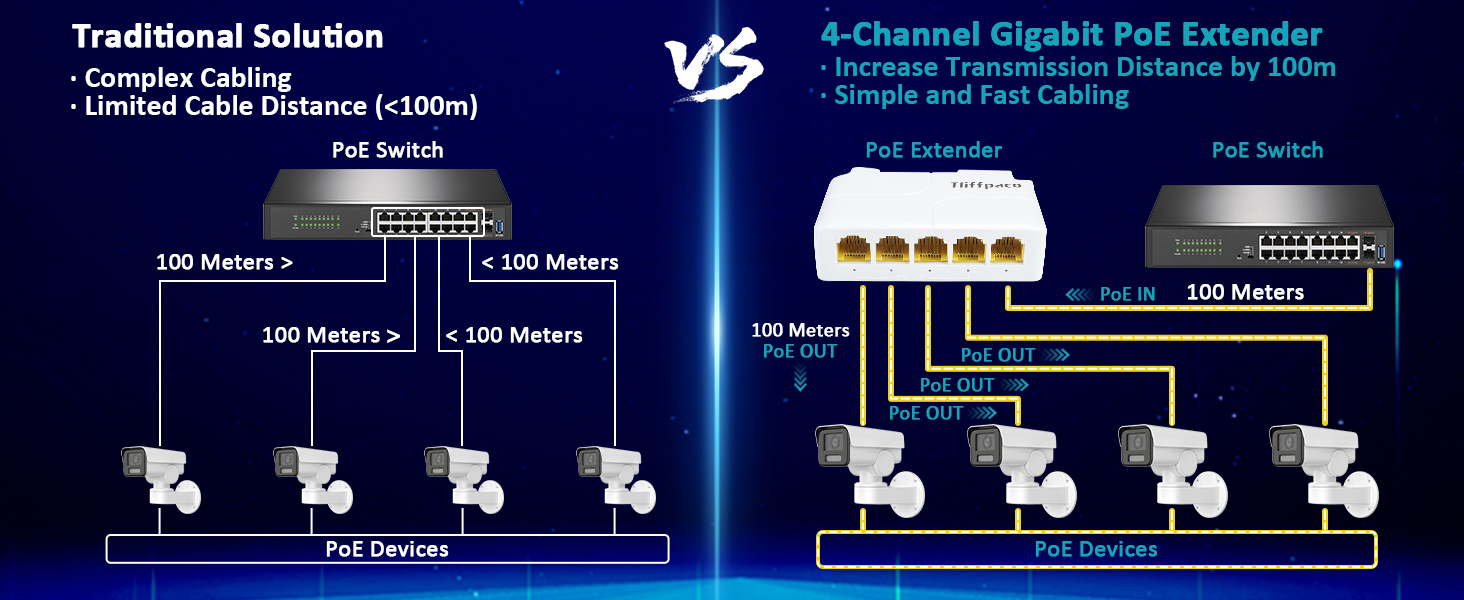

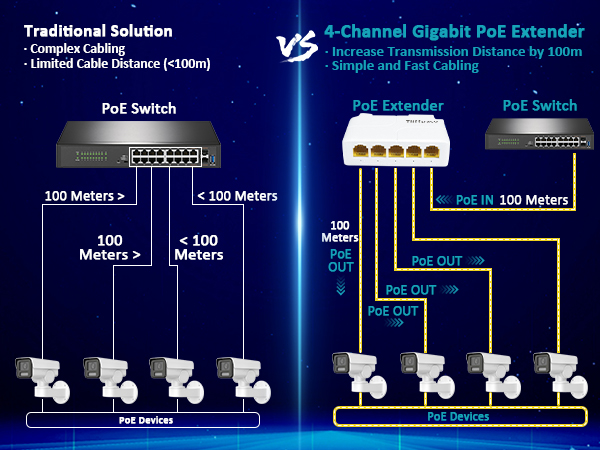

Each Tliffpaco PoE extender is capable of extending the distance by an additional 330ft(100 meters). It also supports the simultaneous connection of up to 3 PoE extenders, allowing the distance to be extended up to 1314ft(400meters).

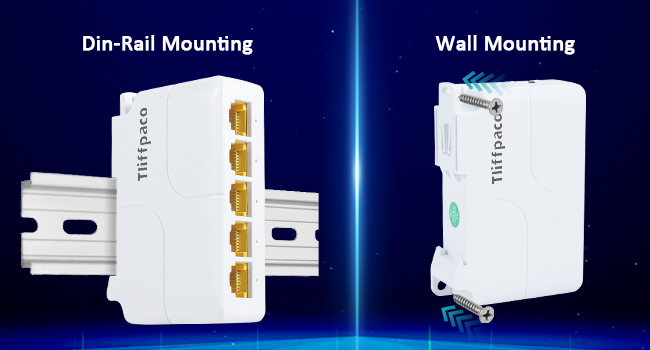

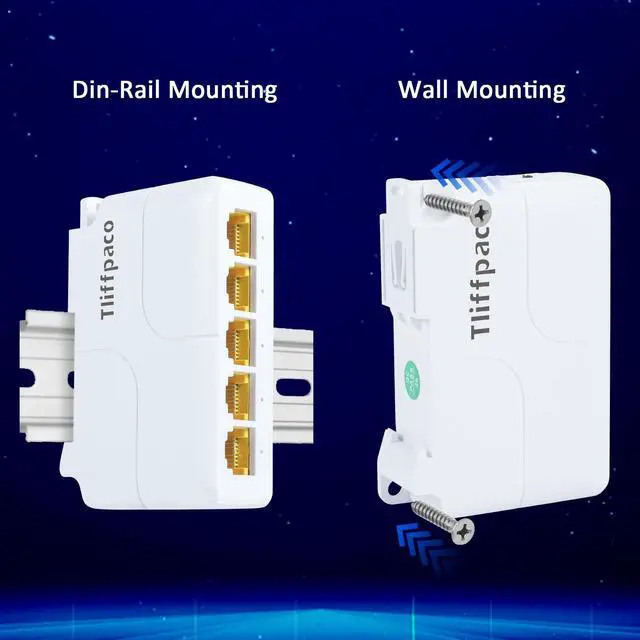

Two Installation Methods
It supports both wall - mounting and DIN-rail mounting to cater to all your installation requirements, being easy to use and saving time and space.
5 PoE RJ45 Ports
Total 5 RJ45 ports. One 90W PoE In and four 30-60W PoE out. Each port is equipped with an LED indicator light, making the working status clearly visible at a glance.
Wide Applications
It can power standard PoE devices like IP phones, Security System, AP Network and etc. Its applications range from attics and warehouses to hotels, DMX Christmas lighting, IoT setups, and smart communities.
Stable Operation
It features short-circuit protection, over-current protection, over voltage protection and circuit isolation protection, ensuring the device's stable operation and safety.
Support VLAN Mode
Normal Mode: Suitable for simple, small-scale network connections.
VLAN Mode: Better suited for large or complex network topologies. It isolates different broadcast domains, preventing broadcast storms, and helps reduce network congestion while enhancing data transfer.
Support 3 Level Cascading
Each Tliffpaco PoE extender is capable of extending the distance by an additional 330ft(100 meters). It also supports the simultaneous connection of up to 3 PoE extenders, allowing the distance to be extended up to 1314ft(400meters).
Two Installation Methods
It supports both wall - mounting and DIN-rail mounting to cater to all your installation requirements, being easy to use and saving time and space.
| Model | CH4EX-1000M |
|---|---|
| Product Interface | 1x1G PoE++ in Port + 4x1G PoE+ out ports |
| Network Standard | IEEE802.3, IEEE802.3u, IEEE802.3x |
| Transmission Medium | 10/100/1000 BASE - TX: Category 5 and above Unshielded Twisted Pair |
| Forwarding Method | 10BASE-tx:14880pps/port 100BASE-tx:148800pps/port 1000BASE-tx:1488000pps/port |
| Pack forward | 7.4Mpps |

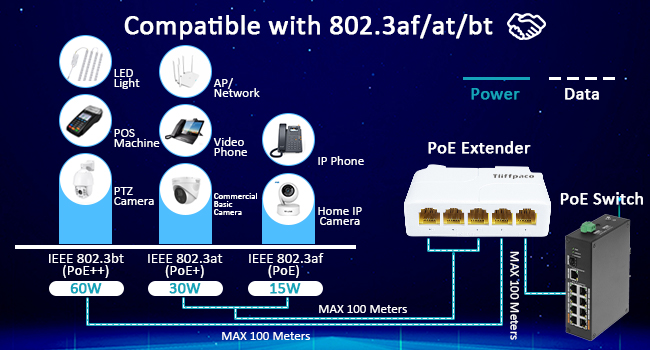

| PoE Standard | IEEE 802.3af/at/bt |

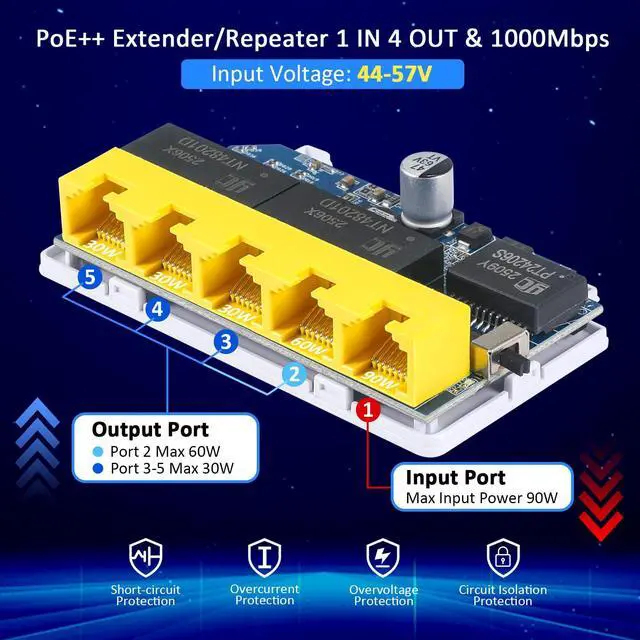

| PoE Power | PoE In: Max 90W for port 1, PoE out: Max 60W for port 2, Max 30W for port 3-5 |
| PoE PIN | PoE In pin: (Port1) 1/2+, 3/6- , 4/5+, 7/8-; PoE out pin: (Port3-5) 1/2+, 3/6-,(Port2) 1/2+, 3/6- , 4/5+, 7/8- |
| Transmission Distance | =100m (328ft), with 3 - level Cascade =400m (1312ft) |
| VLAN Function | OFF: Normal Mode ON: Enable VLAN Mode |
| Ambient Temperature | Operating: - 10°C - 55°C Storage: - 40°C - 80°C |

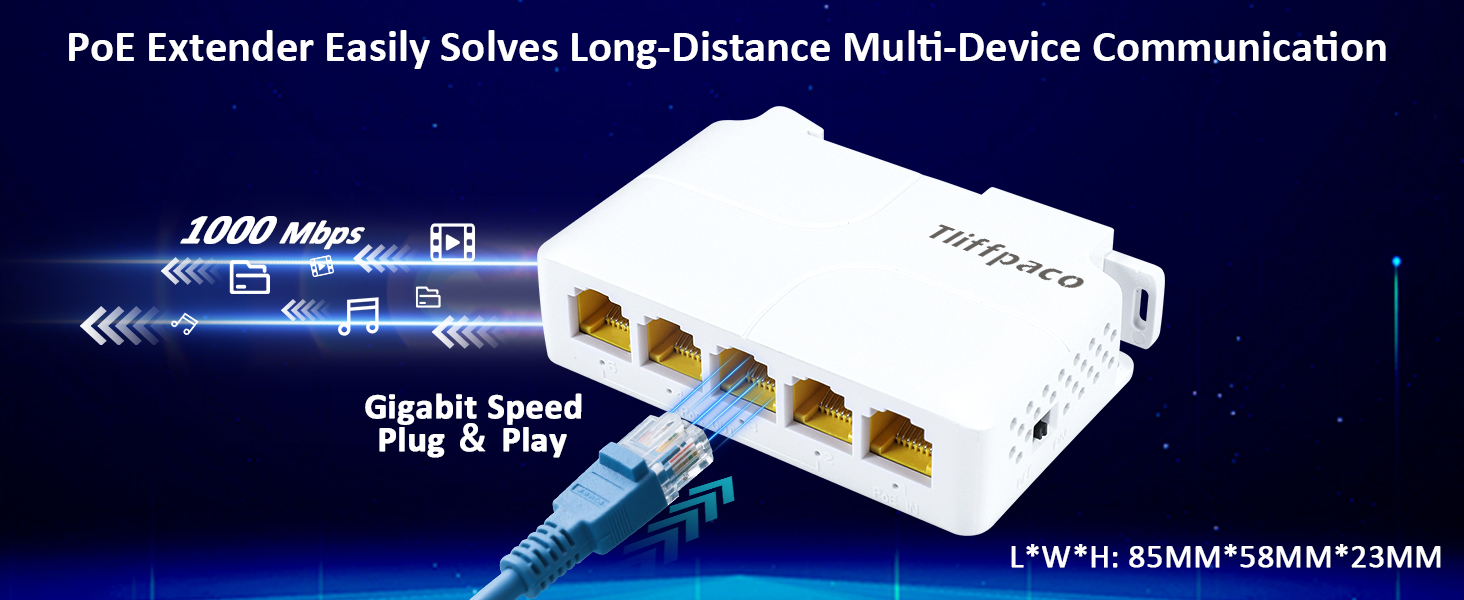

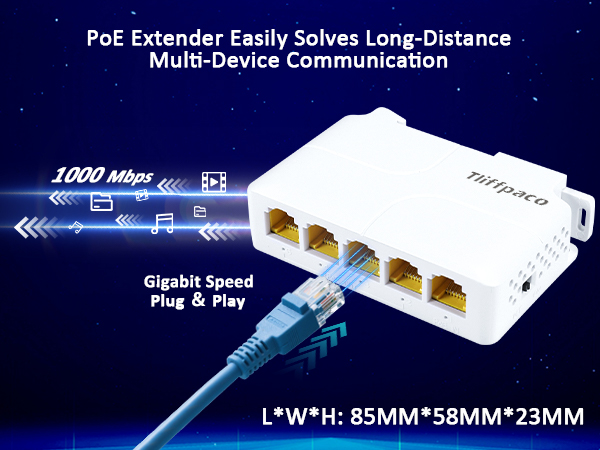

| Structure Size | Product Dimensions: 85*58*23mm, Package Dimensions: 86.5*59*26mm, Product N.W: 120g, Product G.W: 125g |
