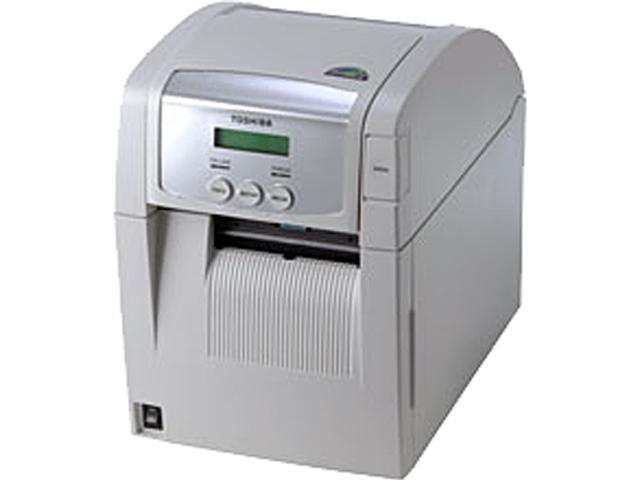

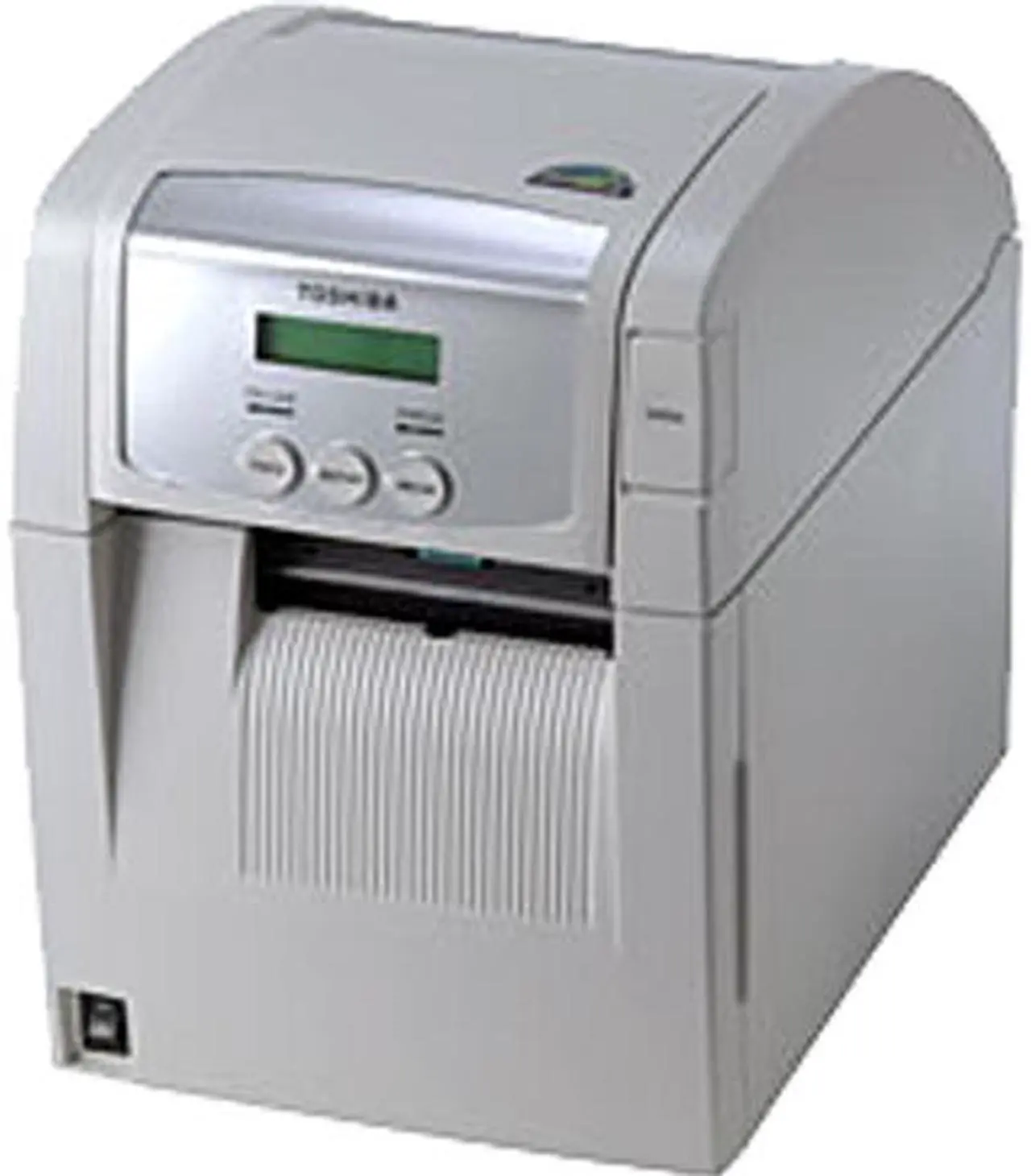

Toshiba B-SA4TP-GS12-QM-R B-SA4 Series Thermal Label Printer
- Direct Thermal and Thermal Transfer
- 203 DPI, 6 IPS
- Plastic Case
- USB, Parallel, and LAN Connectivity
Overview
Specs
Reviews
IN
TOSHIBA B-SA4T Series
The TOSHIBA Tec B-SA4 Barcode Label Printer provides the functionality and robustness of an industrial printer with the compact footprint and ease of use of a desktop printer. For ultimate networking capabilities, it comes with a wide variety of communication interfaces, enabling you to manage your whole network of printers from a central source.
The B-SA4 really is the perfect "Total Solution" for any printing application, with high-quality output, industrial performance, versatile design, advanced functionality including RFID options and the backing of a globally recognized quality brand.
Customer Benefits
The B-SA4 is packed with a multitude of features for the user, including:
- High speed printing leading to increased efficiency and productivity
- Time-saving and minimal training due to fast and easy handling
- Lower servicing and maintenance cost with user tool-free replacement of the print head and platen
- Versatile design to suit any environment or application
- Perfect readability of labels and barcodes due to flexible high quality print technology
- Bartender UltraLite labeling software.
Features
Speed and Functionality
This desktop printer with the performance of an industrial printer, offers high-speed printing and enhanced throughput via a large choice of network interfaces: parallel, USB 2.0 and internal LAN as standard, with optional serial, wireless LAN and RFID interfaces (HF and UHF).
Future Proofing
For future proofing, the B-SA4 is compatible with all legacy systems, TOSHIBA or non-TOSHIBA. The powerful BCI (programmable Basic Command Interpreter) allows the B-SA4 to print via non-TPCL data streams.
Ease of Use

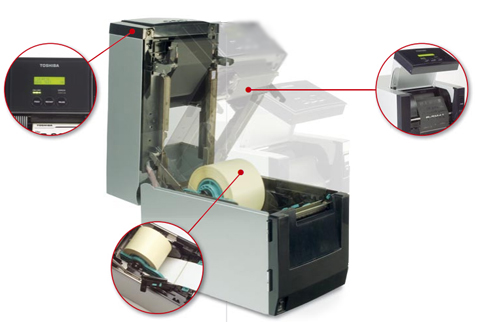

The graphical LCD display and simple to follow menu, ensures the user can set up and operate the B-SA4 with ease. The open-access front-loading feature, with a space saving ergonomic design, allows trouble-free drop-in media loading with a movable sensor adaptable to a wide range of different types of media
High Print Quality
Fitted with a 200dpi printhead as standard and with the flexibility to easily upgrade to 300dpi, these machines are unique in the market.
Fully Compatible
Software and supplies are compatible with TOSHIBA's previous range topping models - the B-452 and B-431 printers, existing media stocks and grades do not need to be changed.
Ease of Maintenance
The B-SA4 facilitates simple user maintenance with easy access to main service parts. The snap-in printhead and quick change platen roller can be replaced by the operator without engineer intervention, lowering the total cost of ownership
Compact and Robust
With a footprint close to A4 in size, the front opening, top loading design ensures the B-SA4 is compact, whilst the choice of casing (plastic or metal) guarantees the printer is ergonomic for the office or robust enough for harsh operating environments. This provides the flexibility to configure the printer to suit most applications, from desktop to industrial. Extras such as peel-off and cutter modules fit neatly inside the front cover, ensuring the printer remains compact.
SNMP Tools
The B-SA4 comes with an entire Central Network Management Suite, that allows the user to:
- manage all the SNMP printers in the network through their IP address and serial number
- update and format firmware across the network simultaneously
- view the status of each individual printer in real-time with real-time alerts, including instructions for troubleshooting.
Applications
- Manufacturing
- Automotive
- Chemical Industry
- Pharmaceutical Industry
- Textile Industry
- Electronics
- Telecommunications
- Food Sector
- Retail Distribution
- Transport and Logistics
- Healthcare
- Utilities
- Government
Specifications
| Models | B-SA4TM-GS12 | B-SA4TM-TS12 | B-SA4TP-GS12 | B-SA4TP-TS12 |
|---|---|---|---|---|
| Technology | Thermal Transfer / direct thermal | |||
| Resolution | 203dpi (8 dots/mm), optional 300dpi (11.8 dots/mm) | |||
| Print Width | Maximum 104mm, up to 105.7mm with 300dpi printhead | |||
| Print Speed | Up to 6ips (152.4mm/sec) | |||
| Interfaces | Bidirectional parallel port, USB 2.0, LAN (100BASE), serial port*, wireless LAN* | |||
| Barcodes | UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, MSI, Industrial 2 of 5, ITF, Postnet, RM4SCC, KIX-code, RSS14, Customer Bar Code | |||
| 2D Codes | Data Matrix, PDF 417, Maxicode, QR code, Micro PDF 417, CP Code | |||
| Fonts | Bitmap font (21 fonts), Outline font (4 types), Price font (3 types) | |||
| Optional | Cutter module, strip module, wireless LAN board, serial interface board, RFID modules, 300dpi printhead, RTC (real time clock) | |||
| Dimensions
(W x D x H) |
9.3 x 15.8 x 13.0 in. (238 x 402 x 332mm) | 9.3 x 13.3 x 13.0 in. (238 x 339 x 332mm) | ||
| Weight | 0.5oz (15kg) (without media and ribbon) | 0.4oz (12kg) (without media and ribbon) | ||
