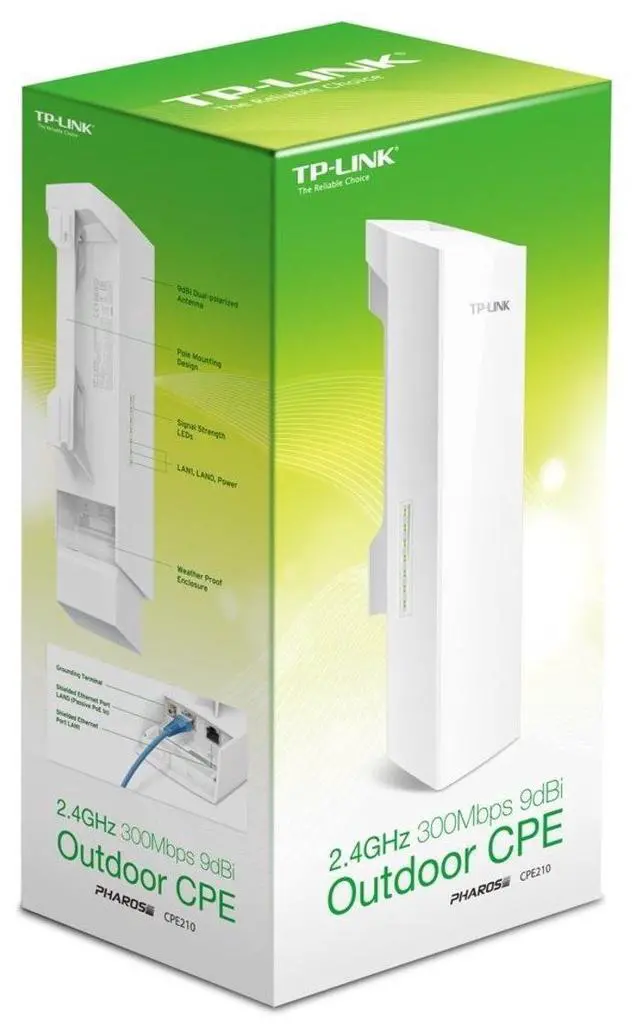

TP-Link CPE210 2.4GHz 300Mbps High Power Outdoor CPE/Access Point, 9dBi

Specification: HARDWARE FEATURES Processor Qualcomm Atheros 560MHz CPU, MIPS 74Kc Memory 64MB DDR2 RAM, 8MB Flash Interface 1 10/100Mbps Shielded Ethernet Port (LAN0, Passive PoE in) 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough) 1 Grounding Terminal 1 Reset Button Power Supply Passive Power over Ethernet via LAN0 (+4, 5pins; -7, 8pins)
Voltage range: 16-27VDC Power Consumption 10.5
Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. Antenna Type Built-in 9dBi 2x2 Dual-polarized
Directional Antenna Beam Width: 65° (H-Plane) / 35° (E-Plane)
Note: For more details, please refer to datasheet Protection 15KV ESD Protection 6KV Lightning Protection Enclosure Outdoor ASA stabilized plastic material IPX5 waterproof Certification Dimensions (W X D X H) 224 x 79 x 60 mm WIRELESS FEATURES Wireless Standards IEEE 802.11 b/g/n (with Pharos MAXtream disabled) Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled) Wireless Speeds Up to 300Mbps (40MHz, Dynamic) Up to 144.4M bps (20MHz, Dynamic) Up to 72.2M bps (10MHz, Dynamic) Up to 36.1M bps (5MHz, Dynamic) Frequency 2.4 ~ 2.483GH z
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. Transmission Power 27dBm/500mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used. SOFEWARE FEATURES Wireless Configurations Pharos MAXtream TDMA Technology 802.11 b/g/n Modes Selectable
Channel Width: 5/10/20/40MHz Automatic Channel Selection Transmission Power Control Dynamic Frequency Selection (DFS)
WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging (AP mode only) Distance/ACK Timeout Setting Wireless MAC Address
Filter Wireless Advanced: > Beacon Interval/RTS Threshold/Fragmentation >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia Management Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System Log SNMP Agent (v2c) Ping Watch Dog Dynamic DDNS SSH Server System Tools Wireless Signal
Quality Indicators: Signal
Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute System-level Optimizations Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog PoE ADAPTER FEATURES Efficiency >80% Button Remote Reset Button Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark Power Status
LEDs 0~ 0.8A: Green
0.8A ~ 1.0A: Red Output 24VDC, 1.0A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) Input Voltage 100VA~240VAC @ 50Hz~60Hz Dimensions (W x D x H) 110*57* 33.5 mm Input Current 0.8A Max @ 100VAC Input 100-240VAC, 50/60Hz Output Voltage 24VDC(+4, 5pins; -7, 8pins) Package Contents Outdoor Wireless CPE210 24V 1A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
