I am looking for something that will pickup the wifi signal from my residence and feed it into a router in my shop (80' away) via network cable. Will this device be able to do that - by attaching it externally to my shop building and using a network cable to connect to the shop router?

we are using this as an access point and it has worked very well. Basically, the setup you are describing, it should work very well. Need to make sure - are you trying to give yourself internet / network access at your house thru your work network? If so, yes. If you are trying to use it to access your home network, I don't think that will work.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 1 wish list)

Sold by Newegg

Shipped by Newegg

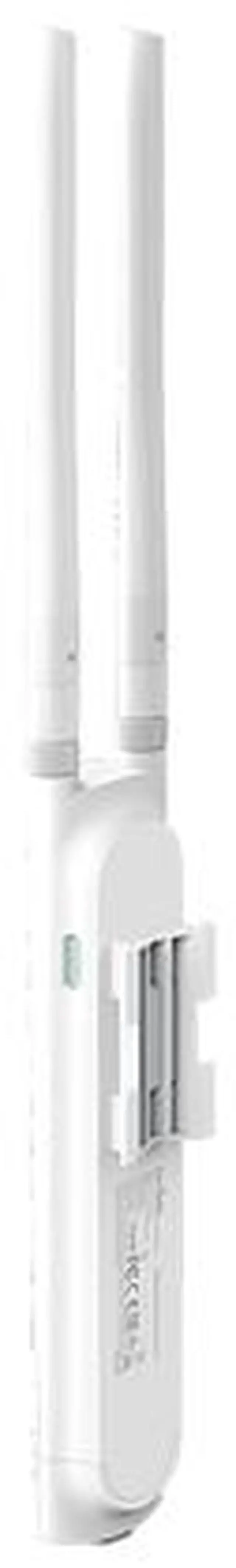

Main image of TP-Link Omada N300 Gigabit Wireless Outdoor Access Point | Passive PoE Powered w/ PoE Injector included | SDN Integrated | Cloud Access & Omada app for Easy Management (EAP110-Outdoor)

Alt view image 2 of 7 - TP-Link Omada N300 Gigabit Wireless Outdoor Access Point | Passive PoE Powered w/ PoE Injector included | SDN Integrated | Cloud Access & Omada app for Easy Management (EAP110-Outdoor)

Alt view image 3 of 7 - TP-Link Omada N300 Gigabit Wireless Outdoor Access Point | Passive PoE Powered w/ PoE Injector included | SDN Integrated | Cloud Access & Omada app for Easy Management (EAP110-Outdoor)

Alt view image 4 of 7 - TP-Link Omada N300 Gigabit Wireless Outdoor Access Point | Passive PoE Powered w/ PoE Injector included | SDN Integrated | Cloud Access & Omada app for Easy Management (EAP110-Outdoor)

Alt view image 5 of 7 - TP-Link Omada N300 Gigabit Wireless Outdoor Access Point | Passive PoE Powered w/ PoE Injector included | SDN Integrated | Cloud Access & Omada app for Easy Management (EAP110-Outdoor)

Alt view image 6 of 7 - TP-Link Omada N300 Gigabit Wireless Outdoor Access Point | Passive PoE Powered w/ PoE Injector included | SDN Integrated | Cloud Access & Omada app for Easy Management (EAP110-Outdoor)

Alt view image 7 of 7 - TP-Link Omada N300 Gigabit Wireless Outdoor Access Point | Passive PoE Powered w/ PoE Injector included | SDN Integrated | Cloud Access & Omada app for Easy Management (EAP110-Outdoor)

Shop All TP-Link Products

TP-Link Omada N300 Gigabit Wireless Outdoor Access Point | Passive PoE Powered w/ PoE Injector included | SDN Integrated | Cloud Access & Omada app for Easy Management (EAP110-Outdoor)

(8) Write a Review

Up to 300Mbps Wi Fi with 2x2 MIMO technology; Rate limit on per SSID to restrict the bandwidth of each client
Built for outdoor Wi Fi applications; WPA/WPA2 enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN
High transmission power and high gain antennas provide a long range coverage area. Operating Temperature: -30°C~65°C (-22°C~149°C)
Passive PoE Power over Ethernet support and simple mounting design allow for flexible deployment and convenient installation
Free Aura net Controller Software lets administrators easily manage hundreds of EAPs
NOT supporting Repeater/Bridge mode currently. Wireless Transmit Power: < 27dBm; Power Supply: 24V Passive PoE (+4,5pins; 7,8pins. PoE Adapter Included)

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews (8)

Any questions? Our AI beta will help you find out quickly.

Try me now

- Built for outdoor Wi-Fi applications
- Up to 300Mbps Wi-Fi with 2x2 MIMO technology
- High transmission power and high gain antennas provide a long-range coverage area
- Durable, weatherproof enclosure to withstand fair and foul weather

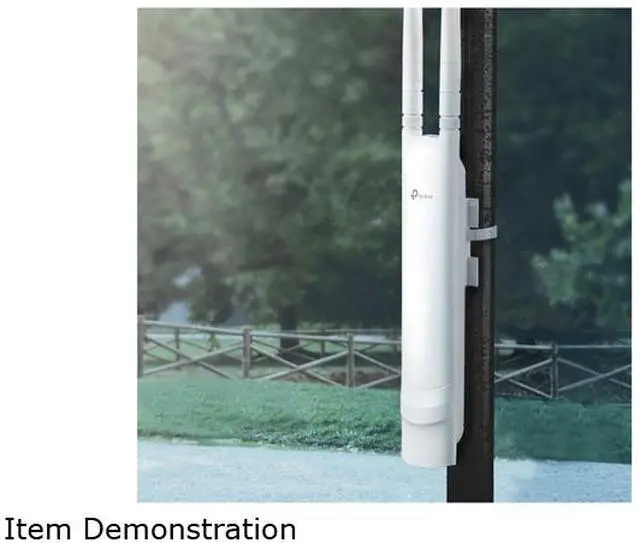

- Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation

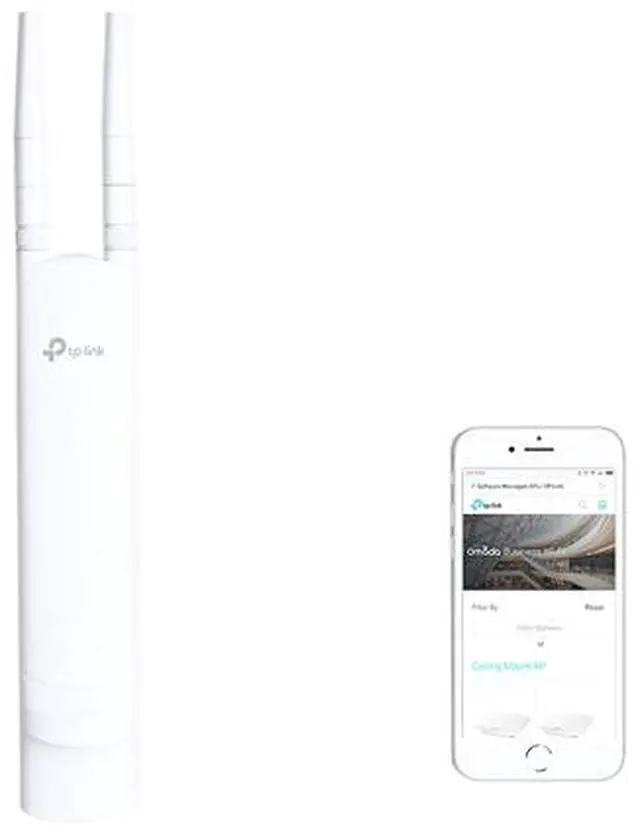

- Free Auranet Controller Software lets administrators easily manage hundreds of EAPs
- Captive portal provides a convenient method for guest authentication

Model
Brand	TP-Link
Model	EAP110-Outdoor V3

Details
Standards	IEEE 802.11b/g/n
Wireless Data Rates	Up to 300Mbps
Security	Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64 / 128 / 152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
Frequency Band	2.4 GHz
Antenna	2 x 3 dBi External Omni waterproof
Transmitted Power	< 27 dBm
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Interface	1 x Fast Ethernet (RJ-45) Port (Support Passive PoE)
Buttons	Reset
Power Supply	Power Supply: 24V Passive PoE (+4, 5 pins; -7, 8 pins. PoE Adapter Included) Power Consumption: 3.1W

Environmental
Temperature	Operating Temperature: -30 ~ 65 degree Celsius (-22 ~ 149 degree Fahrenheit) Storage Temperature: -40 ~ 70 degree Celsius (-40 ~ 158 degree Fahrenheit)
Humidity	Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing

Dimensions & Weight
Dimensions	1.70" x 8.20" x 3.70"

Features
Features	Built for outdoor Wi-Fi applications Up to 300 Mbps Wi-Fi with 2x2 MIMO technology High transmission power and high gain antennas provide a long-range coverage area Durable, weatherproof enclosure to withstand fair and foul weather Passive PoE (Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation Free Auranet Controller Software lets administrators easily manage hundreds of EAPs Captive portal provides a convenient method for guest authentication Supports management vlan for an enhanced network management

Packaging
Package Contents	300 Mbps Wireless N Outdoor Access Point, EAP110-Outdoor Passive PoE Adapter Power Cord Mounting Kit Waterproof Rubber Insert Waterproof Antennas Installation Guide

Additional Information
First Listed on Newegg	June 01, 2018

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 5 years
Limited Warranty period (labor): 5 years
Read full details

Return Policies

Return for refund within - Contact Manufacture for Assistance

Return for replacement - Contact Manufacture for Assistance

This item is covered by Newegg.com's Manufacturer Only Return Policy. Read full return policy for details.
