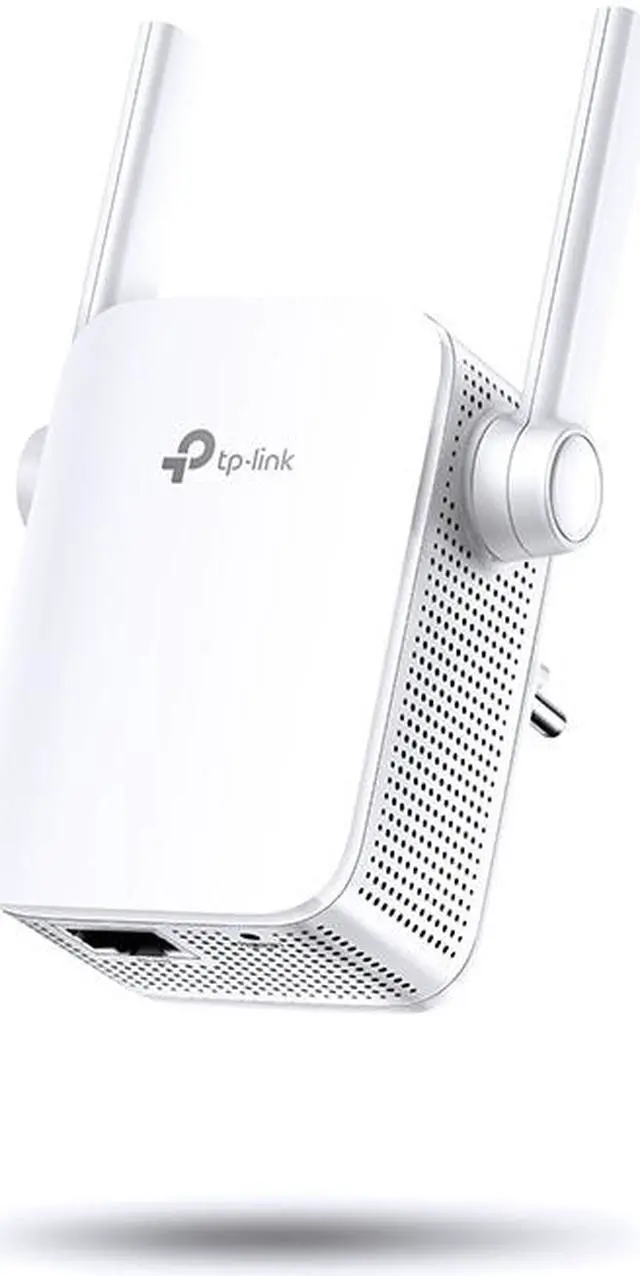

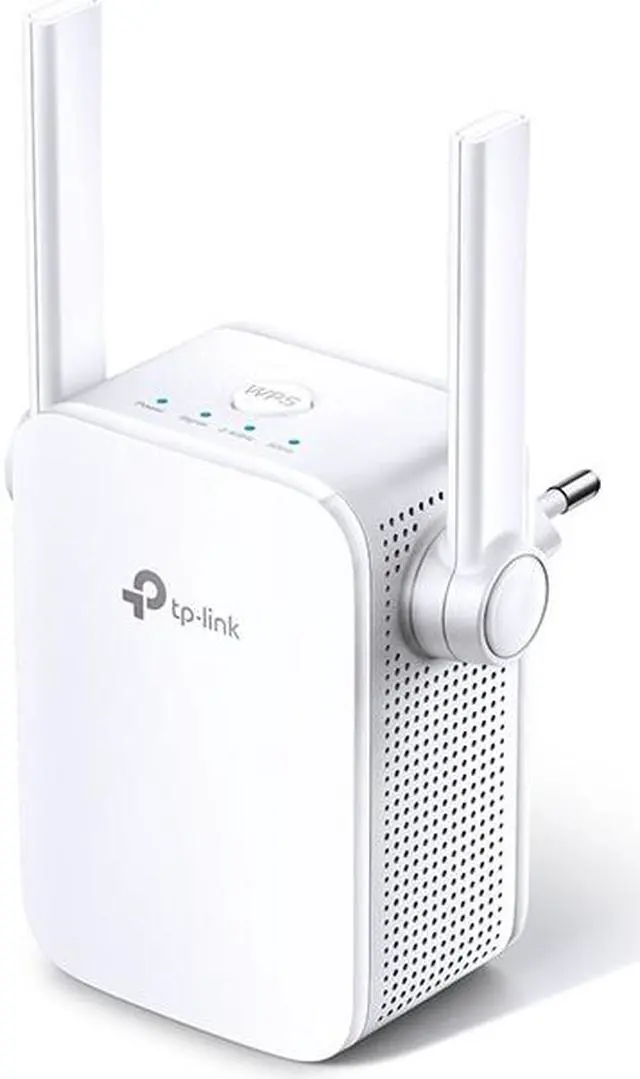

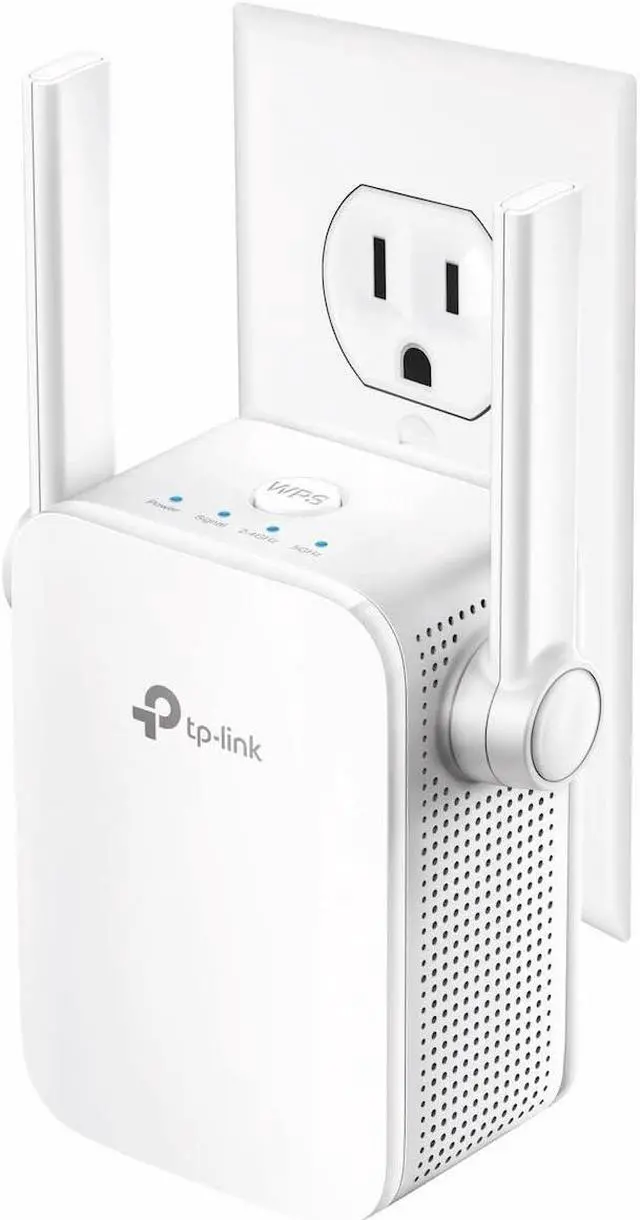

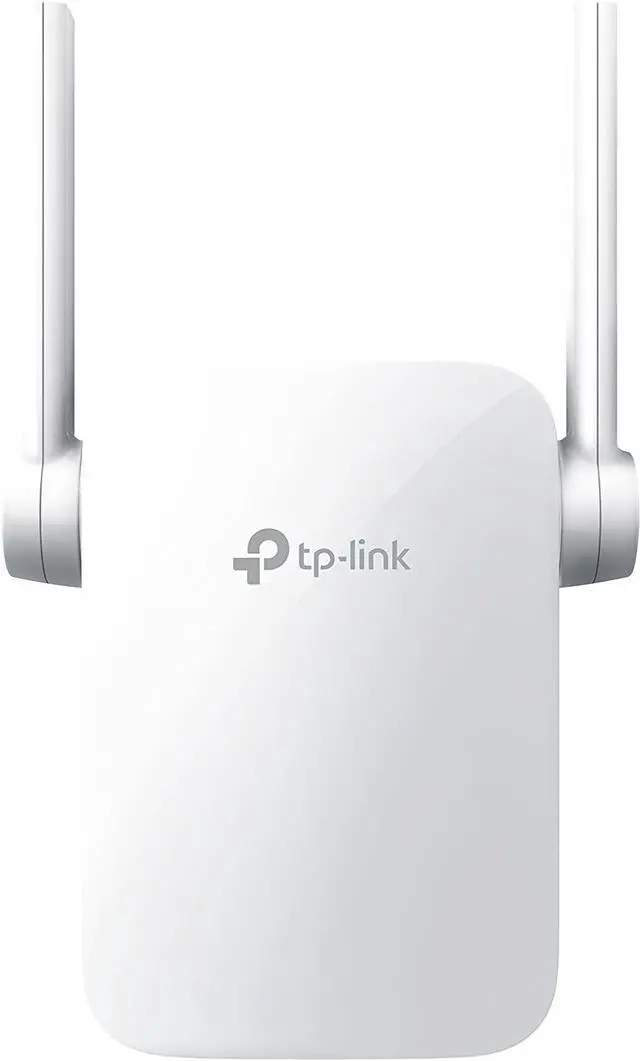

TP-Link AC1200 Wi-Fi Range Extender RE305 - Wi-Fi range extender - Wi-Fi - Dual Band
Learn more about the TP-Link RE305
Model
Brand
TP-Link
Model
RE305
Details
Standards
IEEE 802.11ac, IEEE 802.11a/b/g/n
Frequency Band
2.4 GHz / 5.0 GHz
Wireless Data Rates
Up to 1.2Gbps
Security
64 / 128-bit WEP WPA-PSK / WPA2-PSK
WPA/WPA2
WPA, WPA2
Antenna
2 x External Antenna
Transmit Power
<17dBm(2.4 GHz) <17dBm(5 GHz)
Receiving Sensitivity
5 GHz: 11a 6 Mbps: -91dBm at 10% PER 11a 54 Mbps: -74dBm at 10% PER 11ac HT20 mcs8: -68dBm at 10% PER 11ac HT40 mcs9: -63dBm at 10% PER 11ac HT80 mcs9: -59dBm at 10% PER
2.4 GHz 11g 54M: -79dBm at 10% PER 11n HT20 mcs7: -77dBm at 10% PER 11n HT40 mcs7: -74dBm at 10% PER
Operating Mode
Range Extender / Access Point Wireless Statistic Concurrent Mode boost both 2.4G / 5G Wi-Fi band
Interface

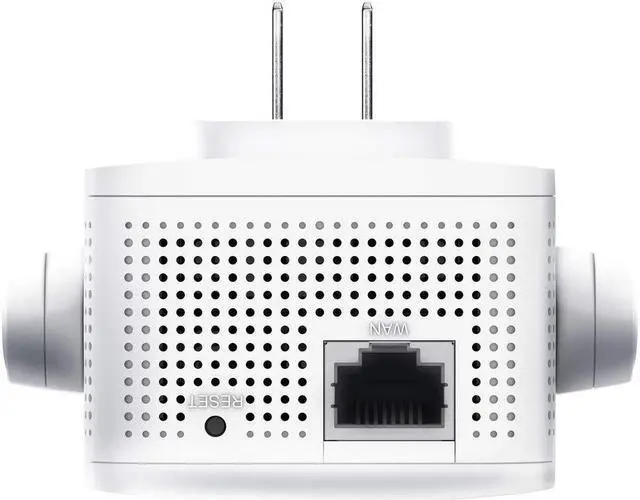

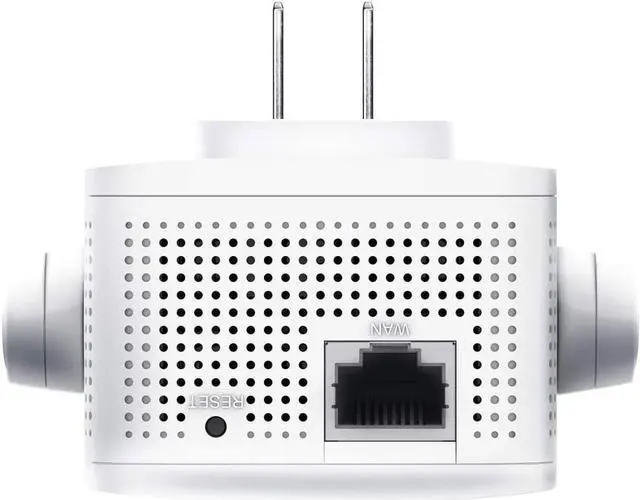

1 x 10/100M Ethernet Port (RJ45)
Button
Reset, WPS
Power
7.3W (max power consumption)
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac OS, NetWare, UNIX or Linux.
Dimensions
3.00" x 3.10" x 3.00"
Feature
Features

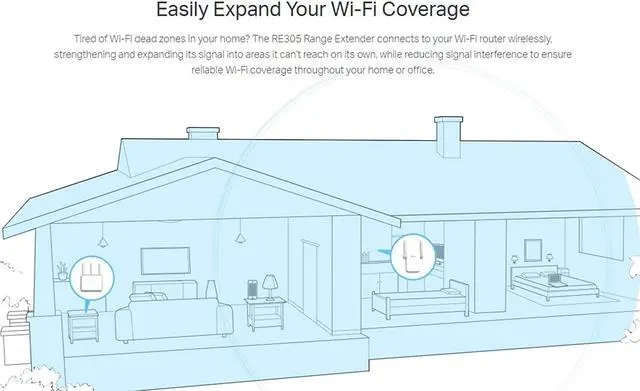

Brings Wi-Fi dead zone to life with strong Wi-Fi expansion at combined speed of up to 1.2 Gbps
Operates over both the 2.4 GHz band (300 Mbps) and 5 GHz band (867 Mbps) for more stable wireless experience

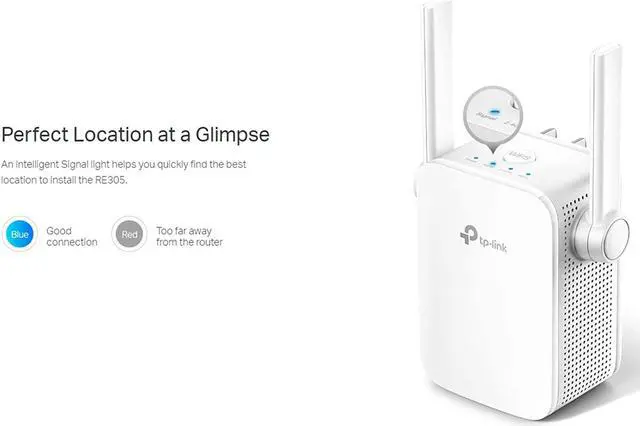

Intelligent signal light helps to find the best location for optimal Wi-Fi coverage by showing the signal strength
Works with any Wi-Fi router or wireless access point
Environmental
Operating Temperature
0 to 40 degrees Celsius (32 to 104 degrees Fahrenheit)
Operating Humidity
10% - 90%, Non-Condensing
Storage Temperature
-40 to 70 degrees Celsius (-40 to 85 degrees Fahrenheit)
Storage Humidity
5% - 90%, Non-Condensing
Additional Information
First Listed on Newegg
September 14, 2020
