2.4GHz 24dBi 2×2 MIMO Dish Antenna
TL-ANT2424MD
Your Browsing History
- Free 30-day Returns
$273.90
Ships from Israel.
Meet Your Seller

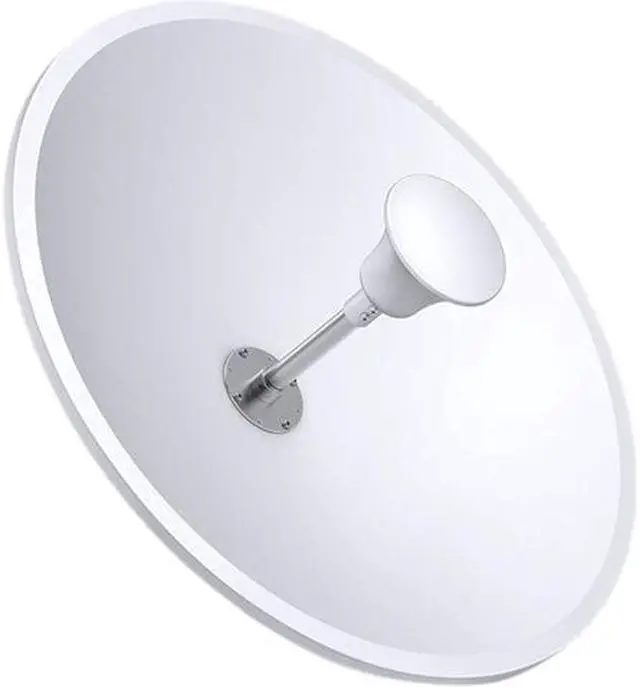

TP-Link TL-ANT2424MD 2.4 GHz 24dBi 2x2 MIMO Dish Antenna
- High-gain directional antenna provides long distance Point-to-Point bridge and network backhaul
- MIMO technology ensures increased throughput
- Weatherproof design
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
- High-gain directional antenna provides long distance Point-to-Point bridge and network backhaul
- Easy installation and seamless integration with the Pharos Base Station WBS210
- MIMO technology ensures increased throughput
- Weatherproof design offers protection in harsh environments
Product Overview
The Pharos Dish Antenna features 2x2 MIMO technology, is suitable for outdoor use, and is ideally paired with a Pharos Base Station. This antenna features high-gain directional transmission and represent an excellent solution for providing long distance Point-to-Point data transmission.
Common Deployment Goals
When installed alongside a Pharos Base Station, the TL-ANT2424MD is capable of providing long distance Point-to-Point bridge and network backbaul.
Easy Installation
TP-LINK dish antennas feature a built in mounting apparatus and work seamlessly with Pharos Base Stations, meaning that no tools are required for installation.
Specifications
| Frequency | 2.3 ~ 2.7GHz |
|---|---|
| Impedance | 50O |
| Gain | 24dBi(Exclude Cable Loss) |
| VSWR(MAX.) | 1.8 |
| HPOL Beamwidth | 6° (3dB) |
| VPOL Beamwidth | 6° (3dB) |
| Elevation Beamwidth | 6° (3dB) |
| Polarization | Horizontal & Vertical |
| Mounting | Pole Mount |
| F/B Ratio | 32dB Min |
| Survival Wind Speed | 241 Km/h |
| Standards | RoHS, WEEE |
| Interfaces | RP-SMA |
| Dimension | Product Size: 650×650×360 mm Package Size: 790×710×200 mm |
