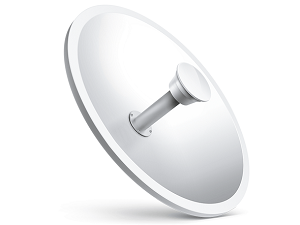

TP-Link 5GHz 30dBi 2×2 MIMO Dish Antenna
TL-ANT5830MD
Your Browsing History
- Free 30-day Returns
$151.99
Most customers receive within 4-9 days.
Meet Your Seller
TP-Link TL-ANT5830MD 5 GHz 30dBi 2×2 MIMO Dish Antenna
- High-gain directional antenna provides long distance Point-to-Point bridge and network backhaul
- MIMO technology ensures increased throughput
- Weatherproof design
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
- High-gain directional antenna provides long distance Point-to-Point bridge and network backhaul
- Easy installation and seamless integration with the Pharos Base Station WBS510
- MIMO technology ensures increased throughput
- Weatherproof design offers protection in harsh environments
Product Overview
The Pharos Dish Antenna features 2x2 MIMO technology, is suitable for outdoor use, and is ideally paired with a Pharos Base Station. This antenna feature high-gain directional transmission and represent an excellent solution for providing long distance Point-to-Point data transmission.
Common Deployment Goals
When installed alongside a Pharos Base Station, the TL-ANT5830MD is capable of providing long distance Point-to-Point bridge and network backbaul.
Easy Installation
TP-LINK dish antennas feature a built in mounting apparatus and work seamlessly with Pharos Base Stations, meaning that no tools are required for installation.
Specifications
| Frequency | 5.0 ~ 6.0GHz |
|---|---|
| Impedance | 50O |
| Gain | 30dBi (Exclude Cable Loss) |
| VSWR(MAX.) | 1.8 |
| HPOL Beamwidth | 6° (3dB) |
| VPOL Beamwidth | 6° (3dB) |
| Elevation Beamwidth | 6° (3dB) |
| Polarization | Horizontal & Vertical |
| Mounting | Pole Mount |
| F/B Ratio | 34dB Min |
| Survival Wind Speed | 241 Km/h |
| Standards | RoHS, WEEE |
| Interfaces | RP-SMA |
| Dimension | Product Size: 650×650×360 mm Package Size: 790×710×200 mm |
The Pharos Dish Antenna features 2x2 MIMO technology, is suitable for outdoor use, and is ideally paired with a Pharos Base Station. This antenna feature high-gain directional transmission and represent an excellent solution for providing long distance Point-to-Point data transmission. Common Deployment Goals When installed alongside a Pharos Base Station, the TL-ANT5830MD is capable of providing long distance Point-to-Point bridge and network backbaul. Easy Installation TP-LINK dish antennas feature a built in mounting apparatus and work seamlessly with Pharos Base Stations, meaning that no tools are required for installation. Application/Usage: Wireless Data Network Application/Usage: Outdoor Application/Usage: Wireless Data Network Application/Usage: Outdoor Product Type: Antenna Product Type: Antenna Compatibility: TP-LINK Pharos Base Station WBS510 Manufacturer Part Number: TL-ANT5830MD Form Factor: Pole Connector Type: RP-SMA Form Factor: Pole Frequency: 5 GHz to 6 GHz Manufacturer: TP-LINK Technologies Co., Ltd Product Model: TL-ANT5830MD Product Name: 5GHz 30dBi 2×2 MIMO Dish Antenna Brand Name: TP-LINK Brand Name: TP-LINK Height: 14.2 Width: 25.6 Depth: 25.6 Antenna Gain: 30 dBi Environmentally Friendly: Yes Environmental Certification: WEEE Environmental Certification: RoHS Antenna Gain: 30 dBi Directivity: Directional
