Will this work on a GFCI circuit?

It will, but performance will be serverly impacted. I found this to be true when I had one end of the adaptor plugged into my basement outlet that was on a GFCI circuit. I moved it to another outlet and saw a noticeable improvment.

Will this also pair with AV500?

Yes. I have it both working great at home. If you have any problem during pairing between the two units, you need to hold down the pairing button for 10 seconds to reset the units and try it again.

Home
Networking
Wireless Networking
Powerline Networking
TP-Link
Item#: N82E16833704305

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Sold by Newegg

Shipped by Newegg

Add to Wish List

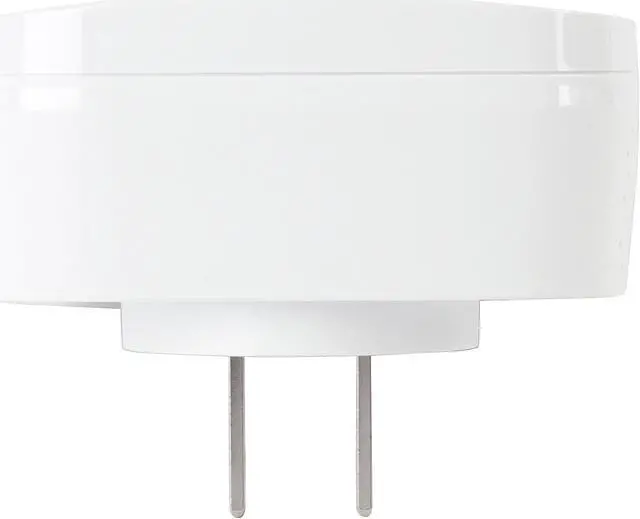

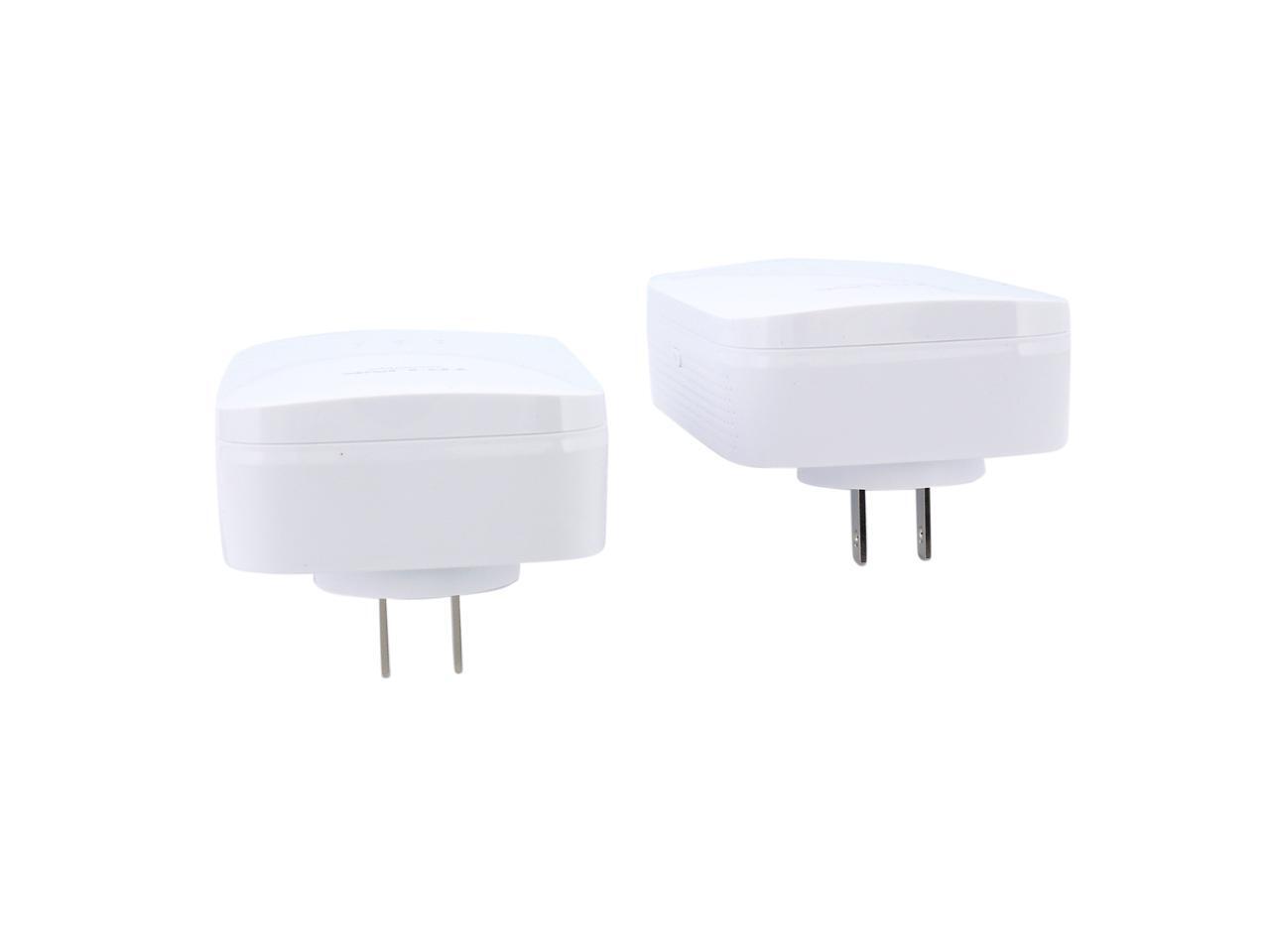

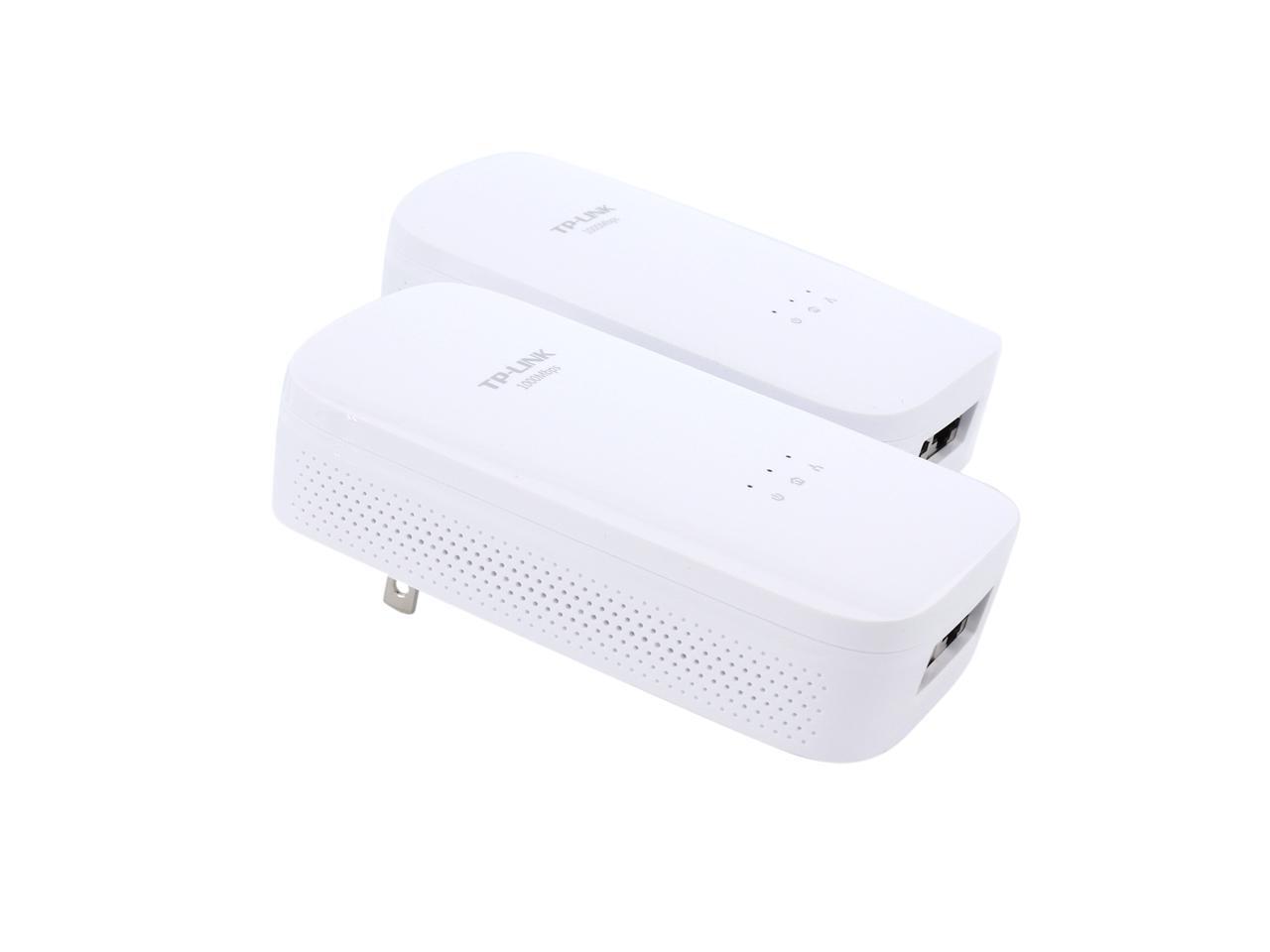

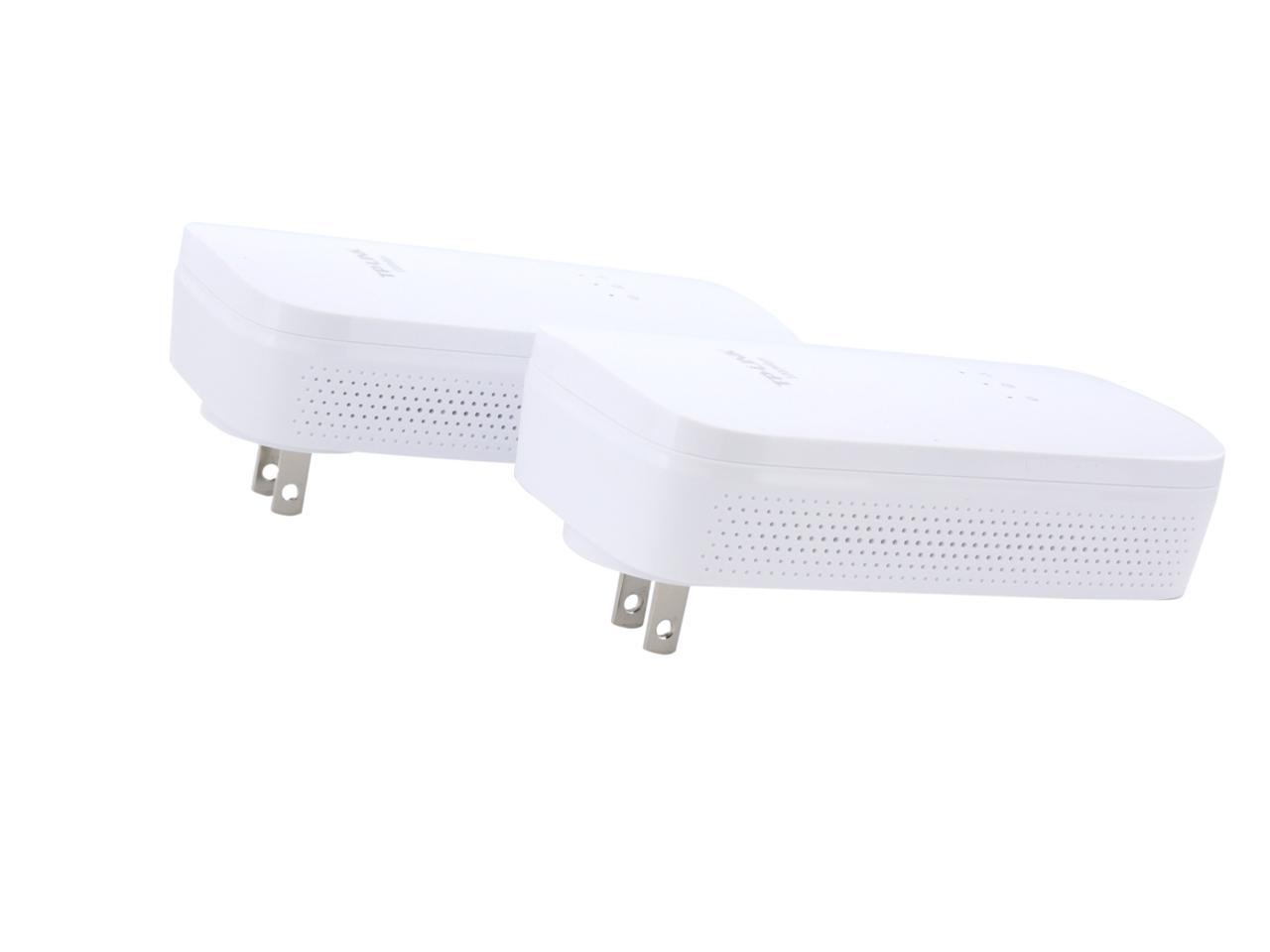

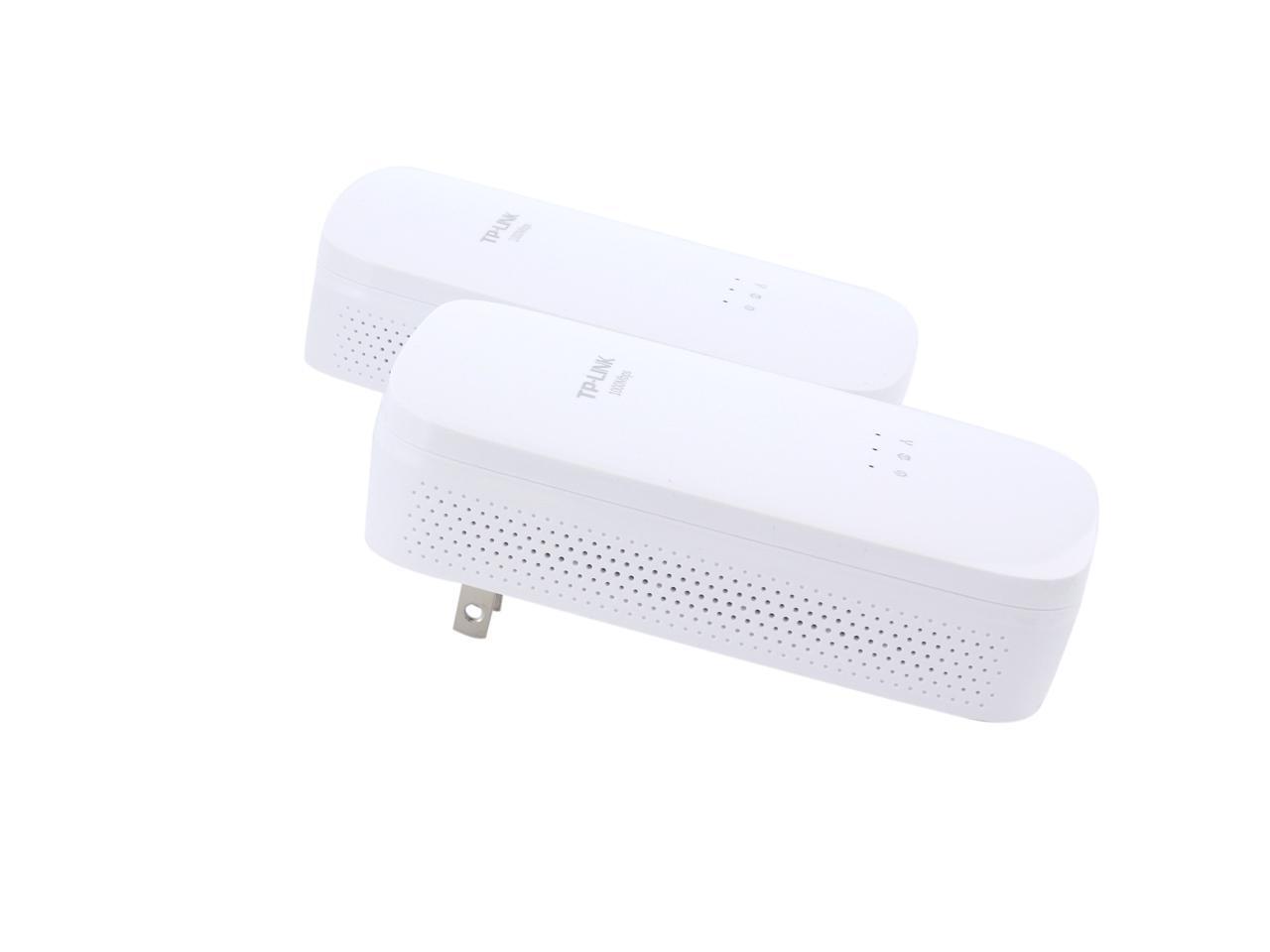

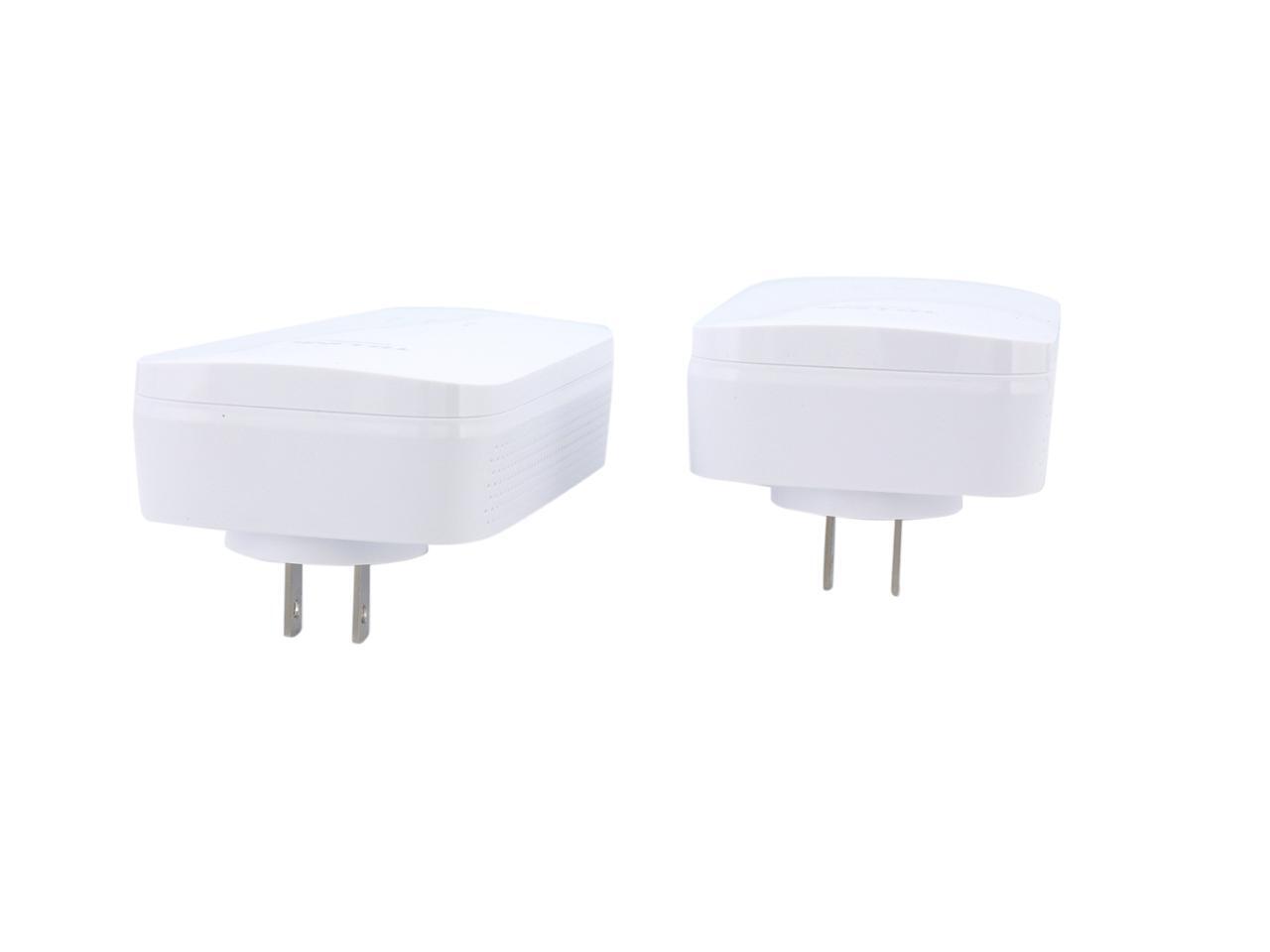

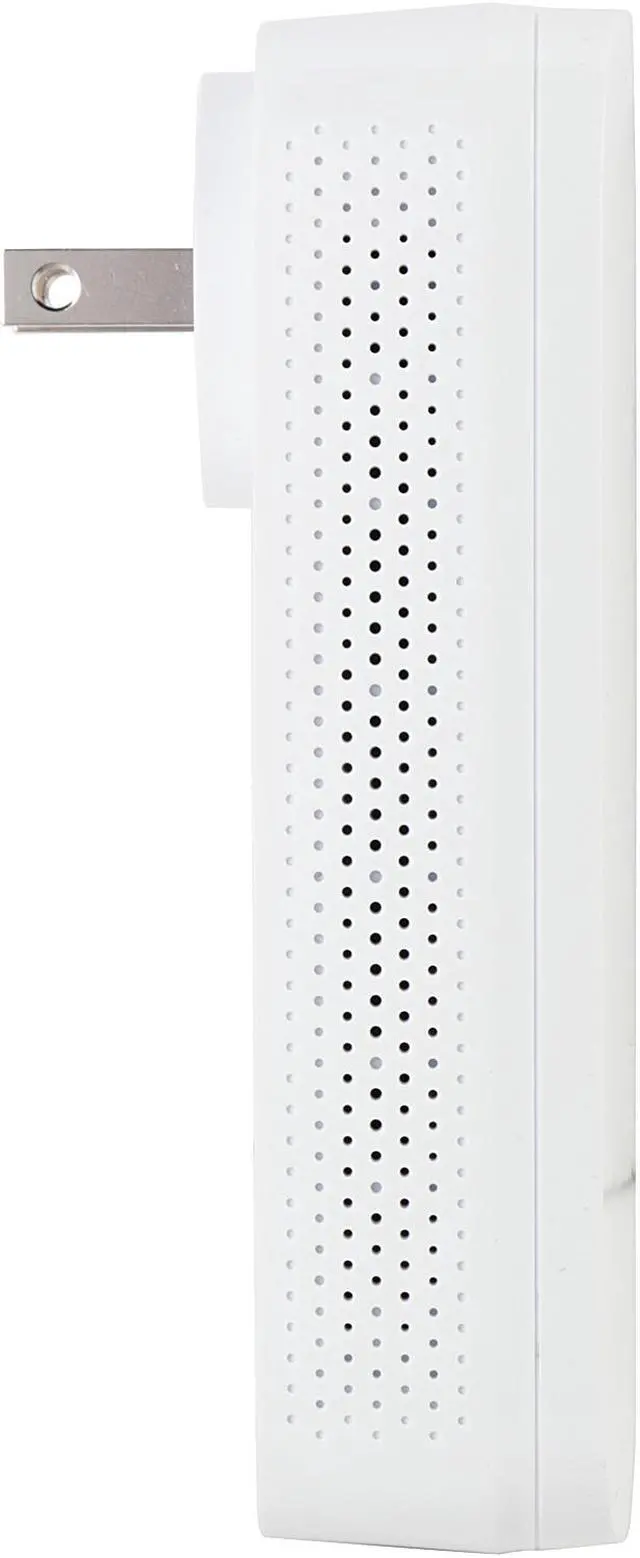

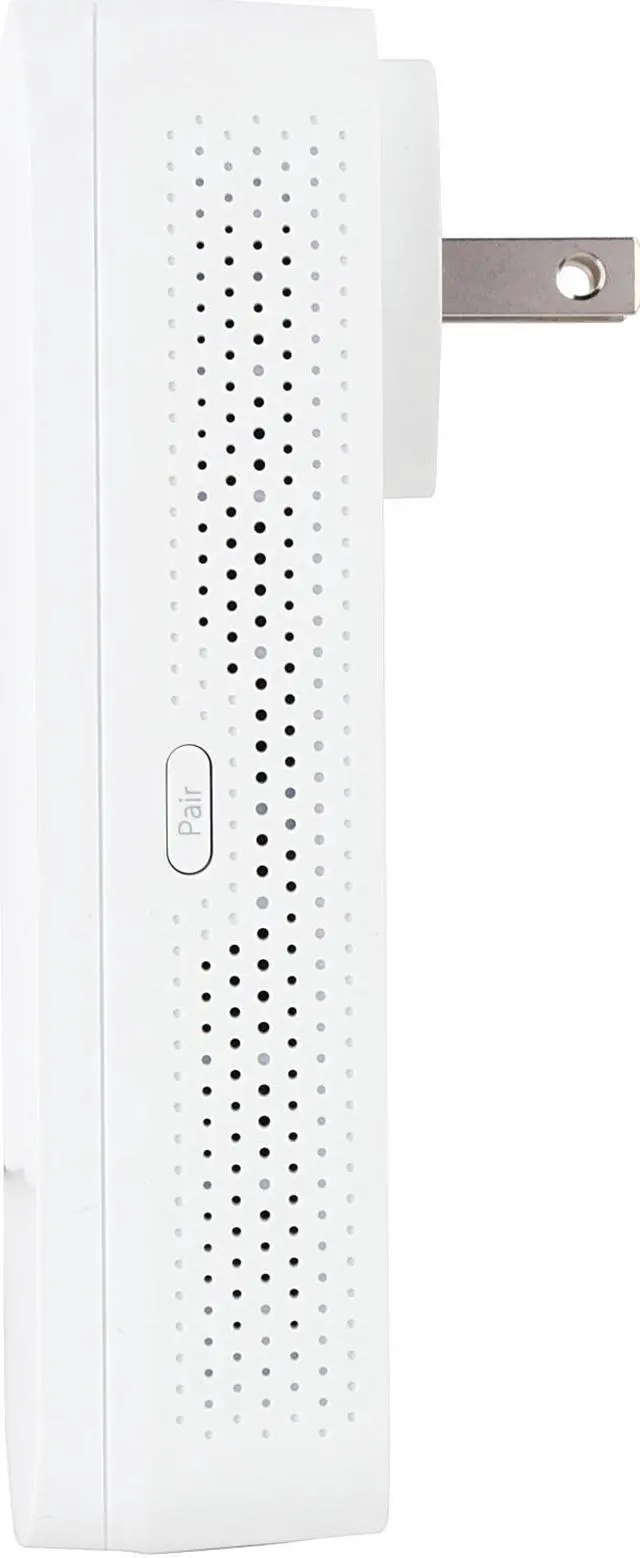

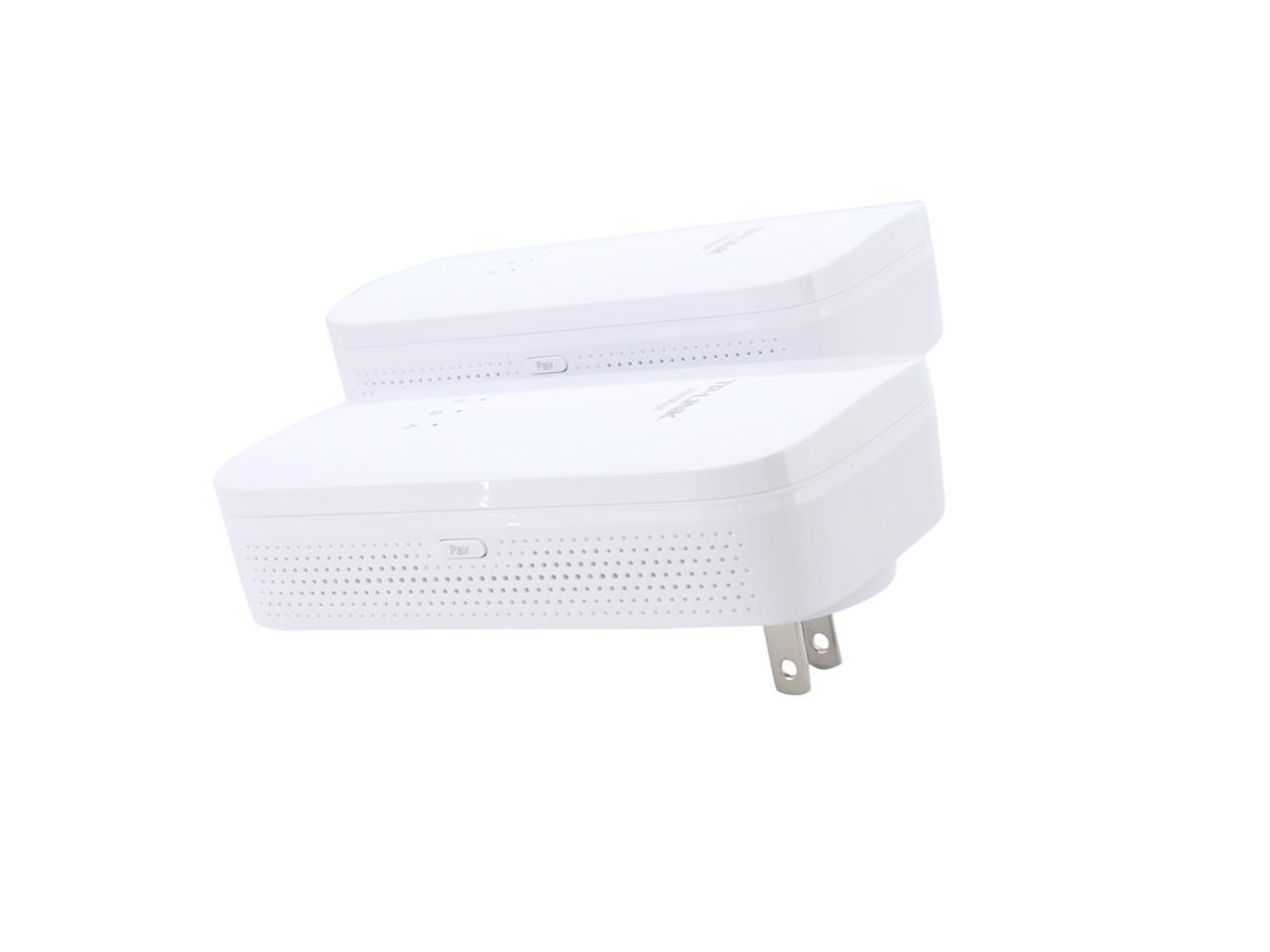

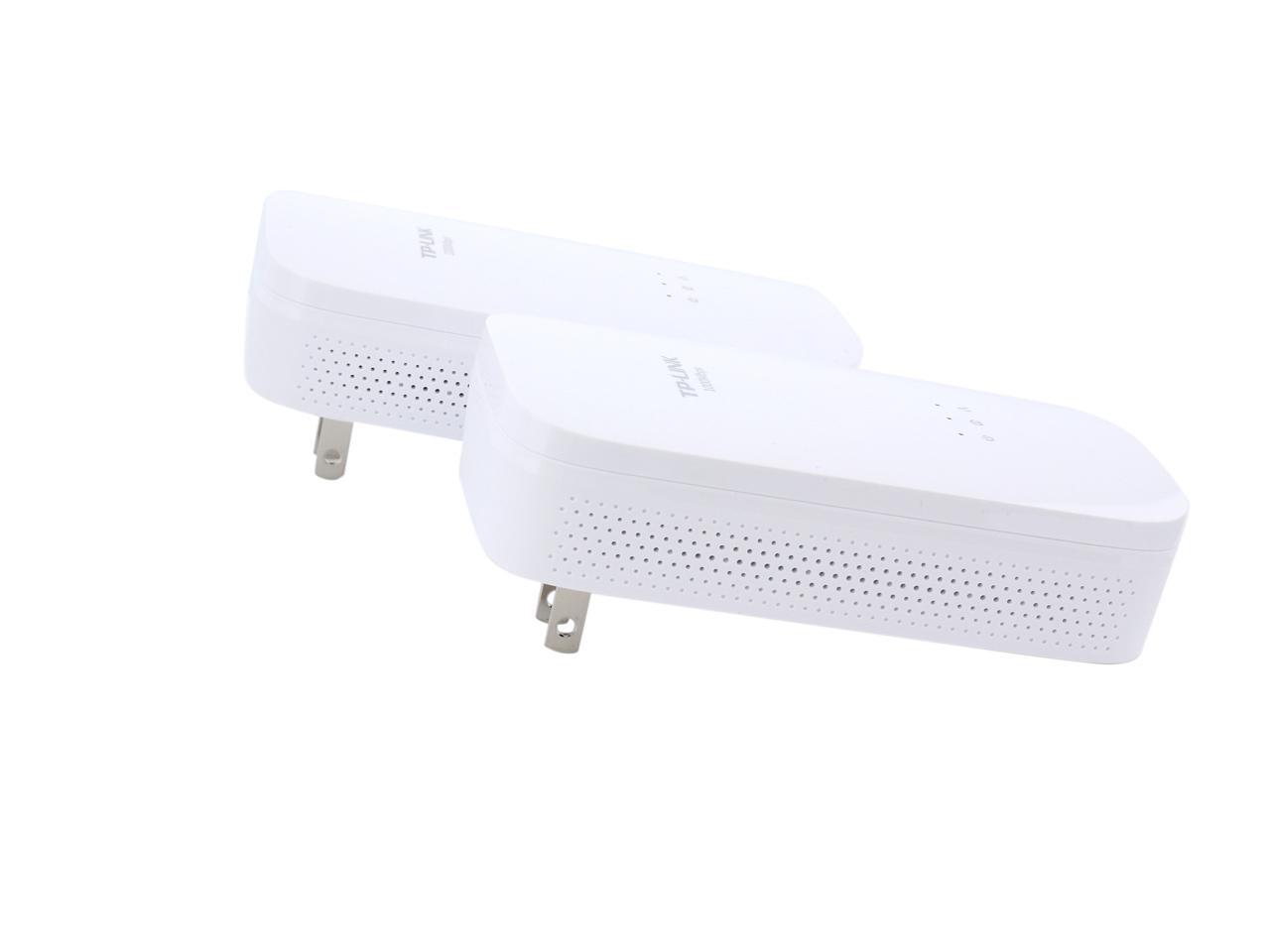

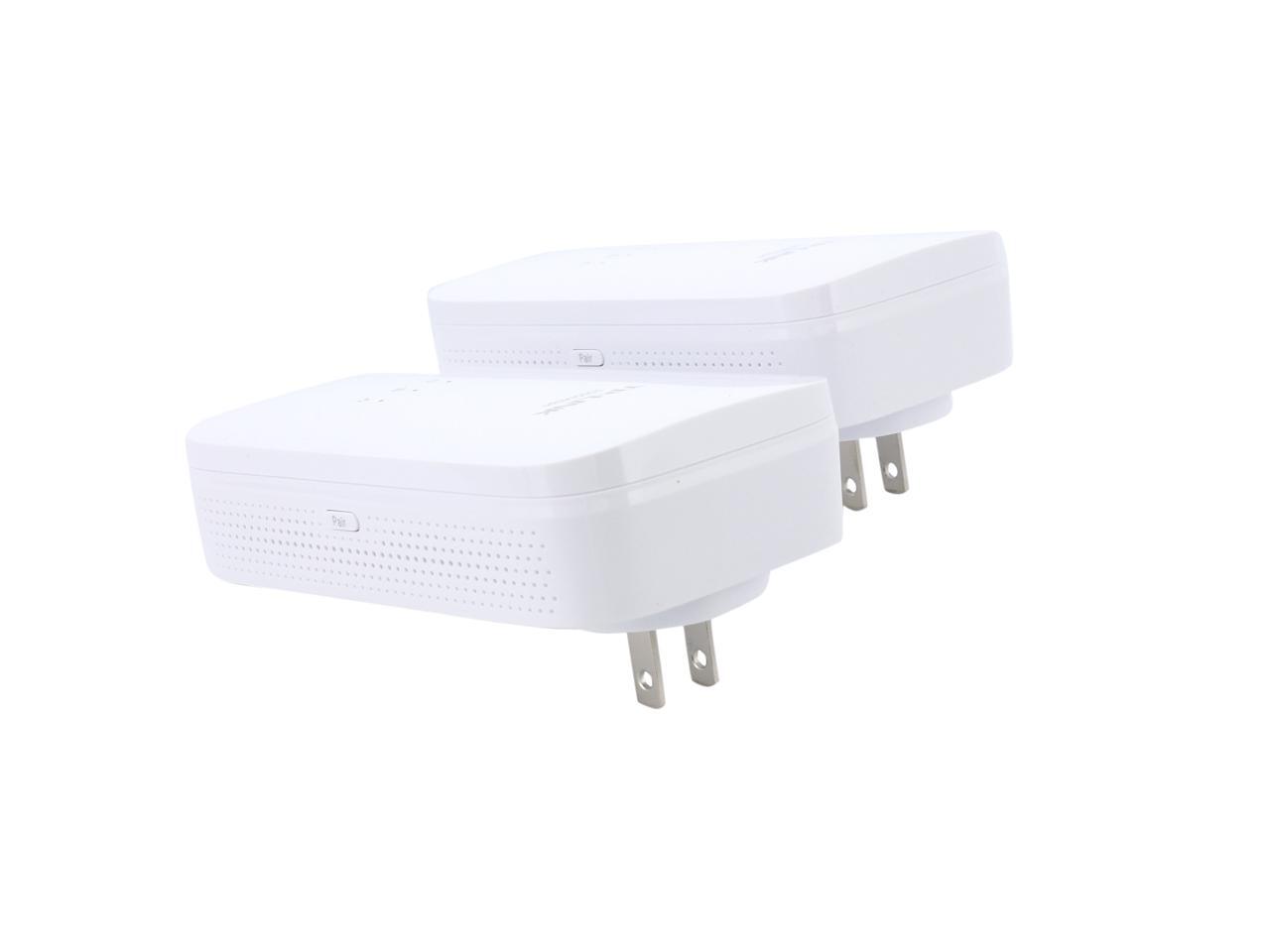

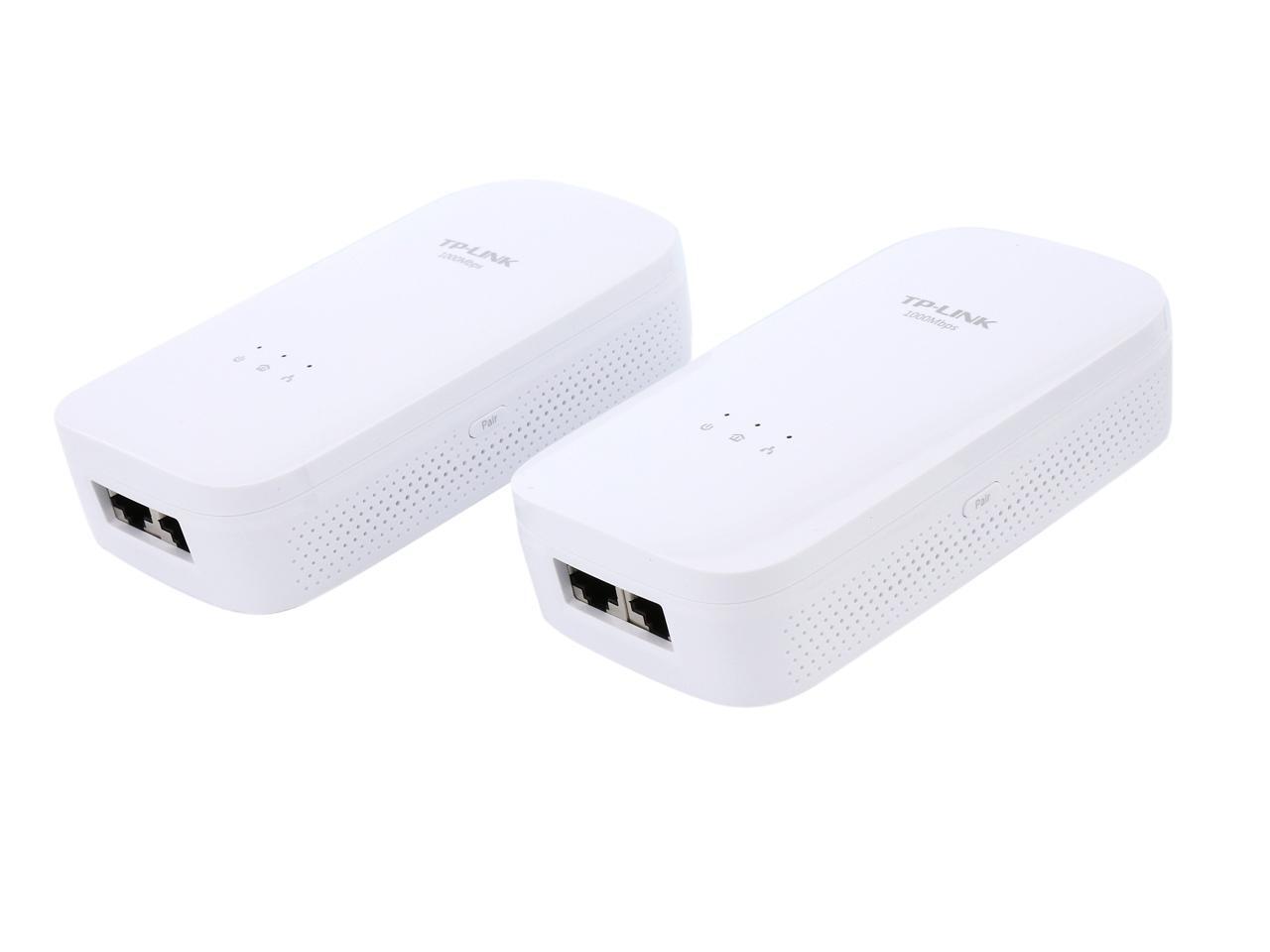

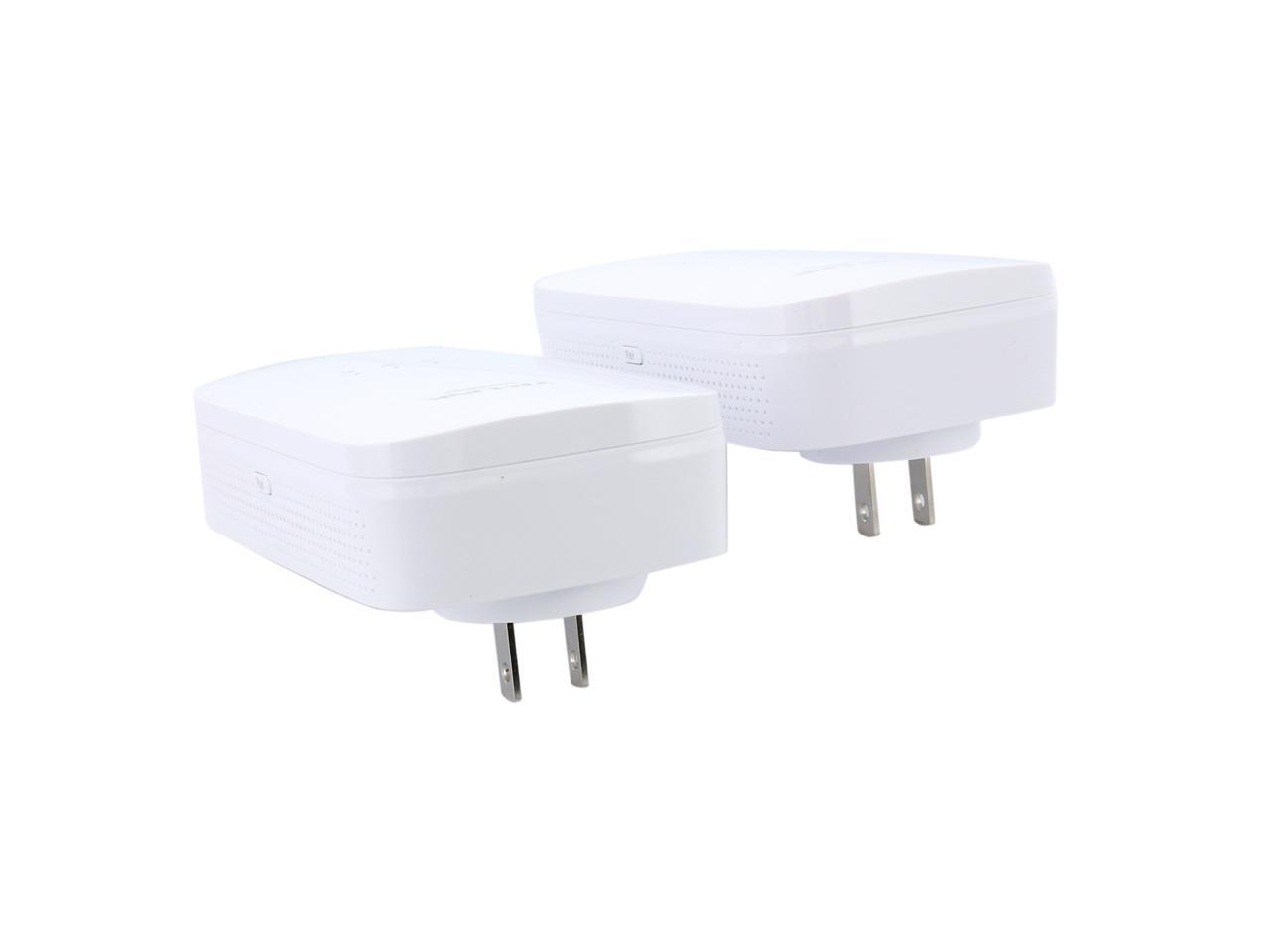

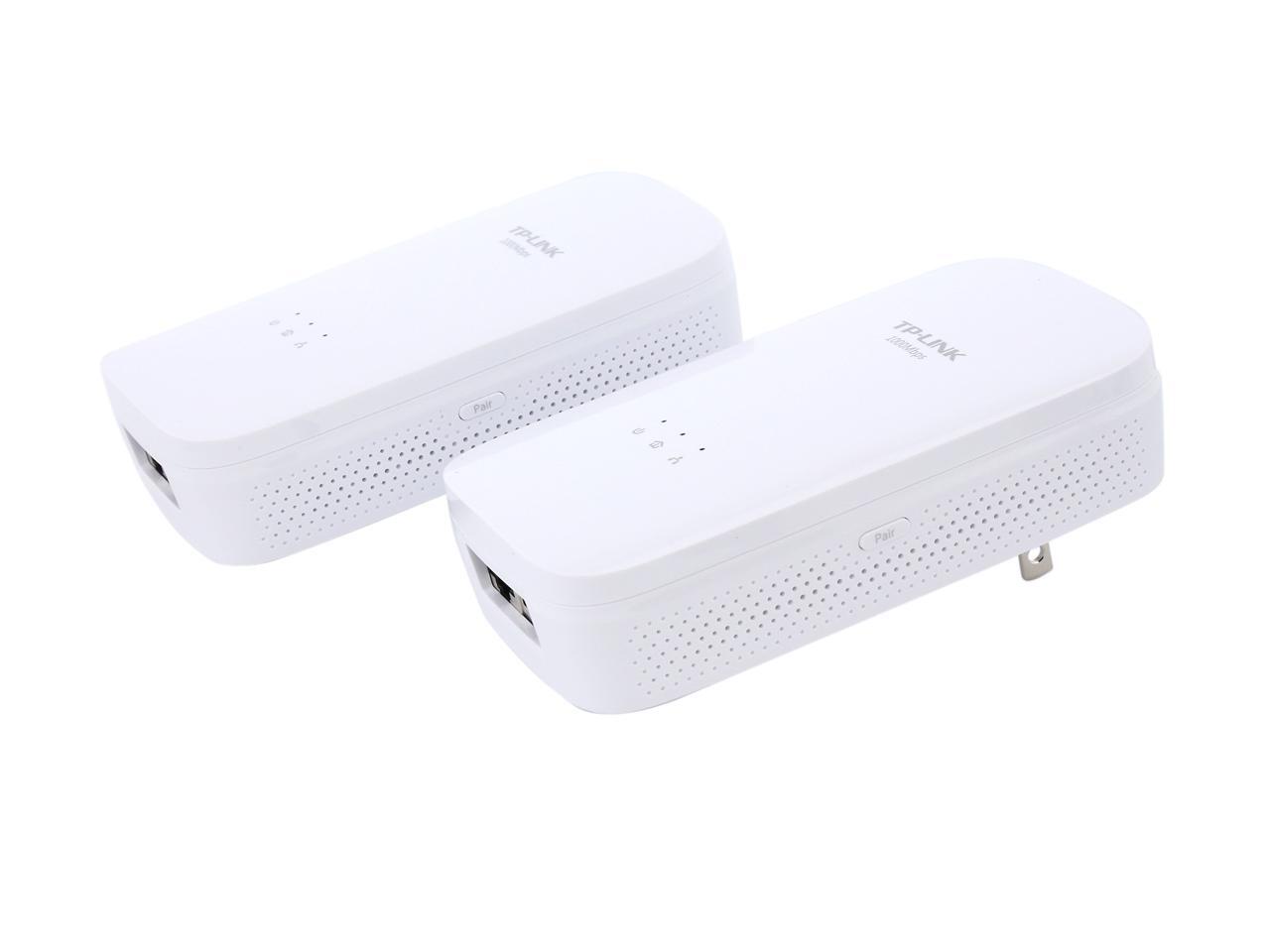

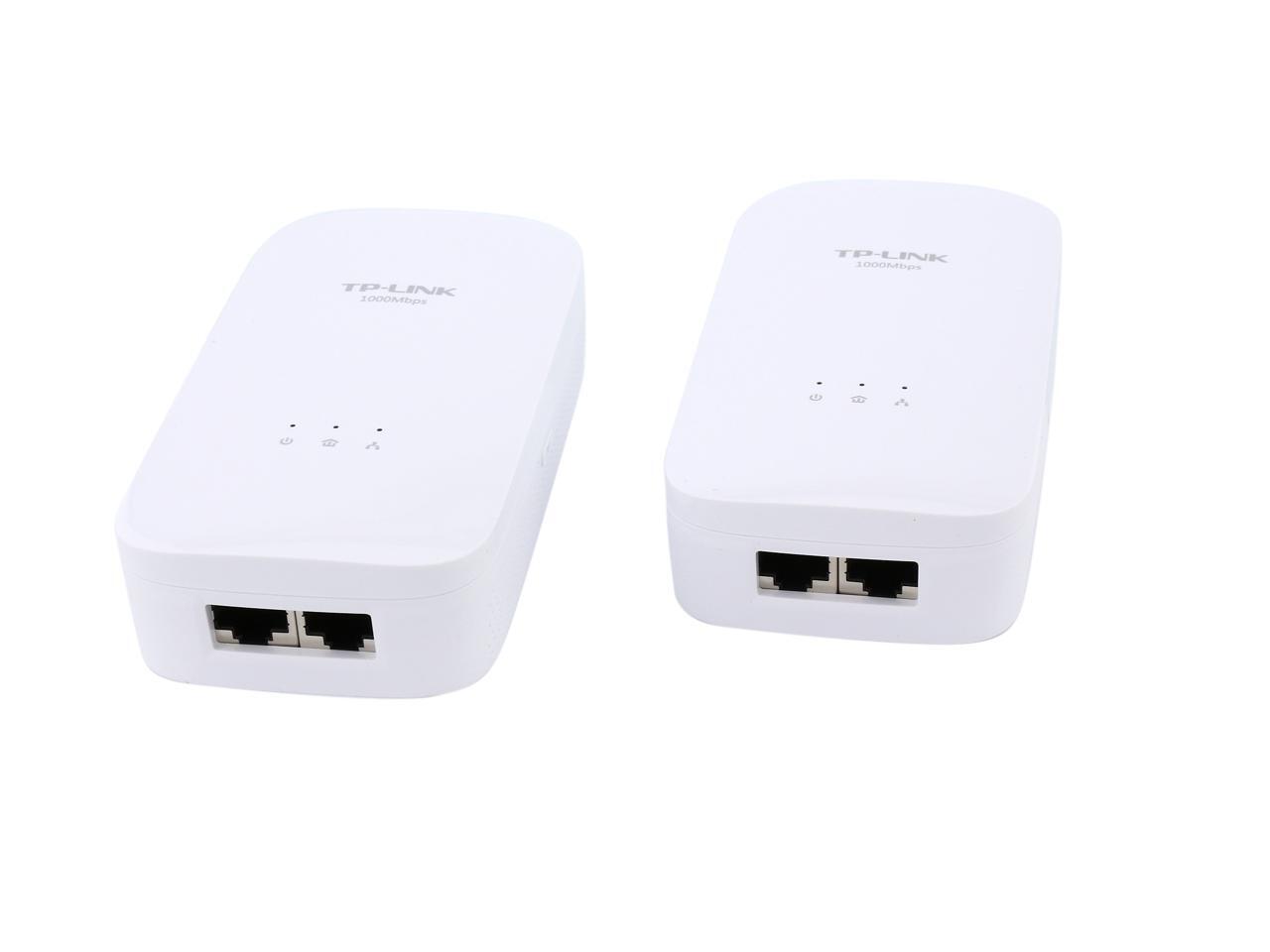

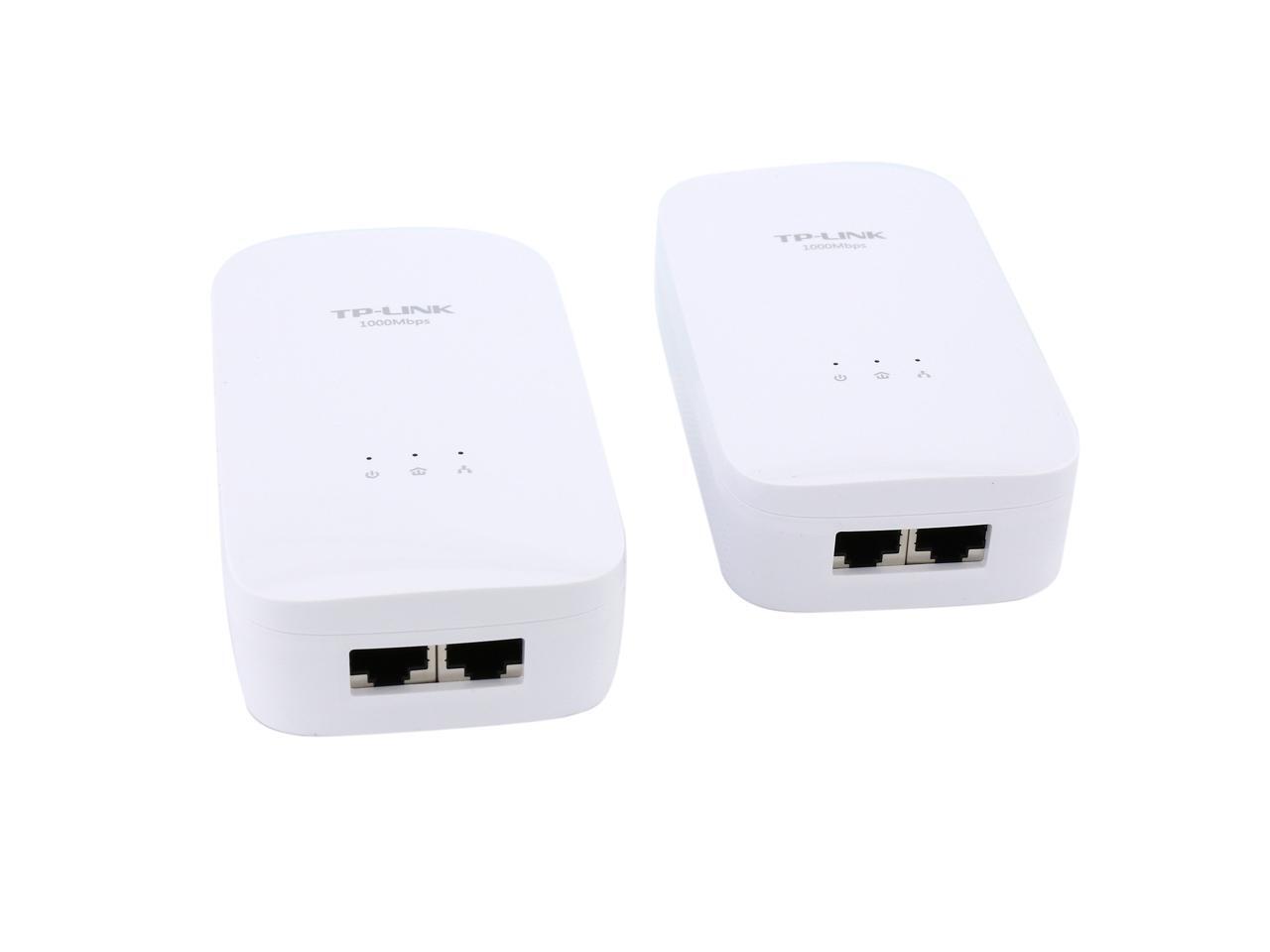

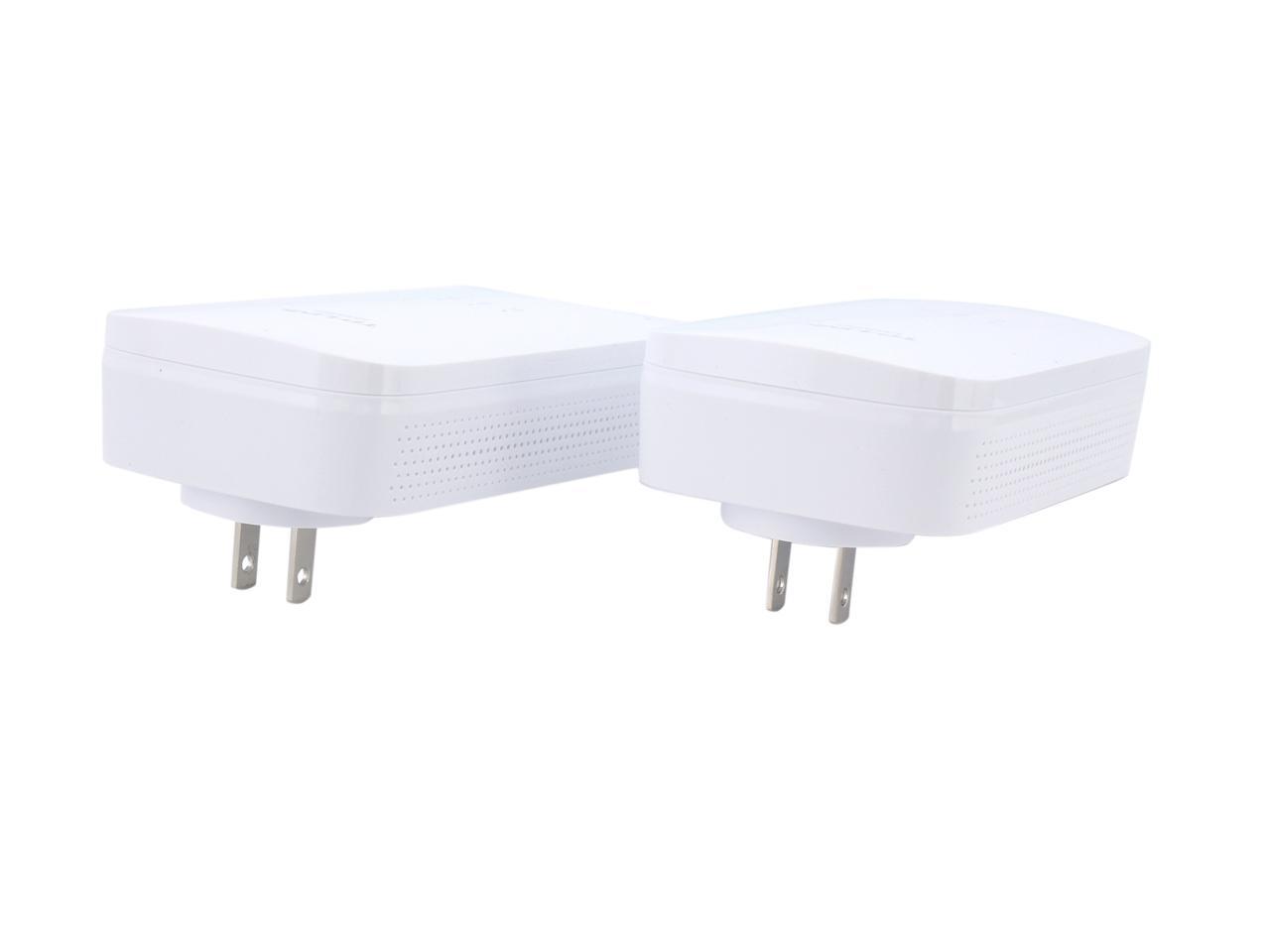

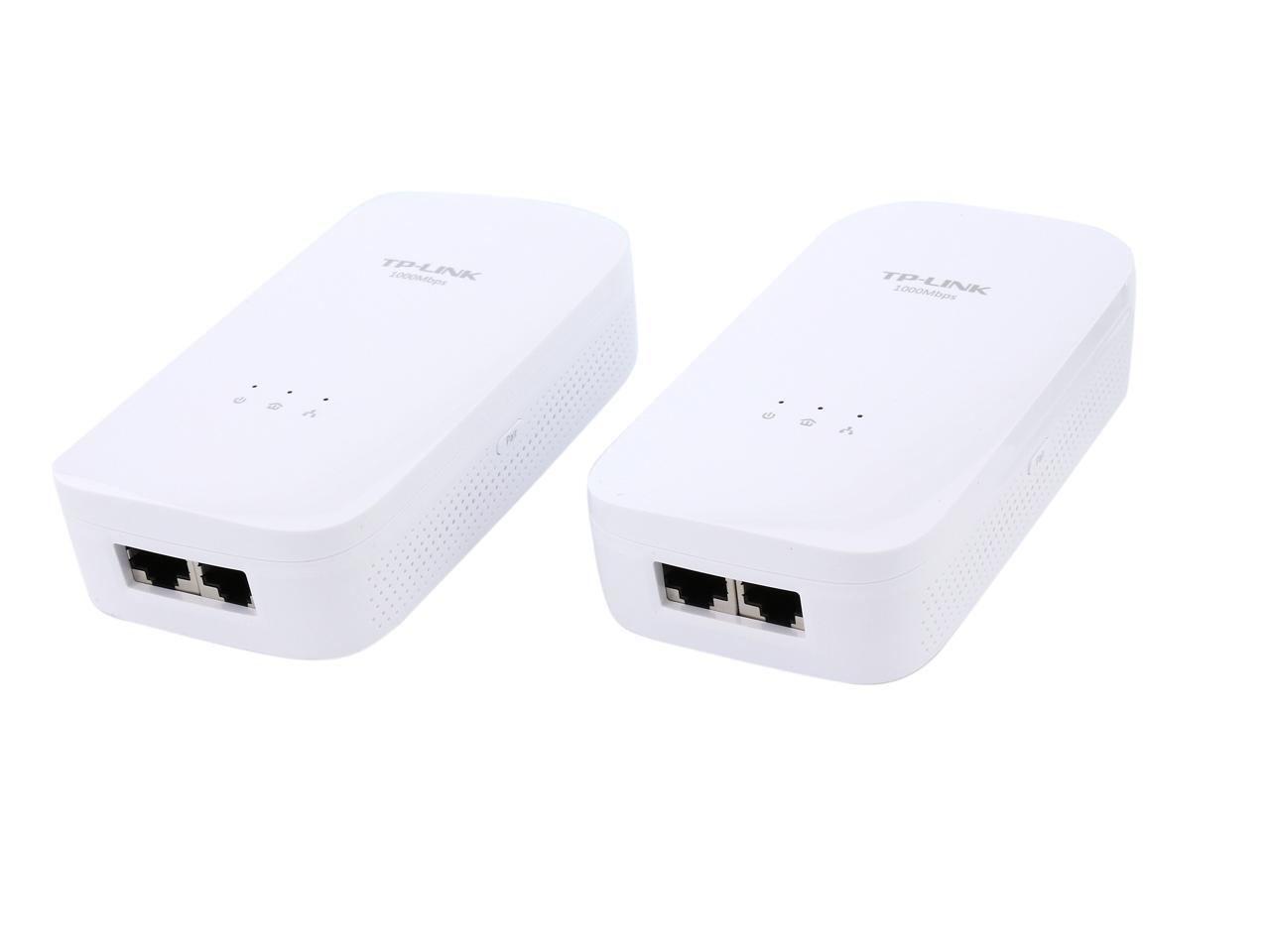

Main image of TP-LINK TL-PA7020 KIT HomePlug AV2 MIMO AV1000 2 –Port Gigabit Powerline Starter Kit, up to 1000 Mbps

100%

Alt view image 2 of 6 - TP-LINK TL-PA7020 KIT HomePlug AV2 MIMO AV1000 2 –Port Gigabit Powerline Starter Kit, up to 1000 Mbps

Alt view image 3 of 6 - TP-LINK TL-PA7020 KIT HomePlug AV2 MIMO AV1000 2 –Port Gigabit Powerline Starter Kit, up to 1000 Mbps

Alt view image 4 of 6 - TP-LINK TL-PA7020 KIT HomePlug AV2 MIMO AV1000 2 –Port Gigabit Powerline Starter Kit, up to 1000 Mbps

Alt view image 5 of 6 - TP-LINK TL-PA7020 KIT HomePlug AV2 MIMO AV1000 2 –Port Gigabit Powerline Starter Kit, up to 1000 Mbps

Alt view image 6 of 6 - TP-LINK TL-PA7020 KIT HomePlug AV2 MIMO AV1000 2 –Port Gigabit Powerline Starter Kit, up to 1000 Mbps

360^°

Shop All TP-Link Products

TP-LINK TL-PA7020 KIT HomePlug AV2 MIMO AV1000 2 –Port Gigabit Powerline Starter Kit, up to 1000 Mbps

(19) Write a Review

Up to 1000 Mbps
2-port Gigabit
Plug and Play
Power-saving mode reduced by up to 85%

Overview

Specs

Reviews (19)

See all Q & A

Any questions? Our AI mode will help you find out quickly.

Try me now

Model
Brand	TP-Link
Model	TL-PA7020 KIT

Details
Standards	HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Interface	2 * Gigabit Ethernet Port
Encryption	128-bit AES Encryption
Ports	Ethernet port
LEDs	PWR, PLC, ETH
Certifications	CE, RoHS
Powerline Speeds	Up to 1Gbps
Power Supply	Maximum: 5.7W (220V / 50Hz) Typical: 4.7W (220V / 50Hz) Standby: 1.4W (220V / 50Hz)
System Requirement	Windows 2000 / XP / 2003 / Vista, Windows 7 / 8 / 8.1, Mac, Linux

Environmental
Temperature	Operating Temperature: 0 degree C ~ 40 degree C (32 degree F ~ 104 degree F) Storage Temperature: -40 degree C ~ 70 degree C (-40 degree F ~ 158 degree F)
Humidity	Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing

Features
Features	Plug Type: EU, UK, US Button: Pair Button Range: 300 Meters over electrical circuit Modulation Technology: OFDM (PLC) HomePlug AV2 standard compliant, high-speed data transfer rates of up to 1000 Mbps, supports all your online needs 2 gigabit ports create secure wired networks for desktops or IPTVs Plug and play, no configuration required Patented Power-Saving Mode automatically reduces power consumption by up to 85%

Dimensions & Weight
Dimensions	1.18" x 4.85" x 2.68"

Packaging

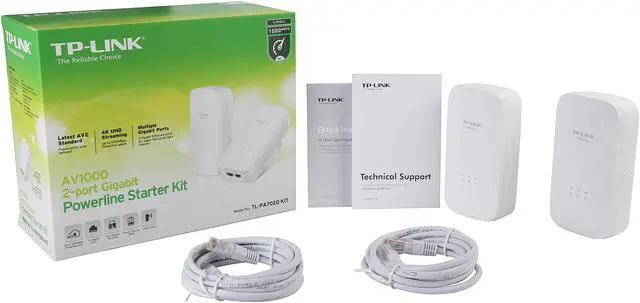

Package Contents	Powerline Ethernet Adapter 6.5 ft. (2 m) CAT.5e Ethernet cable (RJ45) Quick Installation Guide

Additional Information
First Listed on Newegg	May 10, 2016

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
