Question 1

Will it work if the wall plug is a two wire (i.e., no ground) system?  House is '53 so its not groundable.   Related: do the two ends have to be on the same circuit breaker?

Accepted Answer

The device has only a 2-prong plug so ground pin is not relevant.  Two ends need not be on the same circuit breaker but if the house is wired for 120/240, the two ends may need to be on the same set of 120V breakers otherwise the signal may not make it to the outdoor transformer and back down the 2nd 120V side.  Bridge devices can be obtained to bridge the two 120V sides although that's adding to the complexity.

Question 2

If this is plugged into the top outlet, will it block the bottom outlet?

Accepted Answer

You could choose to plug it into the top outlet right side up or the bottom outlet upside down and the other outlet is not blocked.  The plug is non-polarized so it goes in either way.

Question 3

Can you hook up a wi-fi router to this on the other side?

Accepted Answer

Yes, the units basically act as an ethernet extender to the devices on either ends and an extended switch when more than 2 units are deployed/utilized.

Question 4

What is the benefit of having two ethernet ports on the source side?

Accepted Answer

Having two ethernet ports on the device allows you to connect two hardwired devices (computer, notebook, TV, etc...) on the end unit to the home network.  The caveat is the connection to your home router can only be on one port, so the one that is connected to the router has a "backup" port available... Nice to have just in case one of the ports goes down.

Brand	TP-Link
Model	TL-PA7020 KIT_V2

Standards	HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Interface	2 x Gigabit Ethernet Port
Encryption	128-bit AES Encryption
Ports	Ethernet port
LEDs	PWR, PLC, ETH
Certifications	CE, RoHS
Powerline Speeds	Up to 1Gbps
Connection Type	RJ45
Power Supply	Maximum: 5.7W Typical: 4.7W Standby: 1.4W
System Requirement	Windows 2000 / XP / 2003 / Vista, Windows 7 / 8 / 8.1, Mac, Linux

Temperature	Operating Temperature: 0 degree C ~ 40 degree C (32 degree F ~ 104 degree F) Storage Temperature: -40 degree C ~ 70 degree C (-40 degree F ~ 158 degree F)
Humidity	Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing

Meet Your Seller

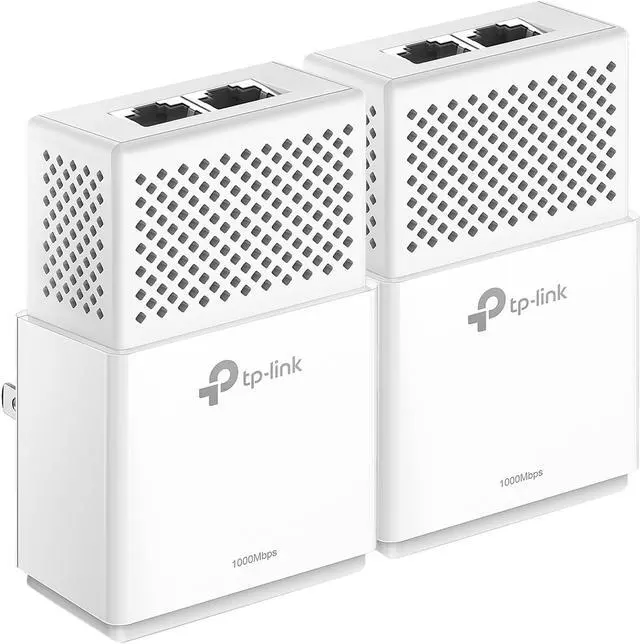

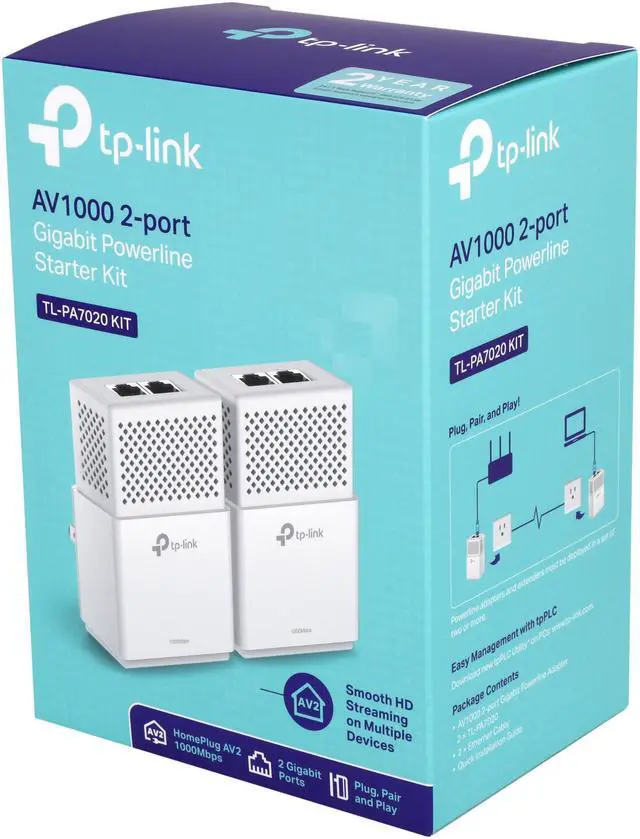

TP-Link TL-PA7020 KIT_V2 AV1000 2-port Gigabit Powerline Starter Kit Up to 1Gbps

Learn more about the TP-Link TL-PA7020 KIT_V2

Customer Reviews of the TP-Link TL-PA7020 KIT_V2

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Item#: 9SIA4RE8H81423
