What environmental conditions can the Transition Networks M/GE-PSW-SX-01-NA media converter operate in?

The media converter can operate in temperatures ranging from 0°C to 50°C and can be stored in conditions from -15 to +65 °C.

What is the maximum frame size supported by the Transition Networks M/GE-PSW-SX-01-NA media converter?

The maximum frame size supported is 1632 bytes for untagged frames and 1628 bytes for tagged frames.

$298^.99

$375.00

This product is available for $298.22 from a Top Rated seller.

Limit 2 per customer.

Price alert

Add to wish list

Sold by Newegg

Shipped by Newegg

Best Sellers

NothingButSavings

Top Rated

4.5 (8,971 total ratings)

$298^.22

Technology Galaxy

Top Rated

4.2 (2,326 total ratings)

$313^.26
+ FREE SHIPPING

BeachAudio

Top Rated

4.4 (8,552 total ratings)

$315^.63

Volume Discounts Available

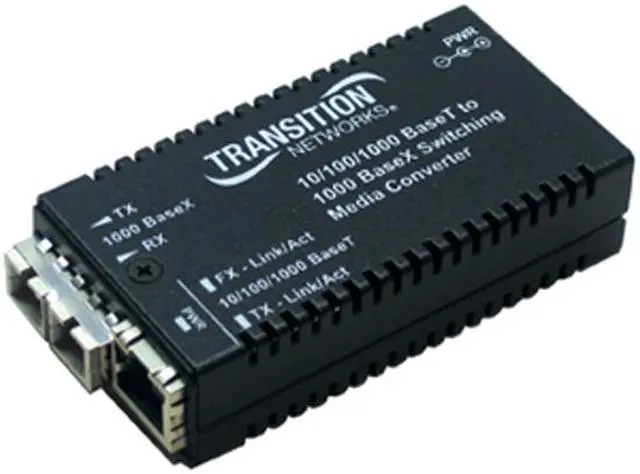

Main image of Transition Networks M/GE-PSW-SX-01-NA 10/100/1000Base-TX to 1000Base-SX Media Converter

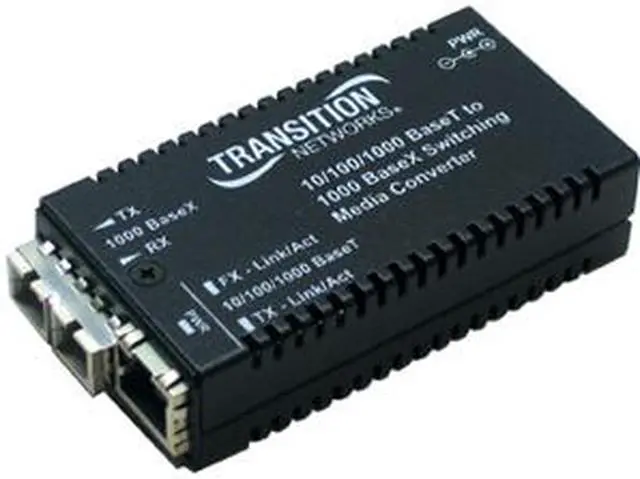

Alt view image 2 of 2 - Transition Networks M/GE-PSW-SX-01-NA 10/100/1000Base-TX to 1000Base-SX Media Converter

Shop All Transition Networks Products

Transition Networks M/GE-PSW-SX-01-NA 10/100/1000Base-TX to 1000Base-SX Media Converter

Be the first to review this product...

M/GE-PSW-SX-01-NA
Converter

Overview

Specs

Reviews

See all Q & A

MAIN OVERVIEW FEATURES: Total Number of Ports: 2Network (RJ-45): YesNumber of Network (RJ-45) Ports: 1Number of SC Ports: 1Network Technology: 10/100/1000Base-T,1000Base-SX

Model
Brand	Transition Networks
Model	M/GE-PSW-SX-01-NA

Details
Type	Converter
Specifications	10/100/1000BASE-T (RJ-45) [100 m/328 ft.] to 1000BASE-SX 850nm multimode (SC) [62.5/125 µm fiber: 220 m/722 ft.] Link Budget: 7.0 dB [50/125 µm fiber: 550 m/1804 ft.] Standards: IEEE 802.3 Max Frame Size: untagged: 1632 bytes / tagged: 1628 bytes Status LEDs: PWR (Power): (below RJ-45) ON = Lit for normal operation FX-Link/Act (Fiber Link/Activity): (Upper Left on RJ-45) ON = Link; Flashing = Activity TX-Link/Act (Copper Link/Activity): (Upper Right on RJ-45) ON = Link; Flashing = Activity Power Consumption: 3.15 Watts Sources: Unit accepts 5 VDC to 28 VDC Wall Mount AC adapter: 12 VDC 400mA Environment Storage: -15 to +65 °C Operating: 0°C to 50°C Altitude: 0 – 10,000 feet Humidity: 5% to 95% (non-condensing) Compliance Safety: Wall Mount Power Supply, UL Listed, C-UL Listed (Canada) FCC Class A, CISPR22/EN55022 Class A, EN55024, CE Mark Dimension: 0.85" x 1.80" x 3.30" Weight: 2.00 lbs.

Features
Features	Unit & Port LEDs allow for quick status information Auto-Negotiation Fixed Full-Duplex on fiber Auto-MDI/MDIX Fixed Link Pass Through Automatic Link Restoration Space saving design Connect Legacy Networking Equipment: Connect an existing 10/100 Mbps device to 1000 Mbps devices.

Additional Information
First Listed on Newegg	March 03, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2025 and December 31, 2025 you will have until January 31, 2026 to return your product.

Return for refund until: January 31, 2026

Return for replacement until: January 31, 2026

This item is covered by Newegg.com's Extended Holiday Return Policy.
Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-800-260-1312
Support Website
