One computer outputs three identical or different screens (switch between 2 PCs)
KVM switch 3 monitors

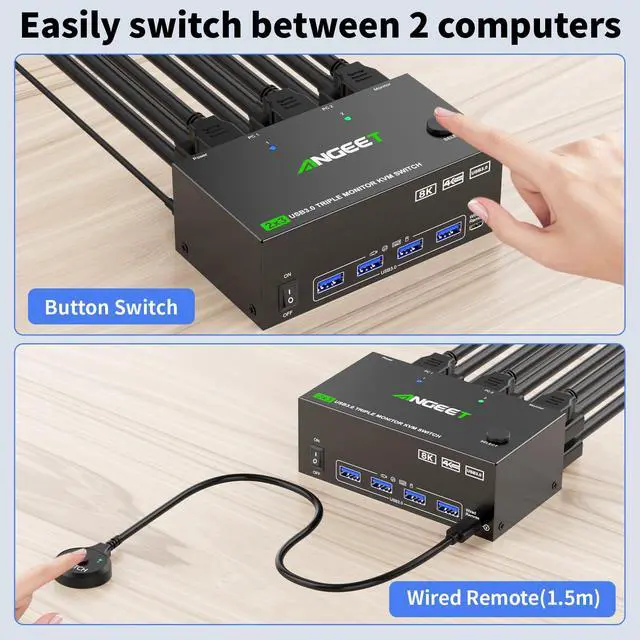

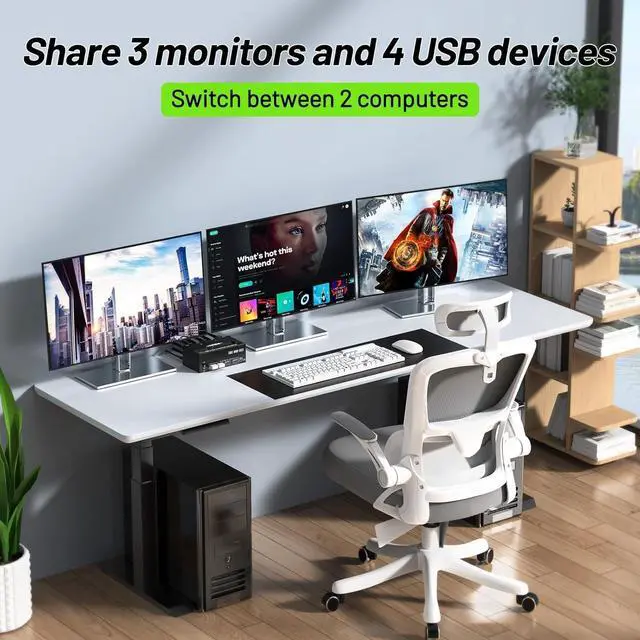

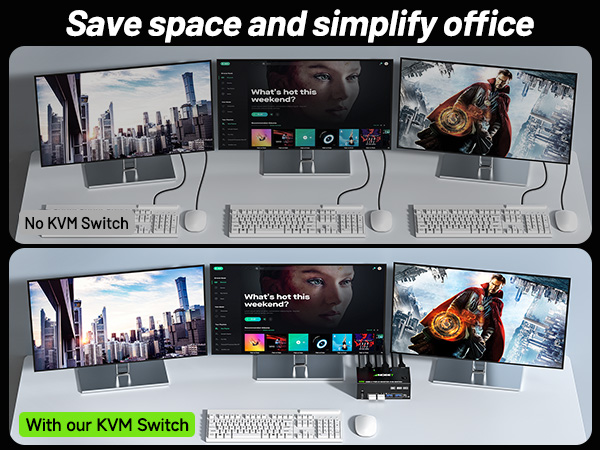

Merchant Video2 computers 3 Monitors KVM Switch -- one set of wired/wireless keyboard mouse controls two computers, sharing three monitors, suitable for users with 2 computers and 3 monitors, supporting Mirror mode and extended Mode, helping you balance work and play

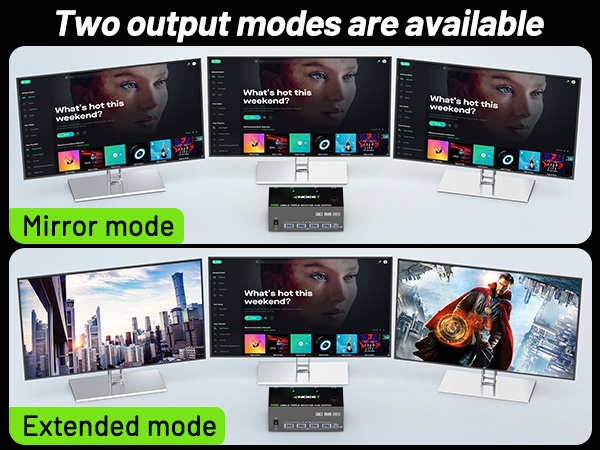

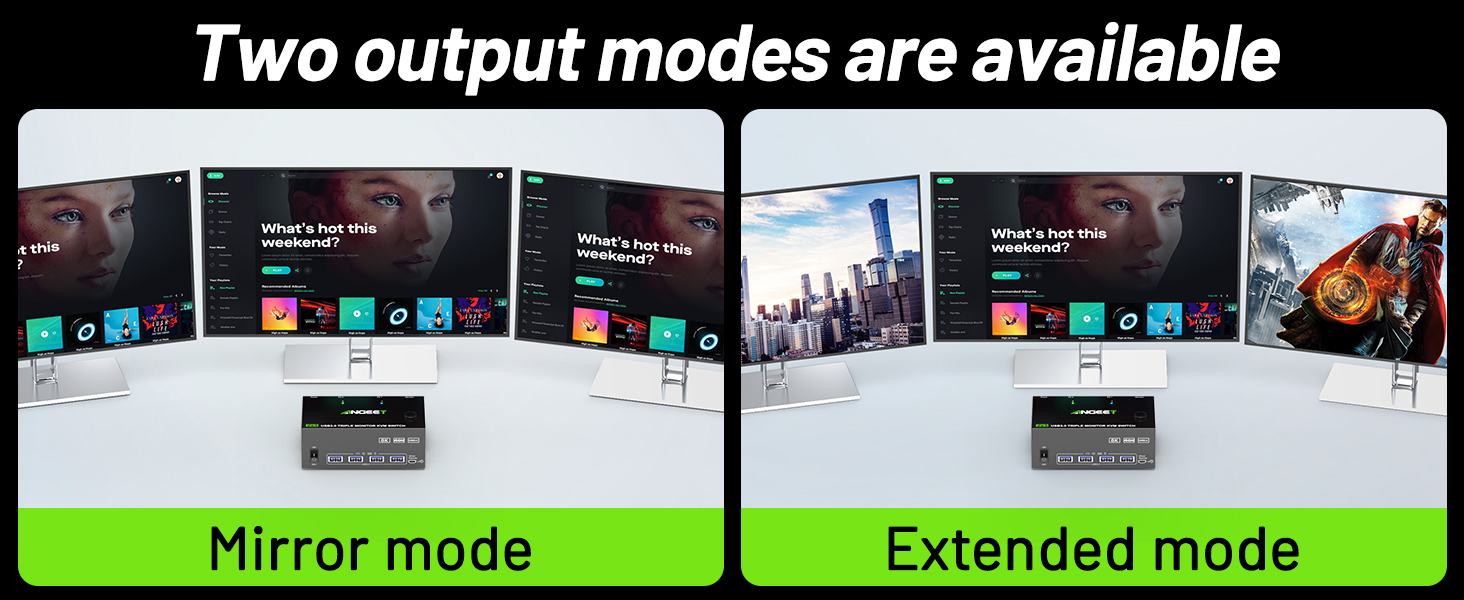

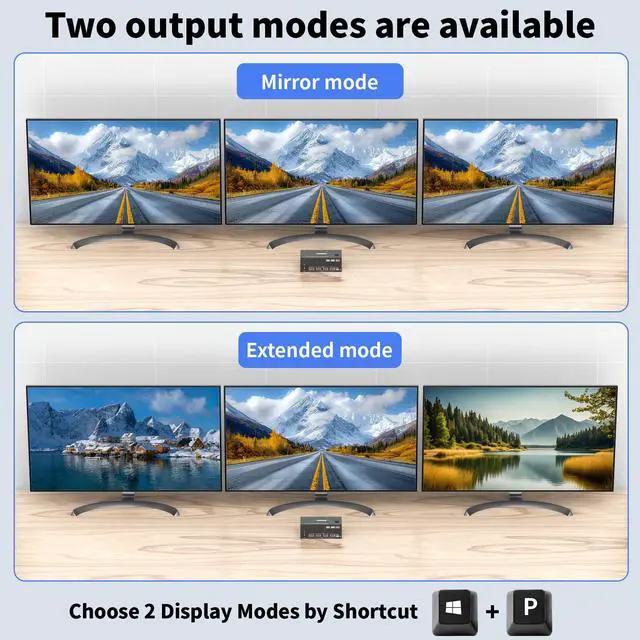

Supports mirror mode and extended mode output
- Mirror mode: 3 monitors output the same screen
- Extended mode: 3 monitors output different screens
Upgraded 3 monitors KVM switch --3 * HDMI output, built-in DP to HDMI chip

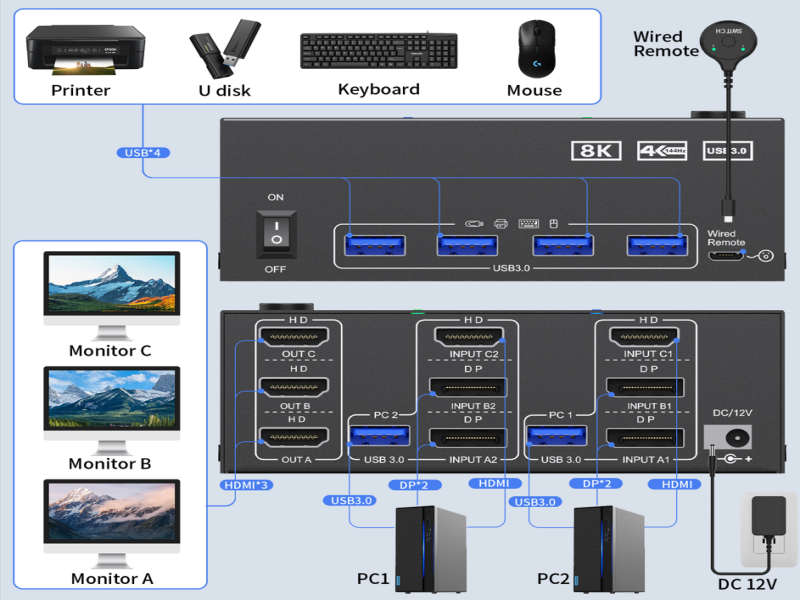

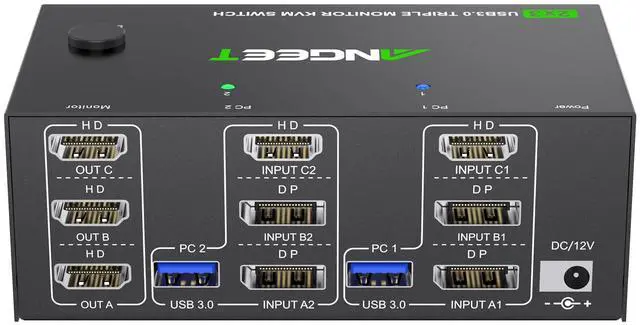

Each PC must has 1*HDMI+2*Displayport +1* USB cable to connect the 3 monitor KVM switch,OUT A, OUT B, OUT C connect to 3 monitors.
INPUT:Supports DP to HDMI, USB C to HDMI, USB-C to DP converter/cable and USB-C docking station.
OUTPUT:Supports HDMI to DVI, HDMI to VGA converter/cable

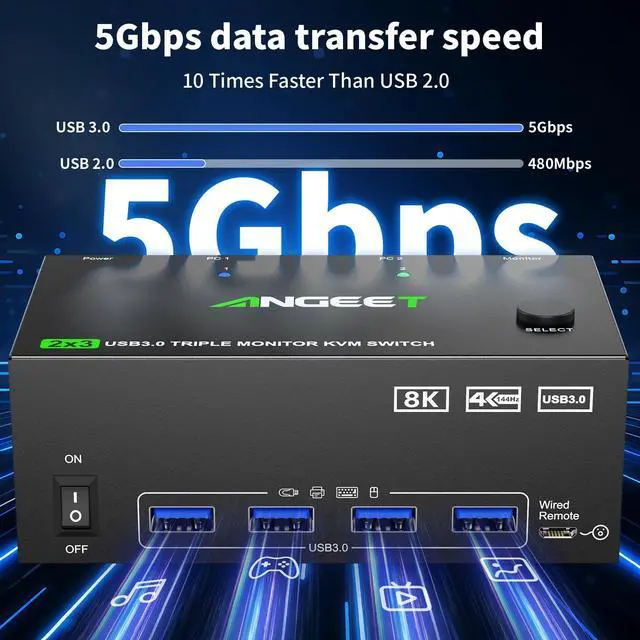

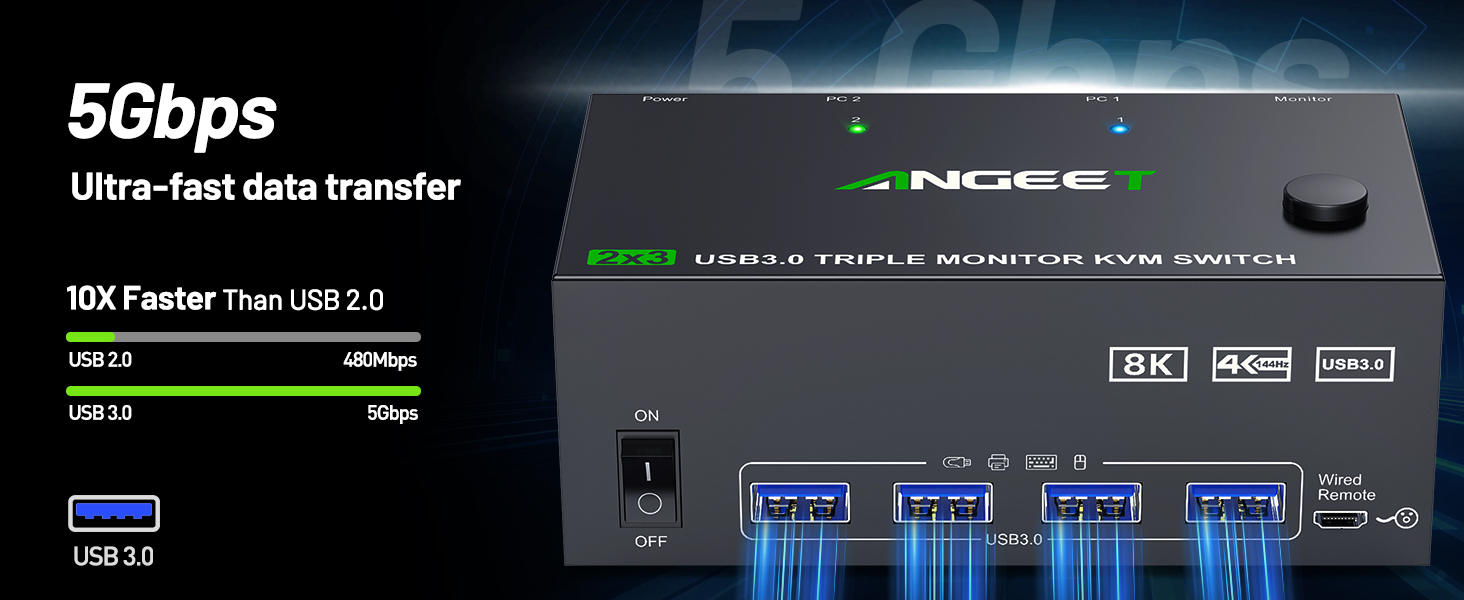

3 monitors KVM switch with 4 USB 3.0 ports for keyboard, mouse, printer and other peripheral USB devices. work as a USB 3.0 switch.
ANGEET is a company that specializes in KVM switch, and dedicated to making your office more efficient and making your life easier.
We have professional after-sales service to provide you with 24-hour customer online service, you are welcome to contact at any time.
KVM Switch
Dual/Triple Monitor KVM Switch
8 PC/10 PC 1 Monitor/2 Monitor
One computer outputs three identical or different screens (switch between 2 PCs)
KVM switch 3 monitors
Merchant Video2 computers 3 Monitors KVM Switch -- one set of wired/wireless keyboard mouse controls two computers, sharing three monitors, suitable for users with 2 computers and 3 monitors, supporting Mirror mode and extended Mode, helping you balance work and play
Supports mirror mode and extended mode output
- Mirror mode: 3 monitors output the same screen
- Extended mode: 3 monitors output different screens
Upgraded 3 monitors KVM switch --3 * HDMI output, built-in DP to HDMI chip
Each PC must has 1*HDMI+2*Displayport +1* USB cable to connect the 3 monitor KVM switch,OUT A, OUT B, OUT C connect to 3 monitors.
INPUT:Supports DP to HDMI, USB C to HDMI, USB-C to DP converter/cable and USB-C docking station.
OUTPUT:Supports HDMI to DVI, HDMI to VGA converter/cable

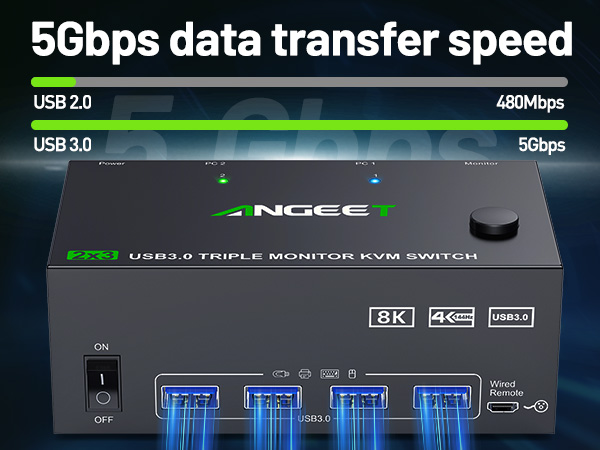

3 monitors KVM switch with 4 USB 3.0 ports for keyboard, mouse, printer and other peripheral USB devices. work as a USB 3.0 switch.
| Input Tip(PC): | 2*DP+1*HDMI+1*USB (for PC 1,PC 2). Desktop: The graphics card is required to have at least 2*DP+1*HDMI ports;Laptop: It is required to be able to expand at least 2*DP+1*HDMI ports (for use with a USB C docking station) |
|---|---|
| Output Tip(monitor): | 3*HDMI+4*USB 3.0 (for 3 monitors and USB devices).It is recommended to use 3 HDMI monitors,supporting HDMI to VGA/DVI cable or converter. |
| Resolution | Up to 8K@60Hz, 4K@144Hz,The final resolution also depends on your computers, monitors and the version and length of DP and HDMI cables |
| About Power Supply: | This KVM switch can be powered by USB cables connected to the computers. Using the equipped DC12V power adapter can effectively solve the problem of insufficient power supply caused by connecting high-power USB devices. |
| Important Note | The use of 3 monitor KVM will be affected by cables. If the cable version is lower or the cable is too long, the monitor will not work. It is recommended to use HDMI2.0/2.1 and DP1.4 version cables to connect the KVM, and the length of a single cable should not exceed 1.5m. |

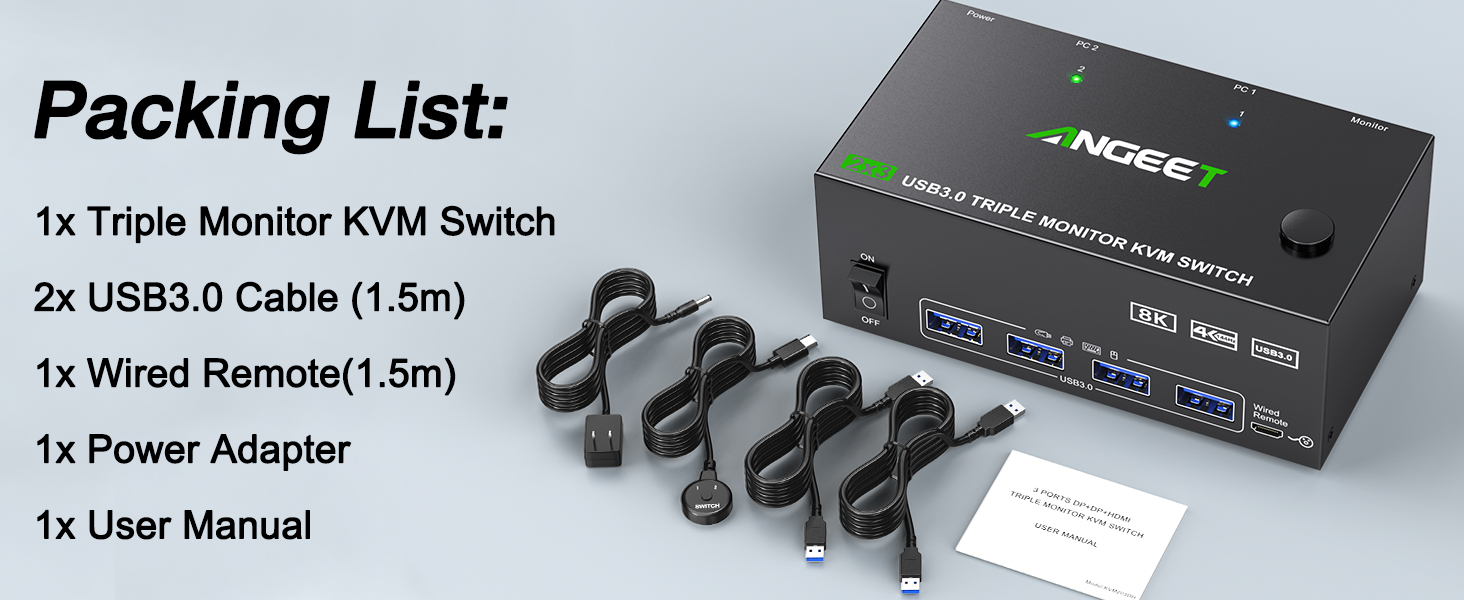

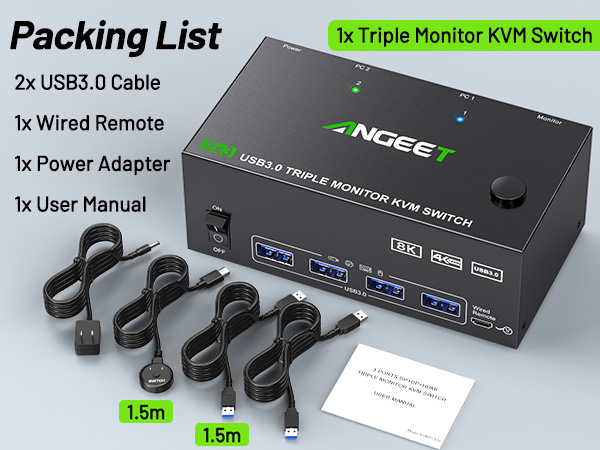

| Package Content: | 1x Triple Monitor KVM Switch, 2x USB 3.0 Cable, 1x Power Adapter, 1x Wired Remote, 1x User's Manual. You need to prepare HDMI and DP cables yourself. |
| 1 year warr-anty | If there are any issues with the KVM Switch within 1 year, we will solve it for you, including replacing it with a new one. |
