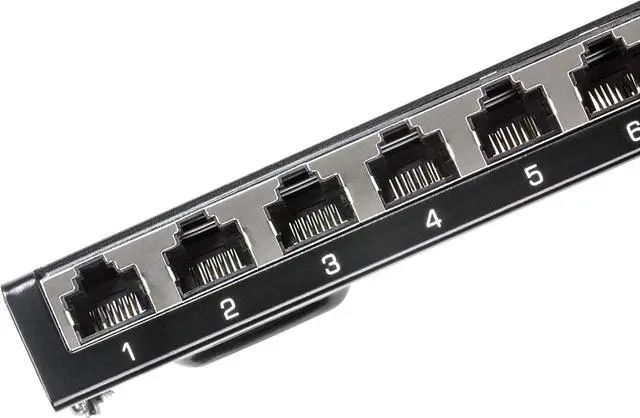

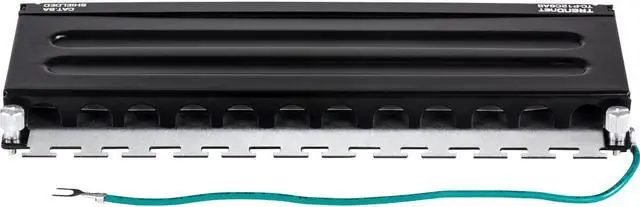

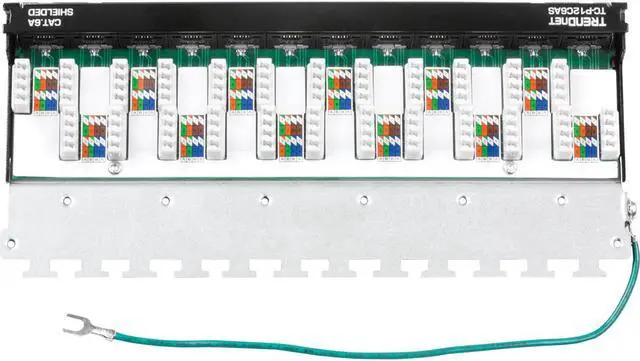

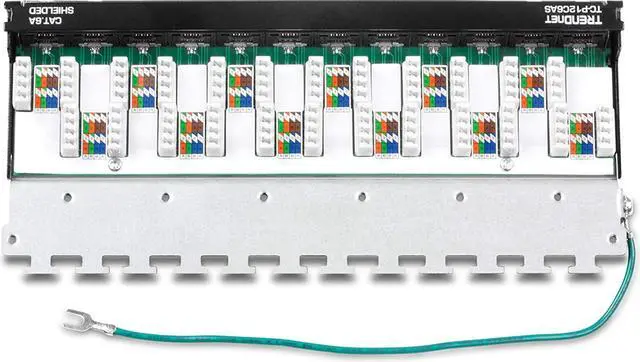

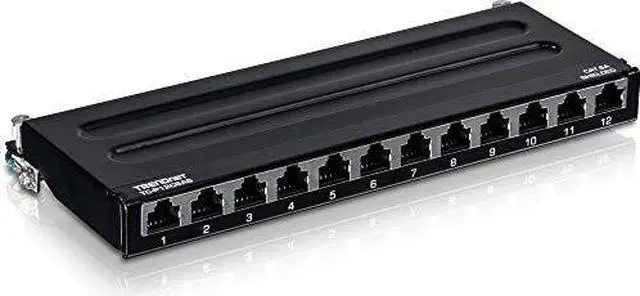

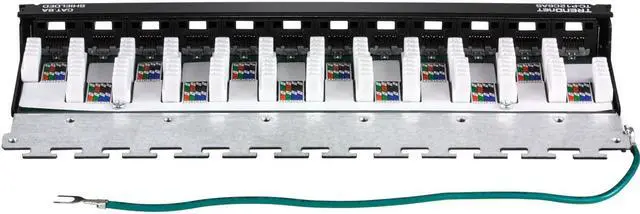

Main image of TRENDnet TC-P12C6AS (V1.0R) 12-Port Cat6A Shielded Wall Mount Patch Panel

Alt view image 2 of 20 - TRENDnet TC-P12C6AS (V1.0R) 12-Port Cat6A Shielded Wall Mount Patch Panel

Alt view image 3 of 20 - TRENDnet TC-P12C6AS (V1.0R) 12-Port Cat6A Shielded Wall Mount Patch Panel

Alt view image 4 of 20 - TRENDnet TC-P12C6AS (V1.0R) 12-Port Cat6A Shielded Wall Mount Patch Panel

Alt view image 5 of 20 - TRENDnet TC-P12C6AS (V1.0R) 12-Port Cat6A Shielded Wall Mount Patch Panel

Alt view image 6 of 20 - TRENDnet TC-P12C6AS (V1.0R) 12-Port Cat6A Shielded Wall Mount Patch Panel

Alt view image 7 of 20 - TRENDnet TC-P12C6AS (V1.0R) 12-Port Cat6A Shielded Wall Mount Patch Panel

Alt view image 8 of 20 - TRENDnet TC-P12C6AS (V1.0R) 12-Port Cat6A Shielded Wall Mount Patch Panel

Alt view image 9 of 20 - TRENDnet TC-P12C6AS (V1.0R) 12-Port Cat6A Shielded Wall Mount Patch Panel

Alt view image 10 of 20 - TRENDnet TC-P12C6AS (V1.0R) 12-Port Cat6A Shielded Wall Mount Patch Panel

Alt view image 11 of 20 - TRENDnet TC-P12C6AS (V1.0R) 12-Port Cat6A Shielded Wall Mount Patch Panel

Alt view image 12 of 20 - TRENDnet TC-P12C6AS (V1.0R) 12-Port Cat6A Shielded Wall Mount Patch Panel

Alt view image 13 of 20 - TRENDnet TC-P12C6AS (V1.0R) 12-Port Cat6A Shielded Wall Mount Patch Panel

Alt view image 14 of 20 - TRENDnet TC-P12C6AS (V1.0R) 12-Port Cat6A Shielded Wall Mount Patch Panel

Alt view image 15 of 20 - TRENDnet TC-P12C6AS (V1.0R) 12-Port Cat6A Shielded Wall Mount Patch Panel

Alt view image 16 of 20 - TRENDnet TC-P12C6AS (V1.0R) 12-Port Cat6A Shielded Wall Mount Patch Panel

Alt view image 17 of 20 - TRENDnet TC-P12C6AS (V1.0R) 12-Port Cat6A Shielded Wall Mount Patch Panel

Alt view image 18 of 20 - TRENDnet TC-P12C6AS (V1.0R) 12-Port Cat6A Shielded Wall Mount Patch Panel

Alt view image 19 of 20 - TRENDnet TC-P12C6AS (V1.0R) 12-Port Cat6A Shielded Wall Mount Patch Panel

Alt view image 20 of 20 - TRENDnet TC-P12C6AS (V1.0R) 12-Port Cat6A Shielded Wall Mount Patch Panel

Shop All TRENDnet Products | Visit Technology Galaxy Store

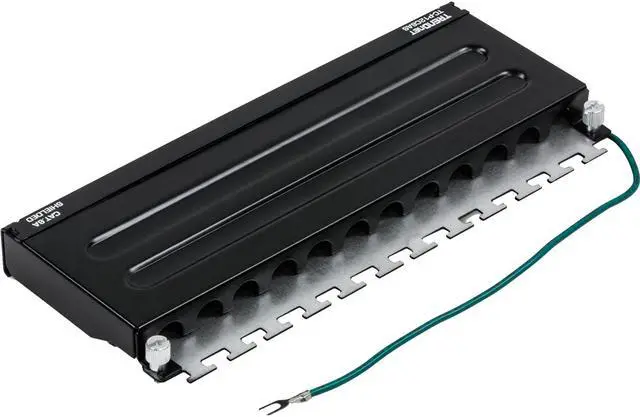

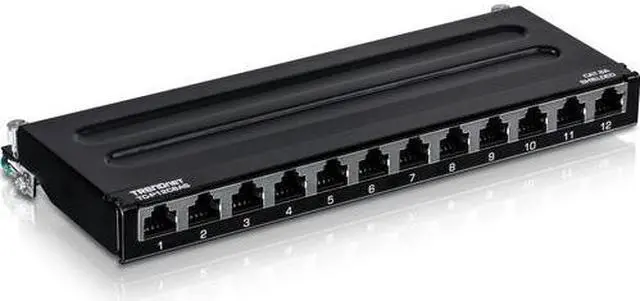

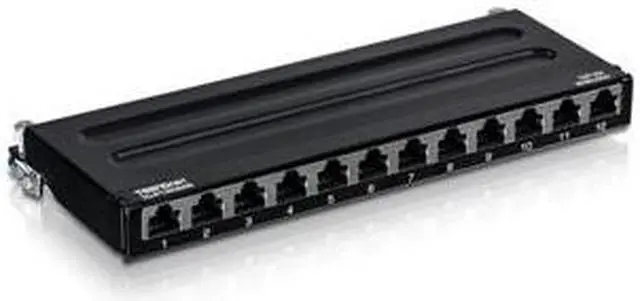

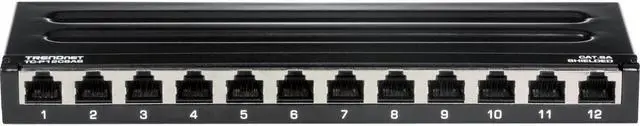

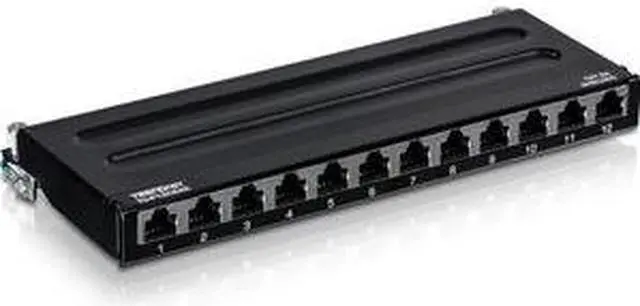

TRENDnet TC-P12C6AS (V1.0R) 12-Port Cat6A Shielded Wall Mount Patch Panel

Be the first to review this product...

TC-P12C6AS (V1.0R)
Other

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

TRENDnets 12-Port Cat6A Shielded Wall Mount Patch Panel,model TC-P12C6AS,is idea

Best Seller Ranking	#75 in Wired & Wireless Accessories

Model
Brand	TRENDnet
Model	TC-P12C6AS (V1.0R)

Details
Type	Other

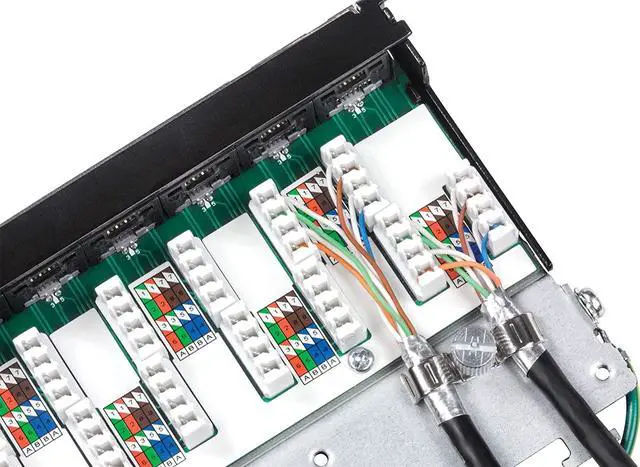

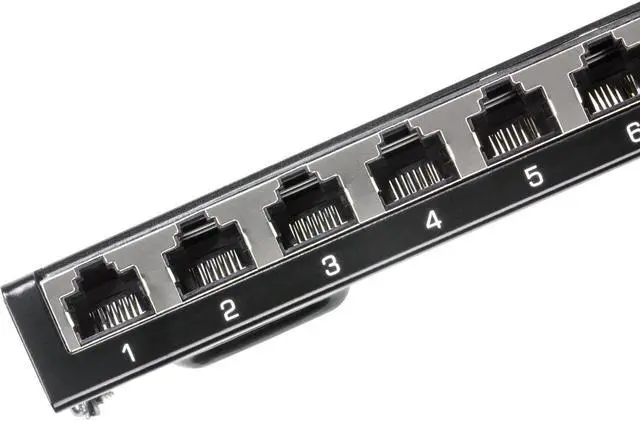

Specifications	Standards ANSI/TIA/EIA-568-B.2-1 EN50173-1: 2002 ISO/IEC 11801 2nd edition: 2002 Interface 12 x RJ-45 ports with 50 micron gold-plated 8P/8C contacts T568A/T568B wiring for Krone 110 termination with color-coded wiring diagram 90 degree IDC terminals Compatible with 22 - 26 AWG solid or stranded wire Integrated cable management SPCC steel construction 18 AWG grounding wire with screw terminal Mounting Options: Wall mountable Electrical Specification Insulation resistance: >= 500 M Ohms Dielectric Withstand Voltage: 500V DC Contact resistance: <= 35 M Ohms Current rating: 1.5A at 20 degree C (68 degree F) Mechanical Specification Contact force 99.2g (3.5 oz.) Plug retention force: 13.3kg (29.00 lbs.) 110/ Krone IDC insertion force: min. 4.5kg (9.90 lbs.) 110/ Krone IDC retention force: min. 0.5kg (1.10 lbs.) Operating Temperature: -25 degree – 50 degree C (-13 degree – 122 degree F) Operating Humidity: Max. 90% non-condensing Dimensions: 0.98" x 8.66" x 3.80" Weight: 1.12 lbs.

Features

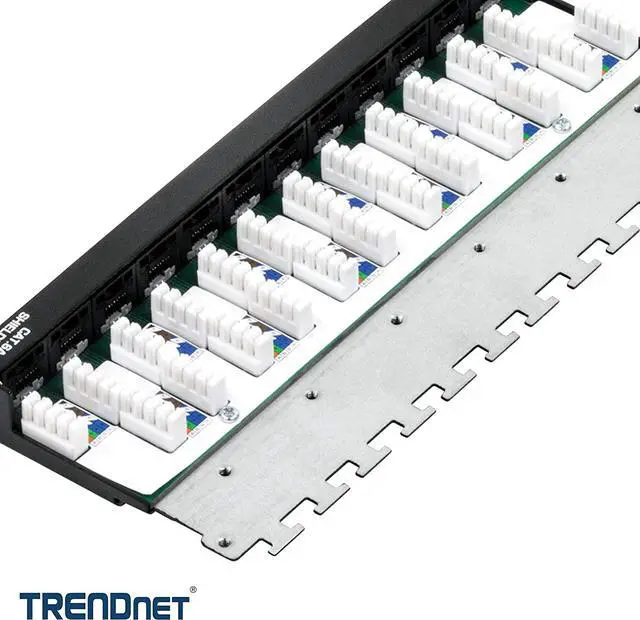

Features	10G-Ready 12-port patch panel Cat6A patch panels deliver a steady connection to copper gigabit & 10G switches Shielded design to eliminate EMI and crosstalk Compatible with Cat5e, Cat6 and Cat6A cabling Wall mountable metal housing Color-coded labeling for T568A and T568B wiring schemes 110 IDC type terminal blocks (use 110 or Krone type tool) Use with TRENDnet TC-PDT Punch Down Tool (sold separately) Supports ANSI/EIA/TIA 568-B.2-1, ISO/IEC 11801, and EN50173-1 90 degree angle type
