16-Port Gigabit Web Smart Switch
TEG-160WS (D1.0R)

IPv6, 802.3ad, Private and Voice VLAN support
16 x Gigabit ports
2 shared SFP slots
Fanless rack-mount metal housing
Limited lifetime warranty

OVERVIEW

TRENDnet's 16-Port Gigabit Web Smart Switch, model TEG-160WS, delivers advanced management features with a 32Gbps switching capacity. This fanless rack-mountable IPv6-ready switch comes with an intuitive web-browser interface. Advanced traffic management, security, trouble shooting, and monitoring protocol support makes this a powerful backbone solution for SMB networks.

Hardware Design

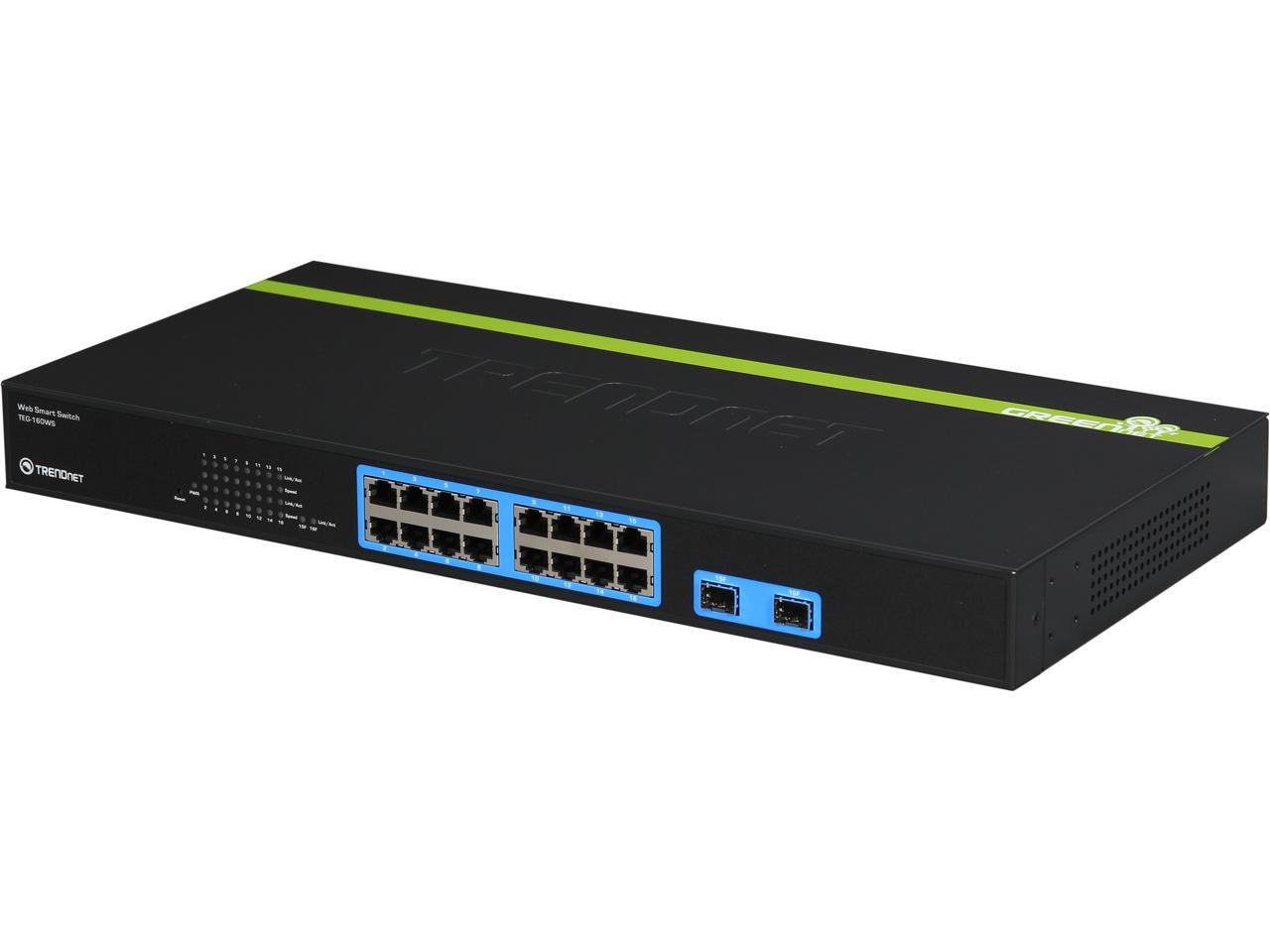

Fanless rack mountable 1U metal housing features 16 Gigabit ports and two shared SFP slots

IPv6 Ready
This switch supports IPv6 configuration and IPv6 neighbor discovery

Traffic Management
A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management,and QoS queue scheduling

Troubleshooting
Real time traffic comparison charts, error group charts, and a convenient cable diagnostic test aid in rapid troubleshooting

Security
Features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with layered security controls

Monitoring
RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions

NETWORKING SOLUTION

SPECIFICATIONS

Standards

IEEE 802.1d
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3az

Device Interface

16 x Gigabit ports (ports 1-16)
2 x shared SFP slots (shared with ports 15-16)
LED indicators

Data Transfer Rate

Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit Ethernet: 2000Mbps (full duplex)

Performance

Switch fabric: 32Gbps
RAM buffer: 1MB
MAC Address Table: 16K entries
Jumbo Frames: 10KB
HOL Blocking Prevention
Forwarding rate: 23.8Mpps (64-byte packet size)

Management

HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
SNMP v1, v2c, v3
RMON v1
Static Unicast MAC Address
Enable/disable 802.3az Power Saving
LLDP
Virtual Cable Test
IPv6: IPv6 Neighbor Discovery, IPv6 Static IP,DHCPv6, Auto configuration

MIB

MIB II RFC 1213
Bridge MIB RFC 1493
Bridge MIB Extension RFC 2674
SNMPv2 MIB RFC 1907
Ethernet Interface MIB RFC 1643
Ethernet-like MIB RFC 2863
Interface Group MIB RFC2233
MIB Traps Convention RFC 1215
RMON MIB RFC 1757, RFC 2819
802.1p MIB RFC 2674
RADIUS Client Authentication MIB RFC 2618
LLDP-MIB IEEE 802.1ab
Ping MIB RFC 2925, RFC 4560

Spanning Tree

IEEE 802.1D STP (Spanning Tree protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree protocol)

Link Aggregation

Static Link Aggregation
802.3ad Dynamic LACP

Quality of Service (QoS)

802.1p Class of Service (CoS)
DSCP (Differentiated Services Code Point)
Bandwidth Control per port
Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)

VLAN

Multiple management VLAN assignment
Asymmetric VLAN
802.1Q Tagged VLAN
Dynamic GVRP
Up to 256 VLAN groups, ID Range 1-4094
Private VLAN (Protected Ports)
Voice VLAN (10 user defined OUIs)

Multicast

IGMP Snooping v1, v2, v3 (per VLAN)
Static Multicast Address
Up to 256 multicast entries

Port Mirror

RX, TX, or Both
One to one
Many to one

Security

802.1X Port-Based Network Access Control, RADIUS,TACACS+
Local Dial In User Authentication
DHCP Snooping (per VLAN)
Loopback Detection
Duplicated Address Detection
Trusted Host
Denial of Service (DoS)

ACL IPv4 L2-L4 & IPv6

MAC Address
VLAN ID
Ether Type (IPv4 only)
IP Protocol 0-255
TCP/UDP Port 1-65535
802.1p
DSCP (IPv4 only)
IPv6 Address (IPv6 only)

Compatibility

Optional Software Utility: Windows® 8, 7, Vista, XP, Windows® 2003/2008 Server

Special Features

Fanless Design
IPv6
802.3az power saving
Rack mountable

Power

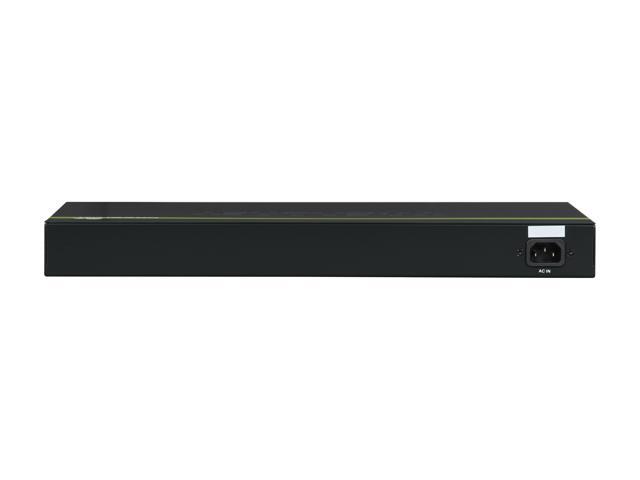

Input: 100 ~ 240VAC, 50/60Hz, internal power supply
Consumption: 10.8 Watts (max.)

Operating Temperature

32 - 113°F (0 – 45°C)

Operating Humidity

Max. 90% non-condensing

Dimensions

17.3 x 8.27 x 1.75 in. (440 x 210 x 44.45mm)
Rack mountable 1U height

Weight

5.8lbs (2.6kg)

Certifications

Warranty

3-year limited

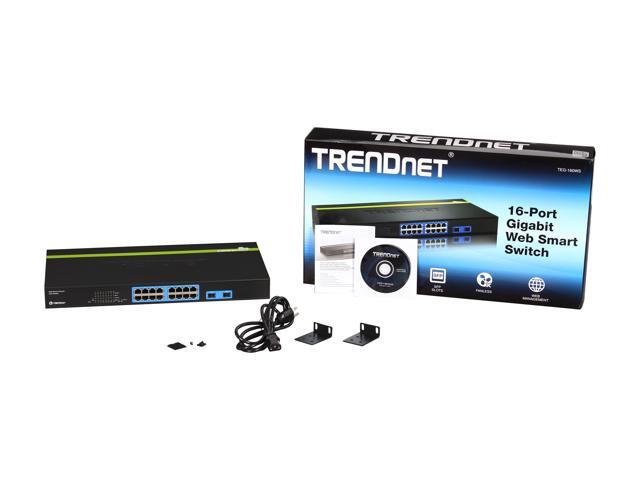

WHAT'S IN THE BOX

TEG-160WS 16-Port Gigabit Web Smart Switch
Multi Language Quick Installation Guide
CD-ROM (Utility & User's Guide)
Six-Foot Power Cord (1.8m)
Rack Mount Hardware
