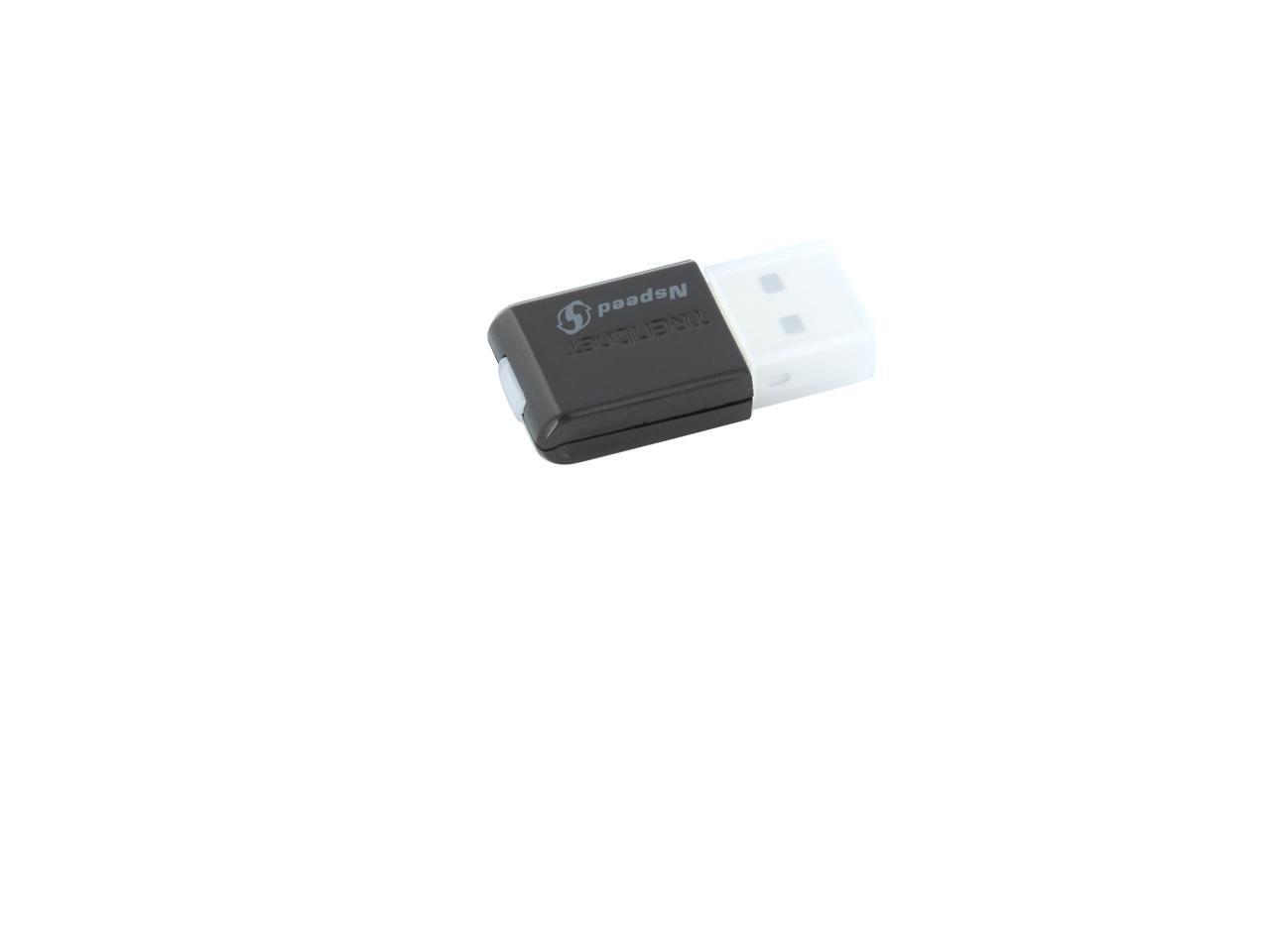

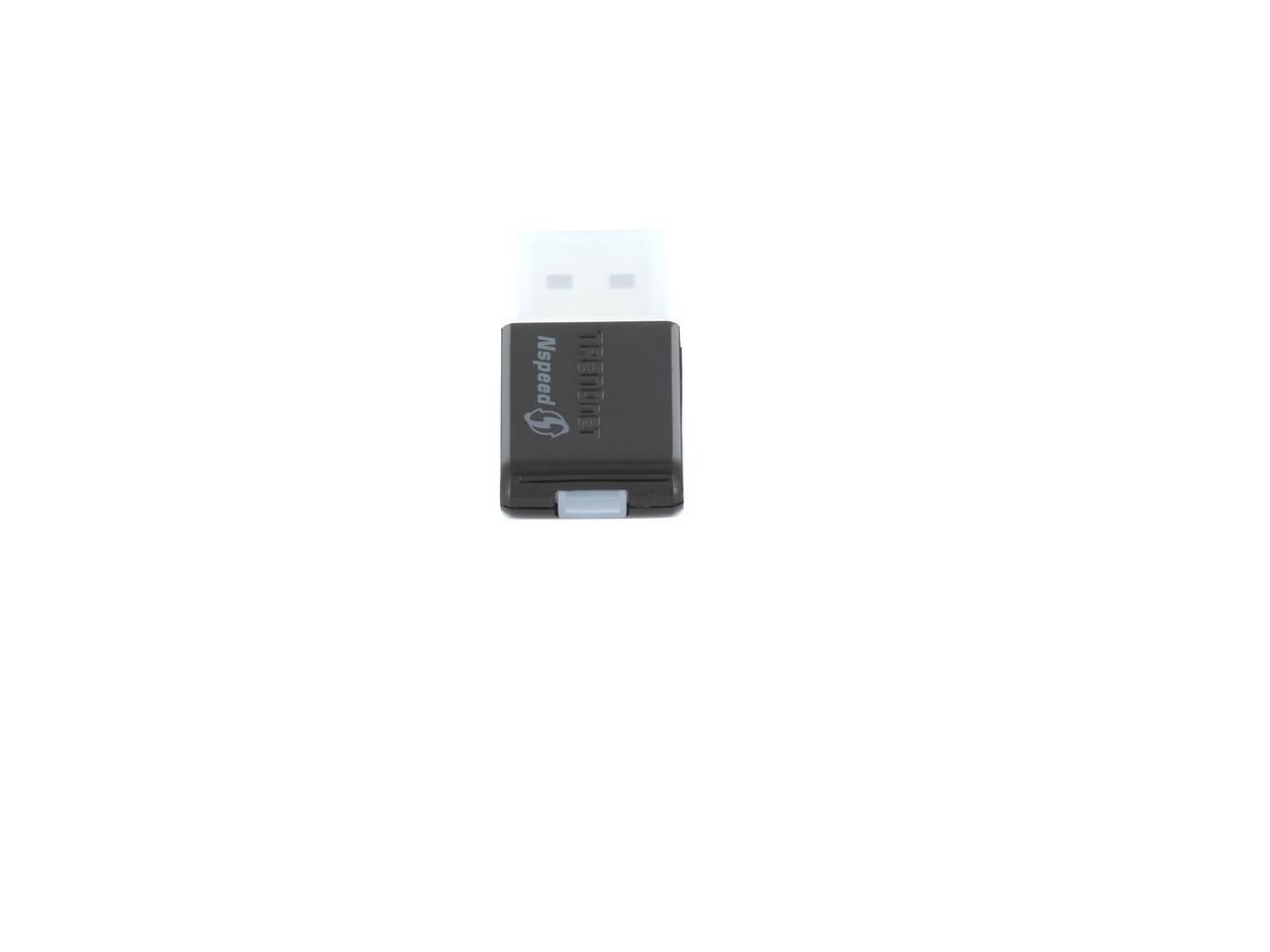

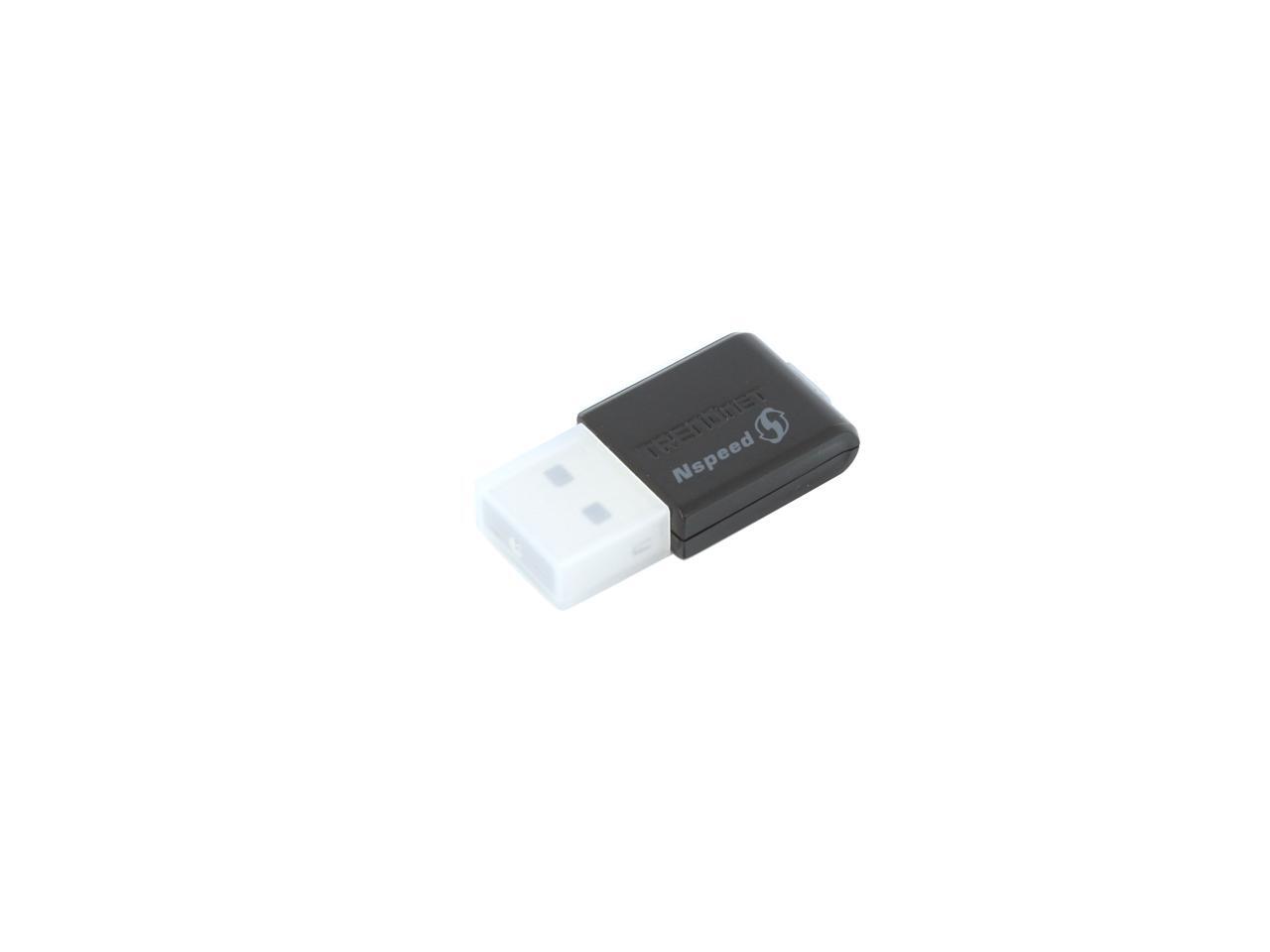

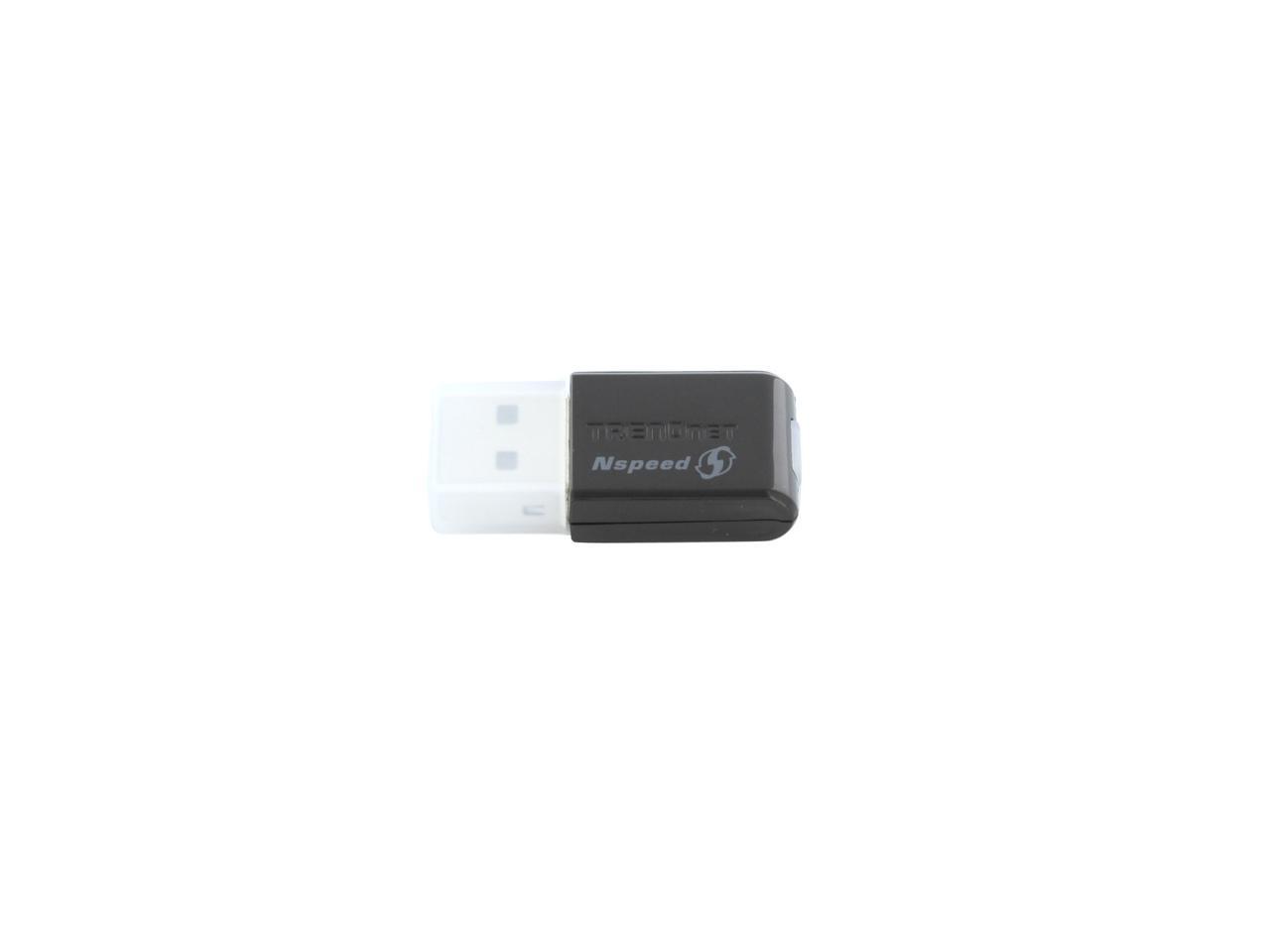

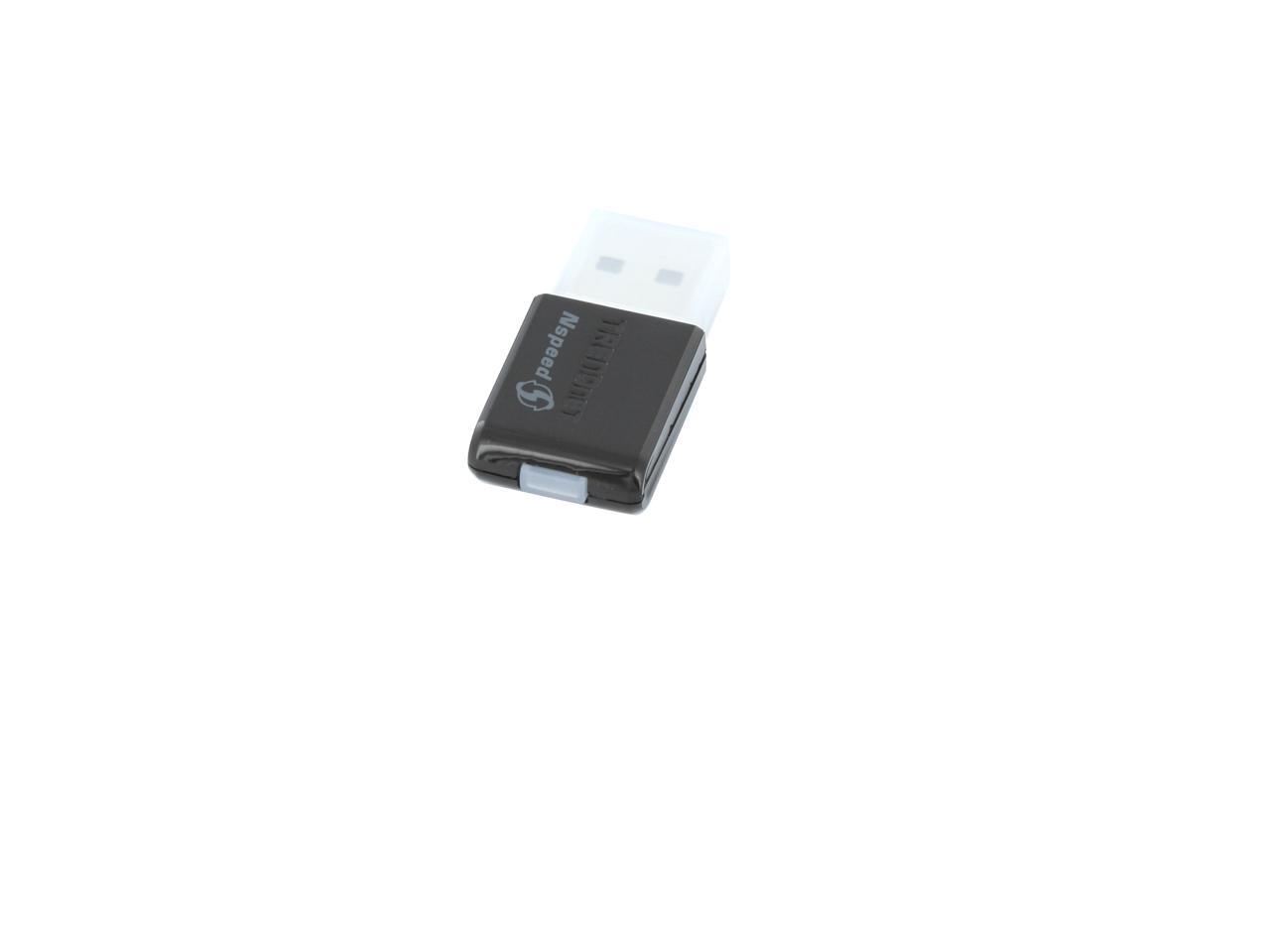

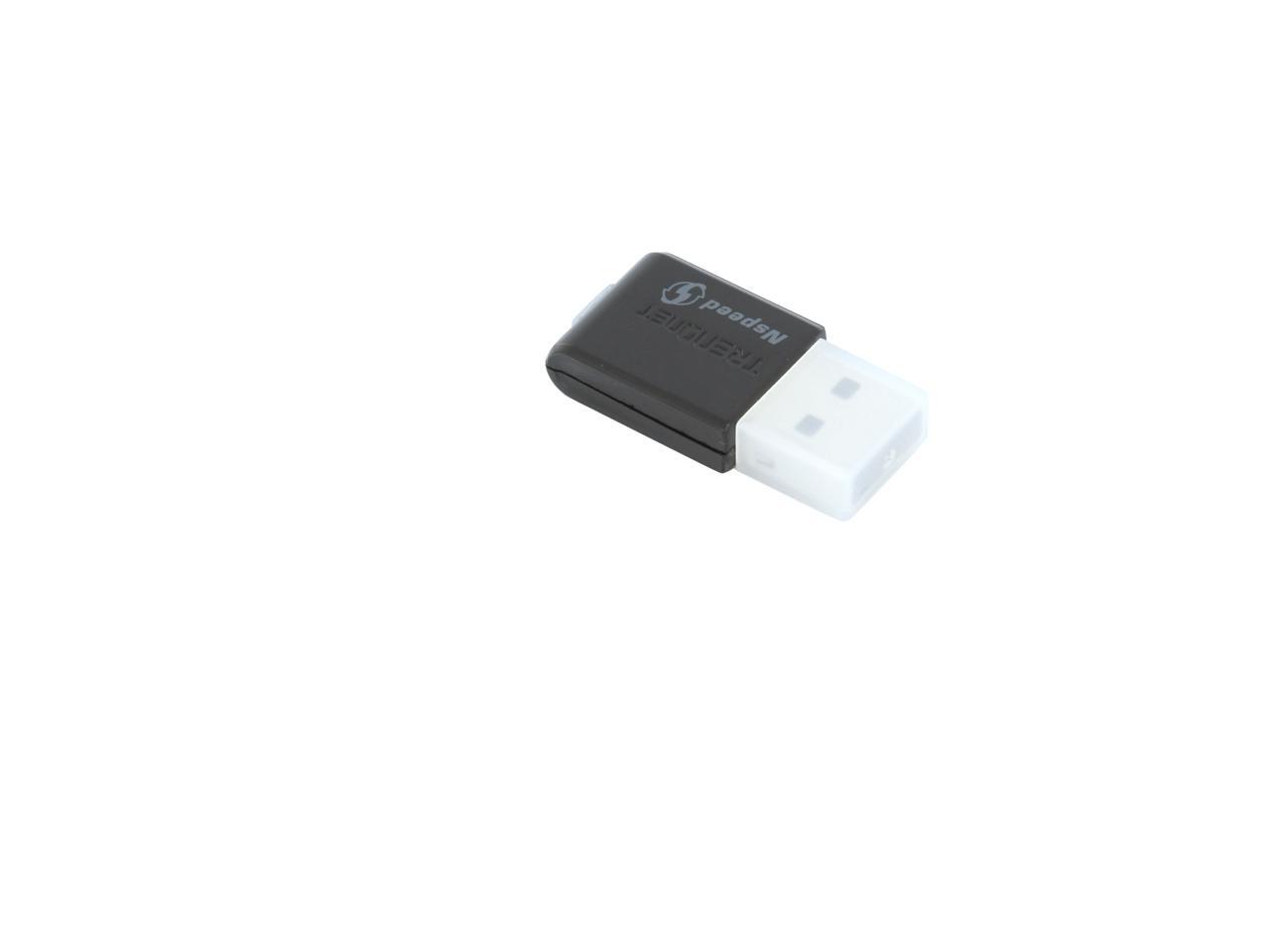

TRENDnet TEW-649UB Mini Wireless N300 USB Adapter
- Wi-Fi compliant with IEEE 802.11n standard
- One-touch setup with Wi-Fi Protected Setup (WPS) support
- High speed USB 2.0 interface
- Supports Multiple Input Multiple Output (MIMO) antenna technology
Overview
Specs
Reviews (33)
See all Q & A
Any questions? Our AI mode will help you find out quickly.
Try me now
Mini Wireless N Speed USB Adapter
TEW-649UB (Version v1.0R)
- Ultra-compact, high-speed wireless N adapter
- Upgrade your laptop or desktop to wireless N
- 8X the speed and 4X the coverage of wireless G technology
- One-touch setup with Wi-Fi Protected Setup (WPS)
Overview
The Mini Wireless N Speed USB Adapter (Model TEW-649UB) connects a laptop or desktop computer to a wireless N network at up to 8X the speed and 4X the coverage of a wireless G connection. Enjoy proven wireless N speed and reliability in an ultra-compact design that is slightly larger than a US penny.
Setup is a breeze with one-touch Wi-Fi Protected Setup (WPS) technology. Advanced wireless encryption protects your valuable data. MIMO antenna technology delivers superior range and eliminates dead spots. Wi-Fi Multimedia (WMM) Quality of Service (QoS) prioritizes important video, audio and gaming traffic. Stream video, download files, play games and talk online with this ultra compact adapter.
Features
- Wi-Fi compliant with IEEE 802.11n standard
- One-touch setup with Wi-Fi Protected Setup (WPS) support
- High speed USB 2.0 interface
- Supports Multiple Input Multiple Output (MIMO) antenna technology
- Backwards compatible with IEEE 802.11g and IEEE 802.11b devices
- Supports Ad-Hoc (Client-Client) and Infrastructure (AP-Client) Mode
- Maximum reliability, throughput and connectivity with automatic data rate switching
- Supports 64- & 128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
- Low interference and high susceptibility provide reliable performance
- Wi-Fi Multimedia (WMM) Quality of Service (QoS) supported
- Compatible with Windows 7, Vista, XP, 2000 and Mac OS X operating systems
- Easy user setup and intuitive diagnostic utility
- Coverage of up to 160 feet indoors (50 meters) and 320 feet outdoors (100 meters)
- Three-year limited warranty
Specifications
Hardware |
|
| Interface | USB 2.0 |
| Standards | IEEE 802.11b, IEEE 802.11g and IEEE 802.11n |
| LED Indicator | Activity, WPS |
| WPS Button | Enables WPS connection |
| Power Consumption | Receive mode: 290mA (max); Transmit mode: 320mA (max) |
| Supported OS | Windows 7 (32- / 64-bit) / Vista (32- / 64-bit) / XP(32- / 64-bit) / 2000 |
| Mac OS X (10.4, 10.5, 10.6) | |
| Dimensions (L x W x H) | 1.3 x 0.66 x 0.27in. (33.9 x 17 x 7mm) |
| Weight | 0.1oz (3g) |
| Temperature | Operating: 32° - 104°F (0°- 40°C); Storage: 14° - 158°F (-10° - 70°C) |
| Humidity | 10% - 95% max (non-condensing) |
| Certifications | CE, FCC |
Wireless |
|
| Modulation | OFDM, DSSS |
| Antenna | Built-in on board antennas |
| Frequency | 2.412 - 2.484GHz |
| Data Rate (Auto fallback) | 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps |
| 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps | |
| 802.11n: 150Mbps (TX) / 300Mbps (RX) | |
| Output Power | 802.11b: 15dBm (typical) |
| 802.11g: 14dBm (typical) | |
| 802.11n: 12dBm (typical) | |
| Receiving Sensitivity | 802.11b: -76dBm (typical) at 11mpbs |
| 802.11g: -65dBm (typical) at 54Mbps | |
| 802.11n: -61dBm at 150Mbps | |
| Encryption | 64- / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Channels | 1 - 11 (FCC), 1 - 13 (ETSI) |
What's in the Box
- TEW-649UB
- CD-ROM (Utility and Driver)
- Multi-Language Quick Installation Guide
