What is the maximum operating temperature range for the TRENDnet TEW-740APBO?

The maximum operating temperature range for the TRENDnet TEW-740APBO is -20 to 60°C (-4 to 140°F).

What modes does the TRENDnet TEW-740APBO support for networking?

The TRENDnet TEW-740APBO supports Access Point (AP), Wireless Distribution System (WDS), Client Bridge + AP, Wireless ISP (WISP) + AP, CPE + AP, and control AP (CAP) modes.

$89^.99

Limit 999999 per customer.

Price alert

Add to wish list

Sold by Newegg

Shipped by Newegg

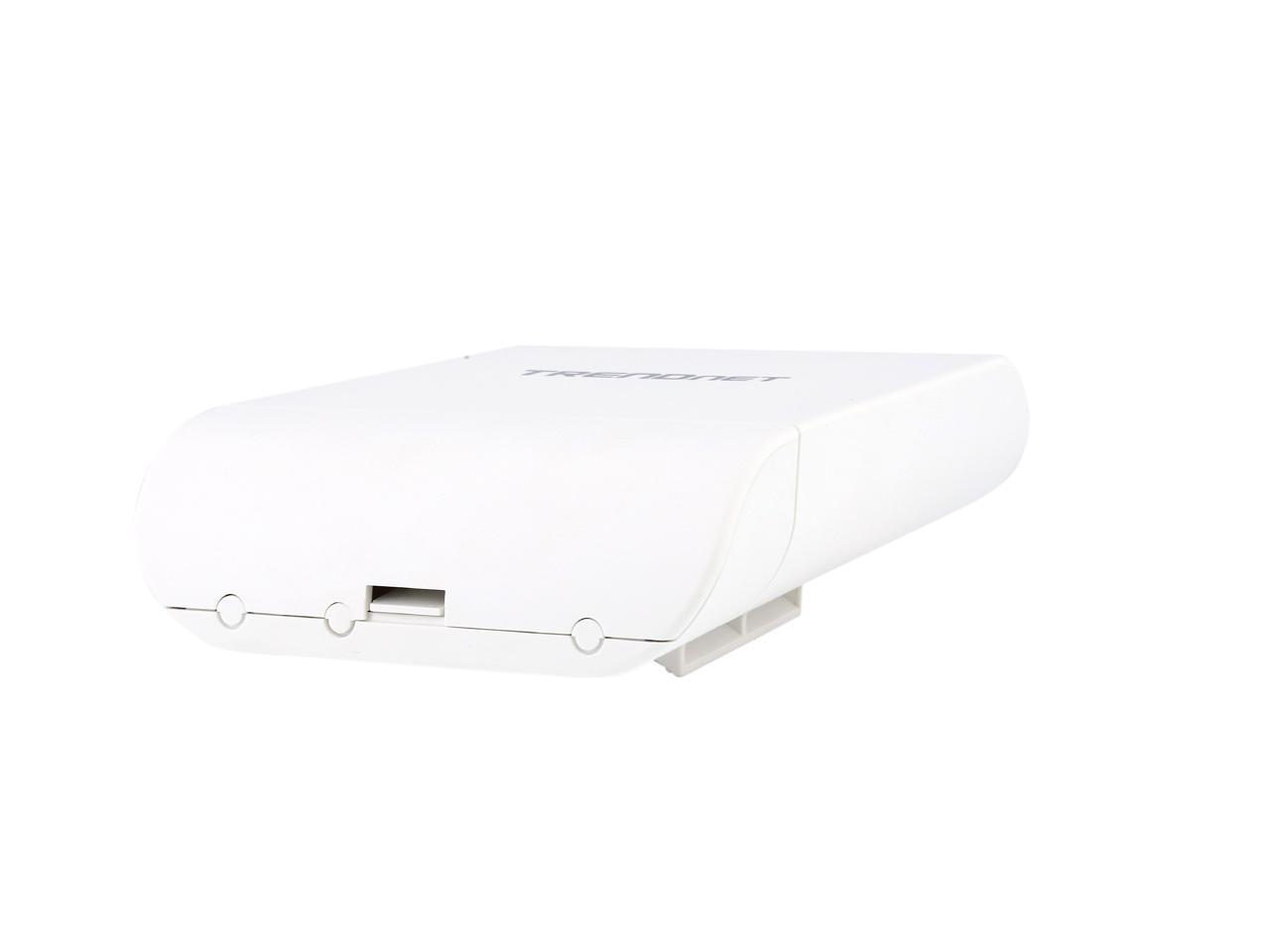

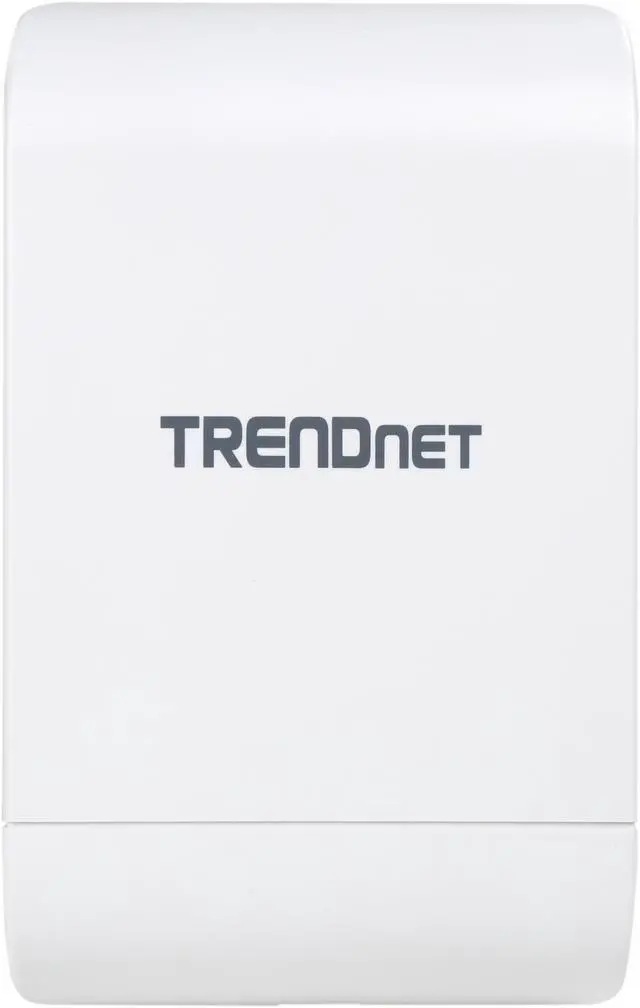

Main image of TRENDnet 10dBi Wireless N300 Outdoor PoE Access Point, TEW-740APBO, Point-to-Point (2.4 GHz), Multiple SSID, AP, WDS, Client Bridge, WISP, IPX6 Rated Housing, Built-in 10 dBi Directional Antenna

100%

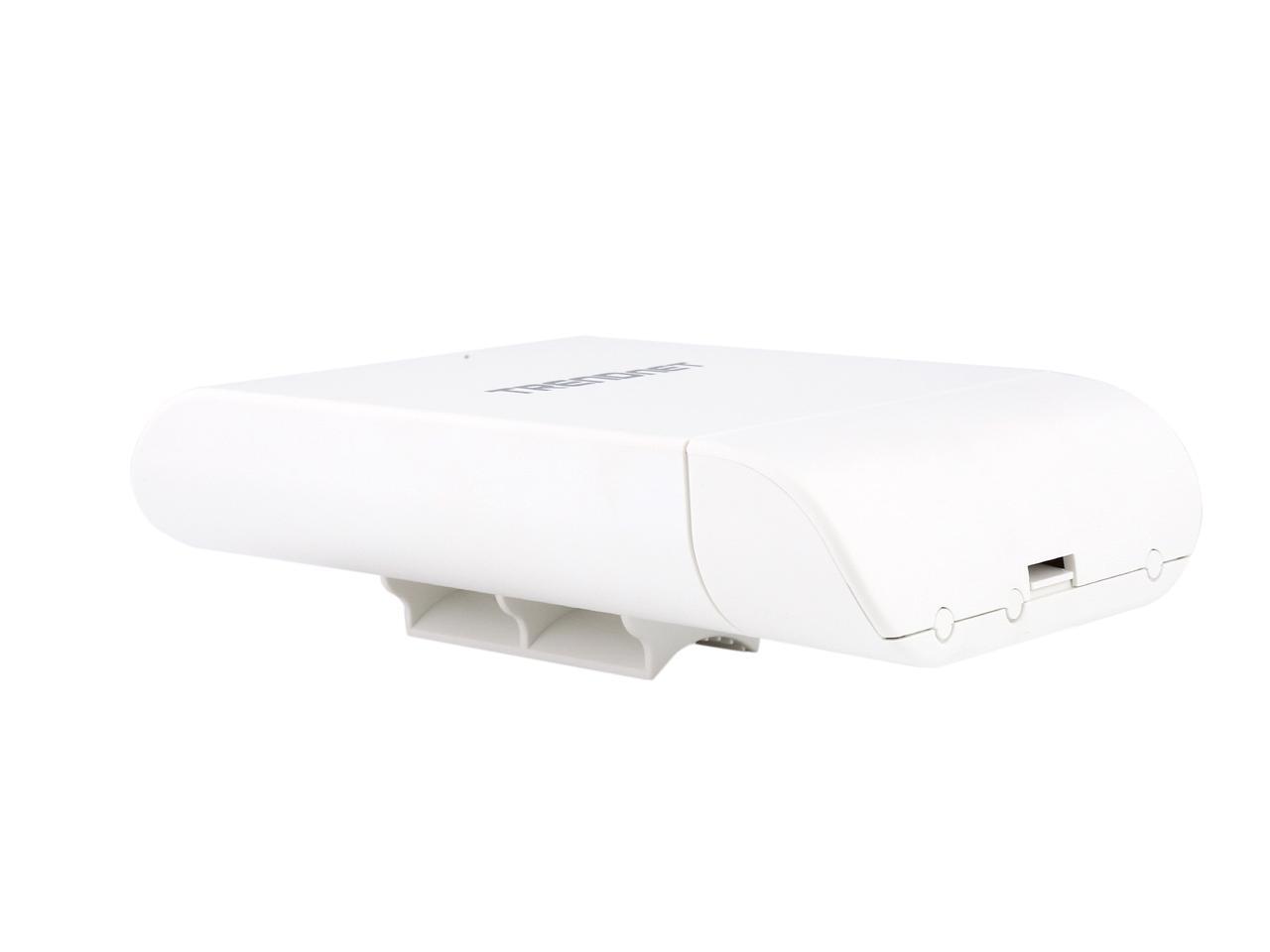

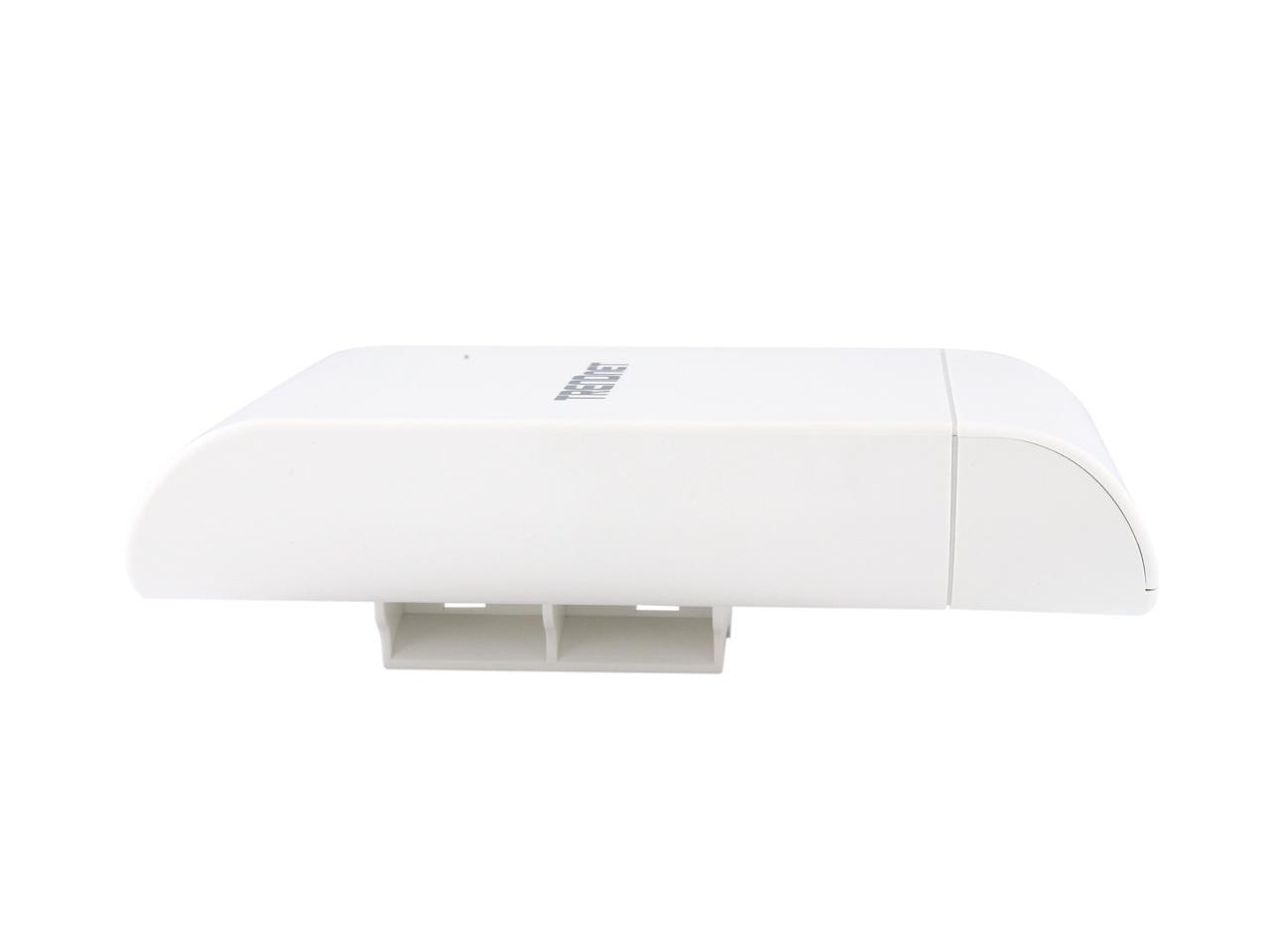

Alt view image 2 of 5 - TRENDnet 10dBi Wireless N300 Outdoor PoE Access Point, TEW-740APBO, Point-to-Point (2.4 GHz), Multiple SSID, AP, WDS, Client Bridge, WISP, IPX6 Rated Housing, Built-in 10 dBi Directional Antenna

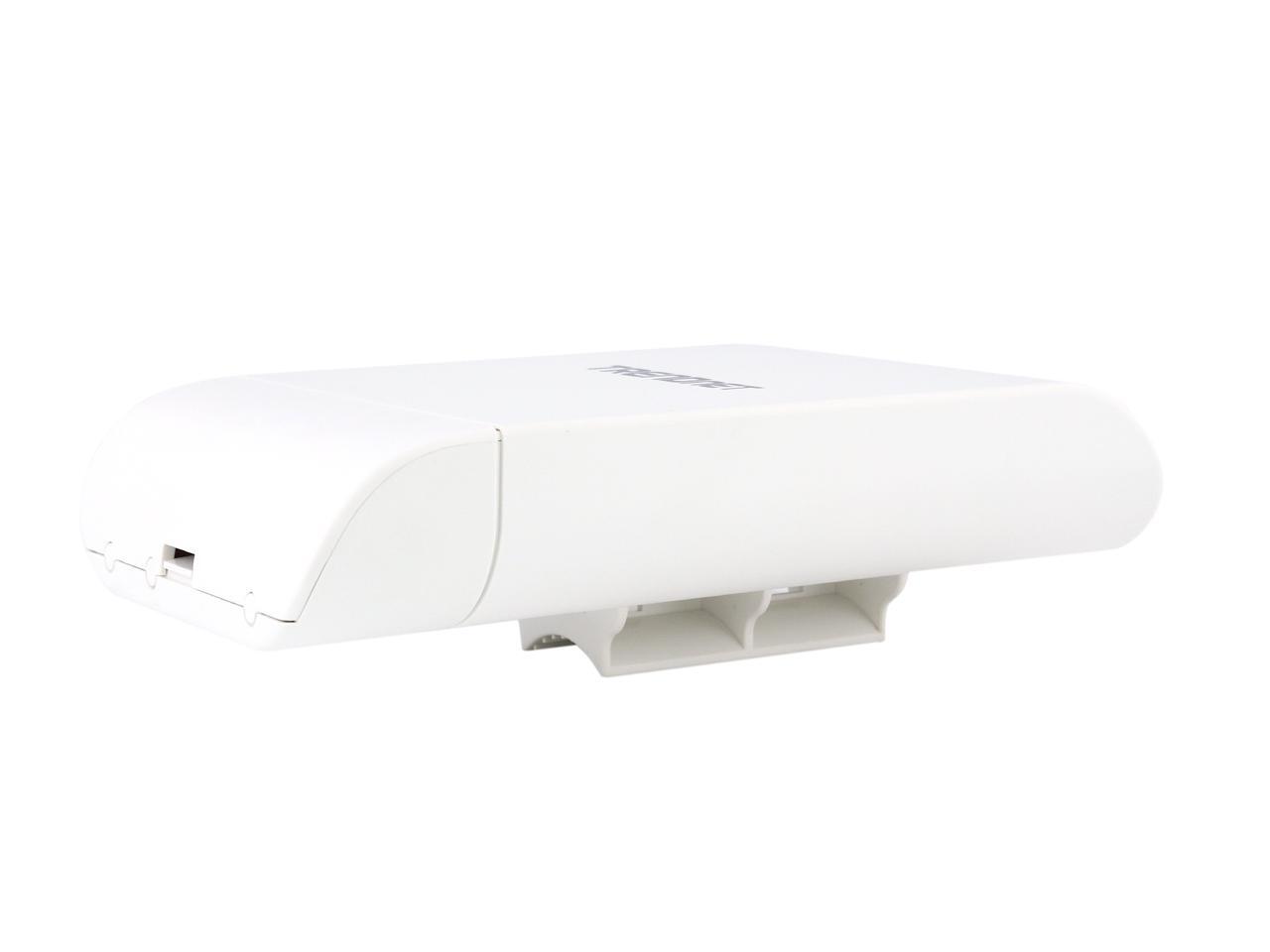

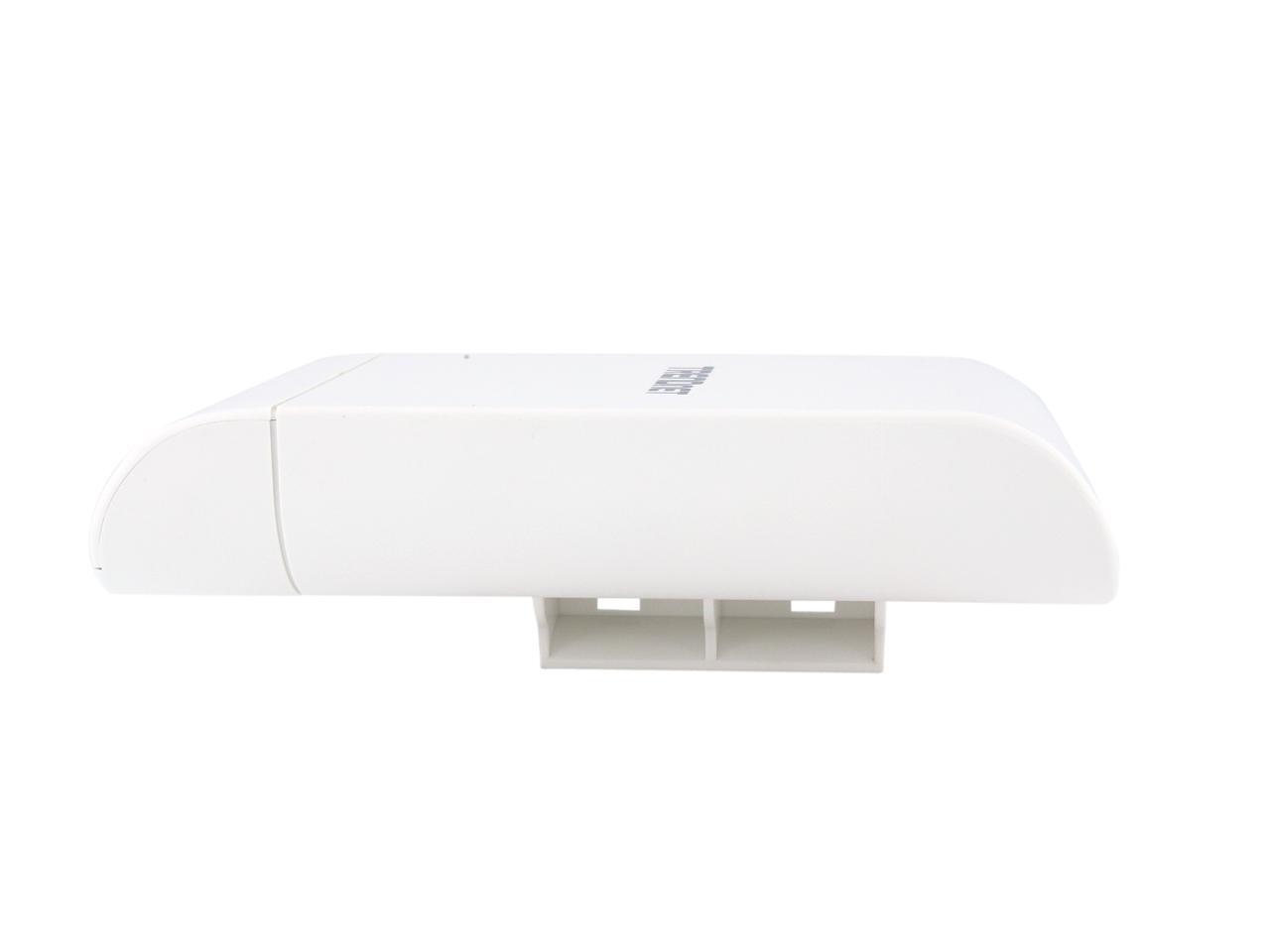

Alt view image 3 of 5 - TRENDnet 10dBi Wireless N300 Outdoor PoE Access Point, TEW-740APBO, Point-to-Point (2.4 GHz), Multiple SSID, AP, WDS, Client Bridge, WISP, IPX6 Rated Housing, Built-in 10 dBi Directional Antenna

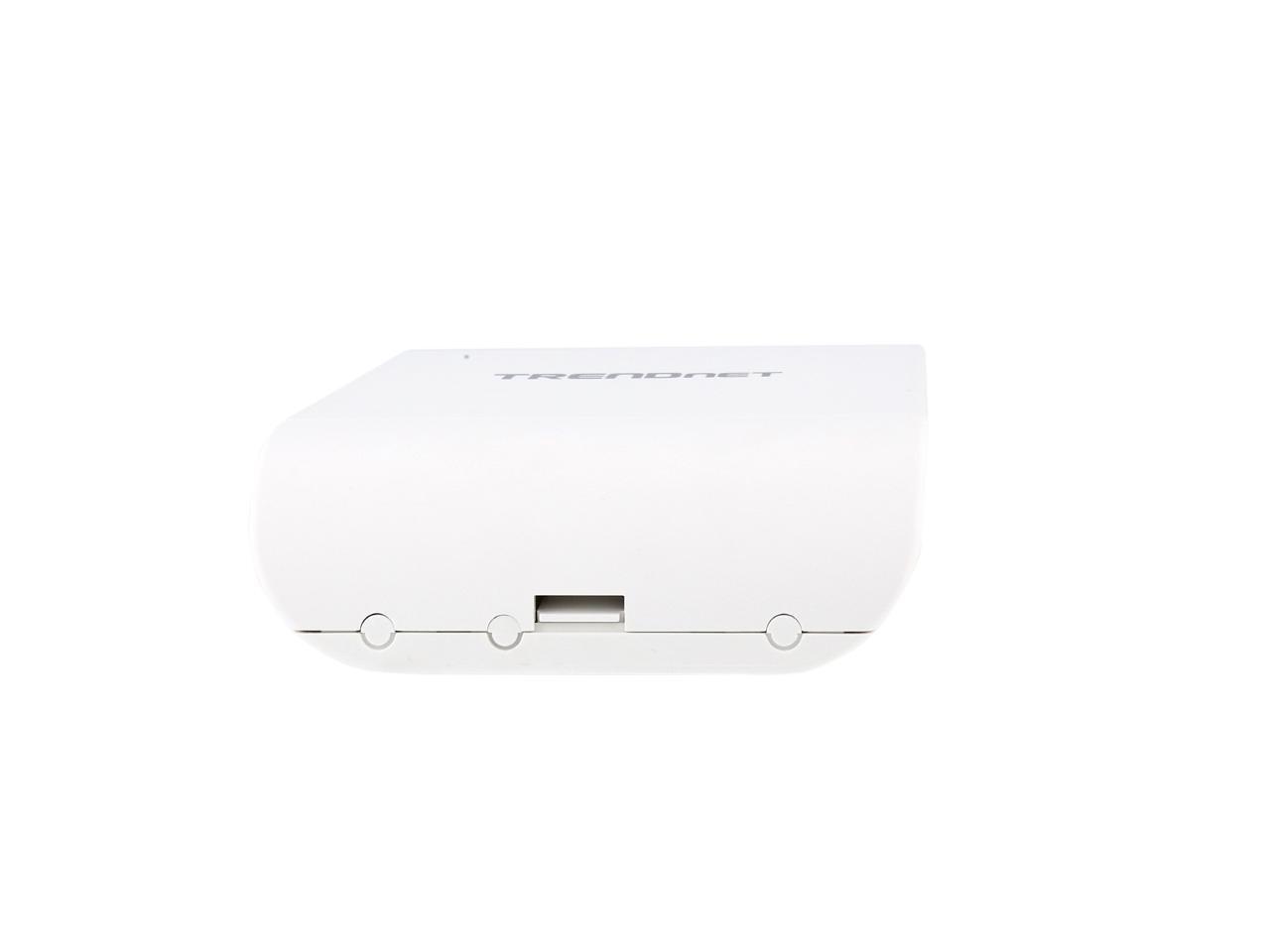

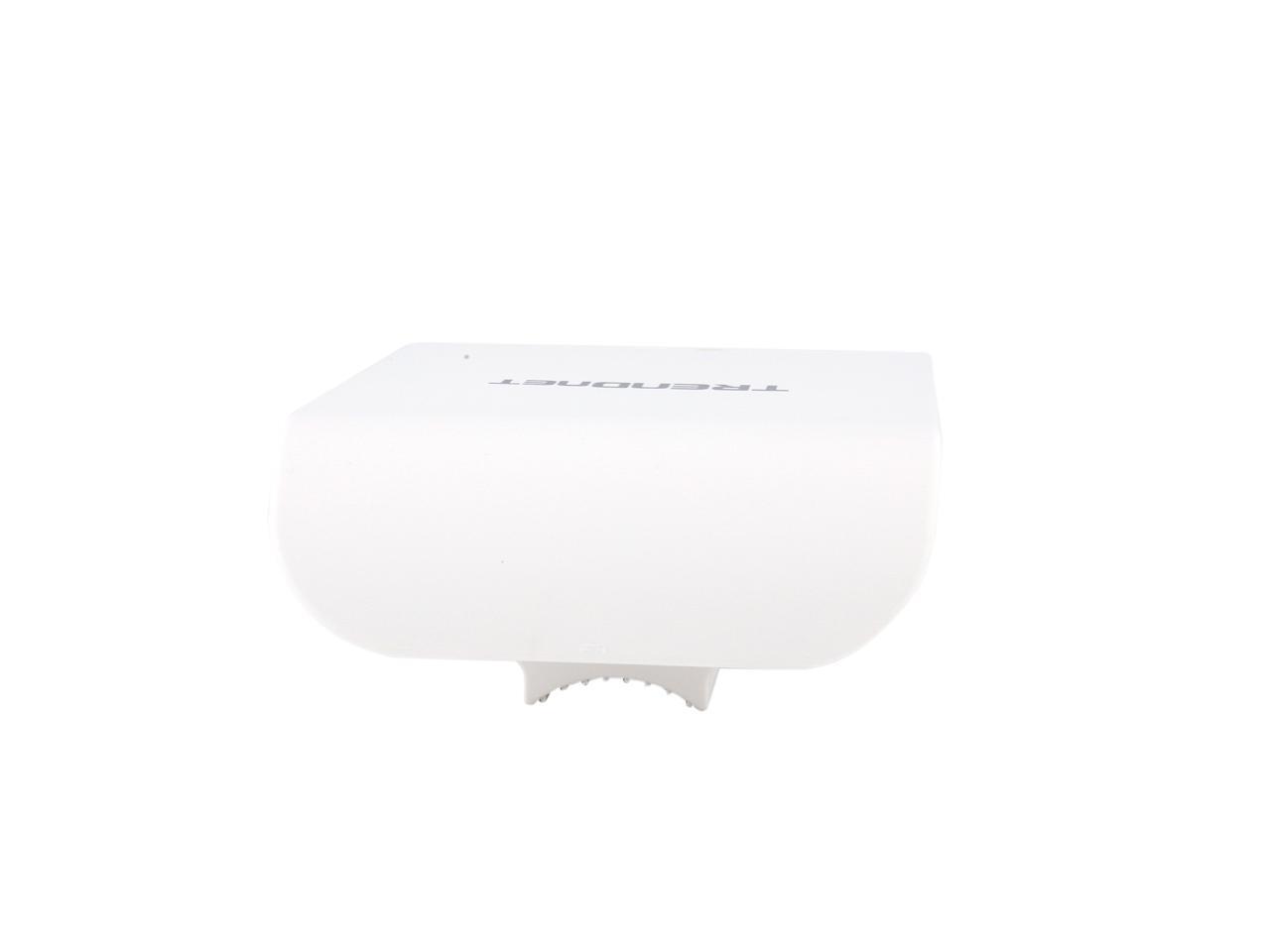

Alt view image 4 of 5 - TRENDnet 10dBi Wireless N300 Outdoor PoE Access Point, TEW-740APBO, Point-to-Point (2.4 GHz), Multiple SSID, AP, WDS, Client Bridge, WISP, IPX6 Rated Housing, Built-in 10 dBi Directional Antenna

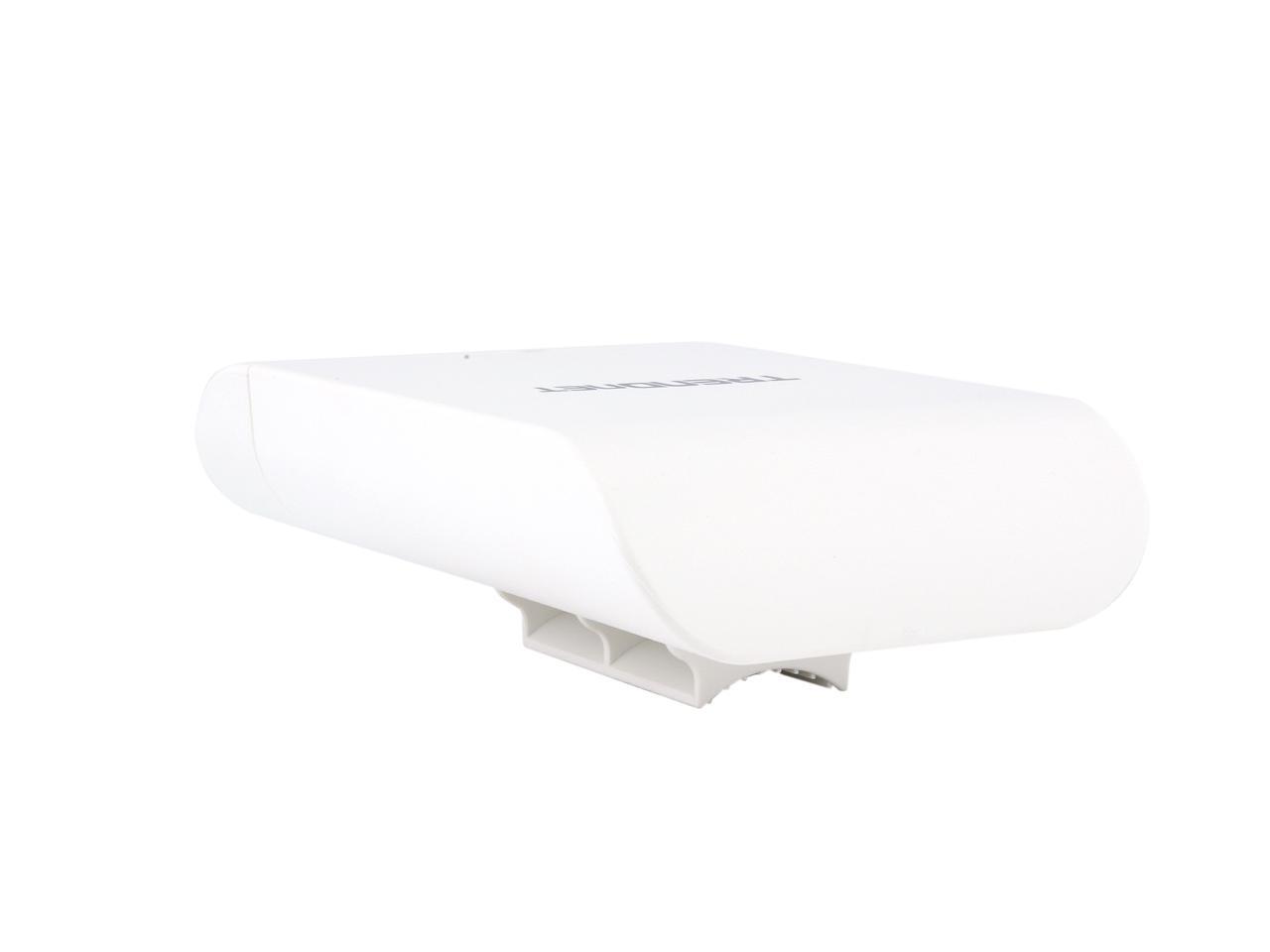

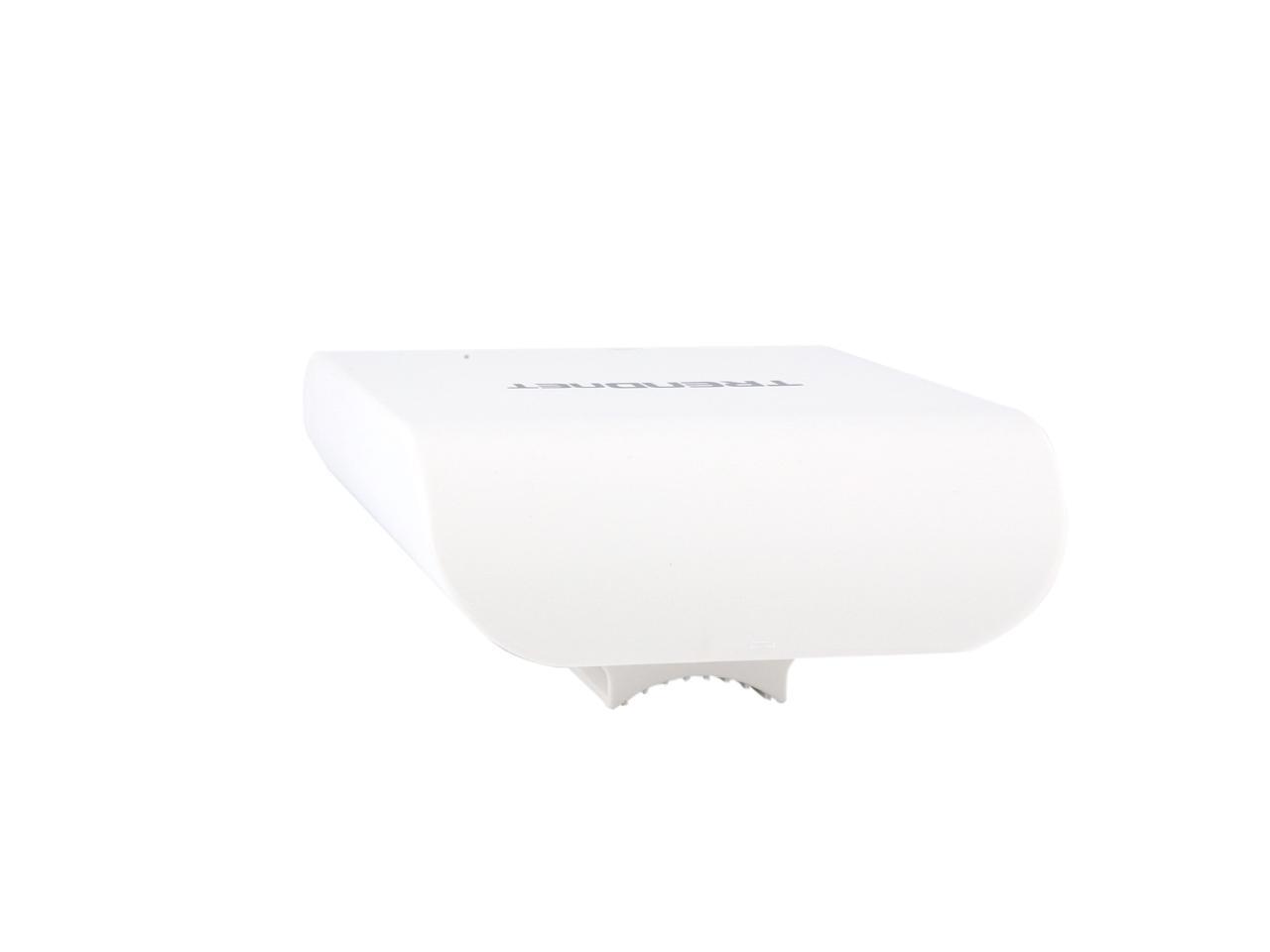

Alt view image 5 of 5 - TRENDnet 10dBi Wireless N300 Outdoor PoE Access Point, TEW-740APBO, Point-to-Point (2.4 GHz), Multiple SSID, AP, WDS, Client Bridge, WISP, IPX6 Rated Housing, Built-in 10 dBi Directional Antenna

360^°

Shop All TRENDnet Products

TRENDnet 10dBi Wireless N300 Outdoor PoE Access Point, TEW-740APBO, Point-to-Point (2.4 GHz), Multiple SSID, AP, WDS, Client Bridge, WISP, IPX6 Rated Housing, Built-in 10 dBi Directional Antenna

Be the first to review this product...

• Wireless N300 point-to-point networking (2.4 GHz)
• Supports Access Point (AP), Wireless Distribution System (WDS), Client Bridge + AP, Wireless ISP (WISP) + AP, CPE + AP, and control AP (CAP) modes
• Built-in 10 dBi directional antenna
• Proprietary PoE power adapter included
• 1 x 10/100Mbps PoE-in port, and 1 x 10/100Mbps port

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

TRENDnet's 10 dBi Outdoor PoE Access Point, model TEW-740APBO, provides Wireless N300 building-to-building connectivity. A variety of installation scenarios are facilitated with Access Point (AP), Wireless Distribution System (WDS), Repeater, and CPE + AP modes. The IP67 rated housing comes with wall and pole mounting hardware.

Model
Brand	TRENDnet
Model	TEW-740APBO (Version v2.0R)

Details
Standards	IEEE 802.3 IEEE 802.3u IEEE 802.1d IEEE 802.1p IEEE 802.1Q IEEE 802.1X IEEE 802.11d IEEE 802.11e IEEE 802.11f IEEE 802.11h IEEE 802.11i IEEE 802.11b IEEE 802.11g IEEE 802.11n (2.4 GHz up to 300 Mbps) IEEE 802.11r IEEE 802.11k
Wireless Data Rates	Up to 300Mbps
Frequency Band	FCC: 2.412 - 2.462 GHz ETSI: 2.412 – 2.472 GHz IC: 2.412 - 2.462 GHz
Channels	FCC: 1-11 ETSI: 1-13
Antenna	10 dBi internal sector antenna
Transmitted Power	802.11b: FCC / ETSI: FCC: 28 dBm (max.), ETSI: 10.4 dBm (max.), IC: 28 dBm (max.) 802.11g: FCC / ETSI: FCC: 26 dBm (max.), ETSI: 10.5 dBm (max.), IC: 26 dBm (max.) 802.11n: FCC / ETSI: FCC: 26 dBm (max.), ETSI: 10.6 dBm (max.), IC: 26 dBm (max.)
Receiver Sensitivity	802.11b: -88 dBm (typical) @ 11 Mbps 802.11g: -74 dBm (typical) @ 54 Mbps 802.11n: -69 dBm (typical) @ 300 Mbps
Modulation	802.11b: DBPK, DQPSK, CCK with DSSS 802.11g/n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
Interface	RJ-45

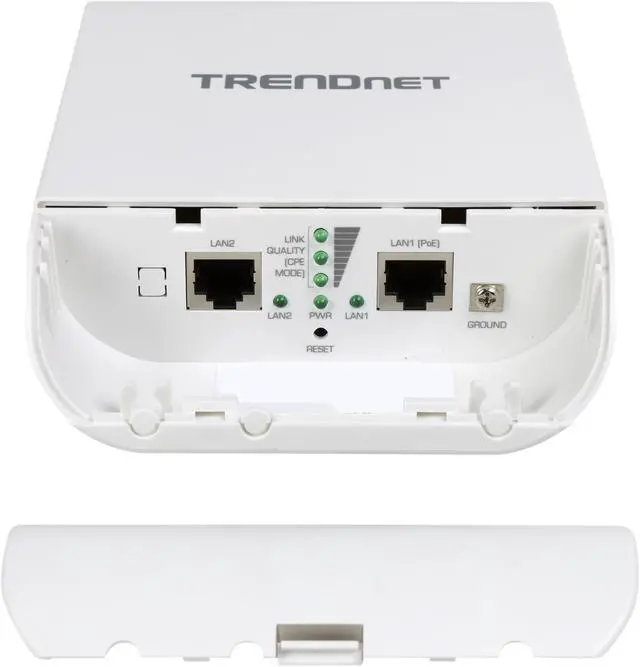

WAN Ports	1 x 10/100 Mbps LAN1 port (proprietary PoE max. cable length 20 m (66 ft.)) 1 x 10/100 Mbps LAN2 port
Power Supply	Input: 100 - 220 V, 50 - 60 Hz, 0.5 A Output: 12V / 1A Consumption: 13.5 Watts Max.

Environmental
Temperature	Operating Temperature: -20 - 60°C (-4 - 140°F)
Humidity	Max. 99% non-condensing

Dimensions & Weight
Dimensions	7.60" x 4.60" x 2.40"
Weight	0.71 lb.

Features
Features	Wireless N300 building-to-building networking (2.4 GHz) Supports Access Point (AP), Wireless Distribution System (WDS), Repeater, and Wireless Client modes IP67 rated housing Built in 10 dBi directional sector antenna

Packaging

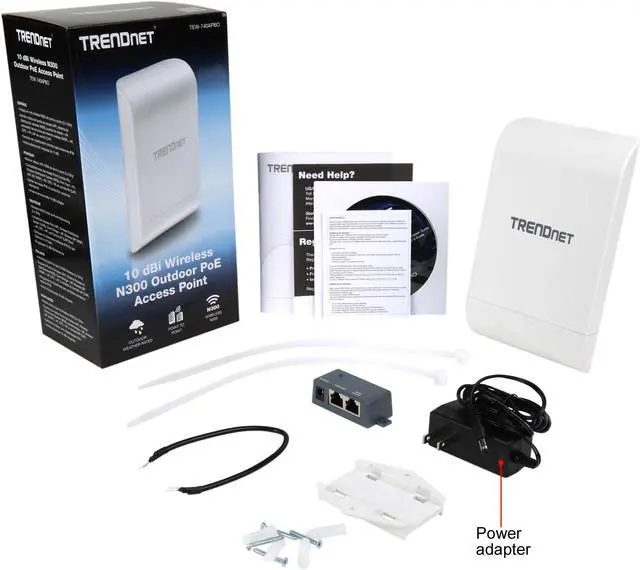

Package Contents	TEW-740APBO CD-ROM (User's Guide) Quick Installation Guide Power adapter (12 V DC, 1 A) Proprietary PoE injector Grounding wire Mounting hardware

Additional Information
First Listed on Newegg	June 27, 2016
