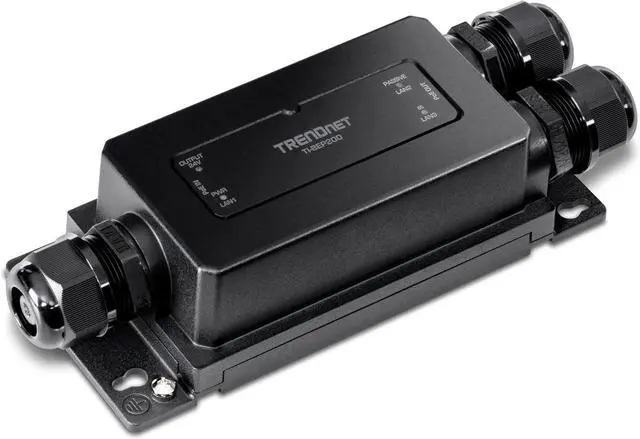

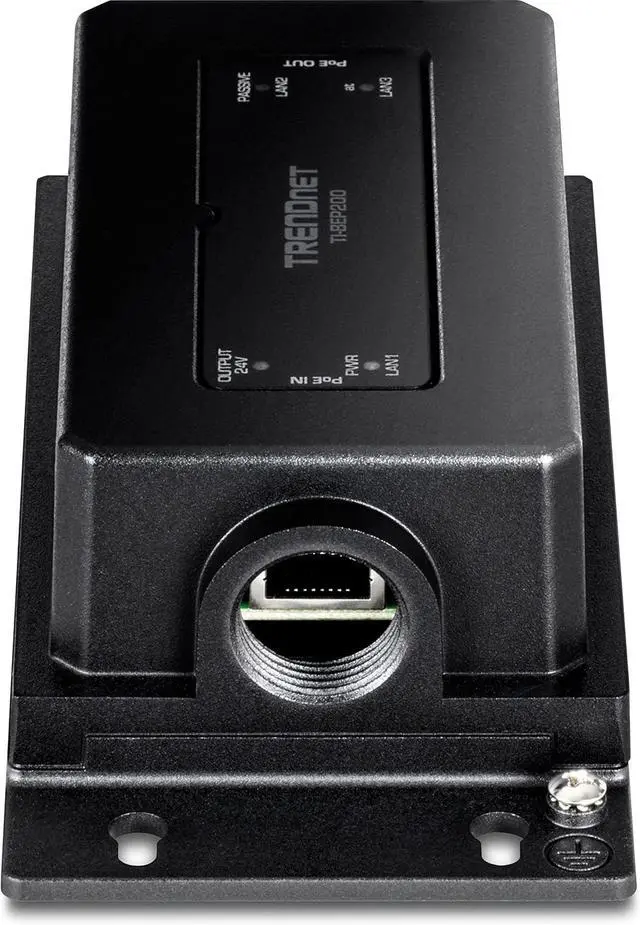

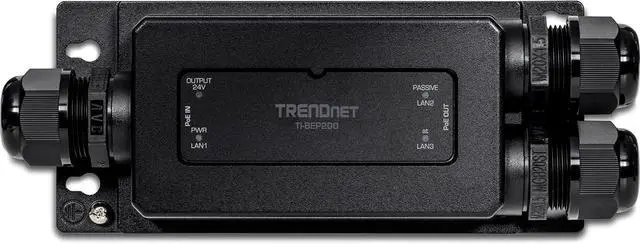

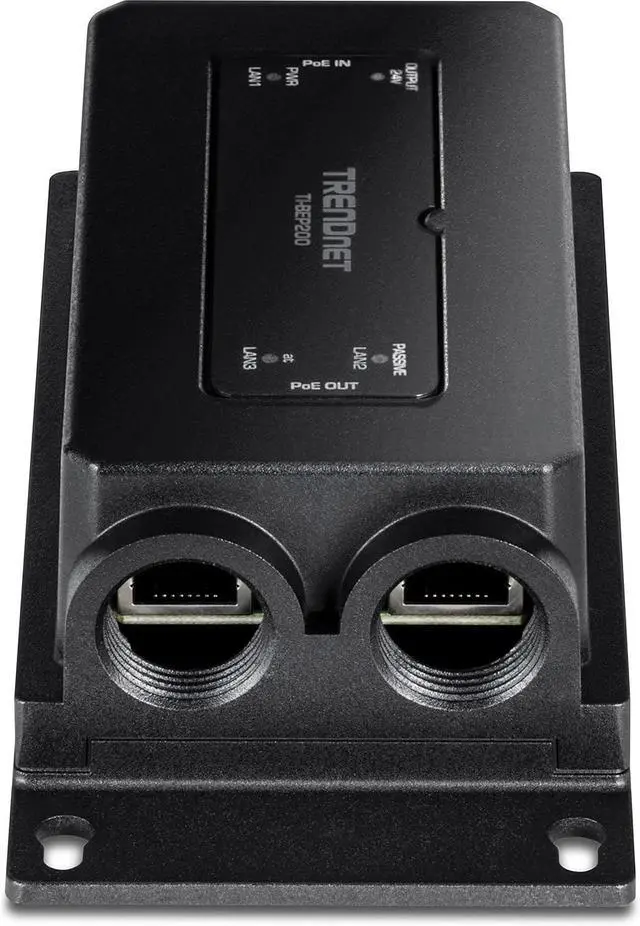

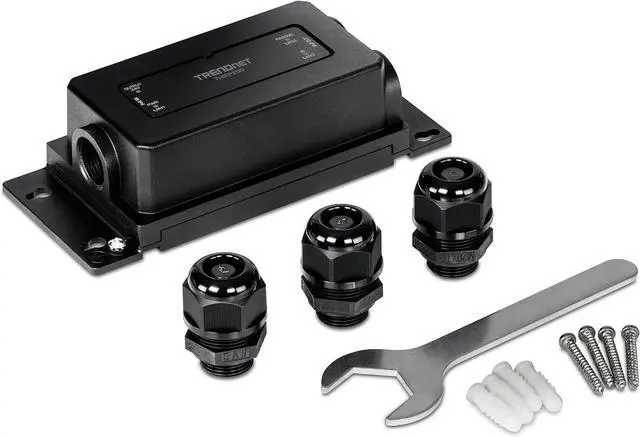

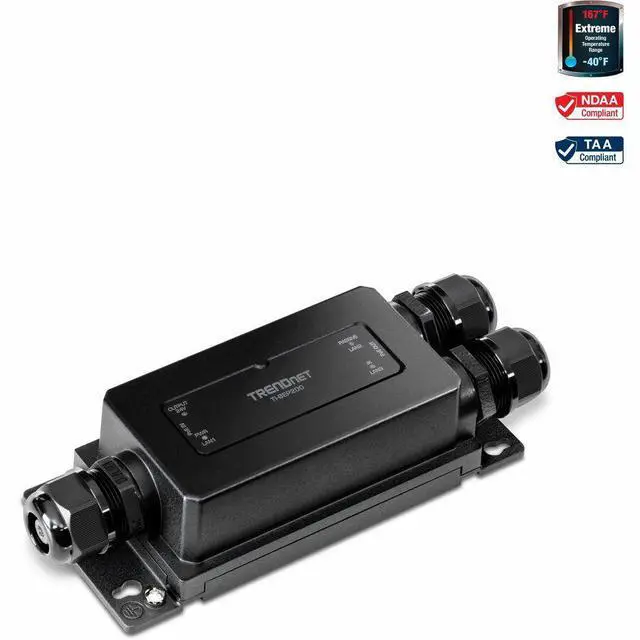

    TRENDnet 2-Port Industrial Outdoor Gigabit PoE Extender, Hardened IP67 Extreme Temperature Rated Housing, Extends 100m for Total Distance up to 200m (656 ft.) for up to 2 Devices, TI-BEP200

    Be the first to review this product...
    • DEVICE INTERFACE: 1 x Gigabit PoE++ in port; 1 x Gigabit PoE+ out port; 1 x Gigabit 24/48V DC Passive PoE out port; LED Indicators; Wall mount.
    • EXTENSION DISTANCE: Take a single PoE++ (90W) connection and extend it an additional 100 meters (328 ft.) toPoE (15.4W), PoE+ (30W), and PoE++ (60W) devices for atotal distance up to 200m (656 ft.).
    • DAISY CHAIN: Daisy chain up to 4 gigabit PoE extenders fora total PoE network extension of up to 500m (1640 ft.).
    • OUTDOOR RATED: Built for outdoor and industrial environments, with an IP67 weather rated metal housing and an operating temperature range of -40°- 75° C (-40° - 167° F).
    • POE POWERED: The extender does not require external power which saves installation time and costs.
    +
    +
    Specs
    Reviews
    See all Q & A
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the TRENDnet TI-BEP200

    Model
    Brand TRENDnet
    Model TI-BEP200
    Part Number TI-BEP200
    Details
    Type PoE Extender
    Specifications Standards
    IEEE 802.3
    IEEE 802.3u
    IEEE 802.3x
    IEEE 802.3ab
    IEEE 802.3af
    IEEE 802.3at
    IEEE 802.3bt

    Device Interface
    1 x Gigabit PoE++ in port
    1 x Gigabit PoE+ out port
    1 x Gigabit 24/48V DC passive PoE out port
    LED indicators
    Wall mount
    IP67 housing

    Data Transfer Rate
    Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
    Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
    Gigabit: 2000Mbps (full duplex)

    Performance
    RAM buffer: 1Mb
    MAC Address Table: 2K entries
    Jumbo Frame: 9KB

    DIP Switch
    Adjust 24/48V DC passive voltage (default 48V DC)
    Features
    Features Special Features
    Extends a PoE/PoE+ network connection an additional 100 meters for a total distance of up to 500m (1640 ft.)
    Cascade up to 4 repeaters

    Power
    Powered by PoE++ (60W – 90W) Device
    Max. consumption: 2.8W (without device connected)

    PoE
    PoE budget: 60W
    PSE Pin: 1,2 (V-), 3,6 (V+), 4,5 (V+), 7,8 (V-)
