Question 1

Will this item work without using the monitor connections? I need a KM switch only (no video). I want to use a single keyboard/mouse and switch control between a desktop and a laptop - keeping the monitors separate.

(Some of the software-based solutions will not work because the computers are on two different networks.)

Accepted Answer

Hi Mr Brant,

Yes it does work even if you don't use the Monitor, I just tested it to make sure.

You do need to connect the two monitor cables that come with the device just on the KVM Switch end, on the other end of the cable you will get a VGA connector and a USB connector, using just the USB connector makes the MOUSE and KEYBOARD work with no problems.

Question 2

Is this model compatible with Windows 8.1?

Accepted Answer

It is strictly a hardware device. It doesn't matter what OS you're running (Windows, Linux, even just BIOS). The "hub" (the device appears as a USB hub) does need to be detected in Windows in order for the keyboard and mouse to work, but Windows (any version including 8.1) will load generic USB drivers for it. Just be aware the first time you connect it, it may take Windows a minute or two to install the USB hub driver.

Question 3

Will this work on a monitor that doesn't have a VGA connection, only USB and HDMI?  Thanks!

Accepted Answer

No video but you can share common sound and combo usb keybd- mouse to two computers using this. (What I do with my HDMI setup)

Question 4

can I hook a laptop with usb only and a PC to this device?

Accepted Answer

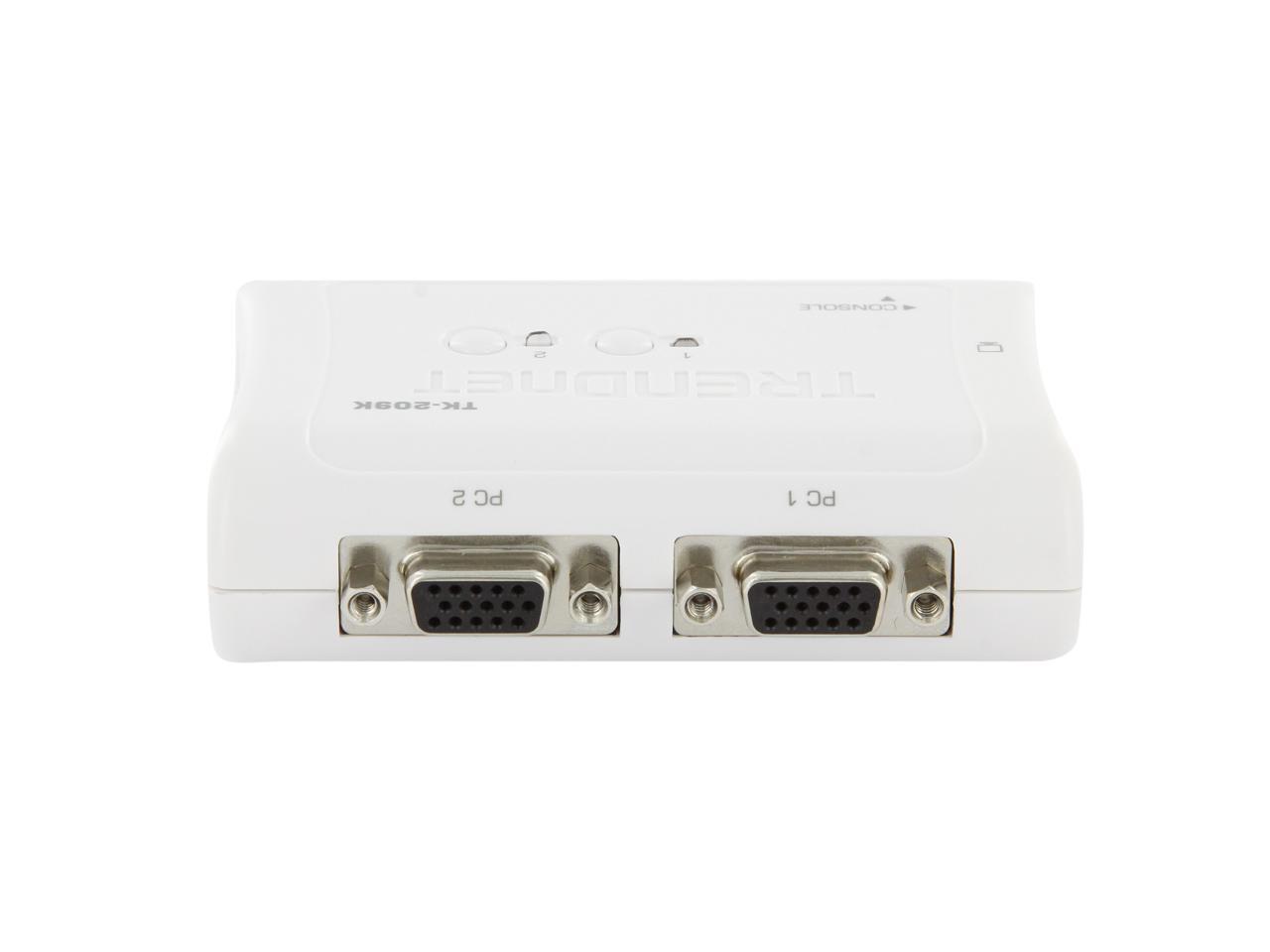

You should be able to do this. The PC1 and PC2 cables have a USB and a VGA socket. The USB would give you a common connect for key board and mouse. The audio should be ok as well.

If you do not use the VGA ports for display, you will need to connect independent cables from your laptop and pc to your monitor inputs.

Question 5

If I am playing music from 1 computer and games on the other computer can I hear sound from both machines at the same time?

Accepted Answer

It doesn't work like that. It switches you from one computer to the next. You cannot use both computers at the same time. If you have a heavy use, then the product only last 10 months

Question 6

Will this transmit video and audio to display?

Accepted Answer

I had some problems with it, and I think that I sent it back.  I couldn't figure out why it was having problems.  I am not using it anymore, or I don't see it so I probably sent it back.  I loved the idea and SO BADLY NEED IT, but I just started remote-desktoping because it was giving so many problems trying to keep two machines right next to each other and using something like this to switch.

Hope that helped you.  SOrry that I don't remember all of the specifics.

Thanks, David Blaine Fullerton

Question 7

What is the length of the included cables?

Accepted Answer

Mine are exactly 4 feet long each.

Question 8

Can this device be used to control two computers with a wireless mouse and keyboard (Microsoft). If so will I need any cables that are not included in this kit?

Accepted Answer

Yes. I have used it with both Wireless keyboards and wireless mice - including keyboard and mice combos with one receiver. Just plug the USB receiver(s) into the KVM switch in the same USB ports that you would normally connect a hardwired mouse and keyboard. No cables required.

Question 9

My keyboard is a PS/2. Can I use a PS/2 to USB adapter and have it work on this device?

Also...

My video card uses DVI-I. can anybody recommend a good DVI-I/VGA adapter to use here?

Accepted Answer

When I was using a PS/2 motherboard, I had to purchase a USB to dual PS/2 active converter cable (the converter has a cable for a keyboard and another for the mouse).  I then plugged the keyboard into the keyboard cable and left the mouse cable empty.  Doing this the keyboard worked fine.  These active converters are somewhat expensive, you may just want to purchase another keyboard.

Question 10

I need one of these with more than two USB ports.  What do you suggest?

Accepted Answer

I have added a 4 USB hub to this and that works just fine.  I know everyone has Printers, speakers, mouse, keyboard, etc.. These KVM switches work pretty well.  Best Wishes.

Brand	TRENDnet
Model	TK-209K

Type	D-Sub, USB

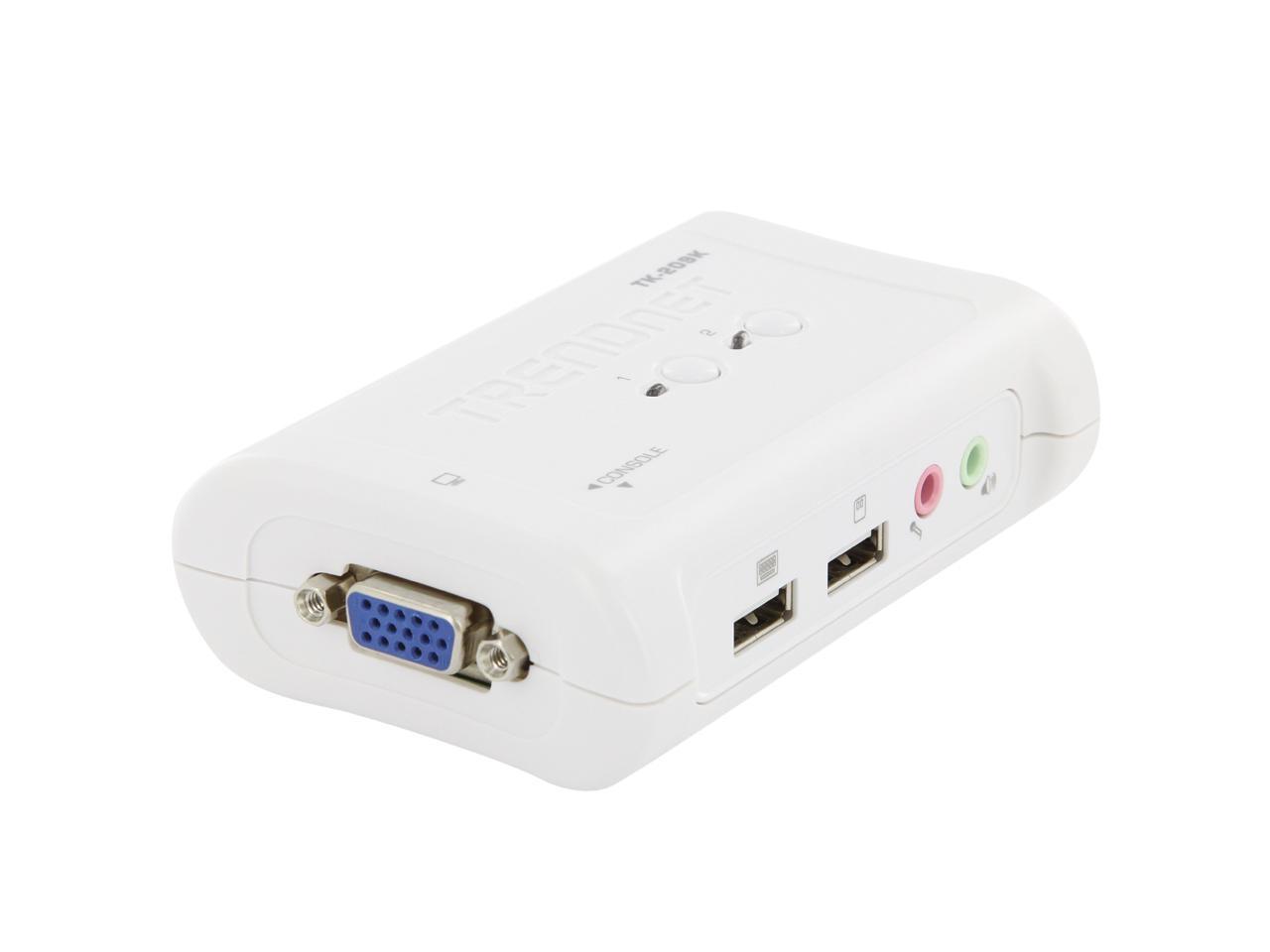

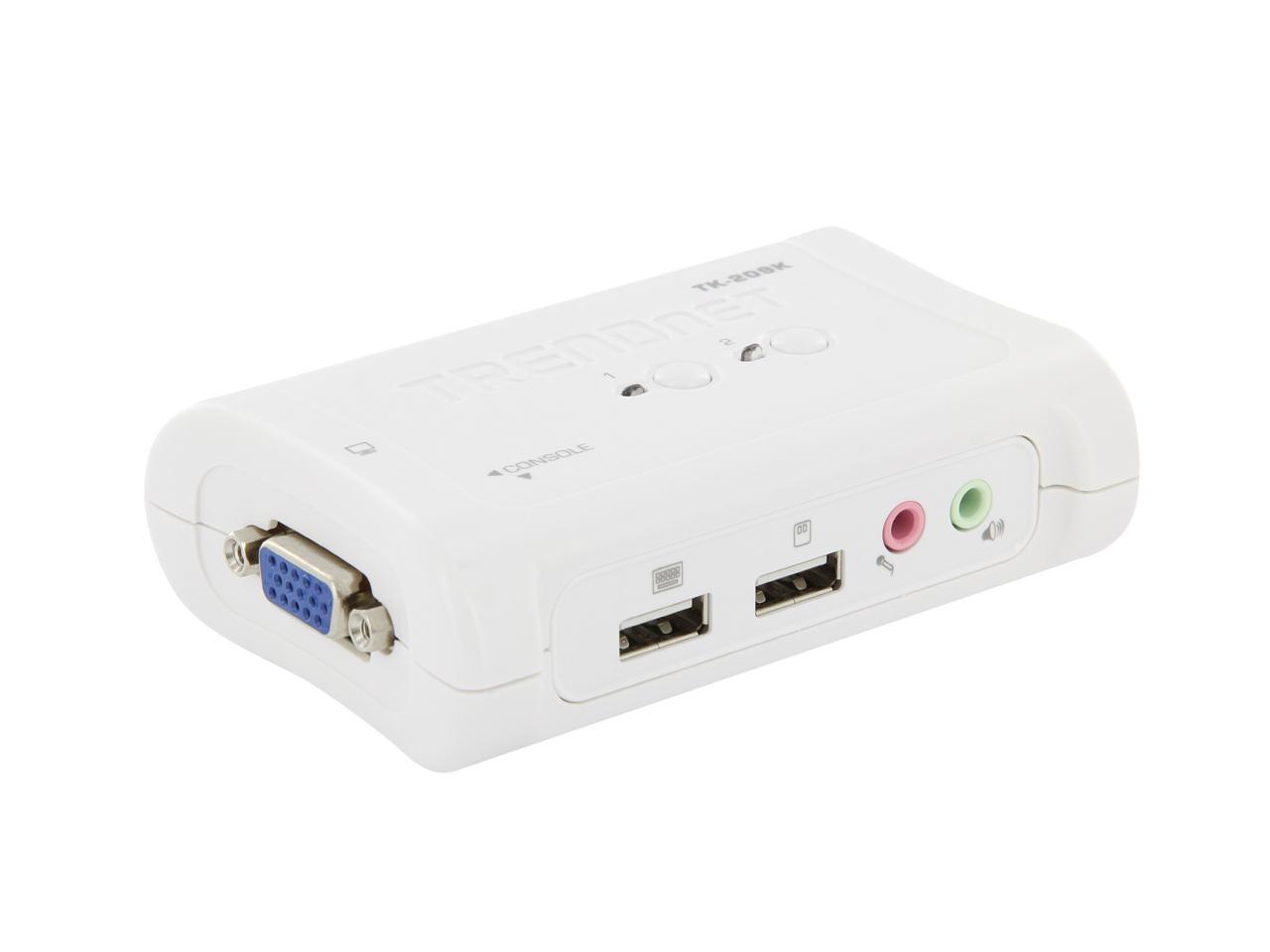

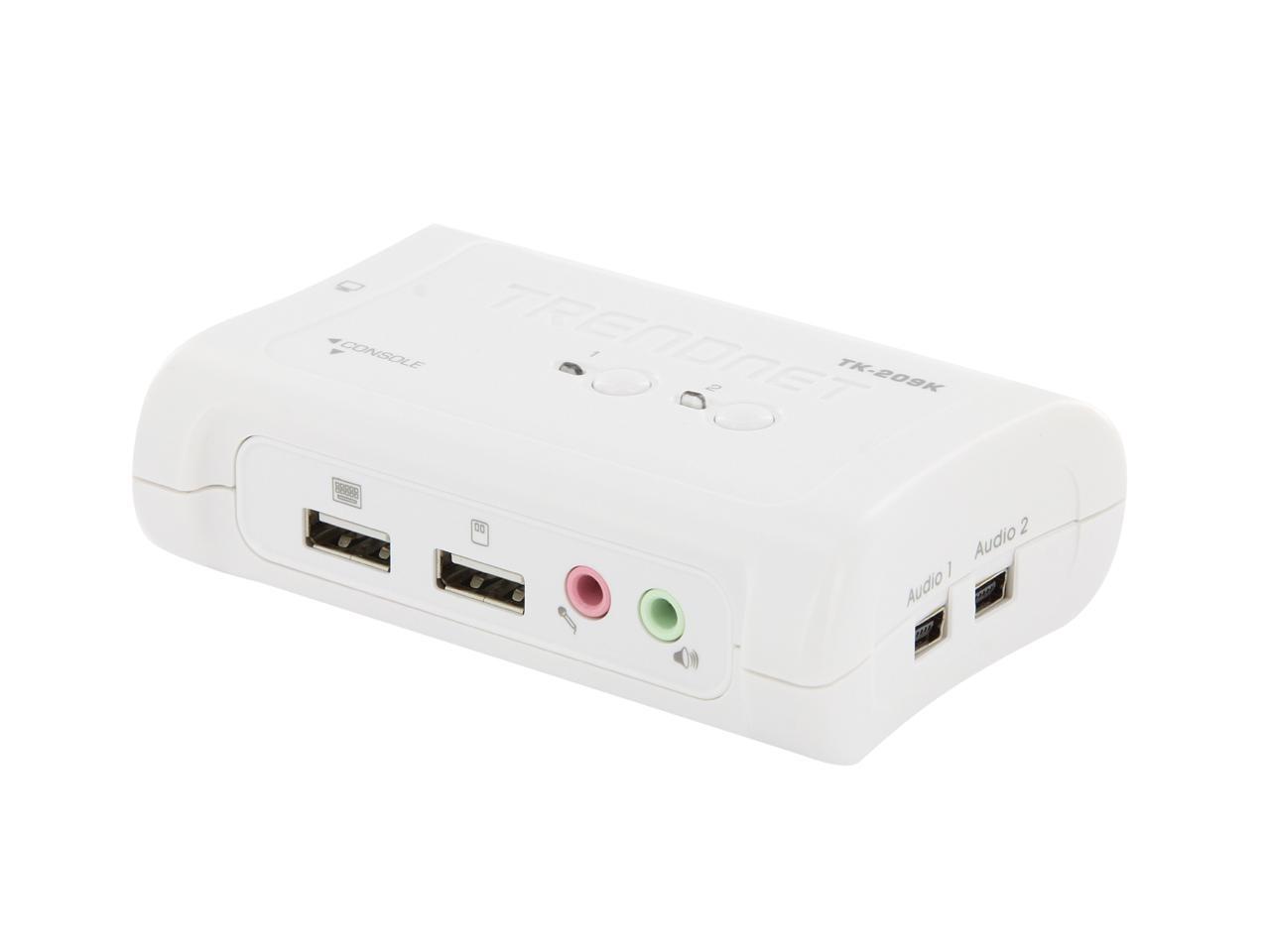

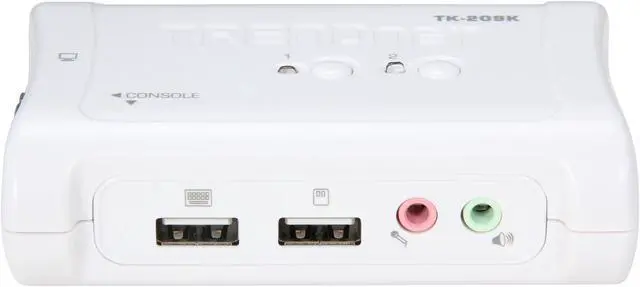

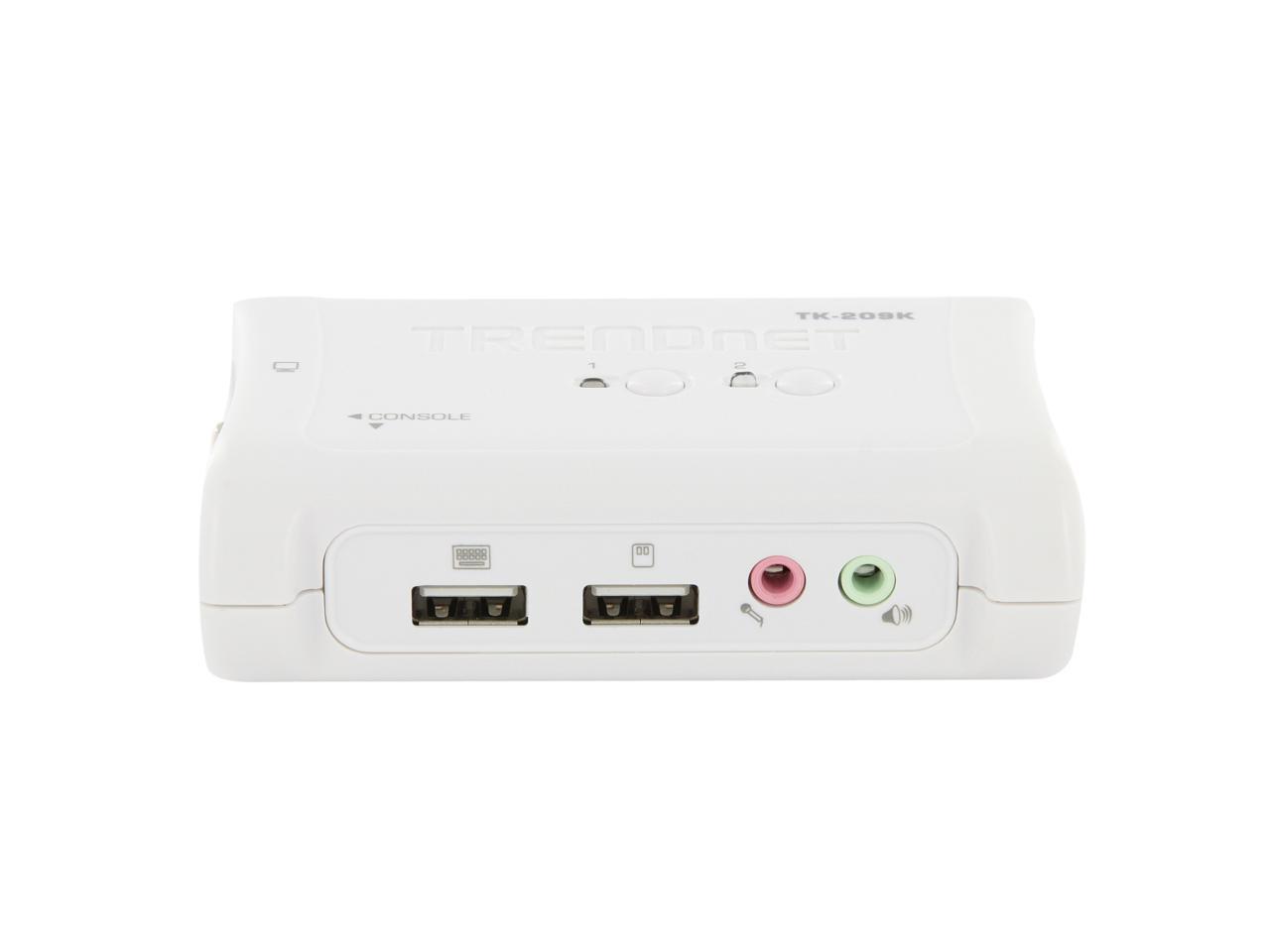

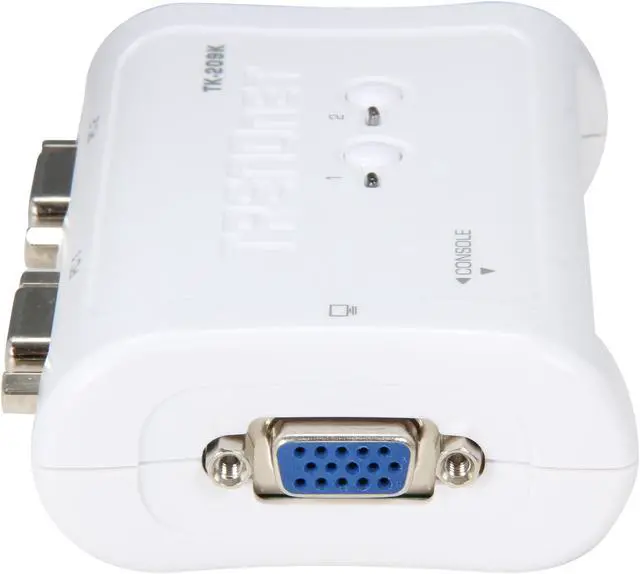

Console Connectors	1 x USB Keyboard (Type A) 1 x USB Mouse (Type A) 1 x VGA/SVGA HDB 15-pin 1 x 3.5mm audio in/out jack 1 x 3.5mm microphone in/out jack
Computer Connections	2 Ports
Monitor Connections	1 Port
Video Resolution	2048 x 1536
PC Selection	Push Buttons/Hot Keys
AutoScan Interval	10~ 60 seconds

Temperature	0ºC to 40ºC(32ºF to 104ºF)
Humidity	0% to 90%,Non-Condensing

Audio Features	with Audio
USB Features	with USB support

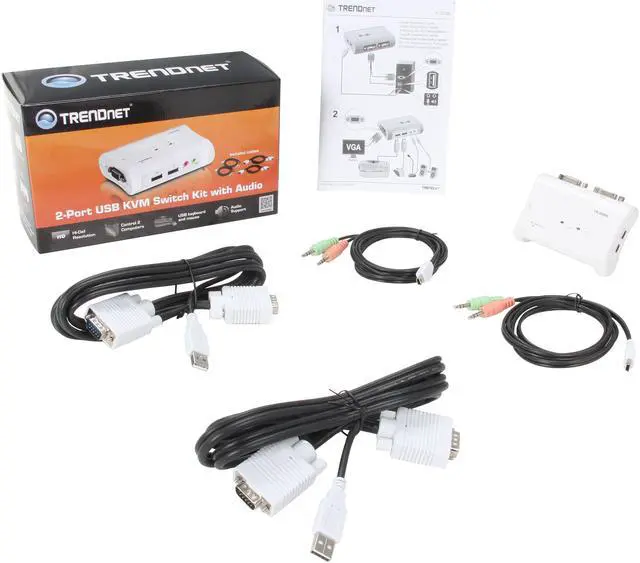

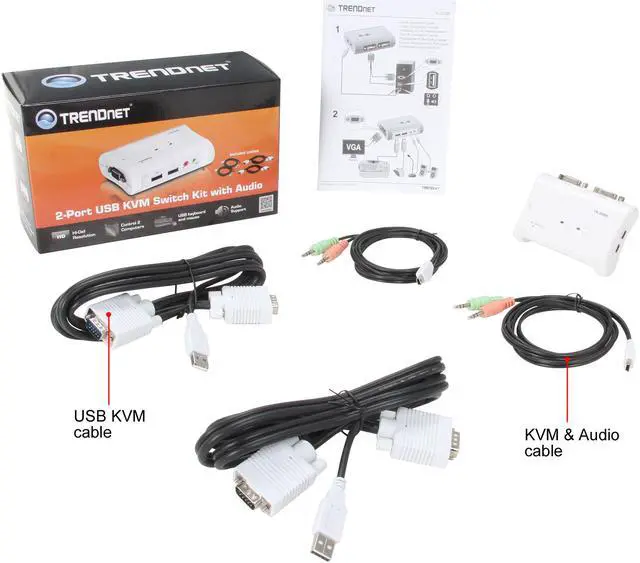

Features	Use one keyboard, monitor, and mouse to control two computers 2-port USB KVM Switch with 1 set of Mic/Speaker port. 2 sets of VGA and 2 sets of Audio & Microphone Cables Supports Microsoft IntelliMouse, Optical Mouse, Logitech Net Mouse and more Supports super High Video Quality, up to 2048 x 1536 VGA resolution Supports Windows 98(SE)/ME/2000/XP/2003 Server, Linux, and Mac OS Multi-Platform supports for PCs, Macintosh G3/G4, iMac and Mac Mini Auto-Scan & LED display for PCs monitoring Hot-Key, push button and Windows-based client switching software User definable hot-key (Windows Only) Plug & Play and Hot-Pluggable USB Interface Power method

Dimensions	3.86" x 2.76" x 1.1"
Weight	3.6 oz.

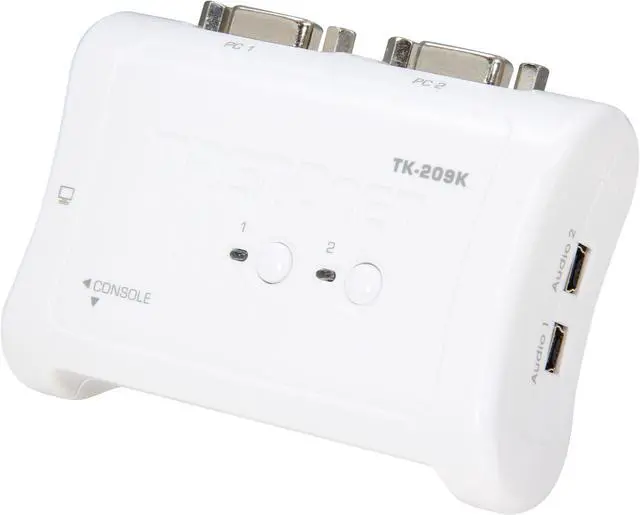

TRENDnet 2-Port USB KVM Switch and Cable Kit with Audio, Manage Two PCs, USB 1.1, Hot-Plug, Auto-Scan, Hot-Keys, Windows & Linux Compliant, TK-209K

Learn more about the TRENDnet TK-209K

Customer Reviews of the TRENDnet TK-209K

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Item#: N82E16817403063
