Will this work with 200MB Actiontec power line units?

It SHOULD, but I have not tried it... The most important thing, both units should be on the same electrical phase (the outlets they are pluged into are both controlled by breakers in your electrical breaker box that are both on the left side OR both on the right side.....Left side breakers are 180 degrees out of phase of right side breakers)

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Sold by Newegg

Shipped by Newegg

Add to Wish List

More Resources

User Manual

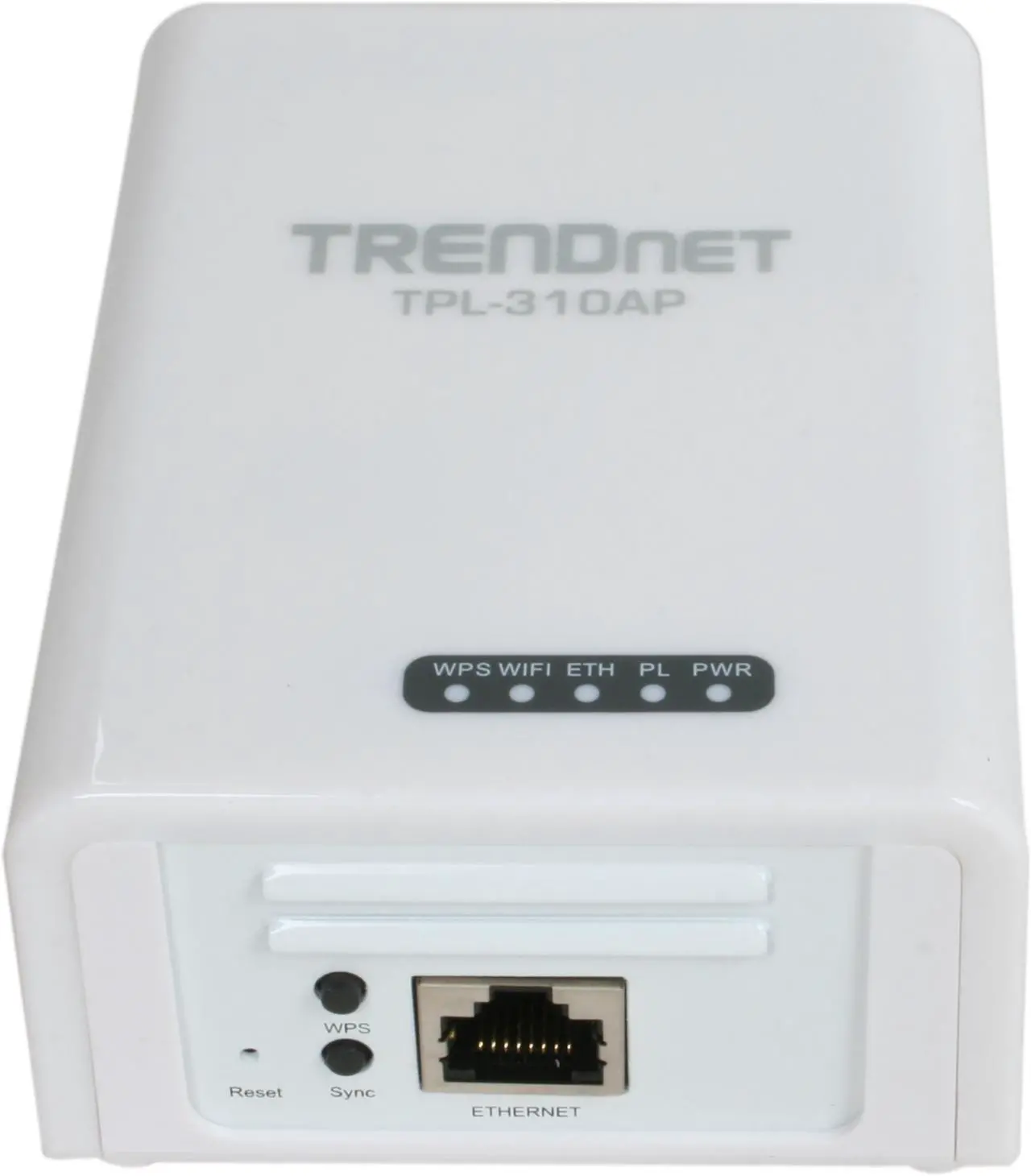

Main image of TRENDnet TPL-310AP Powerline 200 AV Wireless Access Point Up to 200Mbps

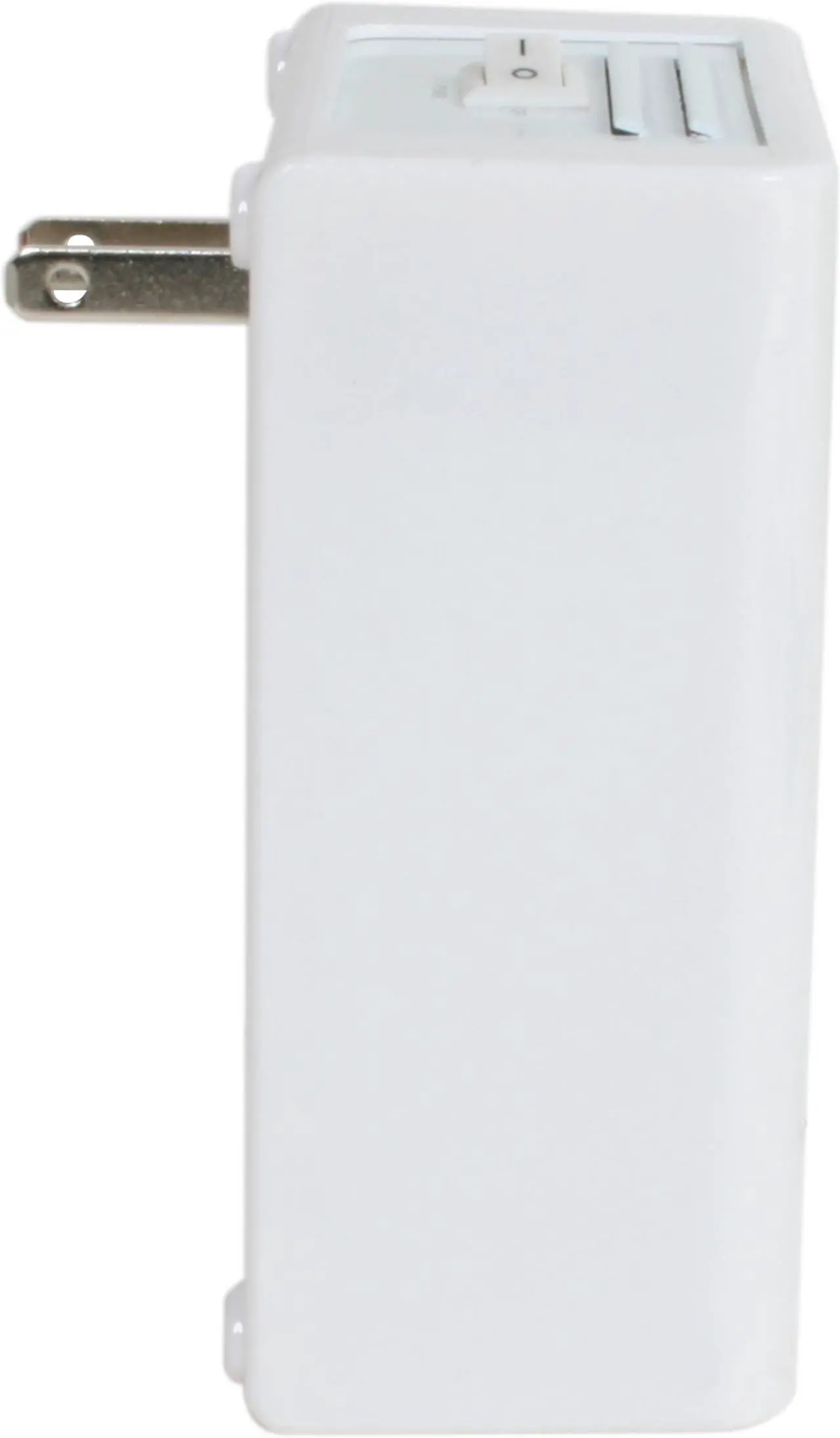

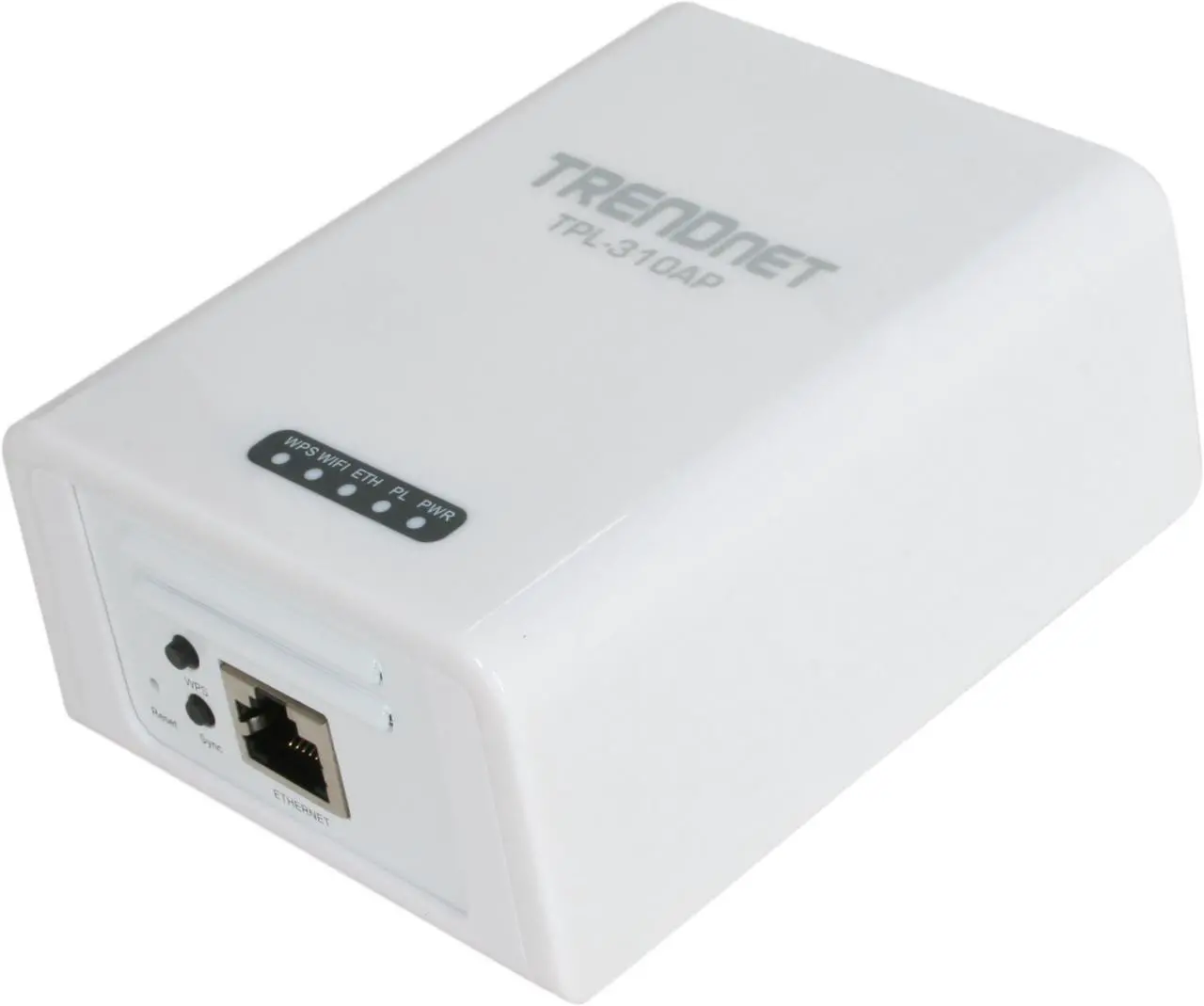

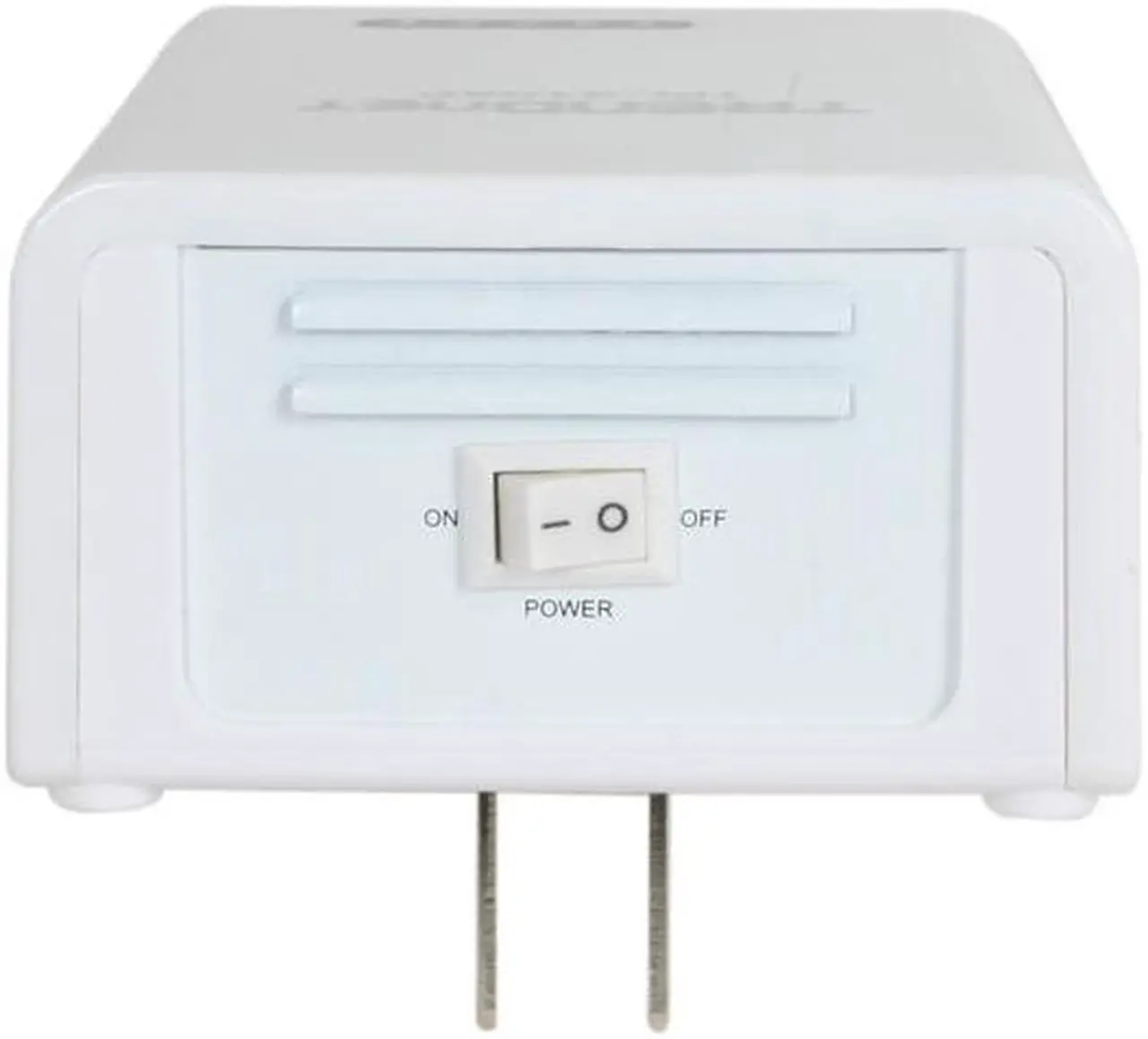

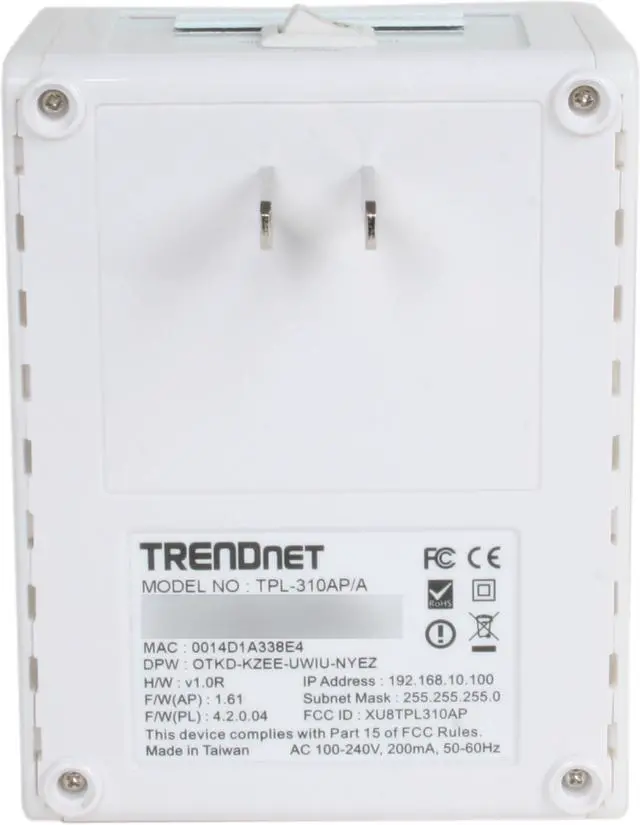

Alt view image 2 of 6 - TRENDnet TPL-310AP Powerline 200 AV Wireless Access Point Up to 200Mbps

Alt view image 3 of 6 - TRENDnet TPL-310AP Powerline 200 AV Wireless Access Point Up to 200Mbps

Alt view image 4 of 6 - TRENDnet TPL-310AP Powerline 200 AV Wireless Access Point Up to 200Mbps

Alt view image 5 of 6 - TRENDnet TPL-310AP Powerline 200 AV Wireless Access Point Up to 200Mbps

Alt view image 6 of 6 - TRENDnet TPL-310AP Powerline 200 AV Wireless Access Point Up to 200Mbps

Shop All TRENDnet Products

TRENDnet TPL-310AP Powerline 200 AV Wireless Access Point Up to 200Mbps

(1) Write a Review

Combination 200Mbps Powerline adapter and 300Mbps wireless n access point
Connect one 200Mbps Powerline AV Adapter to the Internet and then plug in up to 15 additional Powerline AV adapters

Overview

Specs

Reviews (1)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

The 200Mbps Powerline AV Wireless N Access Point, model TPL-310AP, allows users to create a wireless network from any outlet on their electrical system.

Connect one adapter to your network and plug in up to 15 other adapters for high speed network access. Connect adapters quickly using the convenient one-touch Sync button. Advanced AES encryption provides optimum Powerline security, LED displays convey device status for easy troubleshooting, and Quality of Service technology prioritizes video, audio, and online gaming.

Model
Brand	TRENDnet
Model	TPL-310AP

Details
Standards	IEEE802.3/3u/3x, HomePlug AV, IEEE 1901, Wi-Fi
Encryption	128-bit AES Encryption, WEP, WPA, WPA2
Ports	1 x 10/100Mbps RJ-45
LEDs	Power (PWR) Wireless (WLAN) WPS (Wi-Fi Protected Setup) Powerline (PL) Connection Ethernet (ETH) Connection
Certifications	CE, FCC, HomePlug AV
Powerline Speeds	Up to 200Mbps
Connection Type	Wireless + RJ45
Connection Speeds	10/100M + 300M
Kit Type	Single
Frequency Band	2 ~ 28 MHz Wireless: 2.412GHz ~ 2.472GHz
Power Supply	100~240VAC, 50~60Hz
System Requirement	OS Compatibility: Windows 7 (32/64-bit), Vista (32/64-bit), XP(32/64-bit)

Environmental
Temperature	0°C ~ 40°C

Features
Features	Protocols: TDMA and ,CSMA/CA Powerline Coverage: Up to 300m (984ft.) Power Switch: On/Off power switch Buttons: Sync, WPS, Reset Consumption: 8.4 Watts (max.) Access Point Modes: Access Point (AP) Access Point (AP) Client (wireless adapter) Wireless Distribution System (WDS) Wireless Distribution System (WDS) with Access Point (AP) Mesh Mesh with Access Point (AP) Repeater (using Client mode only) Antenna: 2 x 2dBi internal printing dipole antenna Wi-Fi Multimedia (WMM) Quality of Service (QoS) support Broadcast up to 4 SSIDs with different wireless encryption.

Dimensions & Weight
Dimensions	4.1" x 3.2" x 2.6"
Weight	9.4 oz.

Packaging

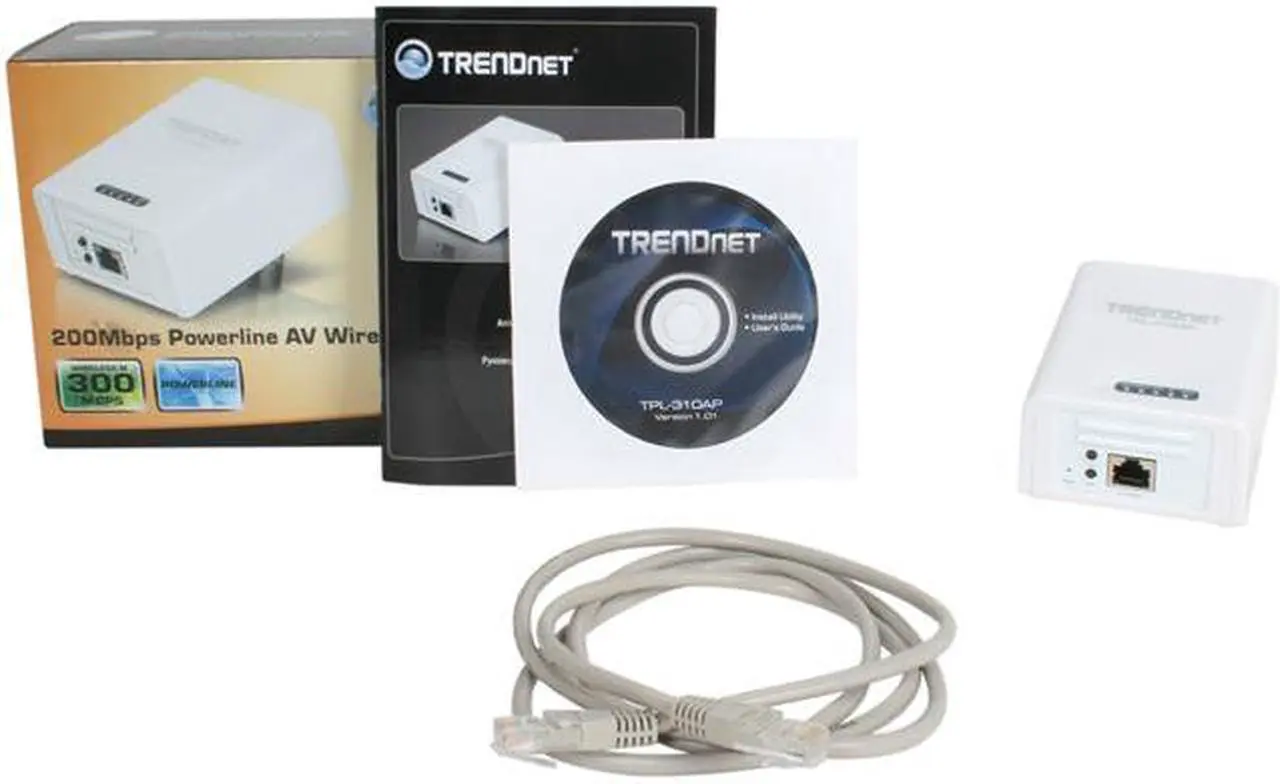

Package Contents	TPL-310AP Multi-Language Quick Installation Guide CD-ROM (Utility & User's Guide) Network cable (1.5 m / 5 ft.)
