TRENDnet Powerline 500 AV Nano Adapter, TPL-406E, Includes 1 x TPL-406E Adapter, Cross Compatible with Powerline 600/500/200, Windows 10, 8.1, 8, 7, Vista, XP, Ethernet Port, Plug & Play Install
ADAPTERS: Includes ONE TPL-406E adapter. Two adapters are needed to start a network. Use up to 8 adapters to network devices in different rooms without running new cabling
EXPAND YOUR NETWORK: Connect one adapter to your router and plug another adapter into an outlet on your electrical system for instant high-speed network access. Minimum of two adapters are needed to start a network. Add additional adapters for high speed network access to other rooms or network devices
ETHERNET PORT: The Powerline 500 AV adapters have an Ethernet Port that extends high performance wired connections. Convenient Ethernet port that allows you to hardwire a computer, smart TV, or other network enabled device
QUICK SETUP: Get up and running in minutes with the intuitive guided setup. Simply plug in the TRENDnet powerline Ethernet adapters! The encrypted Powerline signal auto-connects over an existing electrical system. Easy no-CD installation
Overview
Specs
Reviews
Learn more about the TRENDnet TPL-406E
Model
Brand
TRENDnet
Model
TPL-406E
Details
Standards
HomePlug AV, IEEE 1901, IEEE802.3/3u
Encryption
128-bit AES Encryption
Ports
1 x 10/100 Mbps Auto-MDIX RJ-45 port Power prong
LEDs

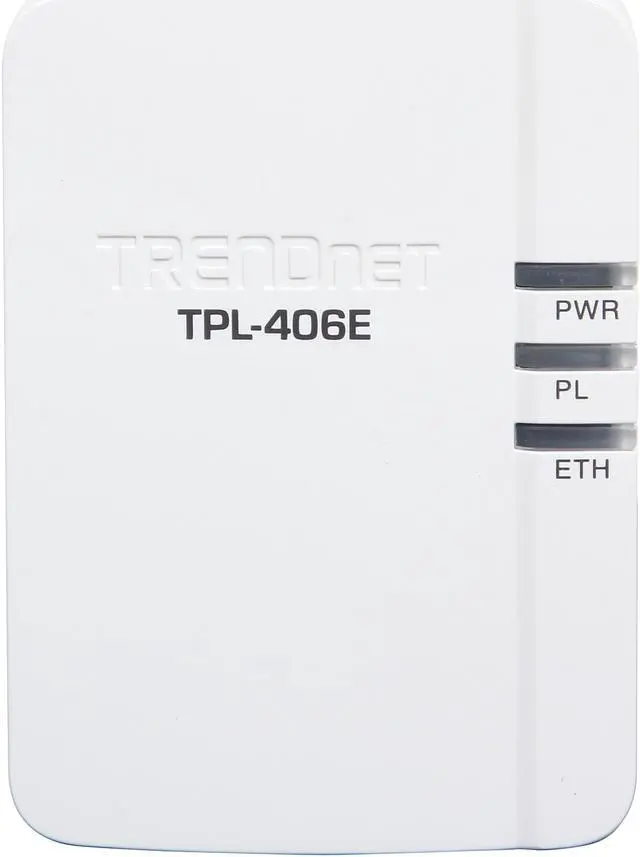

Power (PWR) Powerline (PL) Connection Ethernet (ETH) Connection
Certifications
CE, FCC
Powerline Speeds
Up to 500Mbps
Connection Type
RJ45
Connection Speeds
10/100M
Kit Type
Single
Frequency Band
2 ~ 68 MHz
Power Supply
100~240VAC, 50~60Hz
System Requirement
Utility OS Compatibility: Windows 7 (32/64-bit), Vista (32/64-bit), XP(32/64-bit)
Environmental
Temperature
0°C ~ 40°C
Humidity
Max 95% (non-condensing)
Features
Features
Modulation: OFDM Symbol Modulation on link synchronization 1024/256/64/8 - QAM, QPSK, BPSK, ROBO Carrier
Protocol: TDMA, and CSMA/CA
Nodes: Up to 8 (max)
Overlapping Powerline Networks: Up to 4 (per electrical system)
Coverage: Up to 300 m (984 ft.)
Buttons: Sync (3 sec.) / Reset (20 sec.)
Support for IPv6
Power Save mode reduces electrical consumption by up to 80%
Neighbor network support for up to 4 overlapping networks
Auto QoS support through traffic classification and multiple priority queuing.
* Maximum of 8 adapters (nodes) recommended for streaming video across your network. ** 500 Mbps is the maximum theoretical Powerline data rate. Actual throughput will vary depending on environment. *** Networked Powerline devices need to be plugged into power outlets that are on the same electrical system. **** GFCI outlets and AFCI circuit breakers may degrade Powerline network signals.
