Is this have the HomePlug AV2 standard?

Standards IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 1901 Device Interfaces Ethernet port Sync / reset button Status LEDs Power plug A: North America Type B (NEMA 5–15) EU: Euro Type C (CEE 7/16) UK: United Kingdom Type G (BS 1363) Frequency Band 2 – 68 MHz Data PHY Rate Up to 1200 Mbps Networking Distance Up to 300 m (980 ft.) linear distance over electrical power lines Security 128-Bit AES (Advanced Encryption Standard) Optional Utility: OS Compatibility Windows® 10, 8.1, 8, 7, Vista, XP Nodes Up to 8 (max.) Overlapping Powerline Networks Up to 4 (per electrical system) Outlet Current 110V AC, 20A (max.) 220V AC, 16A (max.) Power Input: 100 – 240 V AC, 50/60 Hz Consumption: Active mode: 2.7 Watts (max.); Standby mode: 0.34 Watts (max.) Operating Temperature 0 – 40 °C (32 – 104 °F) Operating Humidity Max. 90 % non-condensing Certifications CE FCC Dimensions 112 x 68 x 40 mm (4.4 x 2.7 x 1.1 in.) Weight A: 104 g (3.7 oz.) EU: 190 g (6.7 oz.) UK: 190 g (6.7 oz.) Warranty 3 year limited Enter an answer to this question.

Is it okay to plug a UPS into this? Will this block the top outlet from using a three prong plug?

I just received my purchase of this kit last week. Have not had a chance to set it up yet but did immediately take it out of the box to test to see if it blocks the use of the top outlet by a 3 prong plug. Aside from the 1200 advertised, the main thing I was looking for was that it would not block the other outlet in a normal 2-outlet receptacle. Happily, this does NOT block use of a grounded, 3 prong plug in the outlet above!! There is a bit of space between the two, so they are not even tight on each other. Cannot answer on UPS as I am not using one.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

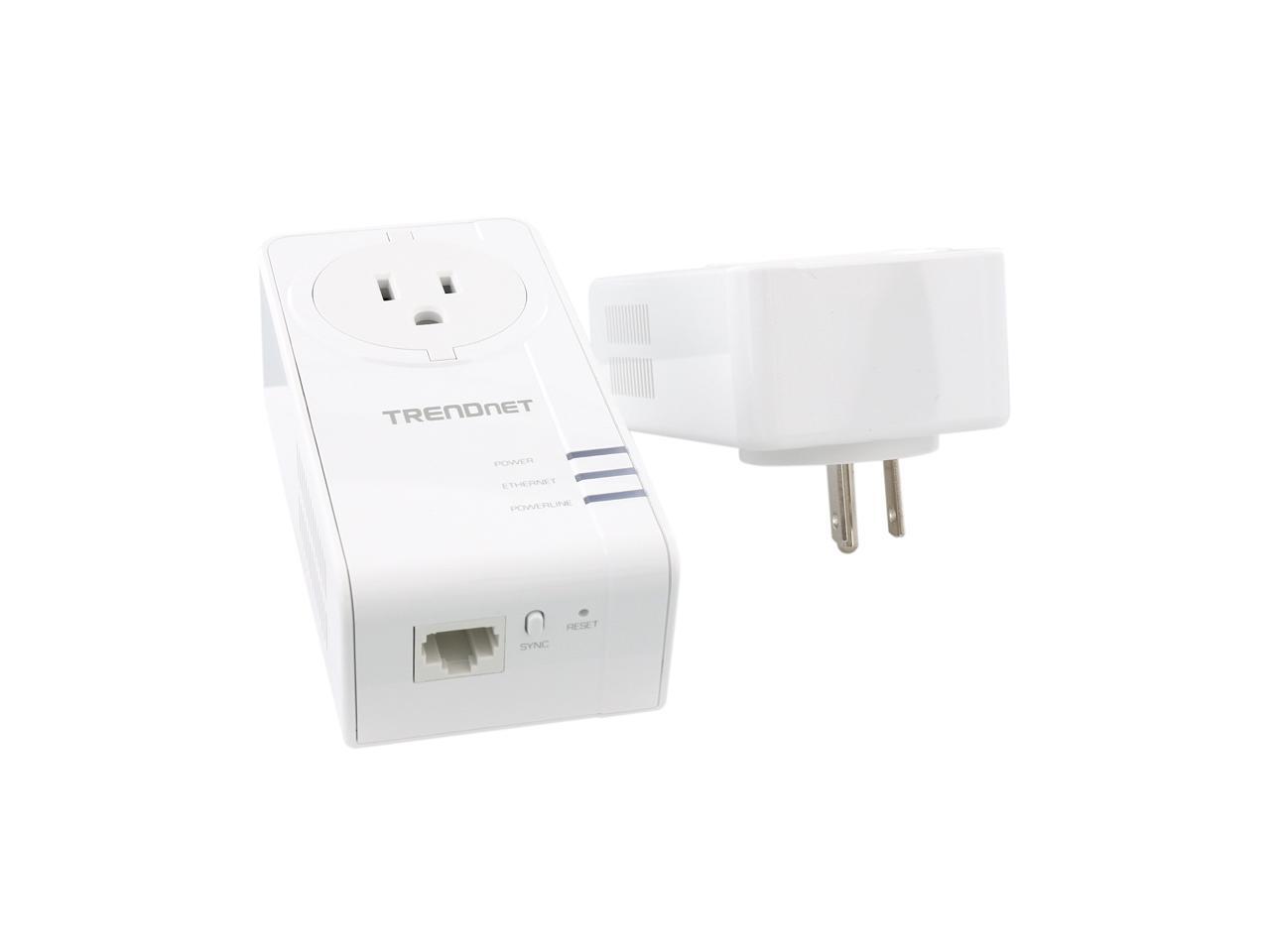

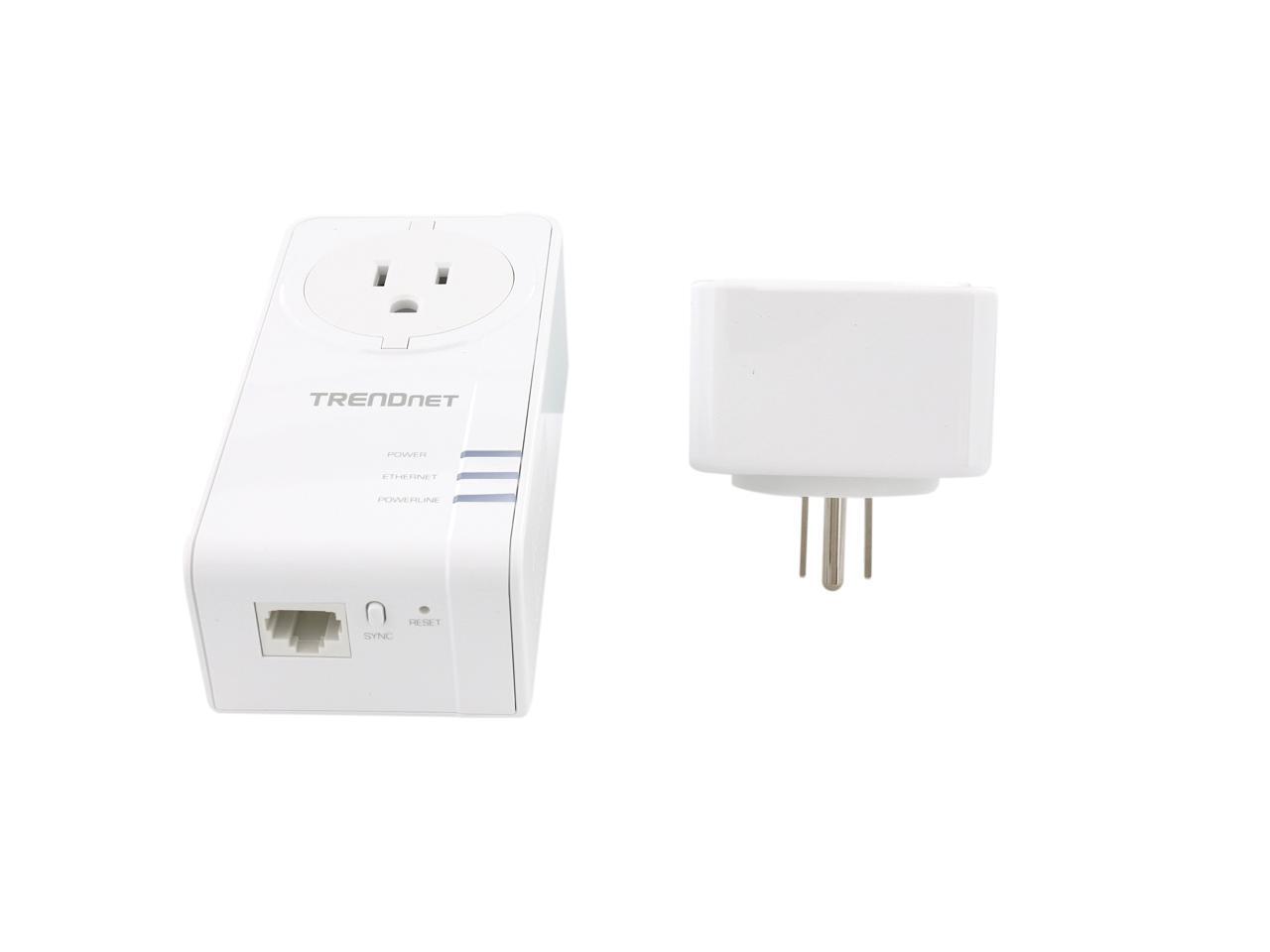

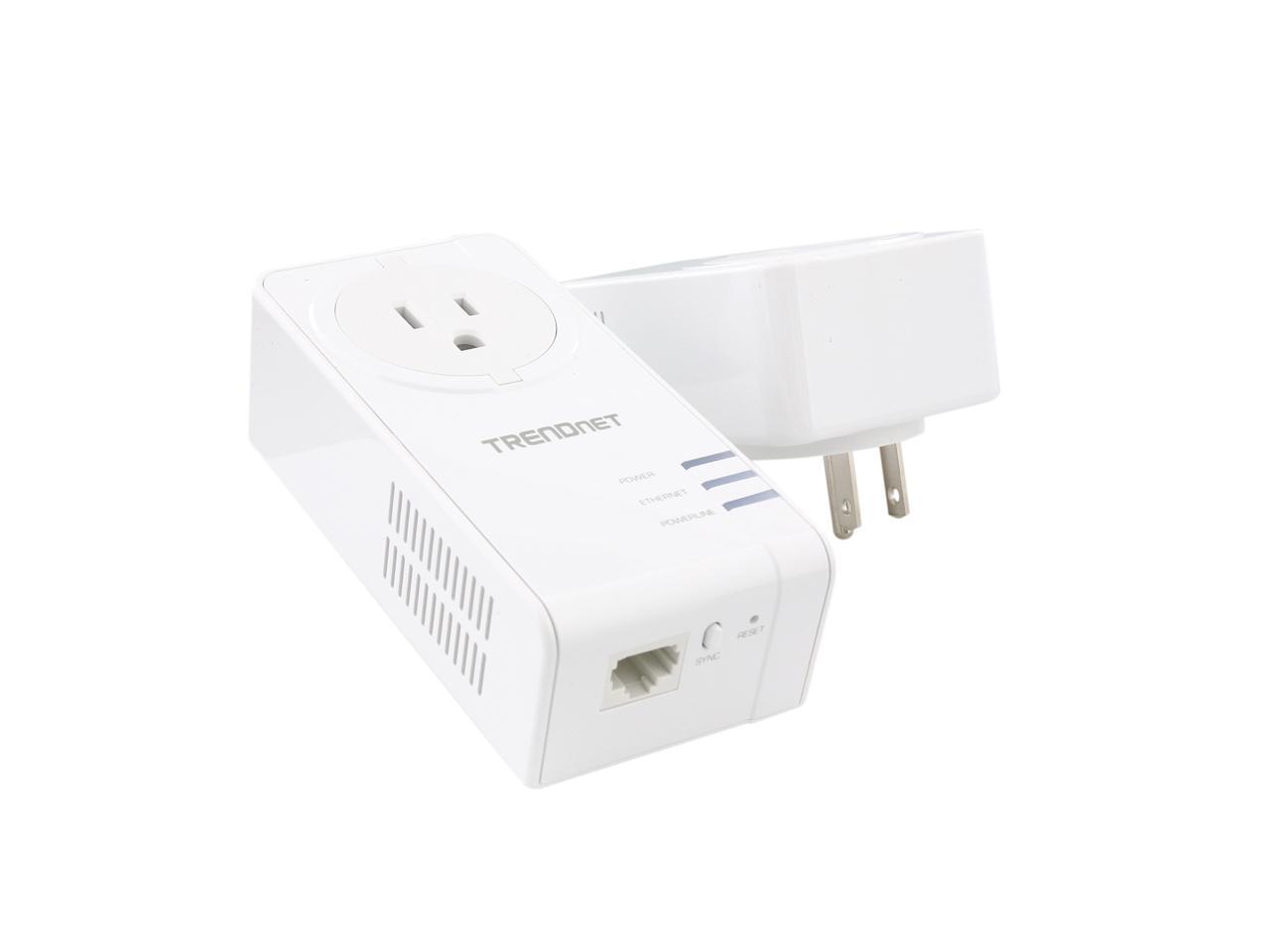

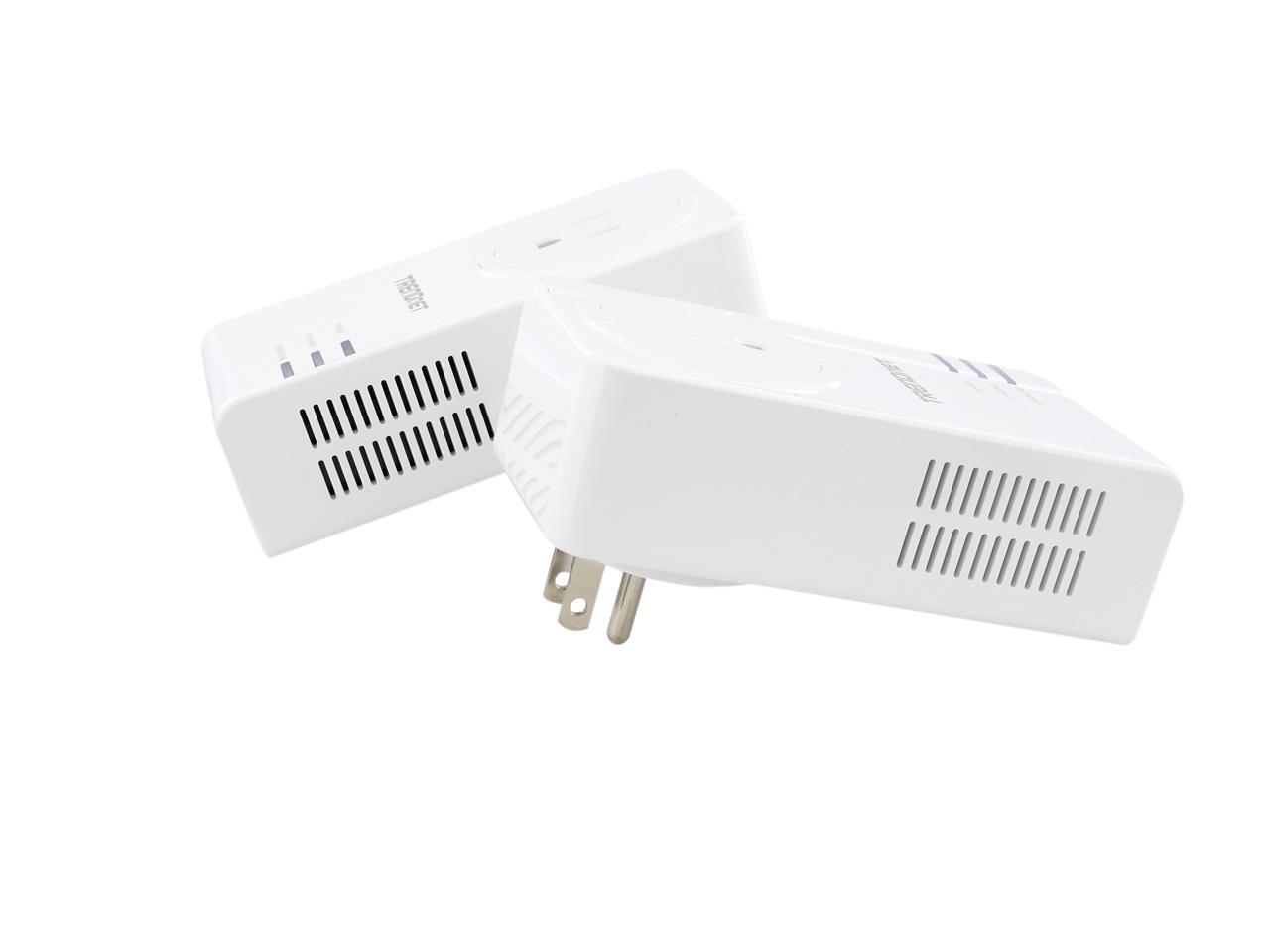

Main image of TRENDnet AV2 1200 powerline adapter kit with built-in outlet

100%

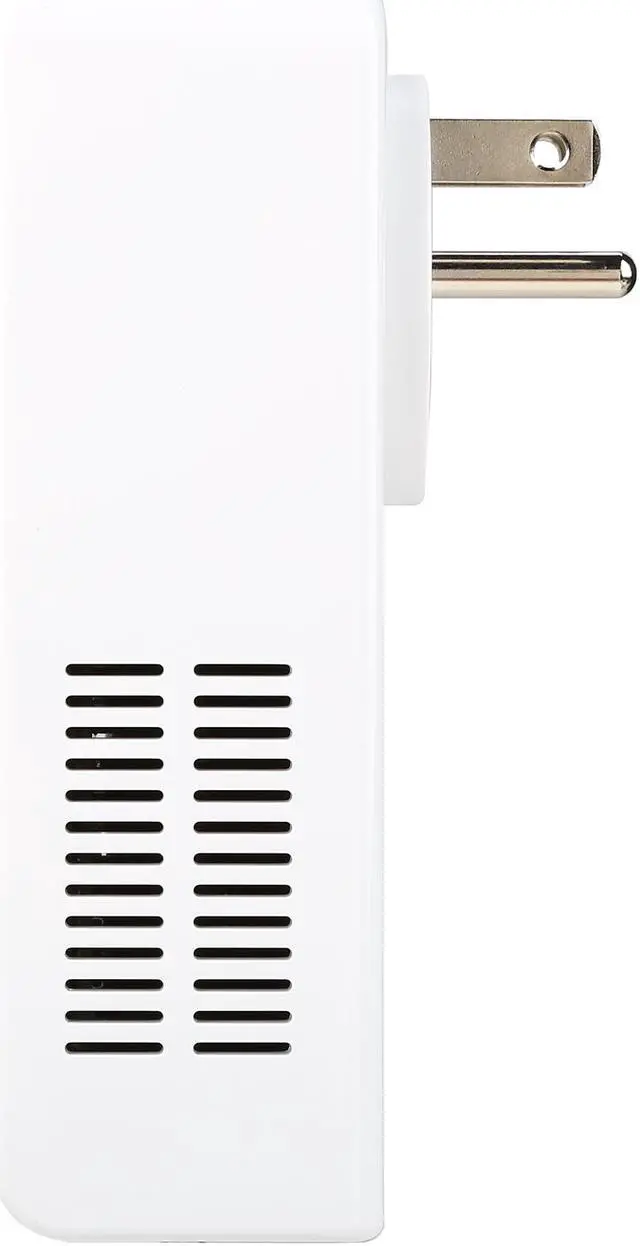

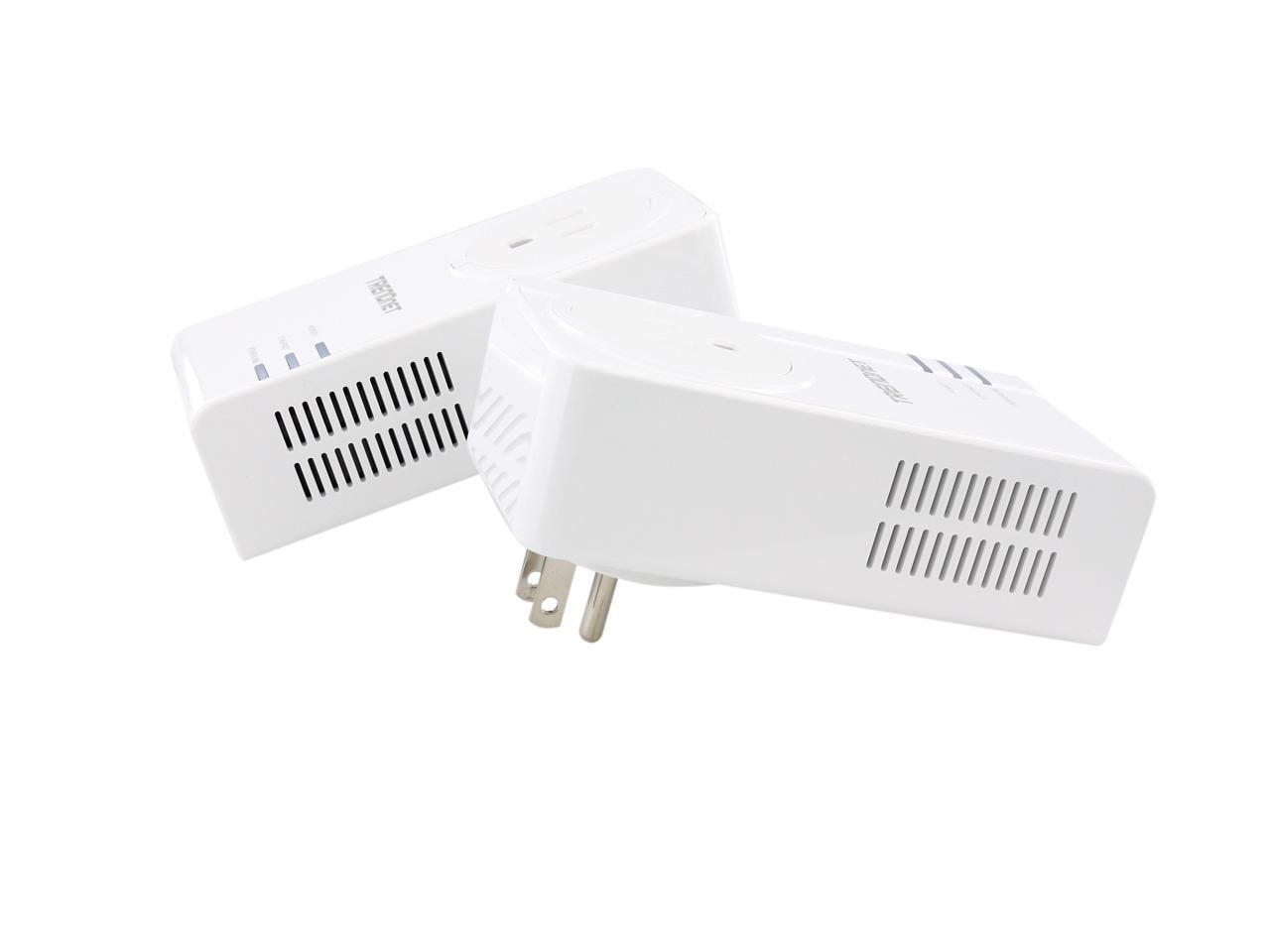

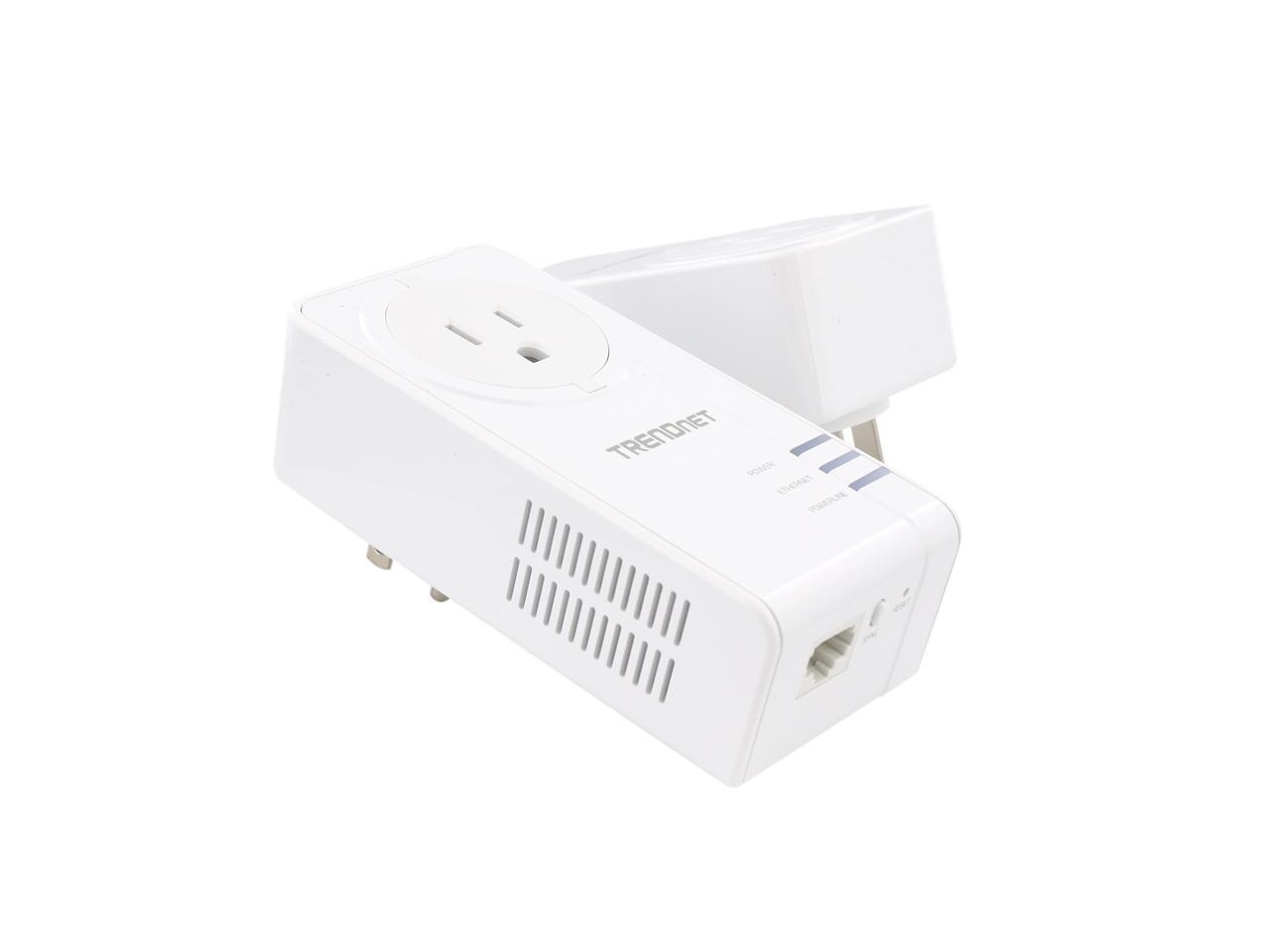

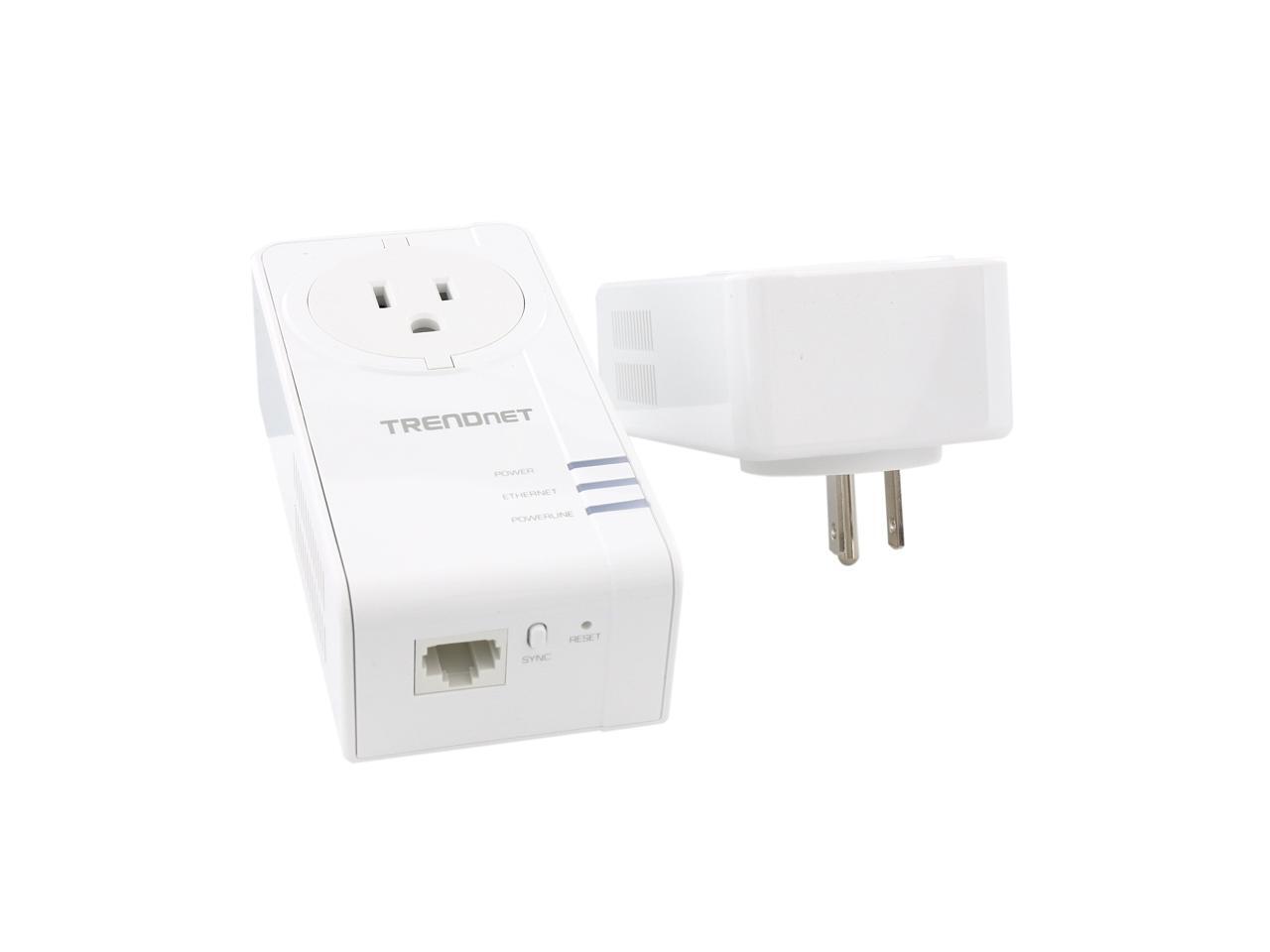

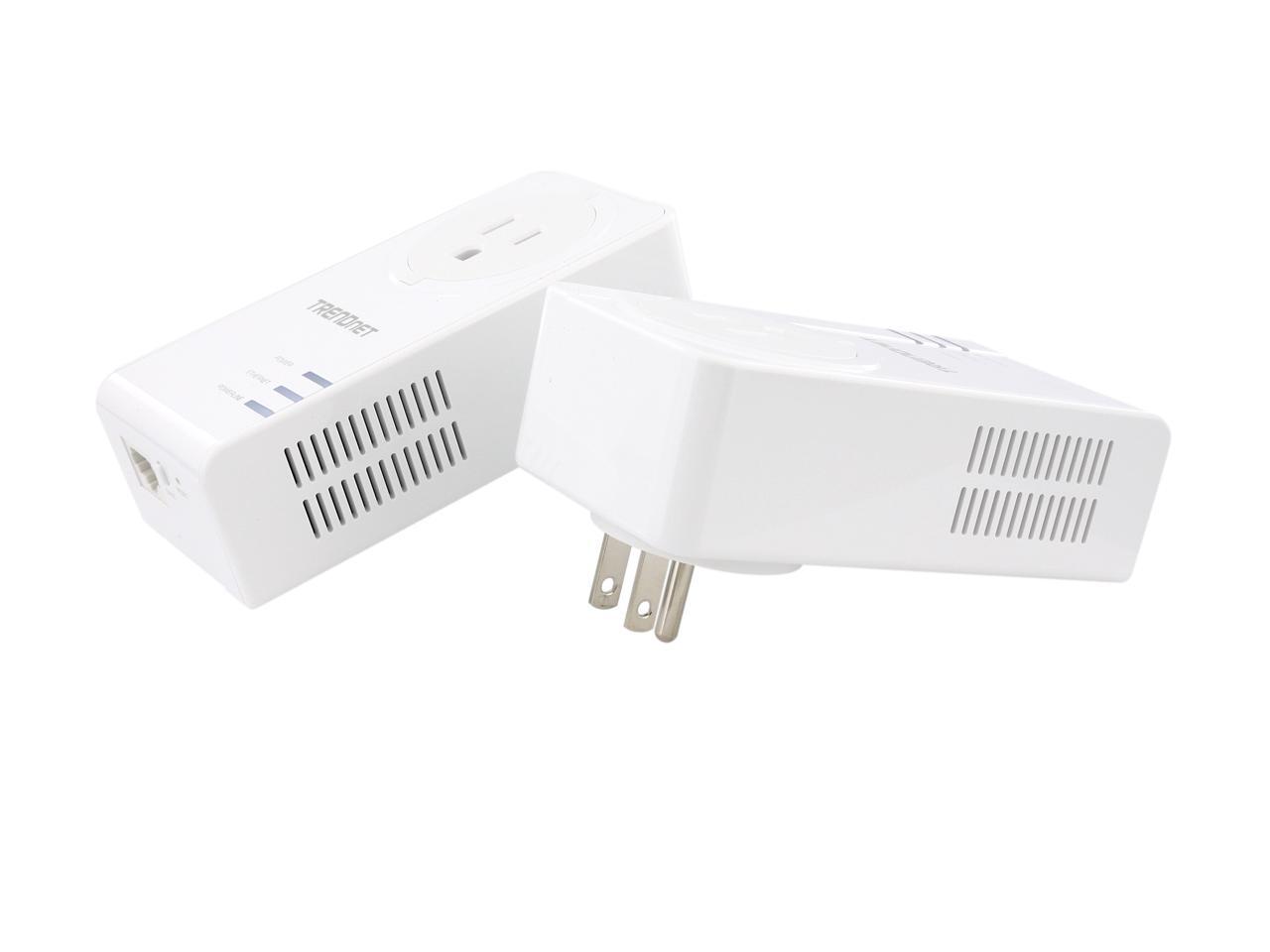

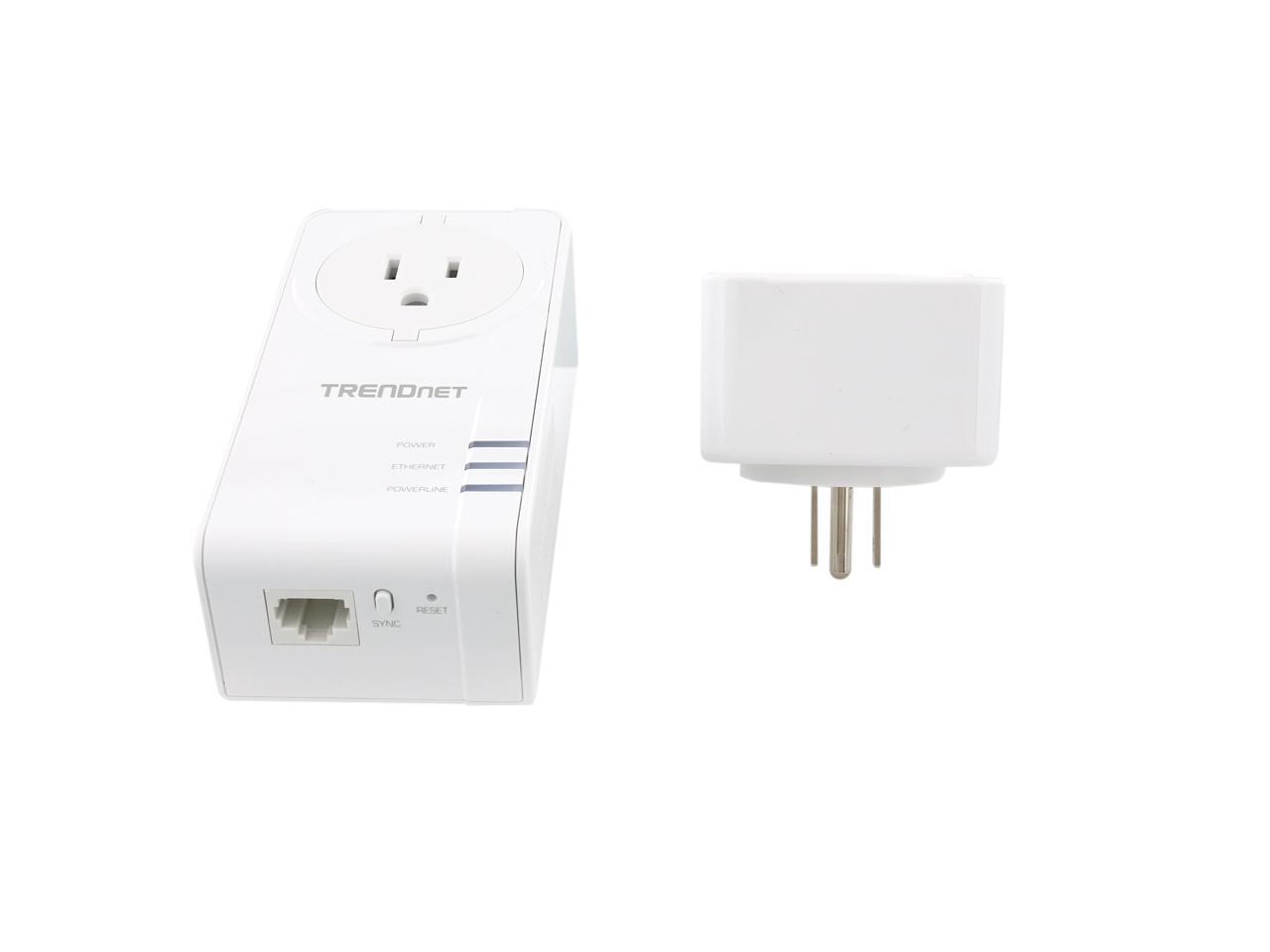

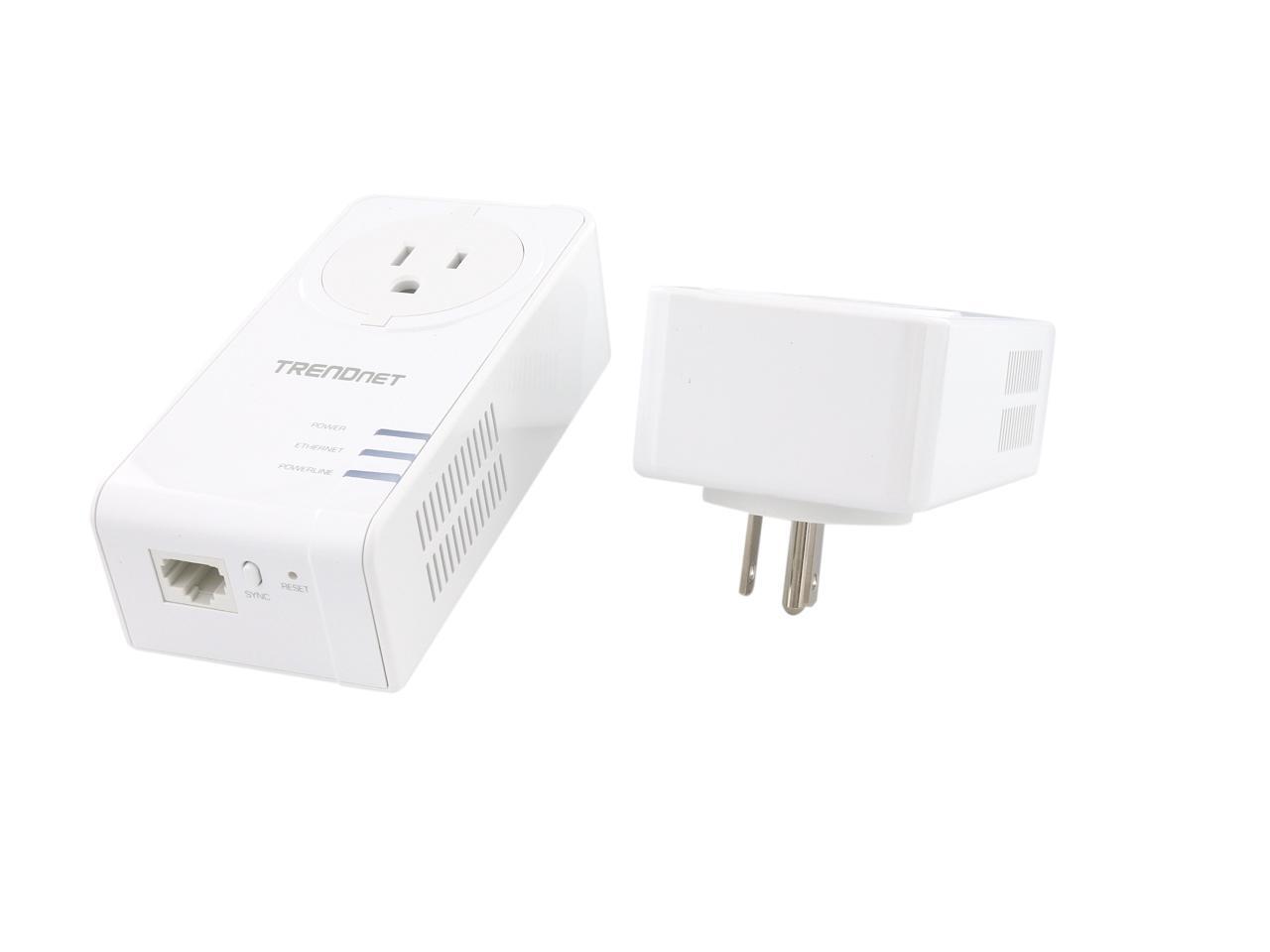

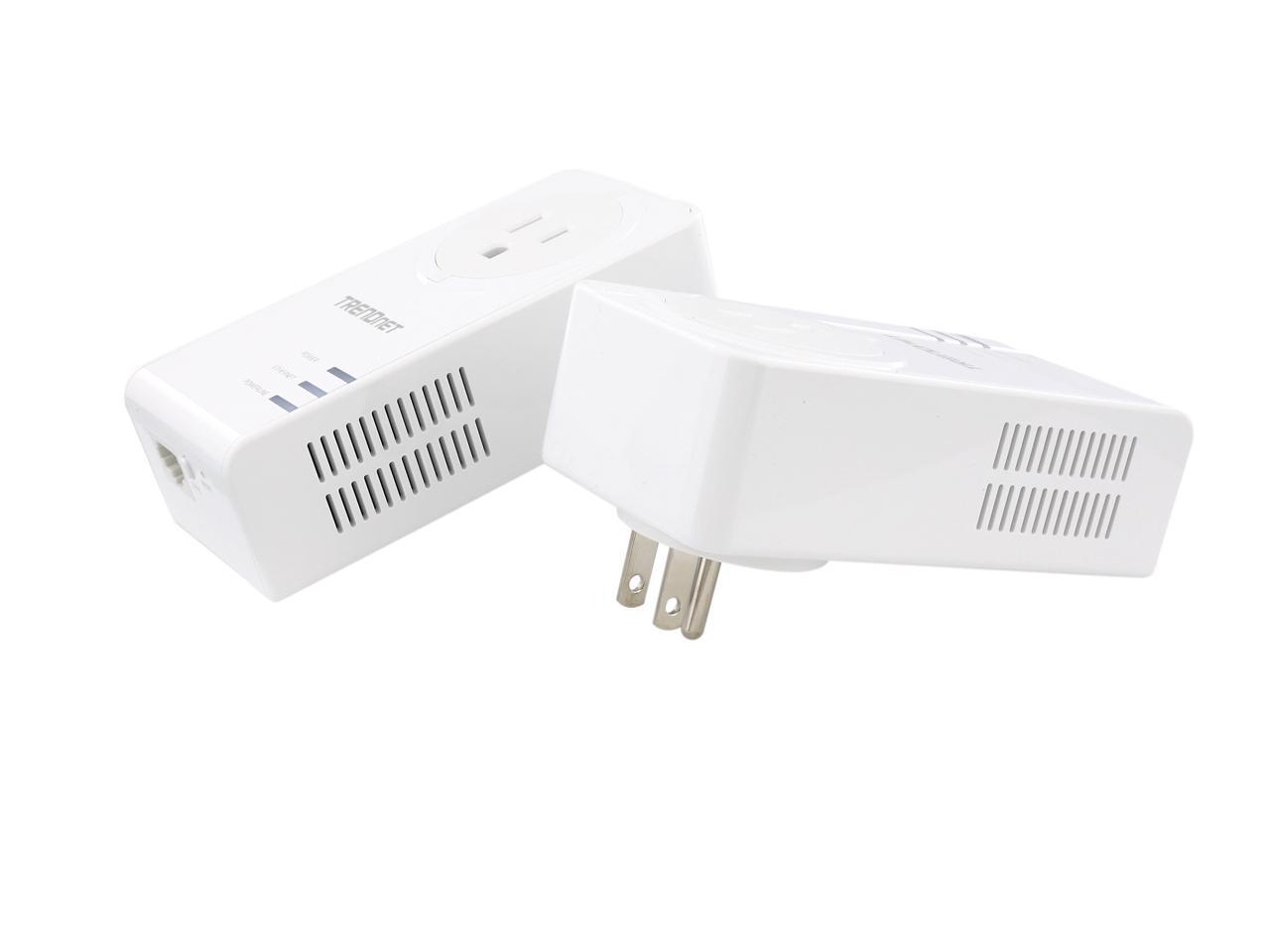

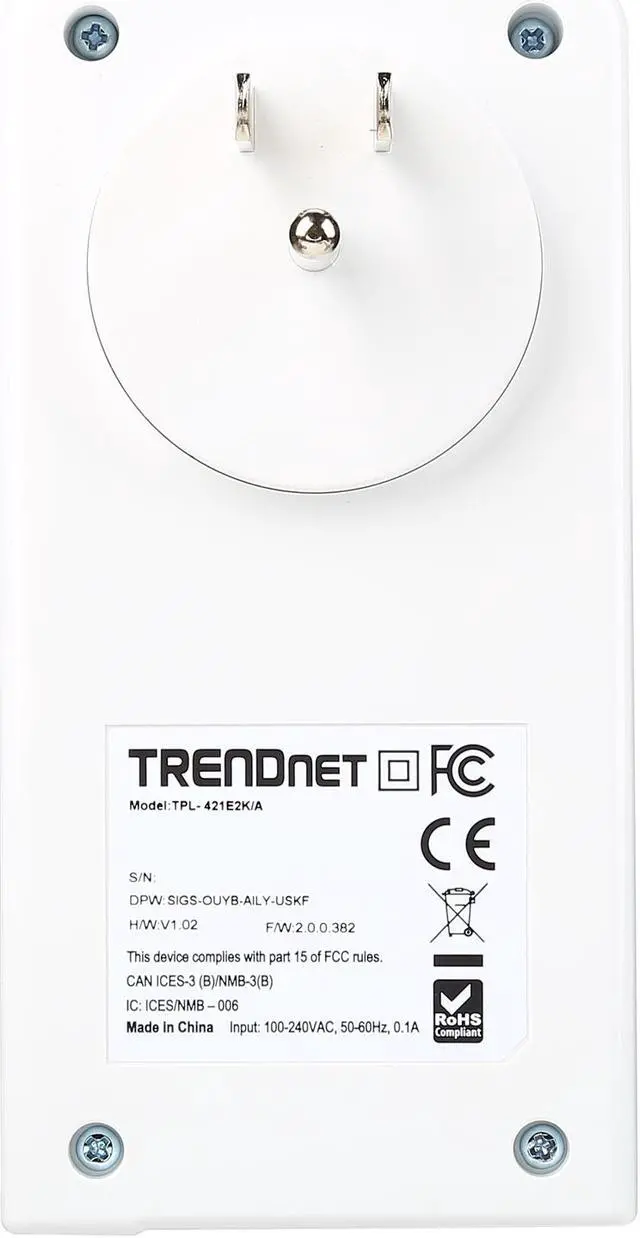

Alt view image 2 of 7 - TRENDnet AV2 1200 powerline adapter kit with built-in outlet

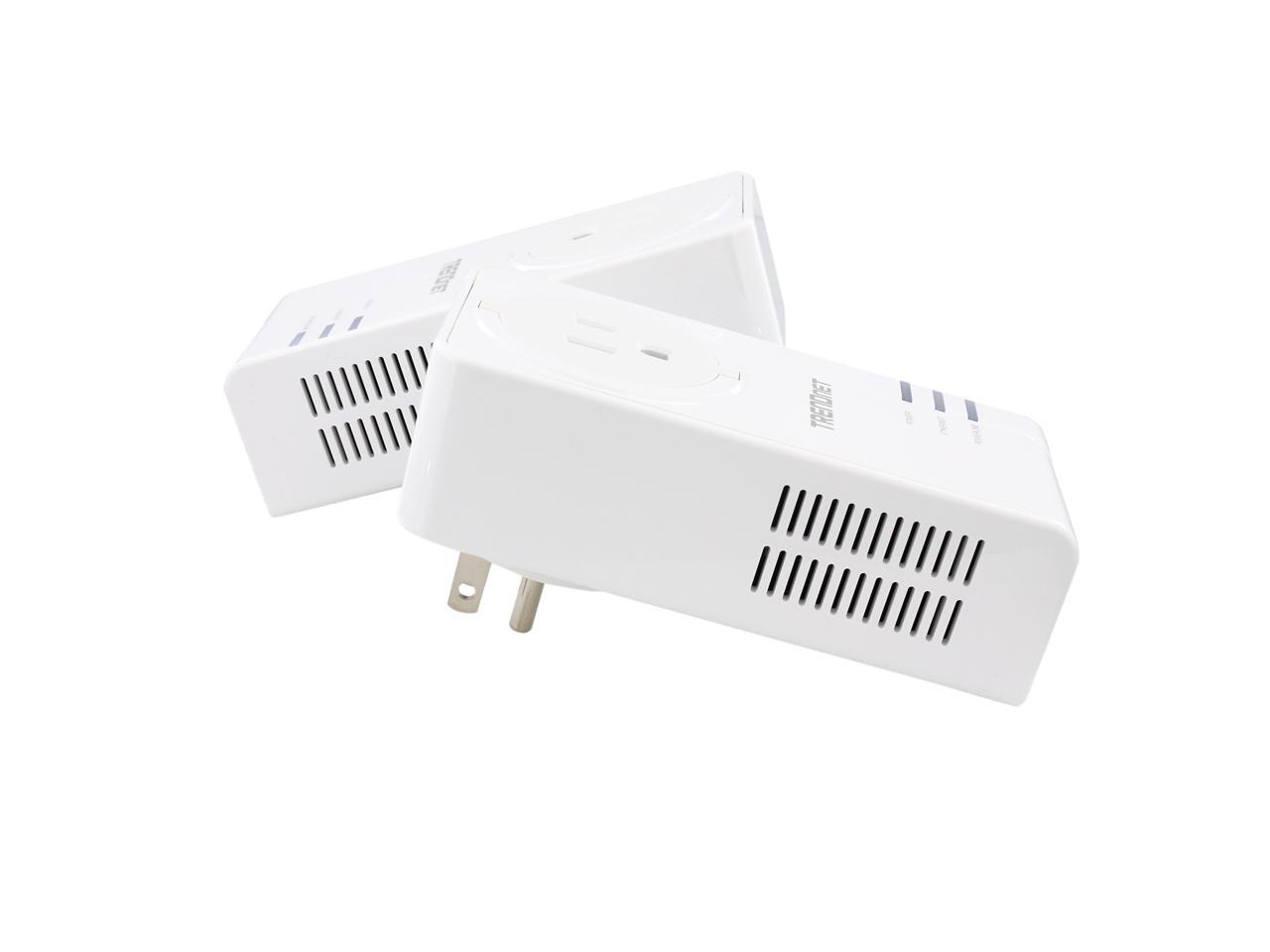

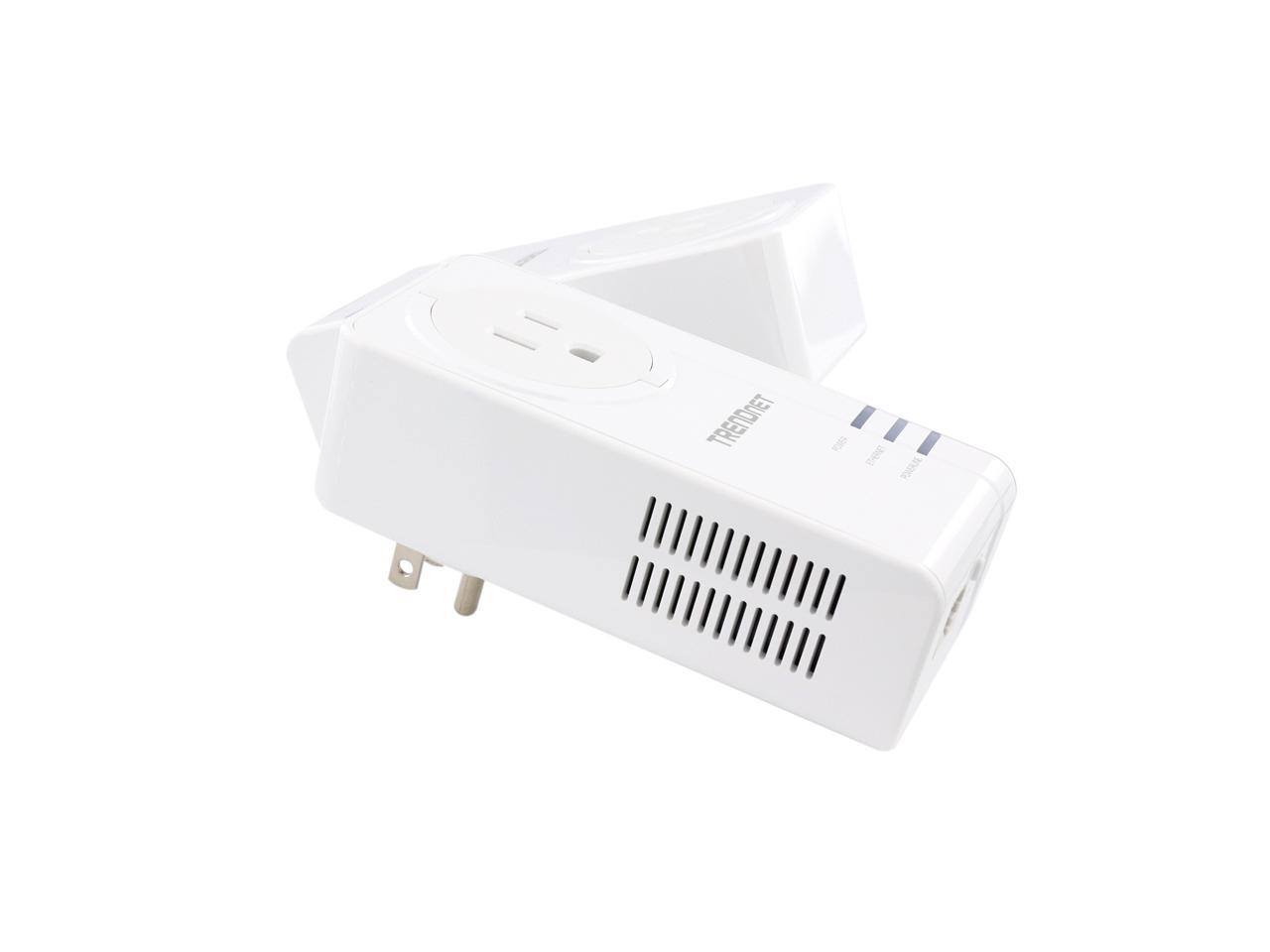

Alt view image 3 of 7 - TRENDnet AV2 1200 powerline adapter kit with built-in outlet

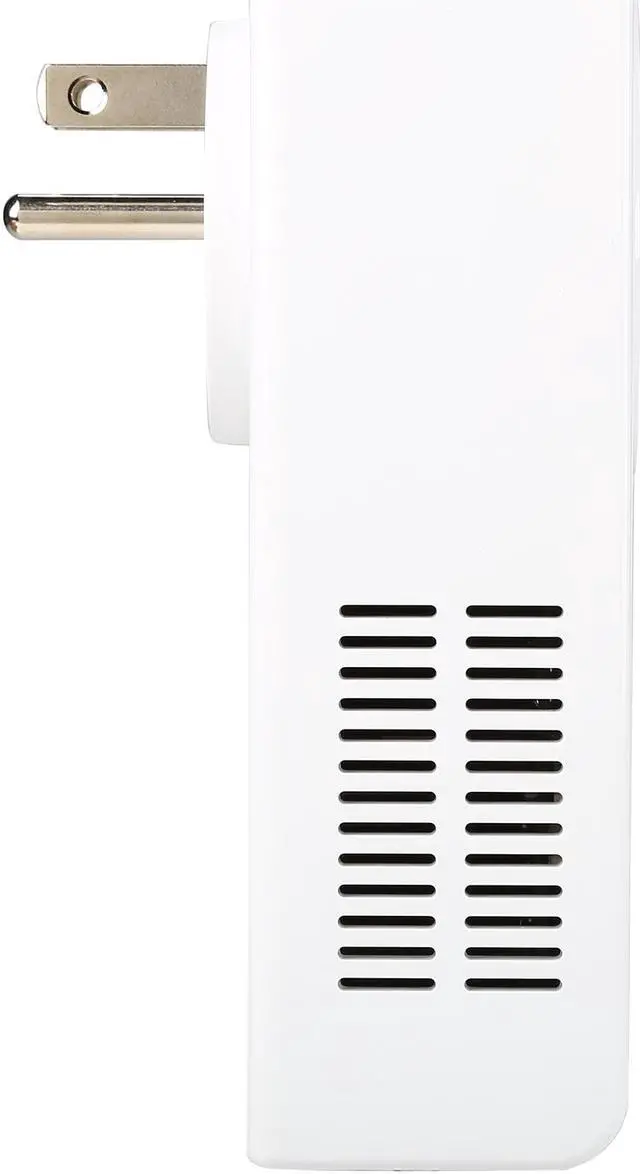

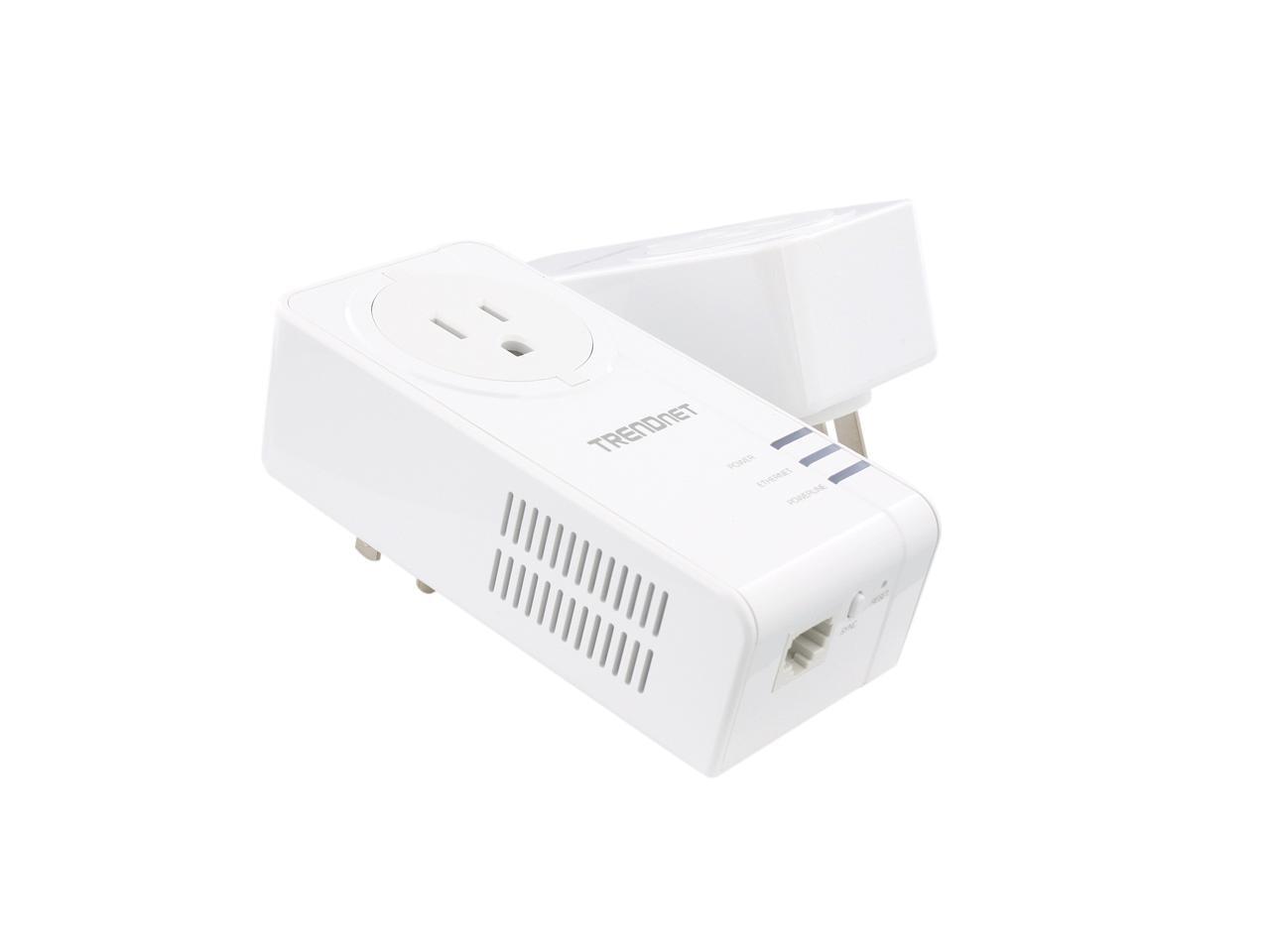

Alt view image 4 of 7 - TRENDnet AV2 1200 powerline adapter kit with built-in outlet

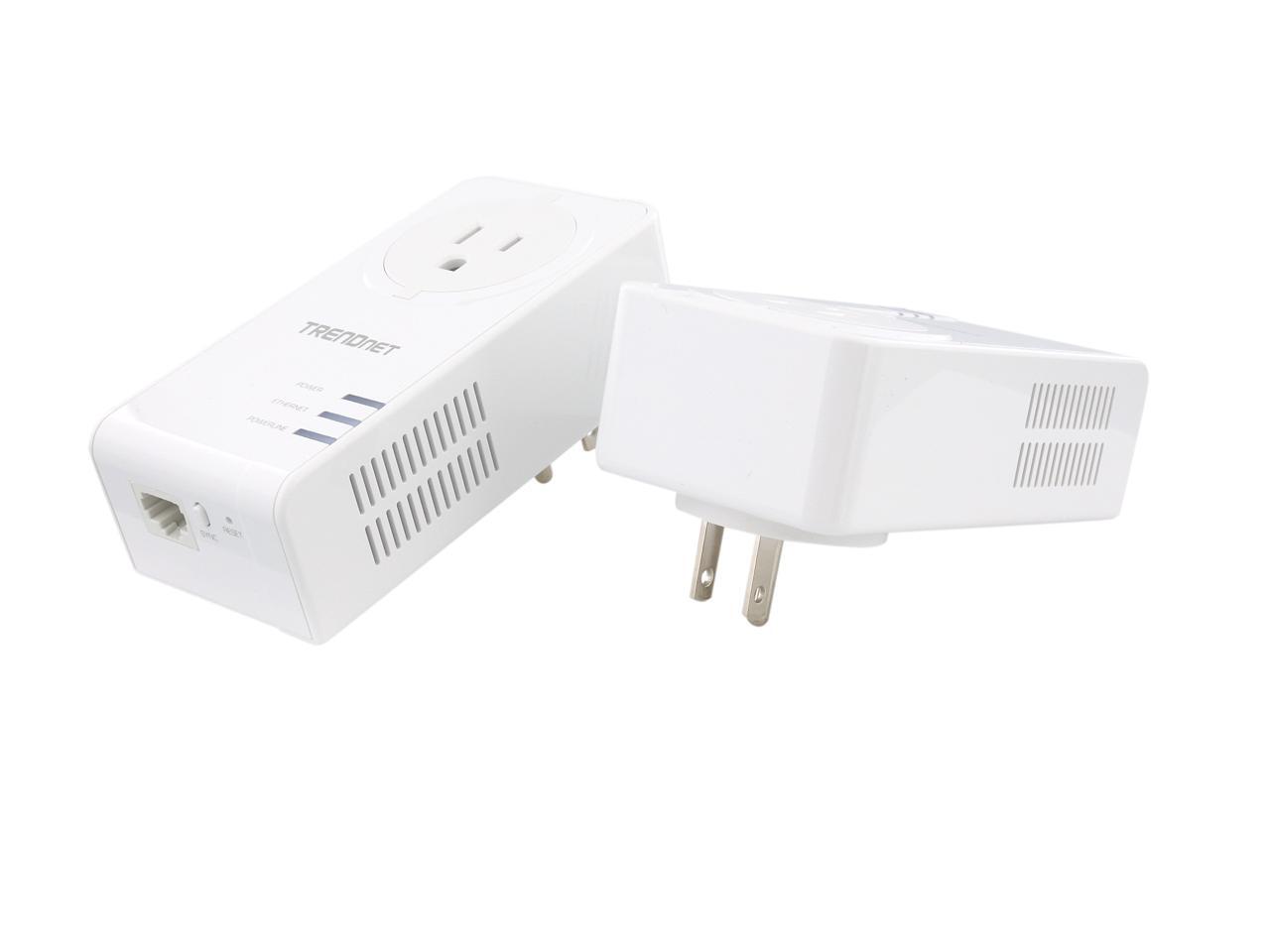

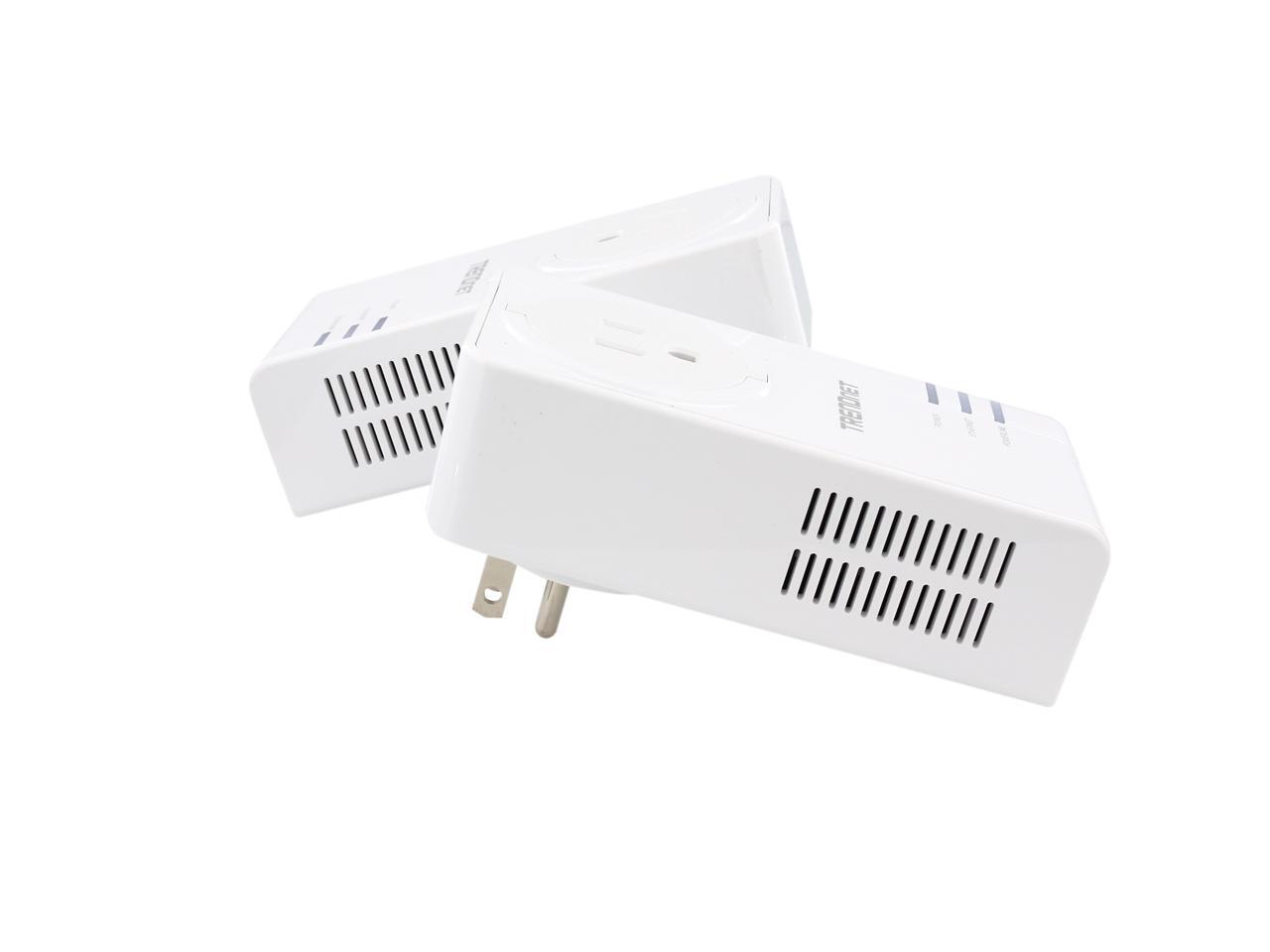

Alt view image 5 of 7 - TRENDnet AV2 1200 powerline adapter kit with built-in outlet

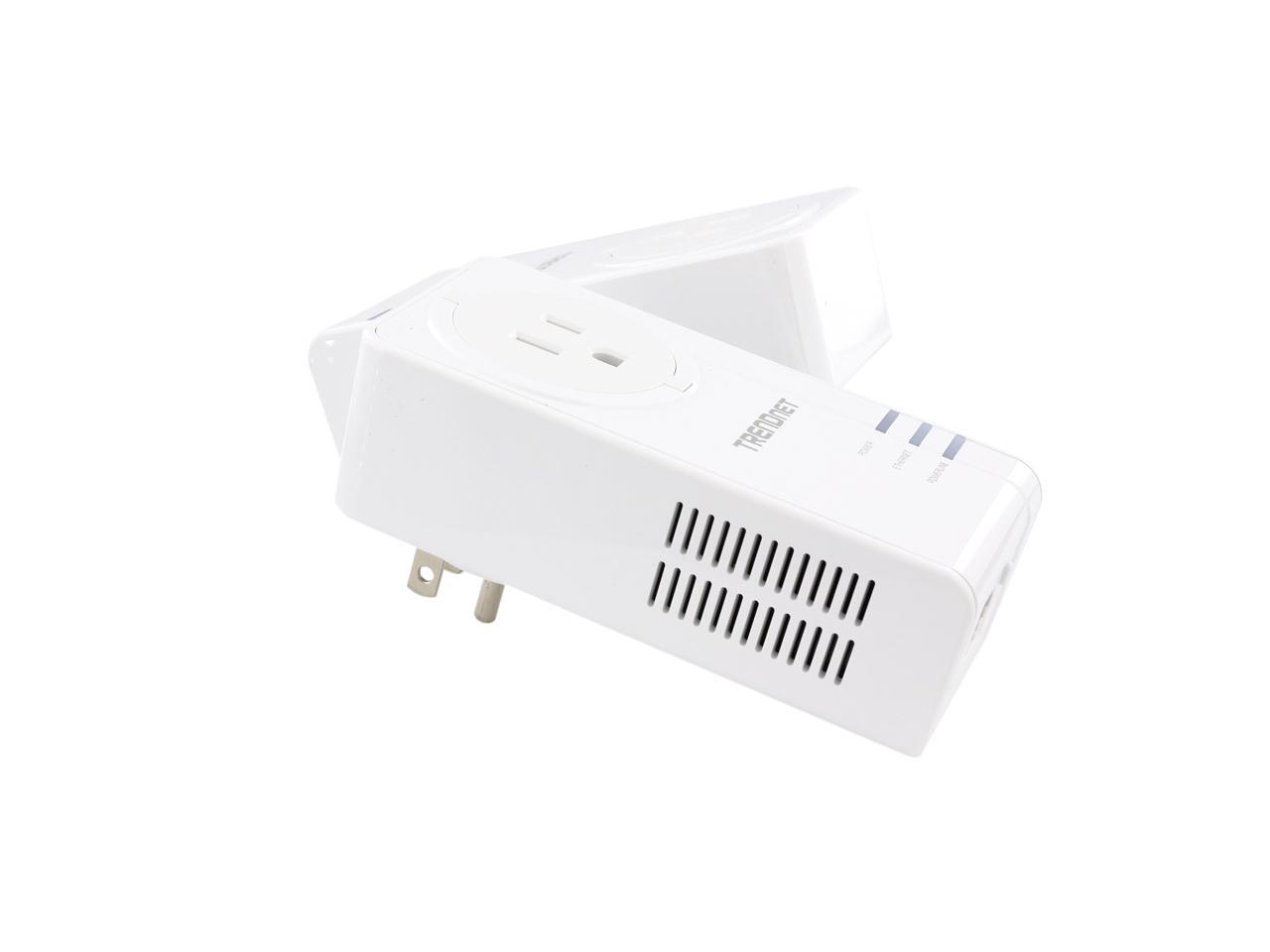

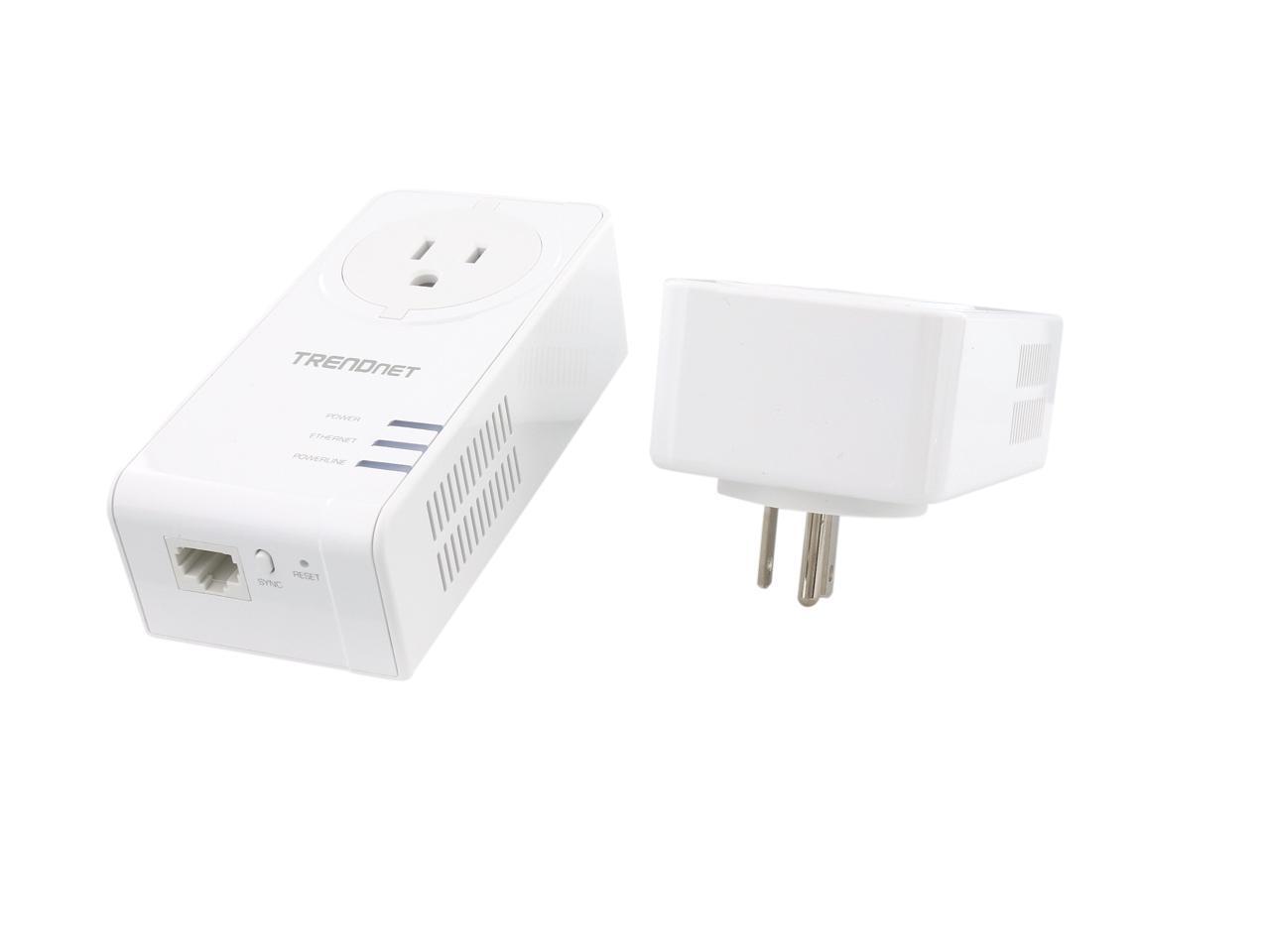

Alt view image 6 of 7 - TRENDnet AV2 1200 powerline adapter kit with built-in outlet

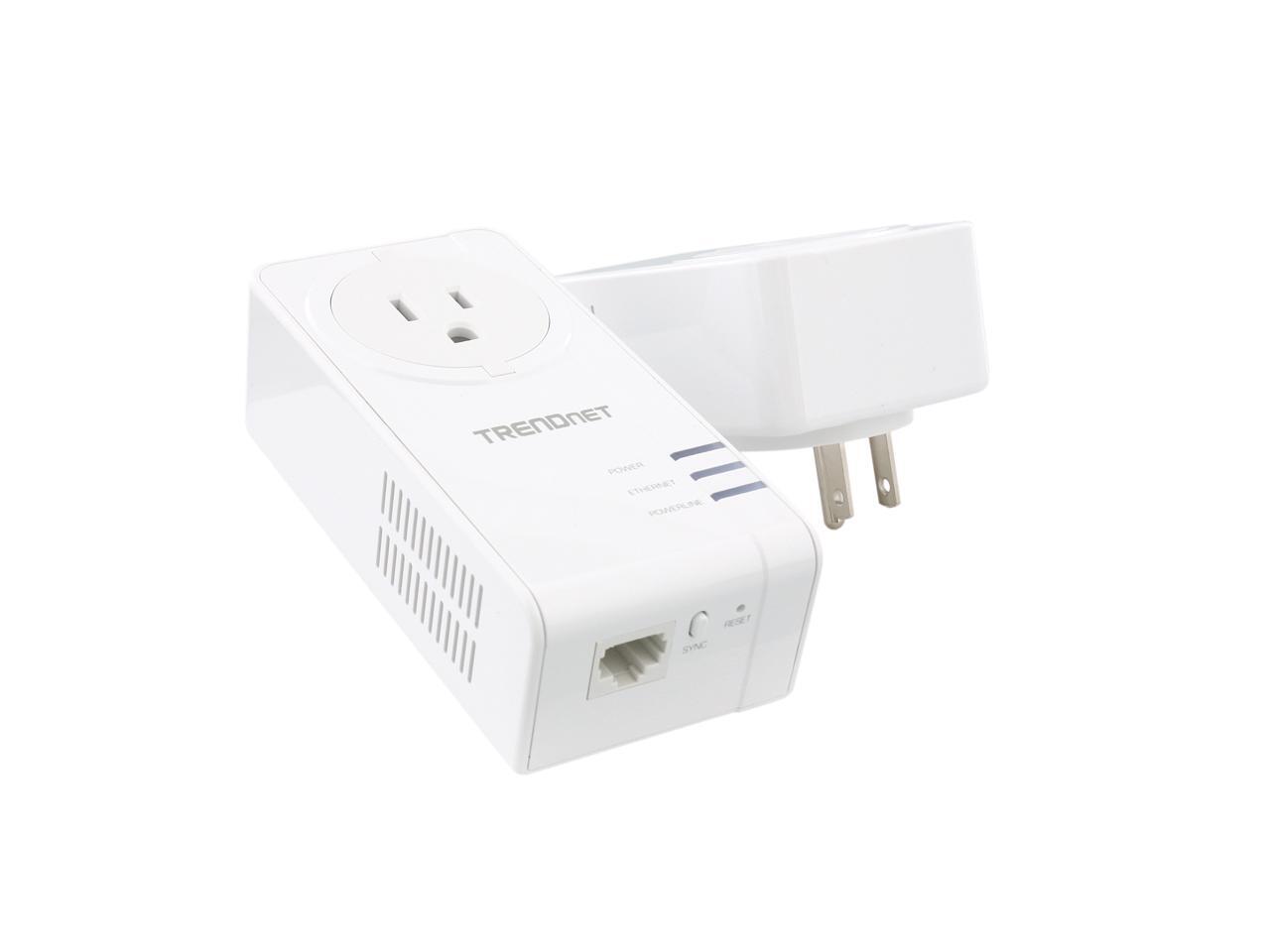

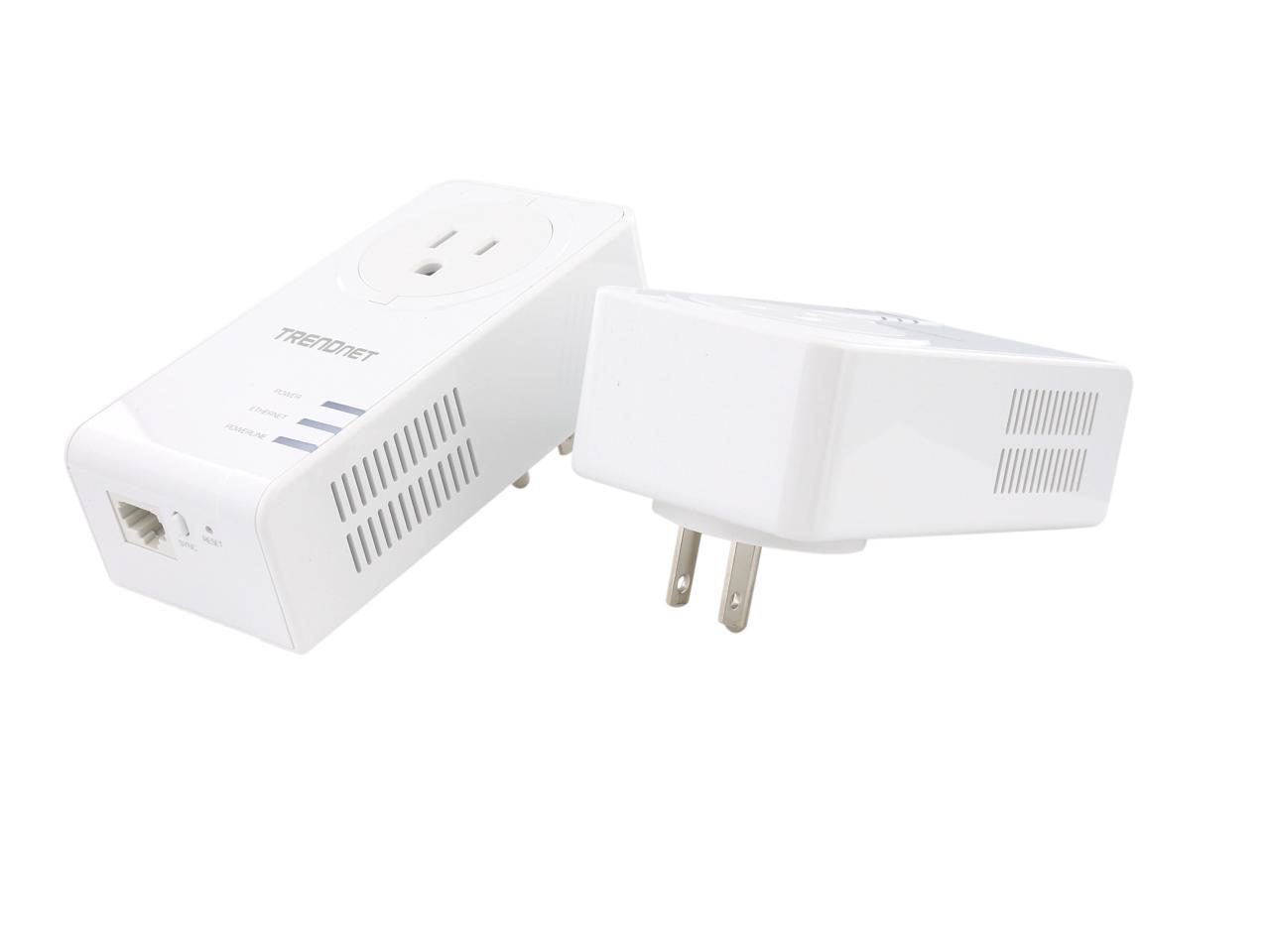

Alt view image 7 of 7 - TRENDnet AV2 1200 powerline adapter kit with built-in outlet

360^°

Shop All TRENDnet Products

TRENDnet AV2 1200 powerline adapter kit with built-in outlet

(5) Write a Review

Includes two TPL-421E adapters
Extreme Powerline 1200 networking over existing electrical lines
Never lose an electrical outlet with the built-in socket

Overview

Specs

Reviews (5)

Any questions? Our AI beta will help you find out quickly.

Try me now

TRENDnet Powerline 1200 AV2 Adapter Kit with Built-in Outlet

TPL-421E2K (Version v1.0R)

Includes two TPL-421E adapters
Extreme Powerline 1200 networking over existing electrical lines
Never lose an electrical outlet with the built-in socket
Enhanced performance and range from MIMO with Beamforming technology
Simply plug in the adapters—TRENDnet adapters auto-connect out of the box
Pre-encrypted for your convenience
Gigabit port maintains high performance wired networking
Connects over electrical lines for homes up to 465 sq. m (5,000 sq. ft.)

OVERVIEW

TRENDnet’s Powerline 1200 AV2 Adapter Kit with Built-in Outlet, model TPL-421E2K, comes with two Powerline adapters to create an extreme performance Powerline 1200 network using an existing electrical system. No CD installation required—encrypted TRENDnet adapters auto-connect out of the box. Plug in the first adapter and network it to your existing router. Plug in other adapters on the same electrical system and they auto-connect to the first adapter for immediate internet access. Never lose an electrical outlet with the built-in socket.

Plug In Install
Simply plug in TRENDnet adapters! The encrypted Powerline signal auto-connects over an existing electrical system.

For Busy Homes
Powerline 1200 technology and a Gigabit port deliver incredibly fast and stable networking to seamlessly connect devices and stream 4K video.

Built-In Outlet
With so many devices needing power, you don’t lose an outlet when plugged in. Plug the adapter into an outlet, then plug a power strip into the adapter.

Adapters
Includes two TPL-421E adapters

Powerline 1200
Extreme Powerline networking over existing electrical lines use all three electrical wires: the live, neutral, and ground wires to achieve ground breaking networking throughput speeds**

Whole Home Coverage
Connects over electrical lines for homes up to 465 sq. m (5,000 sq. ft.) or over an electrical power line for a linear distance of 300 m (980 ft.)

Built-In Outlet
Never lose an electrical outlet with the built-in socket—Plug the adapter into an outlet, then plug a power strip into the TPL-421E to power other devices

MIMO with Beamforming Technology
Enhanced performance and range from MIMO with Beamforming technology

Gigabit Port
Gigabit port extend high performance wired connections

Noise Filter
Advanced electrical noise filter boosts performance

Network Stability
Ultra-stable Powerline networking is preferred by internet service providers

Multiple Adapters
Use up to 8 adapters to network an entire home

No CD Installation
Simply plug in the adapters—TRENDnet adapters auto-connect out of the box

Cross Compatible
Backward compatible with HomePlug AV compliant Powerline 600, 500, and 200 adapters

Pre-Encrypted
For your convenience the adapter arrives pre-encrypted

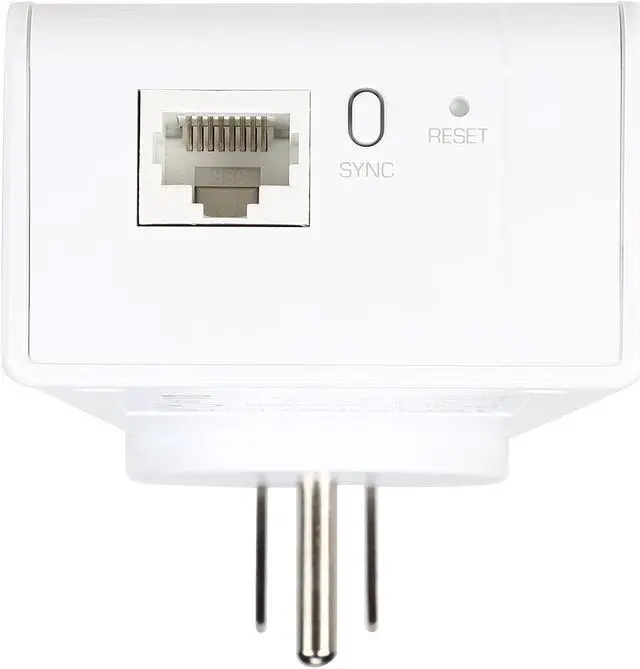

Sync Button
Press the Sync button to change existing encryption keys

Energy Savings
Power Save mode reduces electrical consumption by up to 80%

GALLERY

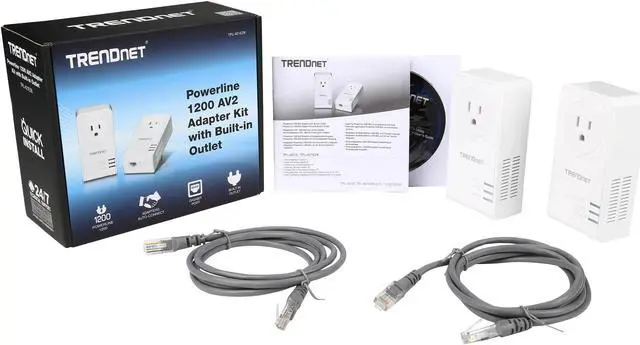

What's in the Box

2 x TPL-421E
Multi-Language Quick Installation Guide
CD-ROM (Utility & User’s Guide)
2 x Network cable (1.5 m/5 ft.)

* Maximum of 8 adapters (nodes) recommended for streaming video across your network.
** 1.2 Gbps is the maximum theoretical Powerline data rate when connected to another Powerline 1200 device. Data throughput may vary by circuit wire conditions. If an electrical system does not have a grounded connection, the theoretical networking speed is reduced to 600 Mbps.
*** Powerline communication works on a single electrical system. (Usually controlled by a single distribution panel). Power strip, GFCI outlets, and AFCI circuit breakers may degrade Powerline network signals.

ADAPTER KIT /W PASS THROUGH

Model
Brand	TRENDnet
Model	TPL-421E2K

Details
Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 1901
Interface	Gigabit Ethernet port Sync (changes encryption key)/reset button Status LEDs Power plug A: North America Type B (NEMA 5–15) EU: Euro Type C (CEE 7/16) UK : United Kingdom Type G (BS 1363)
Powerline Speeds	Up to 1200 Mbps
Connection Type	RJ45
Frequency Band	2 - 68 MHz
Power Supply	Input: 100 - 240 V AC, 50 /60 Hz Consumption: Active mode: 3.6 Watts (max.); Standby mode: 0.5 Watts (max.)
System Requirement	Windows 8.1, 8, 7, Vista, XP

Environmental
Temperature	0°C ~ 40°C
Humidity	Max. 90 % non-condensing

Features
Features	Includes two TPL-421E adapters Extreme Powerline 1200 networking over existing electrical lines Never lose an electrical outlet with the built-in socket Enhanced performance and range from MIMO with Beamforming technology Simply plug in the adapters—TRENDnet adapters auto-connect out of the box Pre-encrypted for your convenience Gigabit port maintains high performance wired networking Connects over electrical lines for homes up to 465 sq. m (5,000 sq. ft.)

Dimensions & Weight
Dimensions	A: 61 x 123 x 65 mm (2.4 x 4.8 x 2.6 in.) EU: 61 x 123 x 75 mm (2.4 x 4.8 x 3.0 in.) UK: 61 x 123 x 68 mm (2.4 x 4.8 x 2.7 in.)
Weight	A: 168 g (5.9 oz.) EU: 162 g (5.7 oz.) UK: 180 g (6.3 oz.)

Packaging
Package Contents	2 x TPL-421E Multi-Language Quick Installation Guide CD-ROM (Utility & User’s Guide) 2 x Network cable (1.5 m/5 ft.)
