$2,936^.96

Free 30-day Returns

Limit 99999 per customer.

Sold by NothingButSavings

Top Rated

4.5 (9,006 seller ratings)

Shipped by NothingButSavings

Price alert

Add to Wish List

Best Sellers

Velztorm

Hot Seller

4.4 (2,187 total ratings)

$2,980^.47

antonline

Hot Seller

4.5 (17,983 total ratings)

$3,084^.60
+ FREE SHIPPING

Technology Galaxy

Top Rated

4.1 (2,357 total ratings)

$3,135^.23
+ FREE SHIPPING

Meet Your Seller

NothingButSavings

See Seller Store

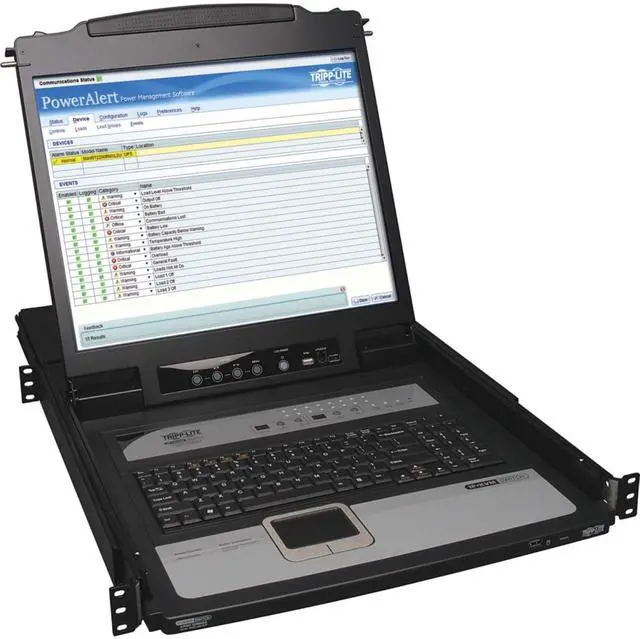

Main image of Tripp Lite 16-Port 1U Rack-Mount Console IP KVM Switch with 19 in. LCD (B020-U16-19-IP)

Alt view image 2 of 9 - Tripp Lite 16-Port 1U Rack-Mount Console IP KVM Switch with 19 in. LCD (B020-U16-19-IP)

Alt view image 3 of 9 - Tripp Lite 16-Port 1U Rack-Mount Console IP KVM Switch with 19 in. LCD (B020-U16-19-IP)

Alt view image 4 of 9 - Tripp Lite 16-Port 1U Rack-Mount Console IP KVM Switch with 19 in. LCD (B020-U16-19-IP)

Alt view image 5 of 9 - Tripp Lite 16-Port 1U Rack-Mount Console IP KVM Switch with 19 in. LCD (B020-U16-19-IP)

Alt view image 6 of 9 - Tripp Lite 16-Port 1U Rack-Mount Console IP KVM Switch with 19 in. LCD (B020-U16-19-IP)

Alt view image 7 of 9 - Tripp Lite 16-Port 1U Rack-Mount Console IP KVM Switch with 19 in. LCD (B020-U16-19-IP)

Alt view image 8 of 9 - Tripp Lite 16-Port 1U Rack-Mount Console IP KVM Switch with 19 in. LCD (B020-U16-19-IP)

Alt view image 9 of 9 - Tripp Lite 16-Port 1U Rack-Mount Console IP KVM Switch with 19 in. LCD (B020-U16-19-IP)

Shop All Tripp Lite Products | Visit NothingButSavings Store

Tripp Lite 16-Port 1U Rack-Mount Console IP KVM Switch with 19 in. LCD (B020-U16-19-IP)

(8) Write a Review

Computer Connections: 16-Port Remote

8-Port Local + Cables
16-Port Local + Cables
16-Port Remote

Controls up to 16 computers remotely via LAN, WAN or Internet
Installs in just 1U to save rack space
Works with all major operating systems and browsers
Protects data with 3 security levels (Admin, User and Select)
Enables up to 64 secure user accounts

Overview

Specs

Reviews (8)

Any questions? Our AI beta will help you find out quickly.

Try me now

CONSOLE

Model
Brand	TRIPP LITE
Model	B020-U16-19-IP

Details
Type	D-Sub, USB, PS/2
Computer Connections	16-Port Remote
Monitor Connections	1 Port
PC Selection	Push Buttons/Hot Keys/OSD
AutoScan Interval	1 - 255 seconds

Environmental
Temperature	Storage Temperature Range: -20 to 60 C (-4 to 140 F) Operating Temperature: 0 to 50 C (32 to 122 F)
Humidity	0 to 80% RH, Non-Condensing

Features
Features	Complete Control from Anywhere Built-in IP access lets you control up to 16 computers directly from the next room, next door, or the next continent Remotely access computers via LAN, WAN or the Internet via Windows or Java Panel Array Mode allows remote monitoring of multiple ports at the same time Windows- and Java-based applications provide access without a browser Advanced on-screen display supports video resolutions up to 1280 x 1024 (@ 75 Hz) at the built-in 19-inch monitor and up to 1600 x 1200 (@ 60 Hz) at the remote console Built-In Security to Keep Your Data Safe 3 levels of security (Admin, User and Select) allow you to delegate proper access Create up to 64 separate user accounts Features advanced encryption technologies, such as 512-bit RSA, 256-bit AES, 56-bit DES, 168-bit 3DES, 128-bit RC4 and 128-bit SSL Supports RADIUS and LDAP/S remote authentication LEDs indicate when a computer is connected, powered on and selected Included firmware upgrade cable keeps the software up to date Versatile to Meet Your Specific Needs Compatible with all major operating systems User-friendly web management interface can be displayed in English, Spanish, French, German or Italian Included P778-Series cable kits let you use either USB or PS/2 keyboards and mice Supports both IPv4 and IPv6, as well as Link Local IPv6 Address and IPv6 Stateless Auto Configuration protocol External USB 1.1 port lets you add a flash drive or card reader to share external data among connected computers Keep Your Colleagues in the Loop Windows-based log server records events and saves them to a searchable database Users who are logged in simultaneously can communicate via message board and manage port access Rack-Mounted Convenience LCD folds down so the unit mounts into just 1U of rack space Mounts in racks from 26 in. to 38 in. deep Rugged steel housing and premium connectors built to last

Dimensions & Weight
Dimensions	1.73" x 18.90" x 27.00"
Weight	31.00 lbs.

Package Contents
Package Contents	B020-U16-19-IP NetDirector 16-Port 1U Rack-Mount Console IP KVM Switch (2) P778-Series USB/PS2 combo KVM cable kits, 6 ft. USB/PS2 combo external console cable kit Grounding wire RJ11 to DB9 firmware upgrade cable C13 to NEMA 5-15P power cord Mounting hardware CD with Owner’s Manuals and device files

Additional Information
First Listed on Newegg	August 03, 2024

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: non-replaceable
This item is covered by NothingButSavings Return Policy
