Extends a 3840 x 2160 (4K x 2K) @ 24/30Hz signal up to 328 ft. (100 m) with a single Cat6a cable
Extends a computer video signal of 1920 x 1200 @ 60 Hz or HD signal of 1080p @ 60 Hz up to 328 ft. (100 m) with Cat5e/6 patch cable (N202-Series)
Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
Controls RS-232 serial devices at baud rates up to 115 Kbps
2-way 39 KHz IR Remote Control functionality lets you control your Blu-ray player with its remote while standing at the remote monitor (and vice versa)
Works with all operating systems and HDMI video sources
+
+
Overview
Specs
Reviews (17)
Any questions? Our AI beta will help you find out quickly.
Try me now
MAIN OVERVIEW FEATURES: Connectivity Technology: WiredMaximum Operating Distance: 328 ftGraphics Modes: 4KMaximum Video Resolution: 3840 x 2160Network (RJ-45): YesHDMI In: YesHDMI Out: YesSerial Port: YesNumber of Network (RJ-45) Ports: 2Number of HDMI Inputs: 1Number of HDMI Outputs: 1Twisted Pair Cable Standard: Category 6Color: BlackTransmitter Height: 2"Transmitter Width: 6.20"T ransmitter Depth: 11.30"R eceiver Height: 2"Receiver Width: 6.20"R eceiver Depth: 11.30"F orm Factor: Wall MountableRack-mountablePole-mountablePackage Contents: Local Transmitter and Remote Receiver Units2 x Sets of IR-IN Cables2 x Sets of IR-OUT Cables 3.5 mm Male-to-DB9-Female Adapter Cable 3.5 mm Male-to-DB9-Male Adapter Cable2 x Sets of External Power Supplies (Input: 100-240V, 50/60 Hz, 0.5A Output: 5V, 2A)2 x Sets of Mounting Hardware KitsOwner's ManualEnvironmentally Friendly: YesEnvironmental Certification: RoHSCountry of Origin: TaiwanTAA Compliant: YesLimited Warranty: 1 Year
Operating Temperature Range: 0 to 40 C (32 to 104 F) Storage Temperature Range: -20 to 60 C (-4 to 140 F) Relative Humidity: 20 to 90%
Connectors
Connector A
HDMI (FEMALE) DB9 (FEMALE) RJ45 (FEMALE)
Connector B
HDMI (FEMALE) RJ45 (FEMALE) DB9 (MALE)
Features
Features
Extends a 3840 x 2160 (4K x 2K) @ 24/30Hz signal up to 328 ft. (100 m) Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD Controls RS-232 serial devices at baud rates up to 115 Kbps Works with all operating systems and HDMI video sources Plug and play - no software or drivers to install
Dimensions & Weight
Weight
2.45

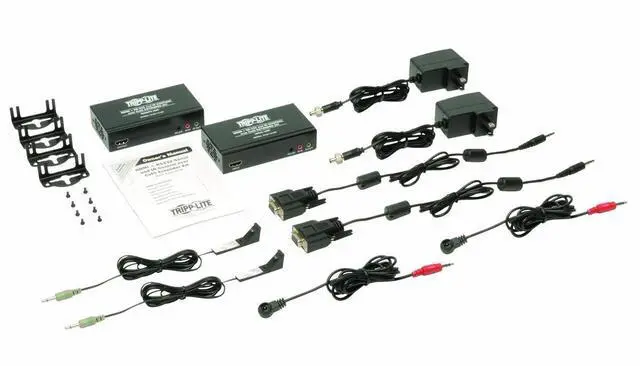

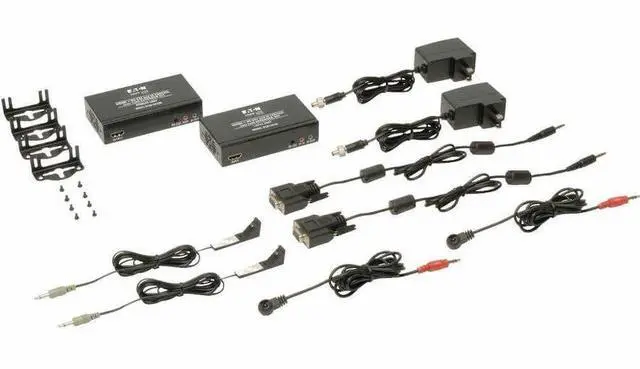

Package Contents
Package Contents
Transmitter unit Receiver unit (2) IR-IN cables (2) IR-OUT cables 3.5 mm Male to DB9 Female adapter cable 3.5 mm Male to DB9 Male adapter cable (2) External Power Supplies with NEMA 1-15P Plug(Input: 100–240V, 50/60 Hz, 0.5A; Output: 5V, 3A) Mounting hardware Owner’s Manual
Additional Information
First Listed on Newegg
September 27, 2021
Customer Reviews of the Tripp Lite B126-1A1SR
There are no reviews yet.
Do you own this product?
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
