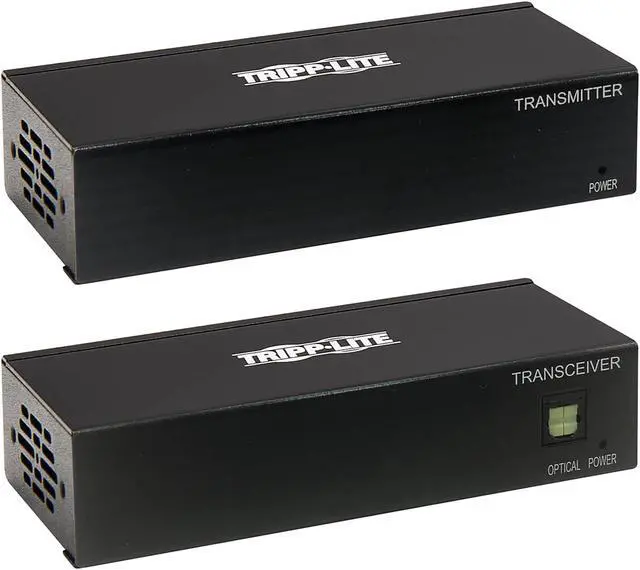

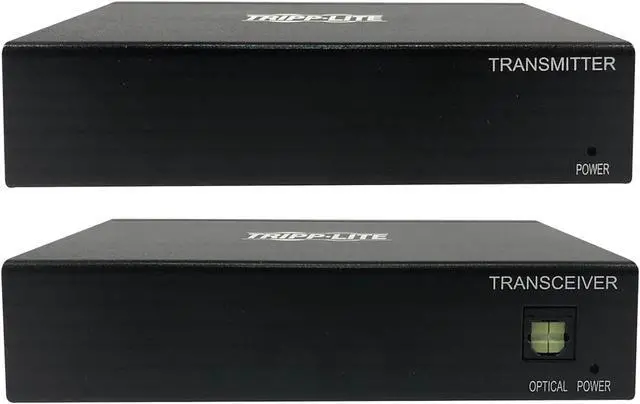

DisplayPort Over Cat6 Extender Kit Transmitter Receiver 4K PoC

DisplayPort extender kit with transmitter and transceiver extends a 4K signal via Cat6 cable to a DisplayPort monitor up to 230 feet away
Supports UHD resolutions up to 4K @ 30 Hz (4:4:4) for crystal-clear video
Power over Cable (PoC) technology provides power to either unit via Cat6 cable
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Tripp Lite B127A-111-BDTD

Model
Brand	Tripp Lite
Model	B127A-111-BDTD

Details
Type	DisplayPort over Ethernet
Max Extend Distance	230 feet
Color	Black
Specifications	Video: Video Input: Displayport (FEMALE) Video Output: Displayport (FEMALE); HDMI (FEMALE) Video Ports: Displayport (FEMALE); HDMI (FEMALE) Video Ports Details: HDCP 1.4; HDCP 2.2; DisplayPort 1.2a Resolutions Supported : DisplayPort Output and Local HDMI Output: 3840 x 2160 (4K) @ 30 Hz Supported Resolutions 3840x2160 (4K) Max Supported Video Resolution: 3840 x 2160 @ 30 Hz Audio: Audio Input: Displayport Audio Output: Displayport Audio Specification: Pass-through audio formats including LPCM2.0/5.1/7.1 Power: Power Over Cable (PoC) Support: Yes External Power Supply Input Specs (V / Hz / A): 100-240V, 50/60Hz, 0.6A External Power Supply Output Specs (V / A): 24V/1A External Power Supply Cord Length (ft.): 4.53 External Power Supply Cord Length (m.): 1.38 External Power Supply Certifications: CCC; CE; GS; TUV; UL; cUL Displayport Specification: 1.2a HDCP Specification: 1.4; 2.2 Driver Required: No Recommended Category Cable: 24AWG Cat6 All-in-One Kit: Yes DIN Mountable: No Integrated/Removable Cable: No Mounting Accessory Included: Yes Multi-Resolution Support: No Built-In Equalizer: Yes

Connectors

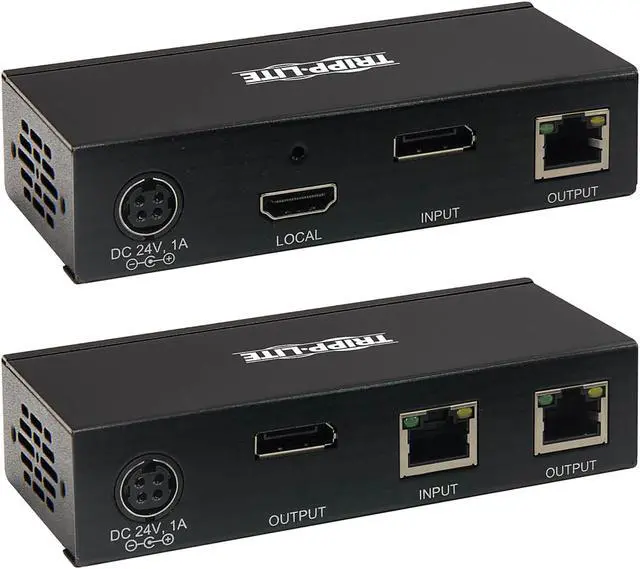

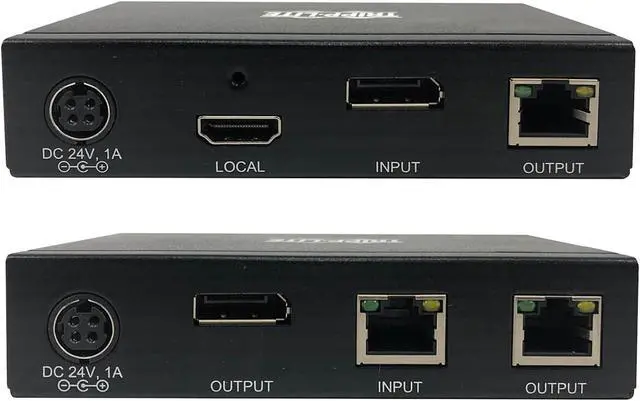

Connector A	Side A - Connector 1: DISPLAYPORT (Female) Side A - Connector 2: HDMI (Female) Side A - Connector 3: RJ45 (Female)
Connector B	Side B - Connector 1: (2) RJ45 (FEMALE) Side B - Connector 2: Displayport (FEMALE) Side B - Connector 3: TOSLINK (FEMALE)

Features
Features	DisplayPort 1.2a Extender Kit Ideal for Digital Signage in Schools and Offices. Transmits Crystal-Clear 4K Video with 4:4:4 Color. Local HDMI Port on Transmitter Supports 4K @ 30 Hz Resolution. Built-In PoC Technology Provides Transceiver Power to Avoid Bulky External Power Bricks. Create a Daisy Chain to Achieve Even More Distance. Plug-and-Play Operation for Quick Setup and Immediate Use. TAA-Compliant for GSA Schedule Purchases.

Dimensions & Weight

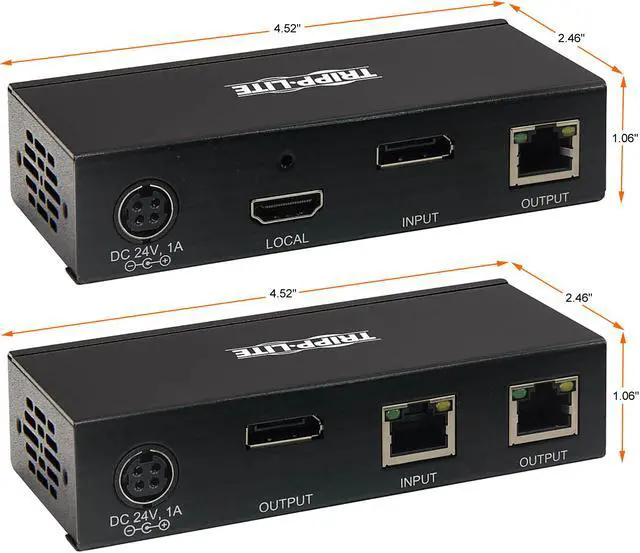

Dimensions	1.06" x 4.52" x 2.46"
Weight	0.55 lb.

Package Contents

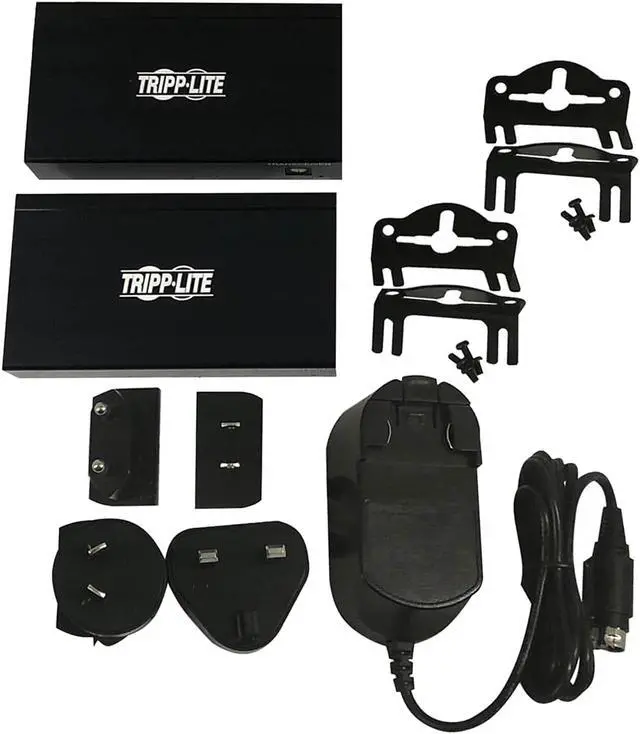

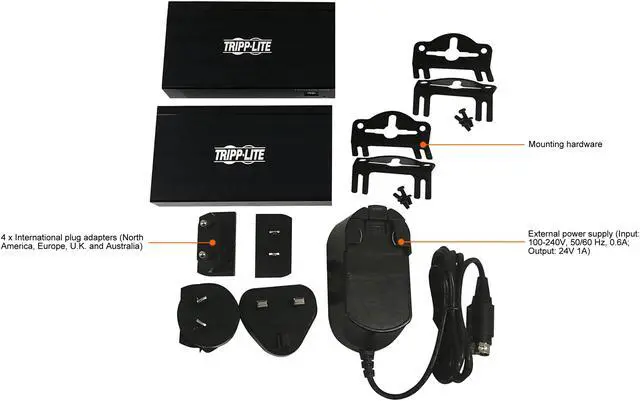

Package Contents	B127A-110-BD DisplayPort over Cat6 Receiver External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A) (4) International plug adapters (North America, Europe, U.K. and Australia) Mounting hardware Owner's manual
