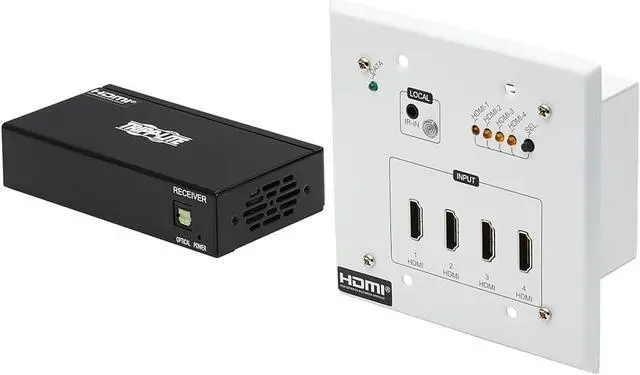

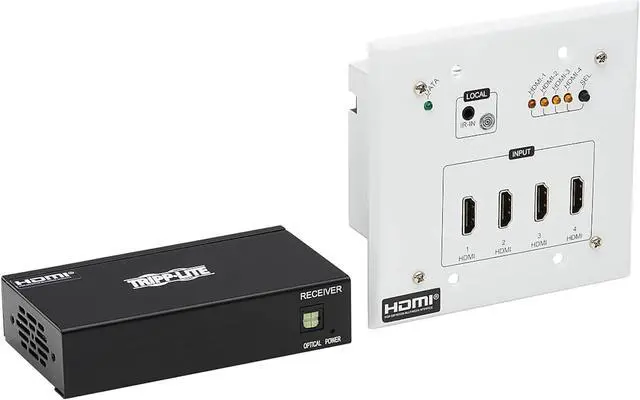

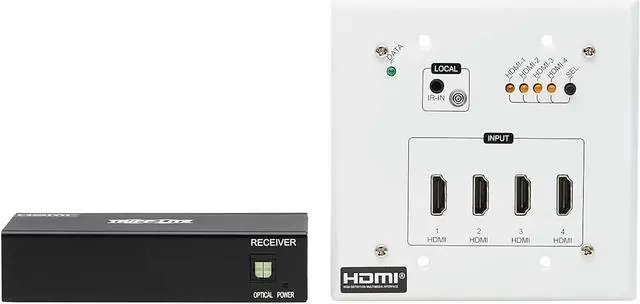

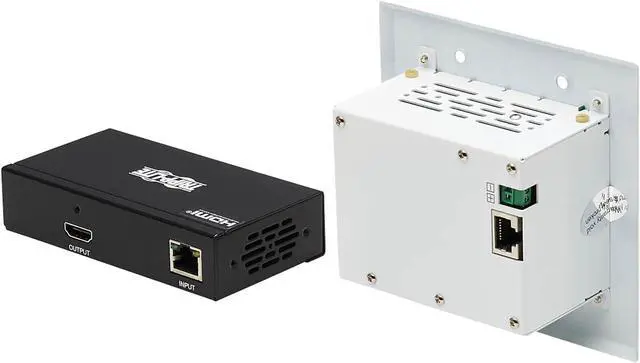

HDMI Over Cat6 Extender Switch Kit 4-Port Wall Plate/Box 4K PoC

HDMI extender kit with receiver allows switching among four 4K signals to HDMI display up to 230 feet away via Cat6 cable. Switch between 4 source devices by manual push button or included IR remote
Supports 4K @ 60 Hz video resolutions (4:4:4) as specified in HDMI 2.0. Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy
Power over Cable (PoC) technology provides power to either unit via Cat6 cable
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Tripp Lite B127A-4X1-BH

Model
Brand	Tripp Lite
Model	B127A-4X1-BH

Details
Type	HDMI over Ethernet
Max Extend Distance	230 feet
Color	Black
Specifications	Video: Video Input: HDMI (FEMALE) Video Output: HDMI (FEMALE) Number of Monitors Supported: 1 Video Ports: (4) HDMI (FEMALE) Video Ports Details: HDMI 2.0; HDCP 1.4; HDCP 2.2 Supported Resolutions: 1280x720 (720p); 1920x1080 (1080p); 3840x2160 (4K) Max Supported Video Resolution: 3840 x 2160 @ 60 Hz Audio: Audio Ports: HDMI (FEMALE); TOSLINK (FEMALE) Audio Ports Details: Pass-through audio to whichever display is currently in use, or via the Toslink port Audio Input: HDMI Audio Output: HDMI; Toslink Audio Specification: Supports pass-through of Audio format including LPCM2.0/5.1/7.1 Power: Power Source Type: AC Adapter AC Plug Type AS/NZS 3112; BS1363; Bare Wire; CEE 7/16 Schuko; NEMA 1-15P Power Source: Transmitter end only (Included) Power Over Cable (PoC) Support: Yes Receiver Power Source: Power Over Cable External Power Supply Input Specs (V / Hz / A): 100-240V / 50/60Hz / 0.6A External Power Supply Output Specs (V / A): 24V/1A External Power Supply Cord Length (ft.): 4.53 External Power Supply Cord Length (m.): 1.38 External Power Supply Certifications: CCC; CE; FCC; GS; LPS; TUV; UL; cUL Port Selection: Pushbutton; Remote Selector HDCP Specification: 2.2 Driver Required: No Recommended Category Cable: 24 AWG Cat6 All-in-One Kit: Yes DIN Mountable: No Integrated/Removable Cable: No Mounting Accessory Included: Yes Multi-Resolution Support: No

Connectors

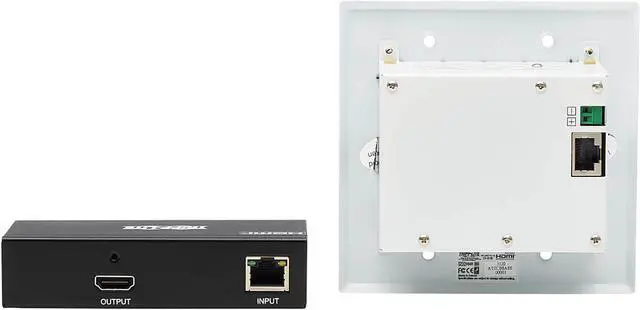

Connector A	Side A - Connector 1: (4) HDMI (FEMALE) Side A - Connector 2: RJ45 (FEMALE) Side A - Connector 3: 3.5mm (FEMALE)
Connector B	Side B - Connector 1: HDMI (FEMALE) Side B - Connector 2: RJ45 (FEMALE) Side B - Connector 3: TOSLINK (FEMALE)

Features
Features	HDMI Extender Kit Ideal for Digital Signage in Schools, Restaurants and Lecture Halls. Extends a 4K A/V Transmission up to 230 ft. or More. Transmits Crystal-Clear 4K Video with Multi-Channel Audio, HDR and 4:4:4 Color. Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks. Plug-and-Play Operation for Quick Setup and Immediate Use. TAA-Compliant for GSA Schedule Purchases.

Dimensions & Weight

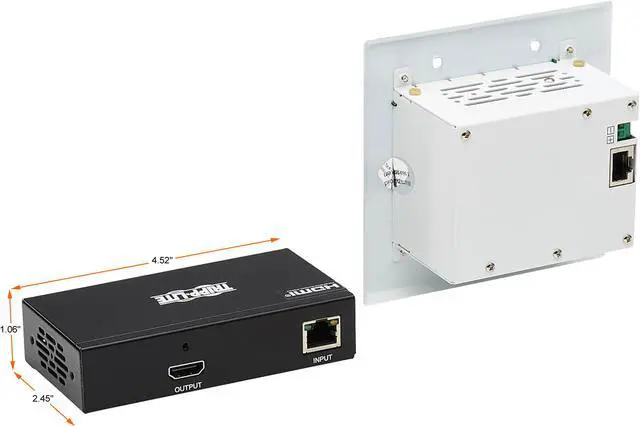

Dimensions	Receiver: 1.06" x 4.52" x 2.45" Transmitter: 4.51" x 4.57" x 2.02"
Weight	Receiver: 1.00 lb. Transmitter: 1.00 lb.

Package Contents

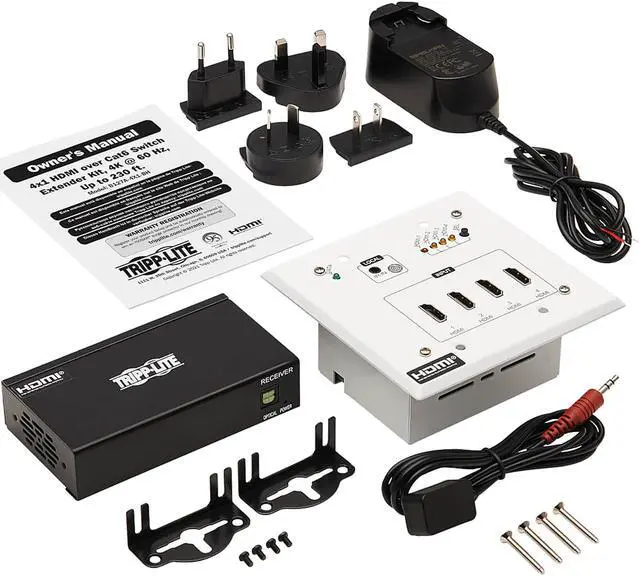

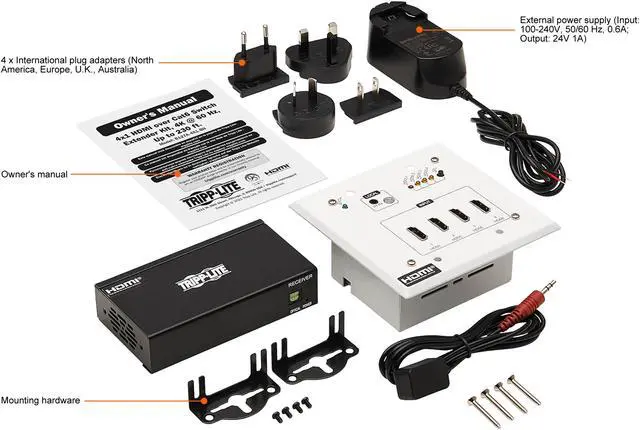

Package Contents	Wall plate switch Box receiver IR adapter IR remote control External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A) (4) International plug adapters (North America, Europe, U.K., Australia) Mounting hardware Owner's manual
