Tripp Lite VGA Over IP Receiver / Extender w/RS-232 Serial & IR Control TAA (B160-100-VSI)

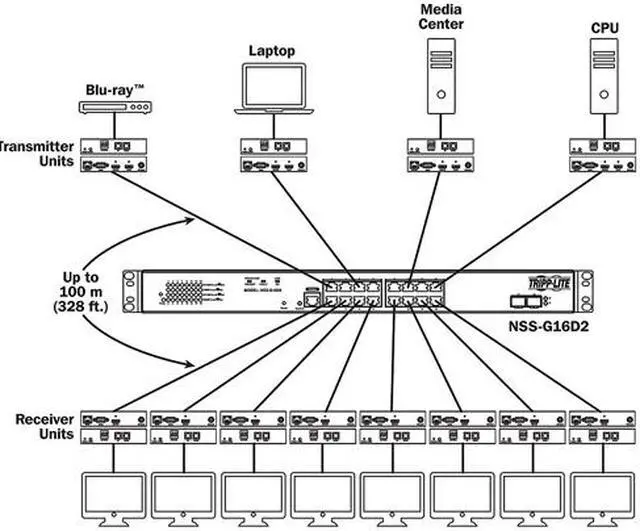

The B160-100-VSI VGA Video + Audio with RS-232 Serial and IR Control over IP Receiver extends and distributes VGA video + audio, RS-232 serial and IR (infrared) remote signals through a dedicated Ethernet network switch located up to 328 feet (100 m) away. With an additional 328 feet between the switch and the transmitter (sold separately), the total maximum distance from source to display is 656 feet (200 m).The B160-100-VSI is designed for managed network switches with IGMP, which allow login and remote management via switch interface. You can connect up to 64 transmitters and 255 receivers in a single managed switch installation.The B160-100-VSI supports video resolutions up to 1920 x 1440, including 1080p. It works with any analog or digital source, including HDMI and DisplayPort. It extends IR control signals that control a source, such as a Blu-ray...Connectivity Technology: WiredNumber of Output Devices Supported: 1Maximum Operating Distance: 328.08 ftMaximum Video Resolution: 1920 x 1440Network (RJ-45): YesVGA Out: YesNumber of Network (RJ-45) Ports: 1Number of VGA Outputs: 1Media Type Supported: Twisted PairTwisted Pair Cable Standard: Category 6Form Factor: Rack-mountableForm Factor: Wall MountableForm Factor: Pole-mountablePackage Contents: B160-100-VSI Video Extender Receiver External Power Supply w/NEMA 1-15P Plug (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A) Plug Adapters for U.S., U.K., Europe and Australia IR-In Cable 3.5 mm to DB9 Adapter Cable (M/M) Mounting Hardware Owner's Manual Environmentally Friendly: YesEnvironmental Certification: RoHSTAA Compliant: YesLimited Warranty: 1 YearPackage Contents B160-100-VSI Video Extender Receiver External Power Supply w/NEMA 1-15P Plug (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A) Plug Adapters for U.S., U.K., Europe and Australia IR-In Cable 3.5 mm to DB9 Adapter Cable (M/M) Mounting Hardware Owner's Manual
