Tripp Lite 4-Port USB 2.0 over Cat5/Cat6 Extender Hub, Transmitter & Receiver, Hi-Speed USB-A up to 328-ft./100M (B203-104)
- Locate a High Speed USB Type-A 2.0 4-Port Hub up to 328 feet (100 meters) from your computer
- Uses network RJ45 Cat5/Cat6 cable (For best results, use solid-conductor Cat5/Cat6 UTP cable, such as Tripp Lite’s N202-series cable)
- Supports Hi-Speed data transfer rates up to 480Mbps
- Supports Hi-Speed data transfer rates up to 480Mbps
- For a driver-free, plug-and-play solution: See our B203-104-PNP Over Cat5 Extender or our U026-Series and U042-Series Active Extension Cables
Overview
Specs
Reviews (2)
Any questions? Our AI beta will help you find out quickly.
Try me now

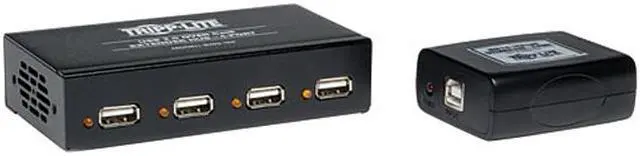

Tripp Lite High-Speed USB 2.0-over-Cat5 Extender Hub - Overview
Get the most out of your USB peripherals with Tripp Lite's B203-104 High-Speed USB 2.0-over-Cat5 Extender Hub. The B203-104 allows you to connect 4 USB peripherals up to 328ft. away from your computer, perfect for home or office workstations with permanently installed or difficult-to-move USB peripherals. The B203-104 utilizes high-speed USB 2.0 technology and readily available Cat5e/6 cables like the Tripp Lite N202-series. With a compact, durable design, the B203-104 fits almost anywhere in your workspace. Transfer rates up to 480Mbps ensure that your peripheral performance will not suffer at any distance. The B203-104 features a green, RoHS-compliant design that is also TAA-compliant for GSA schedule purchases.
Feature Focus
Key Features
Turn Your Home or Office PC into a Powerful Workstation
With the ability to connect four USB peripherals to your computer from up to 328ft. away, the B203-104 allows your PC to become a powerful, multi-faceted workstation. The B203-104 is ideal for home or office applications with permanently installed or hard-to-access USB peripherals.
Greater Distance—Greater Flexibility
By extending the range in which a peripheral can be connected to a computer via USB beyond the normal 16ft. distance limitation, the B203-104 allows for unsurpassed workstation flexibility. Peripherals can now be located in a different area or completely different room from the workstation with which they interact over USB. And, with transfer rates up to 480Mbps, performance never suffers.
Compact, Functional Design
The B203-104's compact design allows to it to be located almost anywhere in your workstation. With a built-in flexible cord, the local unit allows for versatile placement around your computer. The unit's ports are housed in a durable casing and the built-in LEDs allow for complete status assessment at a glance.
One-Year Warranty and Environmentally Responsible Design
The B203-104 is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility. It is also compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. For peace of mind, it comes backed by a one-year warranty.
Technical Specifications
| Type: | USB 2.0-Over-Cat5 Extender |
| Connectors: | Computer Connector: USB B Female Cat5e/6 Connector: 2 x RJ45 Female Peripheral Connector: 4 x USB A Female |
| Regulatory Compliance: | Meets RoHS standards; Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases |
| Warranty: | One-year |

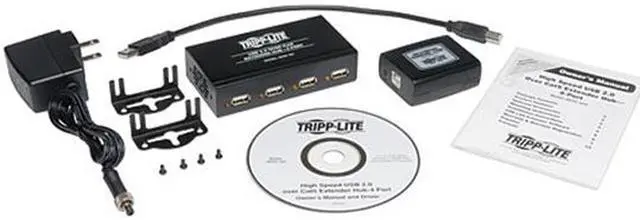

What's in the Box
- Local Transmitter Unit
- Remote Receiver Unit
- 1ft. USB A/B Device Cable
- External Power Supply – Remote Unit Only (Input: 100 ~ 240V, 50/60Hz, 0.5A Output: 5V, 2A)
- Driver CD
- Owner's Manual
Tripp Lite's B203-104 USB 2.0 over Cat5/Cat6 Extender Hub Kit transmits data from your Windows PC to as many as four USB 2.0 peripherals up to 328 ft. away. Use the included 1 ft. USB cable to connect your PC to the transmitter. The USB signals travel between the transmitter and 4-port receiver hub over user-supplied Cat5/Cat6 cable. It's a simple, cost-effective solution for connecting your Windows PC to printers and other USB peripherals that lack network connectivity and are farther than 16 feet away from your computer, which is the distance limitation for USB cables. For example, you can use the B203-104 to connect impact printers to a server in another room. This extender kit is also convenient for making connections in areas without network availability.By using Cat5/Cat6 cable to carry signals, the B203-104 extends your installation farther than is possible with standard USB cables. Plus, Cat5/Cat6 cabling is readily available at low cost. For maximum signal integrity, use solid-conductor Cat5/Cat6 UTP cabling, such as Tripp Lite's N202-series. The B203-104 extender kit can achieve data transfer rates up to 480 Mbps. It's backward compatible with USB 1.1 peripherals, but at USB 1.1 speeds. The B203-104 works with Windows through 10 operating systems(not Mac compatible; for a Mac-compatible solution, choose Tripp Lite's B203-104-PNP extender kit). Mount the receiver hub to a wall, pole or rack with the included mounting hardware. Complies with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases. The B203-104 is designed for long-distance data transfer. USB A/V devices that use isochronous USB data transfer require a non-Cat5(U026-016, U026-10M, U026-20M, U042-025 or U042-036) or plug-and-play(B203-101-PNP or B203-104-PNP) extender. Before use with a touchscreen, confirm compatibility with the manufacturer. Host Interface: RJ-45 Package Contents: High Speed USB 2.0 Over Cat5 Extender Hub - 4-PortB203-104 local transmitter B203-104 local transmitter B203-104 4-port remote receiver hub 1 ft. USB A/B cable (for local transmitter connection) External power supply for receiver hub (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A) Mounting hardware Driver CD Owner's Manual Host Interface: RJ-45 Product Type: USB Hub Product Type: USB Hub Manufacturer Part Number: B203-104 Platform Supported: PC Limited Warranty: 1 Year Form Factor: External Color: Black Form Factor: External Manufacturer: Tripp Lite Product Name: High Speed USB 2.0 Over Cat5 Extender Hub - 4-Port Brand Name: Tripp Lite Brand Name: Tripp Lite Total Number of USB Ports: 4 TAA Compliant: Yes Environmentally Friendly: Yes Environmental Certification: RoHS Number of Network (RJ-45) Ports: 2 Total Number of USB Ports: 4 Number of USB 2.0 Ports: 4 TAA Compliant: Yes
