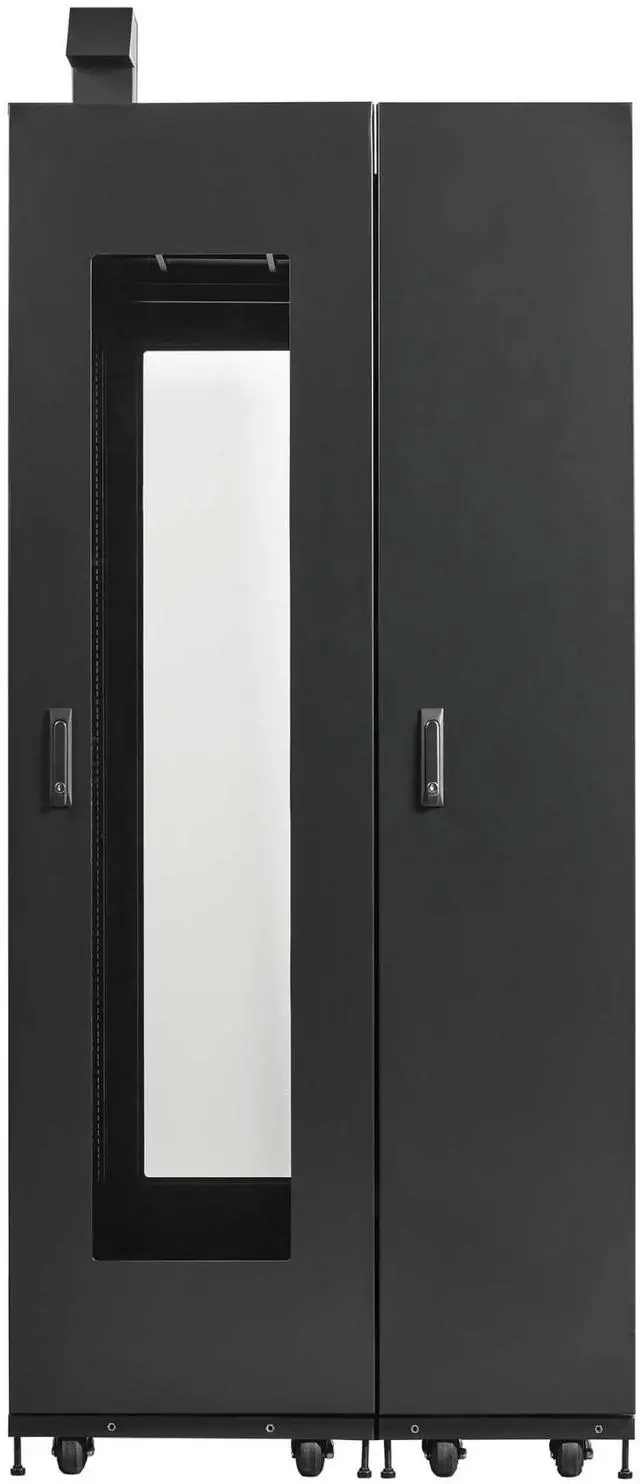

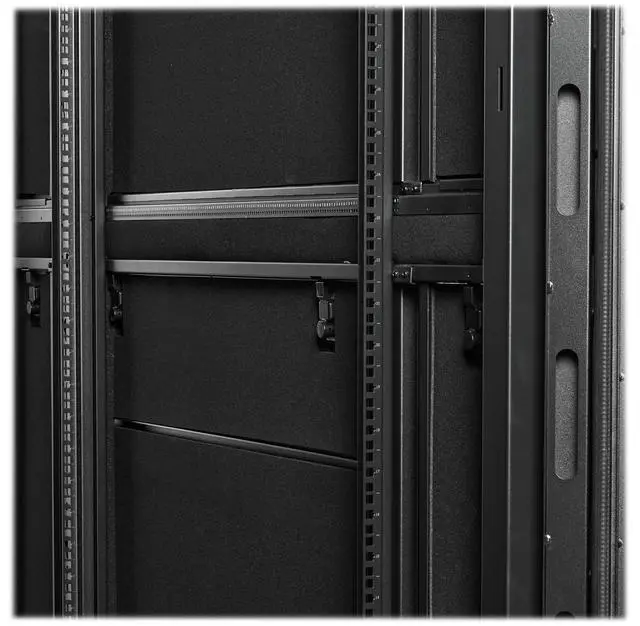

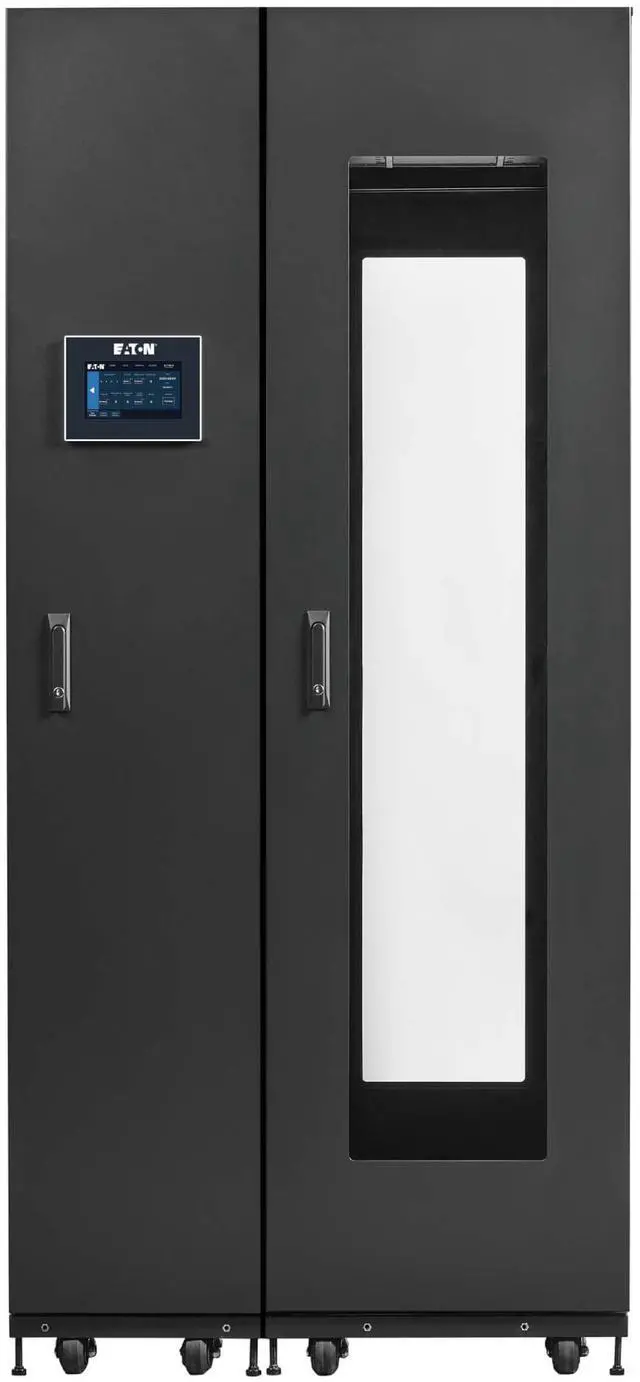

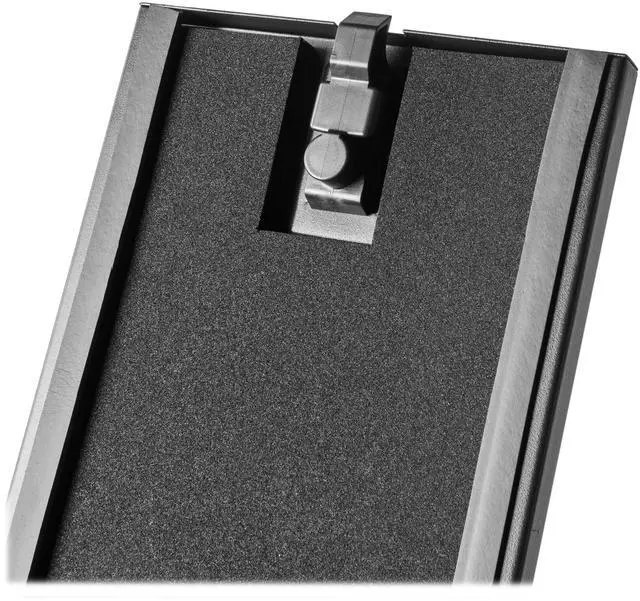

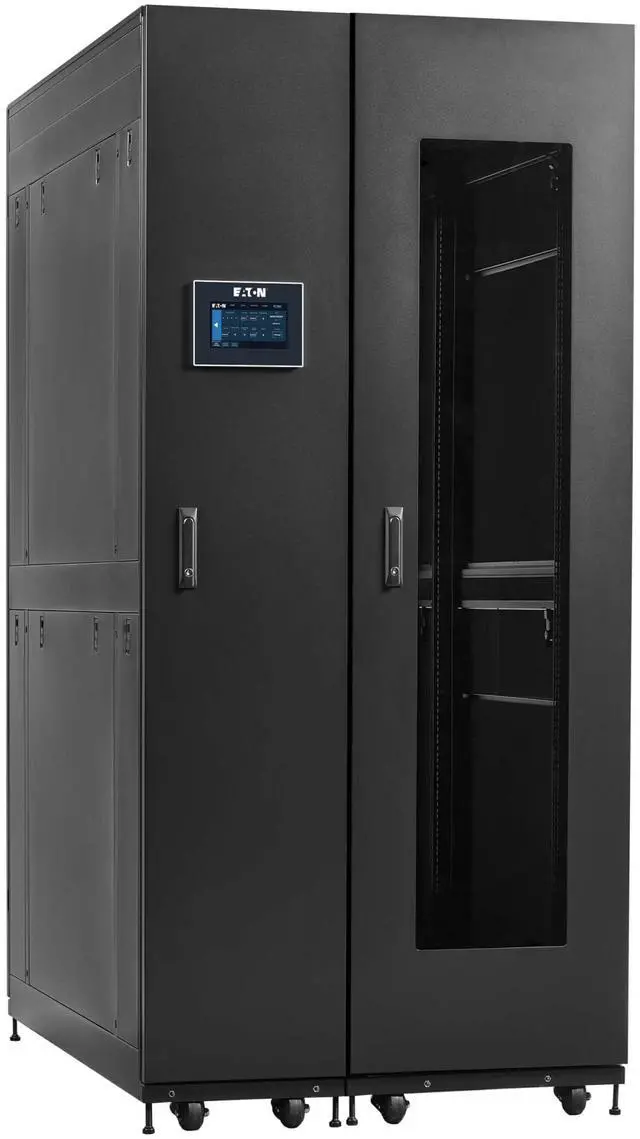

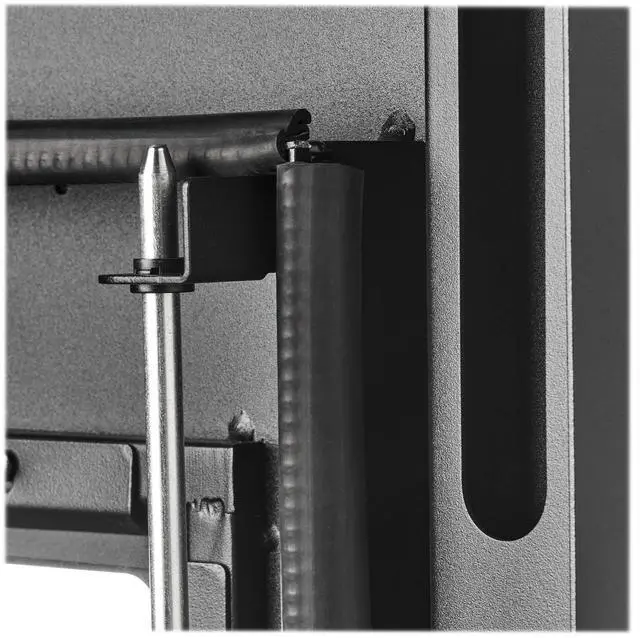

Tripp Lite by Eaton SRP-R-C12 SmartRack Pre-Configured, Self-Cooling Modular Data Center - 44U Rack, 12 kW AC Unit
- Input Connection Type 3-wire / 4-wire + Ground
- Voltage Compatibility (VAC) 208
- Input Frequency 60 Hz
- Frequency Compatibility 60 Hz
- Airflow 1,475 CFM
- Cooling Type Active
- Cooling Capacity (BTUs) 43686
- Cooling Capacity (kW) 12.8
- Refrigerant R410A
- Full Cooling Specifications Direct Expansion (DX)
- USER INTERFACE, ALERTS & CONTROLS
- Front Panel LCD Display 7-inch color touchscreen
- Color Black
- Rack Height 44U
- Rack Depth Deep
- Maximum Device Depth (in.) 48.7
- Unit Dimensions (hwd / in.) 95.070 x 40.390 x 64.880
- Unit Weight (lbs.) 1407
- Weight Capacity - Stationary (lbs.) 3000
- Complete Configuration Dimensions (hwd / in.) 95.070 x 40.390 x 64.880
- Complete Configuration Dimensions (hwd / cm) 241.48 x 102.59 x 164.80
- Operating Temperature Range 64° to 104°F (18° to 40°C)
- Storage Temperature Range -40° to 140°F (-40° to 60°C)
- Operating Elevation 0-13123 ft. (0-4000 m)
- Audible Noise < 68 DBA
- Operating Humidity Range 5 to 80% RH
- Condensate Drain Pumps (L/HR) 9 liters/hr per cooling unit
- Condensate Water Drains Yes
- Grounding Details Front and back door frames
- Compressor Type Rotary (Inverter Driven)
- Sound Level (Noise) < 68 DBA
- Ingress Protection (IP) Rating IP54

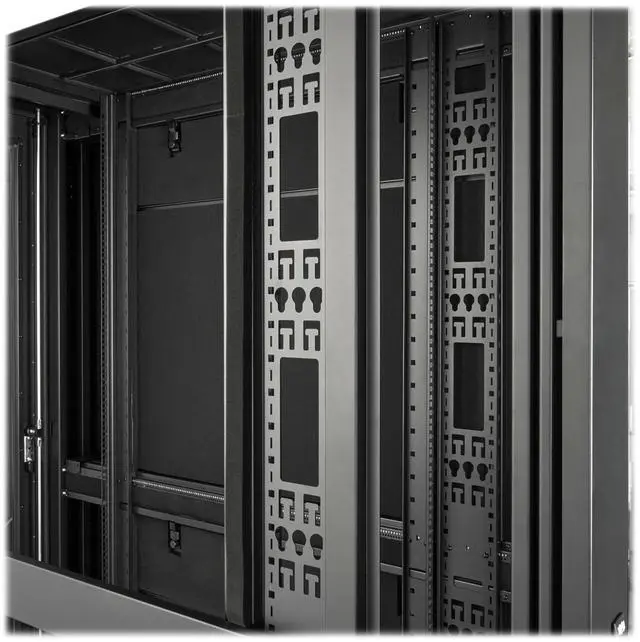

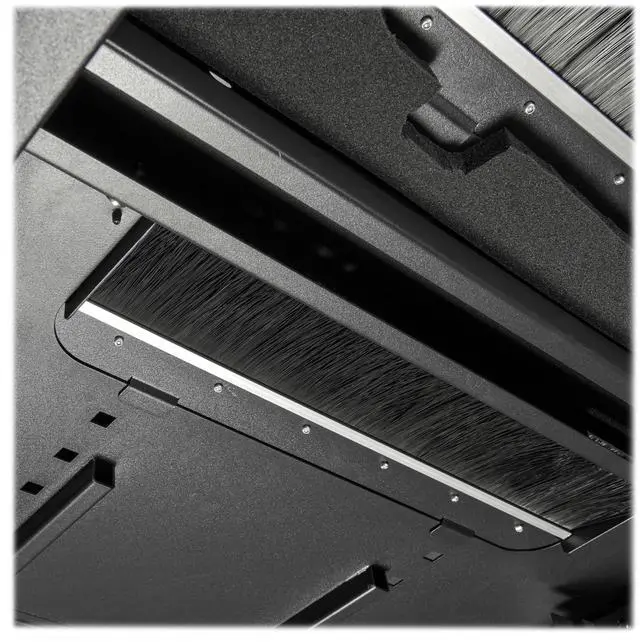

- Built-in Cable Management Yes

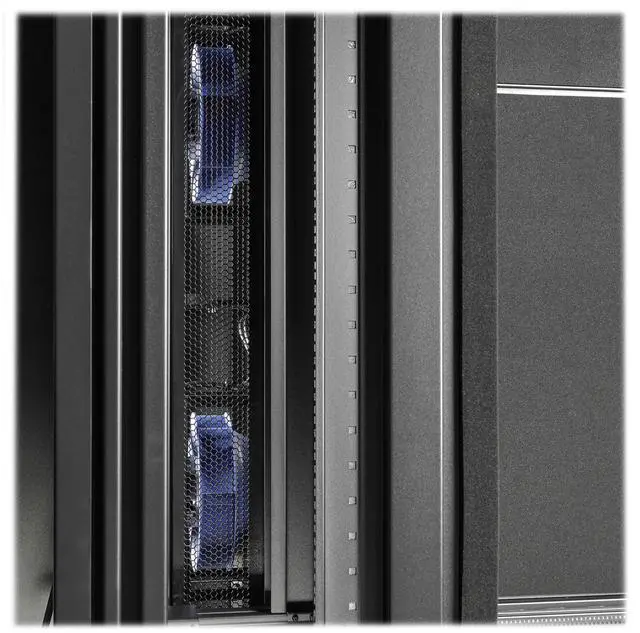

- Fans (Type/Quantity) EC 0-2000 RPM x 3

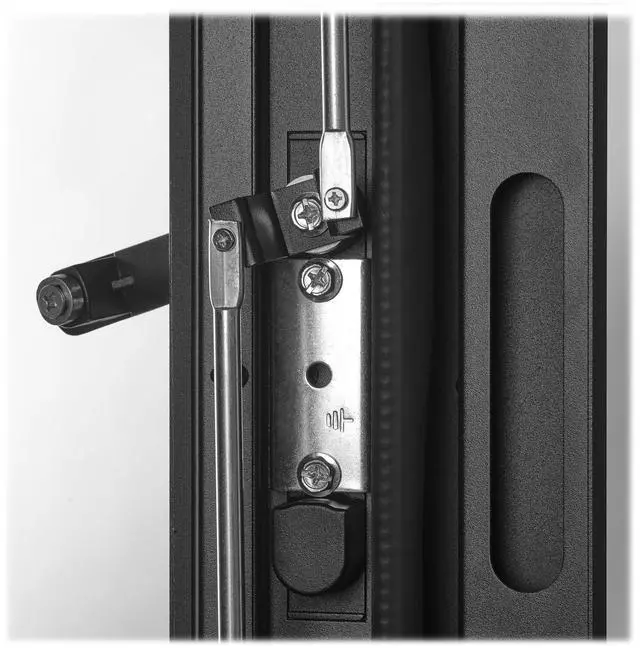

- Locking Yes
- Pre-Installed Casters Yes
- Protection Rating IP54
- Product Compliance FCC Part 15 Class A (USA); RoHS
+
+
Learn more about the Eaton SRP-R-C12
| Brand | Tripp Lite by Eaton |
|---|---|
| Model | SRP-R-C12 |
| Color | Black |
|---|---|
| Specifications | INPUT Input Connection Type: 3-wire / 4-wire + Ground Voltage Compatibility (VAC): 208 Input Frequency: 60 Hz OUTPUT Frequency Compatibility: 60 Hz COOLING Airflow: 1,475 CFM Cooling Type: Active Cooling Capacity (BTUs): 43686 Cooling Capacity (kW): 12.8 Refrigerant: R410A Full Cooling Specifications: Direct Expansion (DX) USER INTERFACE, ALERTS & CONTROLS Front Panel LCD Display: 7-inch color touchscreen PHYSICAL Color: Black Rack Height : 44U Rack Depth: Deep Maximum Device Depth (in.): 48.7 Unit Dimensions (hwd / in.): 95.070 x 40.390 x 64.880 Unit Weight (lbs.): 1407 Weight Capacity - Stationary (lbs.): 3000 Complete Configuration Dimensions (hwd / in.): 95.070 x 40.390 x 64.880 Complete Configuration Dimensions (hwd / cm): 241.48 x 102.59 x 164.80 ENVIRONMENTAL Operating Temperature Range: 64° to 104°F (18° to 40°C) Storage Temperature Range: -40° to 140°F (-40° to 60°C) Operating Elevation: 0-13123 ft. (0-4000 m) Audible Noise: < 68 DBA Operating Humidity Range: 5 to 80% RH Condensate Drain Pumps (L/HR): 9 liters/hr per cooling unit Condensate Water Drains: Yes |
| First Listed on Newegg | December 10, 2025 |
|---|
