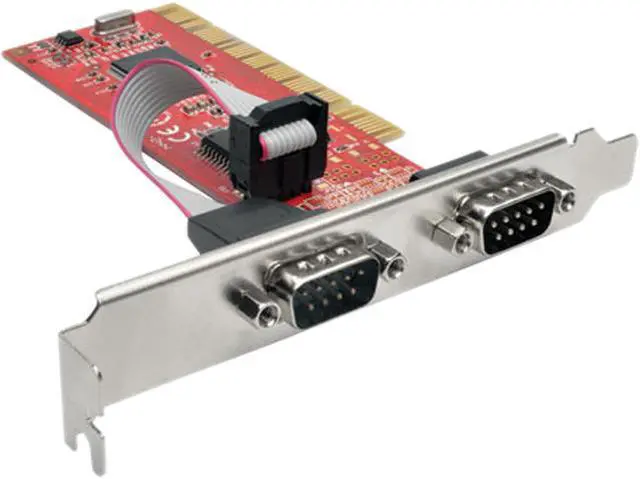

Tripp Lite 2-Port DB9 (RS-232) Serial PCI Card with 16550 UART, Full Profile (PCI-D9-02)

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

The PCI-D9-02 2-Port DB9 Serial PCI Card adds two DB9 serial ports to your computer or server. By adding the PCI-D9-02 to a computer with no DB9 ports or not enough of them, you can upgrade your DB9 capability without having to buy a new computer.Perfect for home or office, the PCI-D9-02 supports data transfer rates up to 115.2 Kbps on each port. It easily installs inside your computer in just a few minutes. The standard bracket's interface is compatible with universal 3.3V and 5V 32-bit PCI/PCI-X slots. Allow the appropriate drivers to automatically install on your hard drive(a driver CD is included if they don't), and connect DB9 serial extension cables(such as Tripp Lite's P520-006) to the card's DB9 connectors.The PCI-D9-02 is fully compliant with PCI Local Bus Specification Revision 2.3 and compatible with industrial standard 16550 UART. On-chip 256-byte depth FIFO in transmit and receive paths of each port. Supports hardware and software flow control; PCI IRQ sharing and PCI power management; 5-, 6-, 7-, 8- and 9-bit serial formats; Even, Odd, None, Space and Mark parity; and 1- or 2-stop bit operation.

Model
Brand	TRIPP LITE
Model	PCI-D9-02

Details
Type	Serial PCI Card
Operating Systems Supported	System Requirements: Computer with available universal 3.3V and 5V 32-bit PCI/PCI-X slot Windows (XP and later) or Linux (2.6.x and later)
Specifications	Color: Red Connector A: 110 IDC Connector B: DB9 (MALE) Ports: 2

Features
Features	Adds 2 DB9 (RS-232) Serial Ports to Your Computer Upgrades your DB9 capability without buying a new computer or server Each port supports data transfer rates up to 115.2 Kbps Perfect for home or office use Easy to Install Inside Your Computer Compatible with universal 3.3V and 5V 32-bit PCI/PCI-X slots Appropriate drivers install to your hard drive automatically Loaded with the Latest Features Complies with PCI Local Bus Specification Revision 2.3 Compatible with industrial standard 16550 UART On-chip 256-byte depth FIFO in transmit and receive paths of each port Supports hardware and software flow control Supports PCI IRQ sharing and PCI power management Supports 5-, 6-, 7-, 8- and 9-bit serial formats Supports Even, Odd, None, Space and Mark parity Supports 1- or 2-stop bit operation

Packaging
Package Contents	PCI-D9-02 2-Port DB9 Serial PCI Express Card with 16550 UART, Full Profile Driver CD Owner's manual
