Corrects brownouts and overvoltages from 75V to 147V
3 UPS battery supported outlets
USB, TEL/DSL protection
NEMA 5-15P input plug and 6 NEMA 5-15R outlets
Overview
Specs
Reviews
Learn more about the Tripp Lite OMNISMART500
Model
Brand
TRIPP LITE
Series
OMNISMART
Model
OMNISMART500
Input
Input Voltage Range
120V AC
Input Connection
NEMA 5-15P
Output
VA Rating
500 VA
Watts
300 Watts
Outlets
3 UPS outlets, 3 surge-only outlets
Outlet Type
5-15R
Battery
Battery Run Time
Full Load Runtime: 4 min. (300w)
Half Load Runtime: 14.6 min. (150w)
Battery Replaceable
RBC51
Details
Alarms
Audible alarm indicates power-failure and low-battery conditions
Interface Port
USB
Management Software
YES
Approvals
Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI)
Surge Protection
Data Line Protection
1 line TEL / DSL or 10Base T Ethernet protection
Surge Energy Rating
480 Joules
Features
Features
500VA tower 120V line-interactive UPS Corrects brownouts and overvoltages from 75V to 147V 3 UPS battery supported outlets, 3 surge-only outlets USB port, TEL/DSL protection, Front panel status LEDs NEMA 5-15P input plug and 6 NEMA 5-15R outlets
Dimensions & Weight
Dimensions
8.50" x 7.00" x 5.20" (H x W x D)
Weight
14lbs

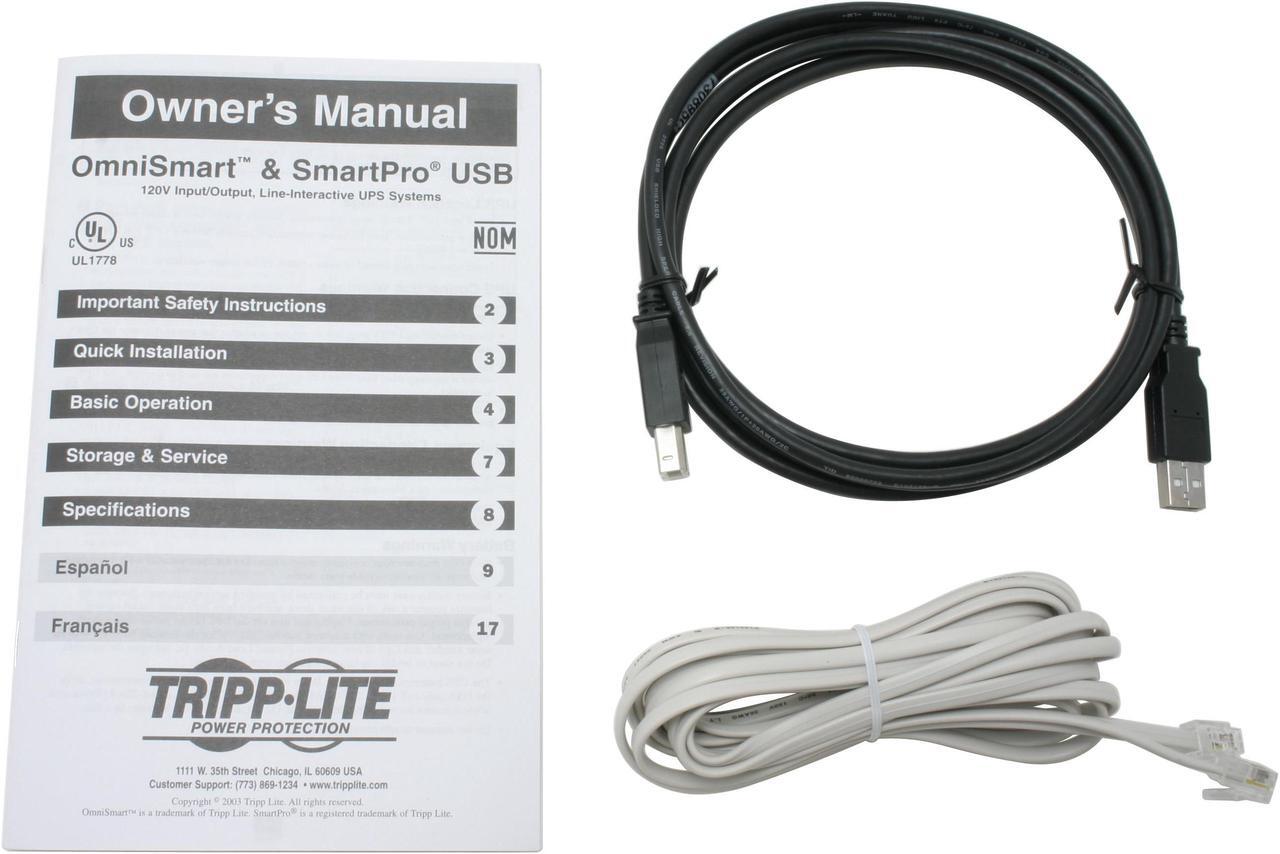

Package Contents
Package Contents
OMNI SMART 500 UPS System PowerAlert software and cabling Instruction manual with warranty information
