Tripp Lite 10kW 3-Phase Monitored PDU, LX Interface, 200 / 208 / 240V Outlets (42 x C13 / 6 x C19), LCD, NEMA L15-30P, 6.0 Feet Cord, 0U Height, TAA (PDU3EVN6L1530B)

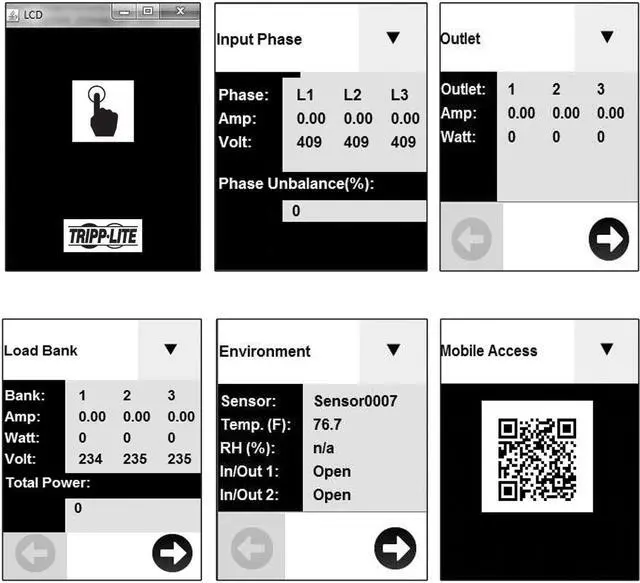

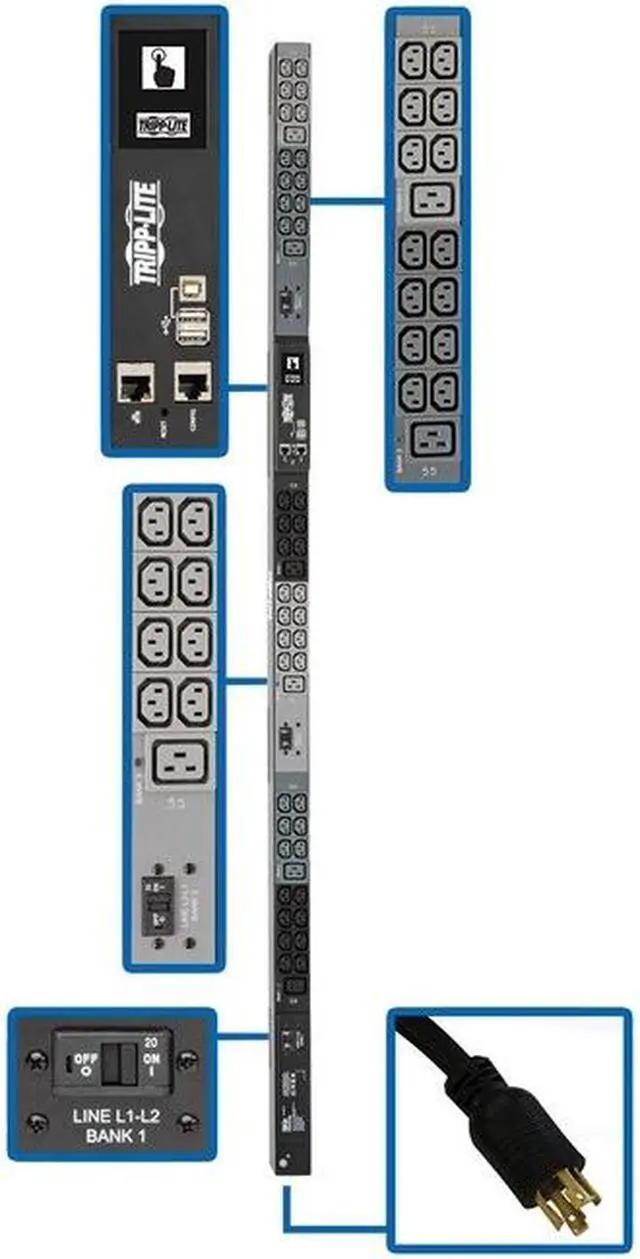

The PDU3EVN6L1530B 10kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for IT and industrial applications, it features 48 outlets-42 C13, 6 C19-with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A six-foot cord with NEMA L15-30P input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A color touchscreen LCD lets you toggle between menus to monitor input current level per phase and output current per load bank with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device. The 0U PDU mounts vertically in racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access. Package Contents: PDU3EVN6L1530B 48-Outlet PDU Configuration Cable 48 x Plug-lock Insert Sleeves Rack-mounting Hardware Mounting Bracket Accessory Owner's Manual Product Type: PDU Input Voltage: 230 V AC Output Voltage: 240 V AC Output Voltage: 208 V AC Output Voltage: 200 V AC Product Type: PDU Input Voltage: 230 V AC Manufacturer Part Number: PDU3EVN6L1530B Limited Warranty: 2 Year Output Voltage: 240 V AC Output Voltage: 208 V AC Output Voltage: 200 V AC Weight (Approximate): 14.93 lb Form Factor: Rack-mountable Input Receptacles: NEMA L15-30P Input Current: 24 A Output Receptacles: 42 x IEC 60320 C13 Output Receptacles: 6 x IEC 60320 C19 Protection Type: Overload Protection Form Factor: Rack-mountable Input Receptacles: NEMA L15-30P Input Current: 24 A Management: Protocols: IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP NTP Manufacturer: Tripp Lite Product Model: PDU3EVN6L1530B Product Name: PDU3EVN6L1530B 48-Outlet PDU Output Receptacles: 42 x IEC 60320 C13 Output Receptacles: 6 x IEC 60320 C19 Protection Type: Overload Protection Rack Height: 0U Brand Name: Tripp Lite Rack Height: 0U Brand Name: Tripp Lite Placement: Rack Placement: Rack Height: 70 Width: 2.2 Depth: 2.9 Phase: Three Phase TAA Compliant: Yes PDU Type: Monitored Mounting Orientation: Vertical Power Rating (Watt): 10 kW Environmentally Friendly: Yes Environmental Certification: RoHS Network (RJ-45): Yes TAA Compliant: Yes Mounting Orientation: Vertical Power Rating (Watt): 10 kW
