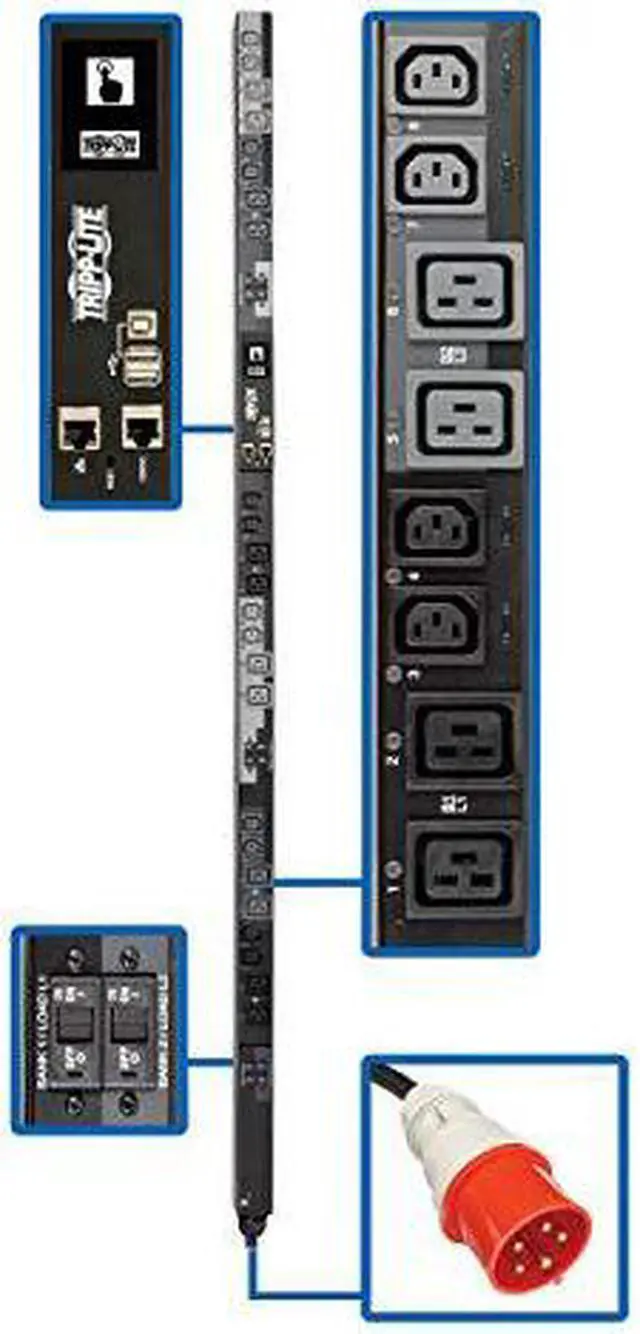

Alt view image 2 of 3 - SWITCHED PDU 27.7KW 3-PHASE

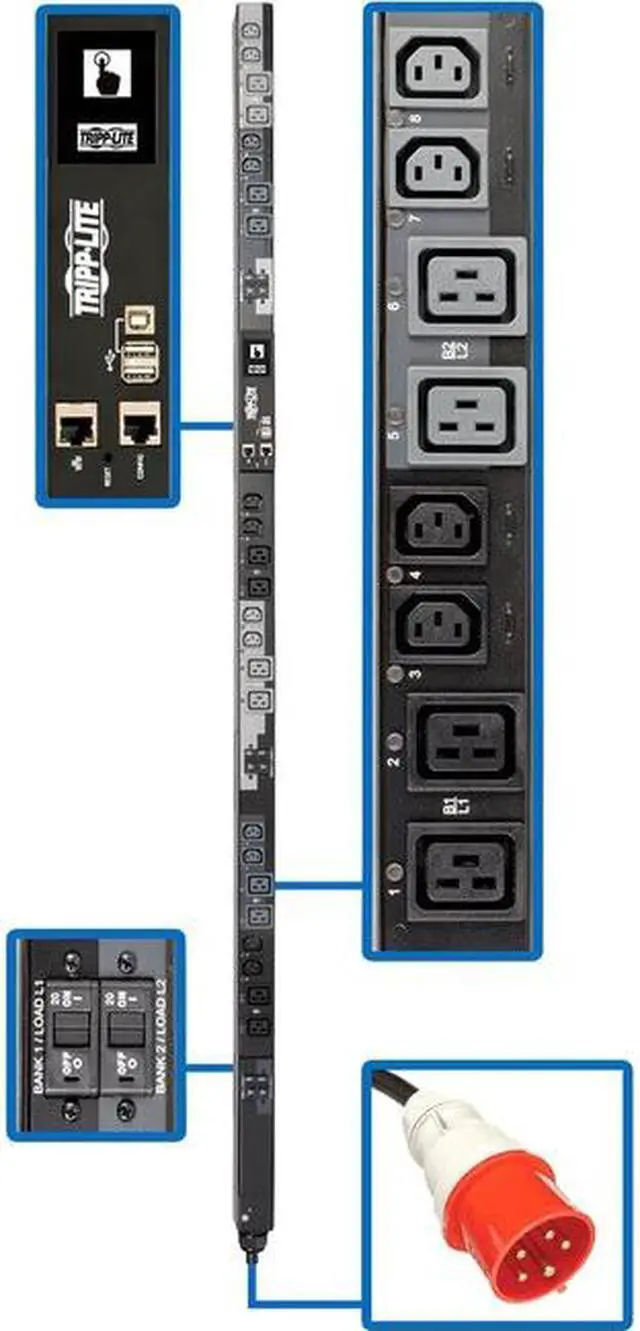

Alt view image 3 of 3 - SWITCHED PDU 27.7KW 3-PHASE

Shop All Tripp Lite Products

SWITCHED PDU 27.7KW 3-PHASE

Be the first to review this product...

230V
40A
6.0 Feet

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

MAIN OVERVIEW FEATURES: PDU
Type:
SwitchedPhase: Three
PhaseInput Receptacles: IEC 60309 63A Red 3P+N+EOutput
Receptacles: 12 x IEC 60320 C1312 x IEC 60320
C19Protection Type: Overload
ProtectionInput Voltage: 380
V AC400 V ACOutput Voltage: 220 V AC230 V ACPower
Rating (Watt): 27.70 kWInput
Current: 40
AManagement: IPv4 IPv6 HTTP HTTPS SMTP SNM
Pv1 SNM
Pv2 SNM
Pv3 telnet SSH FTP DHCP NTP
Network (RJ-45): YesMounting
Orientation: VerticalMount
Type: Rack-mountableRack
Height:
0UHeight:
70"Width: 2.2"D
epth: 2.5"W
eight (Approximate): 17.28 lbPackage
Contents: PDU3XEVSR6G63A 24-Outlets PDU Built-in LX Platform Interface Configuration Cable 24 x Plug-lock Insert Sleeves Rack-Mounting Hardware Spare Mounting Buttons Mounting Bracket Accessory Owner's
Manual Environmentally Friendly: YesEnvironmental
Certification: RoHSTAA
Compliant: YesLimited
Warranty: 2 Year

Model
Brand	Tripp Lite
Model	PDU3XEVSR6G63A

Details
Type	Switched
Rack Size	0U
Style	Vertical
Certifications	Tested to CE (EEA), CE Class A (Emissions), RoHS (Hazardous Substances), TAA Compliant (Trade America Act)
ROHS	Yes

Input
Input Voltage	380V, 400V
Maximum Input Current	40A
Input Connector(s)	IEC-309 63A RED (3P+N+E)
Cord Length	6.0 Feet

Output
Output Voltage	230V
Output Frequency	50/60Hz
Output Connector(s)	12 x C13 12 x C19
Overload Protection	6 x 20A circuit breakers, 1 per outlet bank

Environmental
Operating Environment	0 - 50 Degree Celcius
Operating Relative Humidity	5 - 95%
Operating Elevation	0 - 3000 m
Storage Temperature	-15 - 60 Degree Celcius
Storage Relative Humidity	5 - 95%

Feature
Features	3-Phase PDU Distributes, Monitors and Manages Network-Grade Power 24 Outlets Dispense AC Power to Connected Equipment Built-In LX Platform Network Management Card Allows Remote Access 24/7 Color Touchscreen LCD Offers Important Data at a Glance Easy to Install Vertically in an EIA-Standard 19.0" Rack TAA-Compliant for GSA Schedule Purchases

Dimensions & Weight
Dimensions	2.17" x 2.52" x 70.00"
Weight	17.28 lbs.

Details
Package Includes	PDU3XEVSR6G63A 27.7 kW 3-Phase Switched PDU Built-in LX Platform interface Configuration cable 24 x Plug-lock insert sleeves Rack-mounting hardware Spare mounting buttons PDUMVROTATEBRKT mounting bracket accessory Owner's manual
