Tripp Lite PDU3XEVSR6G63B 28.8kW 220-240V 3PH Switched PDU - LX Interface Gigabit 30 Outlets IEC 309 63A Red 380-415V Input LCD 1.8 m Cord 0U 1.8 m Height TAA - Switched - IEC 60309 63A Red 3P+N+E
- Protection Type Overload Protection
- Plug/Connector Type IEC 60309 63A Red 3P+N+E
- Phase Three Phase
- Receptacle Type IEC 60320 C19
- IEC 60320 C13
- PDU Type Switched
- Receptacle Detail 6 x IEC 60320 C19, 24 x IEC 60320 C13
- Weight (Approximate) 17.70 lb
- Mount Type Rack-mountable
- Rack Height 0U
- Height 70"
- Width 2.2"
- Depth 2.5"
- Mounting Orientation Vertical
- Input Voltage 400 V AC, 380 V AC
- Output Voltage 230 V AC, 220 V AC
- Input Current 40 A
- Power Rating (Watt) 27.70 kW
- Product Type PDU
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
28.8 kW 220-240V 3PH Switched PDU - LX Interface, Gigabit, 30 Outlets, IEC 309 63A Red 380-415V Input, LCD, 1.8 m Cord, 0U 1.8 m Height, TAA PDU3XEVSR6G63B
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 2 years
- Limited Warranty period (labor): 2 years
- Read full details
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-773-869-1111
- Support Website
- View other products from Tripp Lite
LOADING...

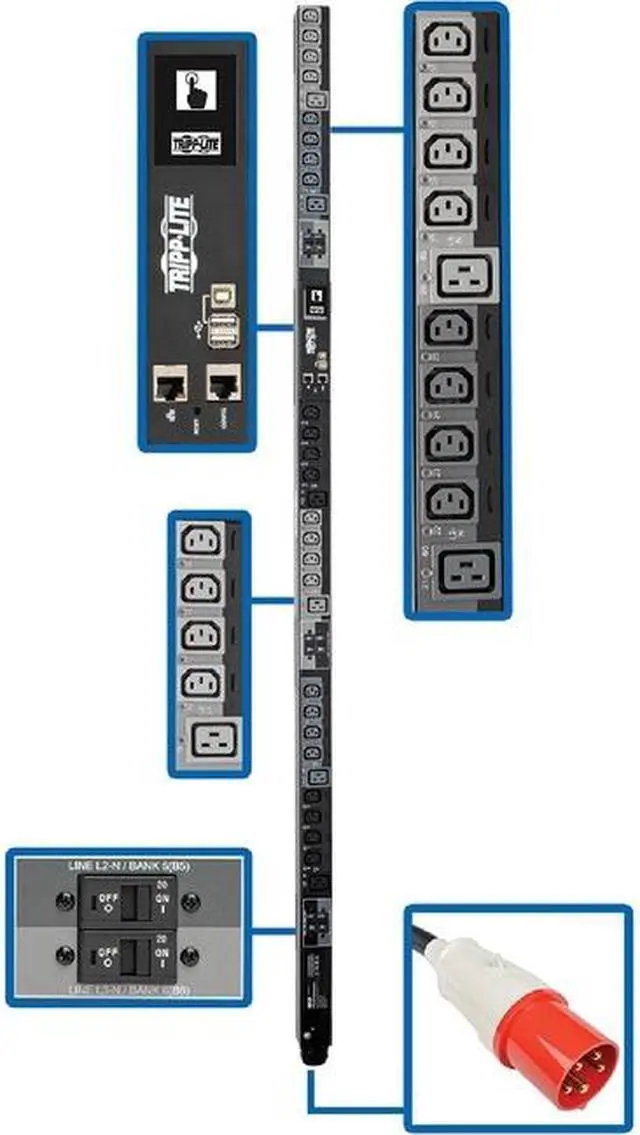

The Tripp Lite PDU3XEVSR6G63B is a 0U, three-phase switched rack PDU with 30 outlets—24 C13 and 6 C19—for distributing and managing 220–240V AC power. Its LX interface, Gigabit connectivity, and touchscreen LCD make it suitable for data centers and enterprise racks that need remote power control and monitoring.
Recommended For
- Data-center and server-room operators who need remote outlet switching to reboot or manage rack equipment without traveling to the rack.
- IT teams managing high-density racks that need to monitor power by phase, load bank, and individual outlet through the network interface.
- Facilities with compatible 380/400V three-phase service that need to distribute power to many rack devices using C13 and C19 connections.
- Rack planners who want a vertical 0U PDU to preserve horizontal rack space for servers and other equipment.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Rack-mounted distribution, monitoring, and management of network-grade AC power across switched outlets |
| Power Capacity And Output | 27.7 kW, 230 V output at 50/60 Hz |
| Input And Power Connection | 380 V or 400 V input, up to 40 A, with an IEC-309 63 A red 3P+N+E connector and a 6 ft cord |
| Outlets And Protection | 30 switched outlets: 24 C13 and 6 C19, protected by six 20 A breakers, each covering four C13 and one C19 outlet |
| Monitoring And Management | Color touchscreen LCD and built-in LX Platform interface |
| Rack Mounting And Dimensions | Vertical 0U rack mounting; 2.17 × 2.52 × 70 in |
| Weight | 17.70 lb |
| Compliance | TAA compliant, RoHS compliant, and tested to CE standards, including CE Class A emissions |
| Operating Environment | 0–50 °C; 5–95% relative humidity; operating elevation up to 3,000 m |
| Storage Environment | −15–60 °C; 5–95% relative humidity |
| Model Identifiers | Tripp Lite PDU3XEVSR6G63B |
