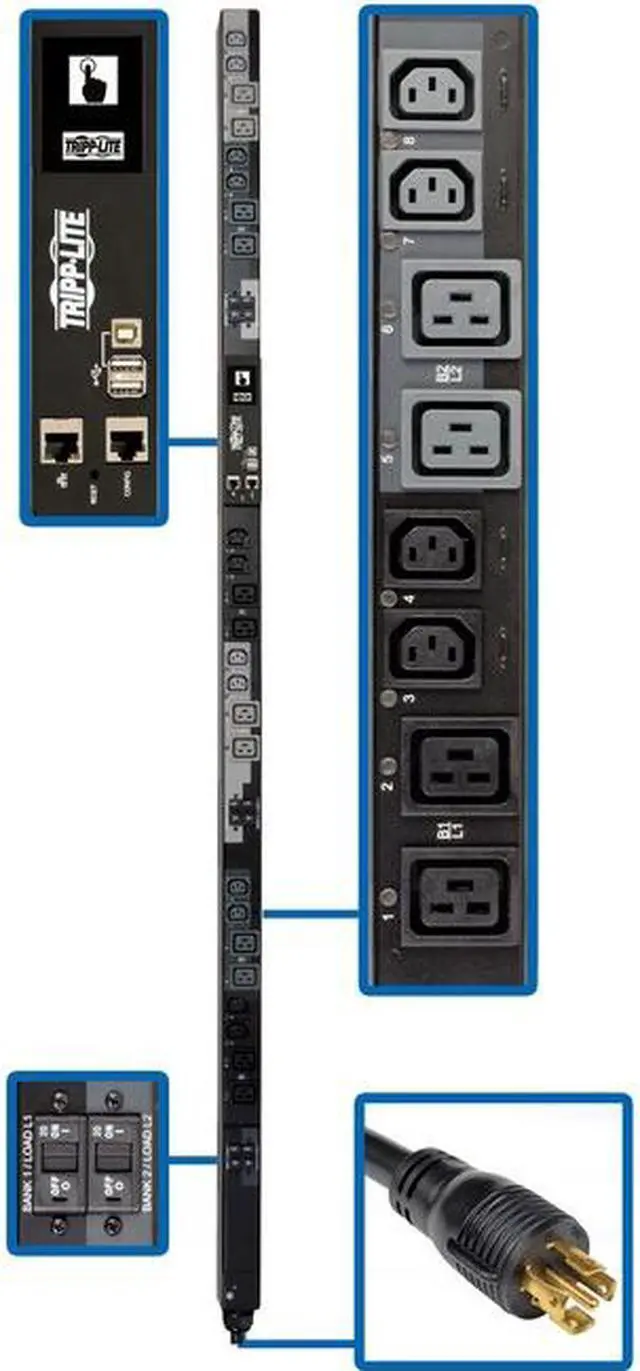

Main image of SWITCHED PDU 17.3KW 3-PHASE,L22-30P 415V

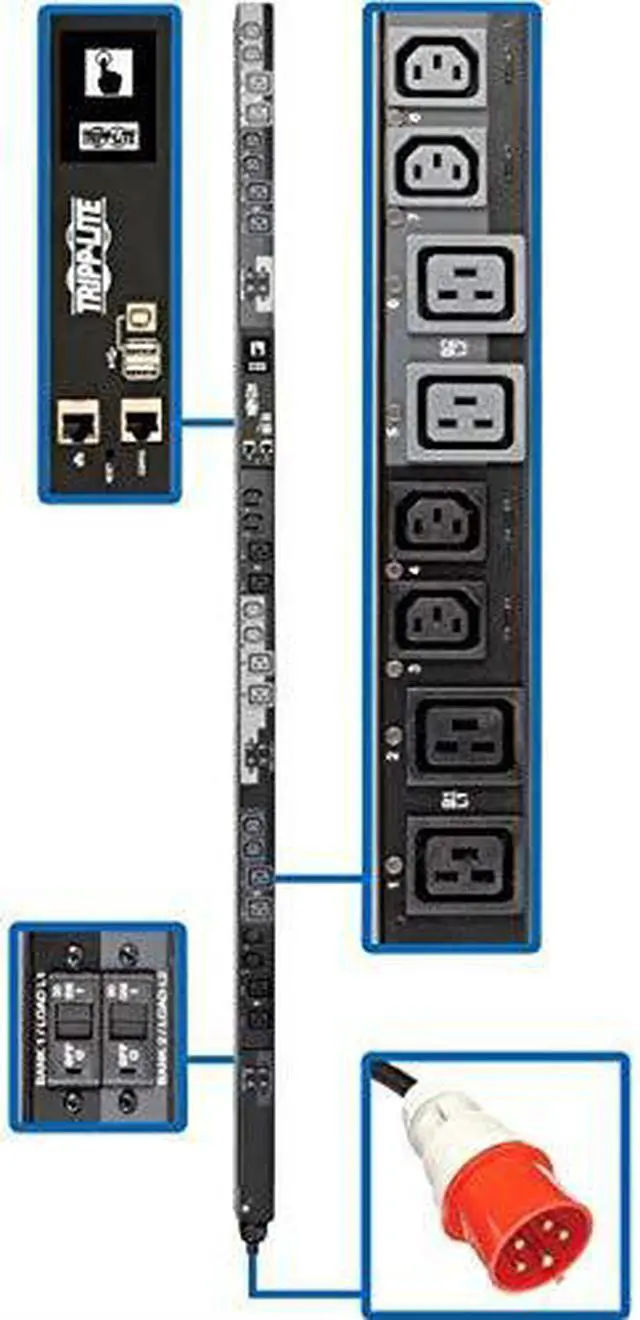

Alt view image 2 of 3 - SWITCHED PDU 17.3KW 3-PHASE,L22-30P 415V

Alt view image 3 of 3 - SWITCHED PDU 17.3KW 3-PHASE,L22-30P 415V

Shop All Tripp Lite Products

SWITCHED PDU 17.3KW 3-PHASE,L22-30P 415V

Be the first to review this product...

240V
24A
6.0 Feet

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

MAIN OVERVIEW FEATURES: PDU
Type:
SwitchedPhase: Three
PhaseInput Receptacles: NEMA
L22-30POutput Receptacles: 12 x IEC 60320 C1312 x IEC 60320
C19Protection Type: Overload
ProtectionInput Voltage: 415
V ACOutput Voltage: 240 V ACPower
Rating (Watt): 17.30 kWInput
Current: 24
AManagement: IPv4 IPv6 HTTP HTTPS SMTP SNM
Pv1 SNM
Pv2 SNM
Pv3 telnet SSH FTP DHCP NTP
Network (RJ-45): YesMounting
Orientation: VerticalMount
Type: Rack-mountableRack
Height:
0UHeight:
70"Width: 2.2"D
epth: 2.5"W
eight (Approximate): 16.91 lbPackage
Contents: PDU3XEVSR6L2230 24-Outlets PDU Built-in LX Platform Interface Configuration Cable 24 x Plug-lock Insert Sleeves Rack-Mounting Hardware Spare Mounting Buttons Mounting Bracket Accessory Owner's
Manual Environmentally Friendly: YesEnvironmental
Certification: RoHSTAA
Compliant: YesLimited
Warranty: 2 Year

Model
Brand	Tripp Lite
Model	PDU3XEVSR6L2230

Details
Type	Switched
Rack Size	0U
Style	Vertical
Certifications	Tested to UL60950-1: 2007 R12.11, IEC 60950-1: 2005+A1:2009 (USA), CAN/CSA-C22.2 NO. 60950-1-07+A1: 2011 (Canada), NOM (Mexico), FCC Class A (Emissions), RoHS (Hazardous Substances), TAA Compliant
ROHS	Yes

Input
Input Voltage	415V
Maximum Input Current	24A
Input Connector(s)	NEMA L22-30P
Cord Length	6.0 Feet

Output
Output Voltage	240V
Output Frequency	50/60Hz
Output Connector(s)	12 x C13 12 x C19
Overload Protection	6 x 20A circuit breakers, one per output load bank

Environmental
Operating Environment	0 - 50 Degree Celcius
Operating Relative Humidity	5 - 95%
Operating Elevation	0 - 3000 m
Storage Temperature	-15 - 60 Degree Celcius
Storage Relative Humidity	5 - 95%

Feature
Features	3-Phase PDU Distributes, Monitors and Manages Network-Grade Power 24 Outlets Dispense AC Power to Connected Equipment Built-In LX Platform Network Management Card Allows Remote Access 24/7 Color Touchscreen LCD Offers Important Data at a Glance Easy to Install Vertically in an EIA-Standard 19.0" Rack TAA-Compliant for GSA Schedule Purchases

Dimensions & Weight
Dimensions	2.17" x 2.52" x 70.00"
Weight	16.91 lbs.

Details
Package Includes	PDU3XEVSR6L2230 17.3 kW 3-Phase Switched PDU Built-in LX Platform interface Configuration cable 24 x Plug-lock insert sleeves Rack-mounting hardware Spare mounting buttons PDUMVROTATEBRKT mounting bracket accessory Owner's manual

Additional Information
First Listed on Newegg	August 13, 2018

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 2 years
Limited Warranty period (labor): 2 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
