Main image of Tripp Lite 2.9 kWatts Single-Phase ATS / Switched PDU, LX Platform Interface, 120V Outlets (24 x 5-15/20R, 1 x L5-30R) 2 x L5-30P, 2 x 10.0 Feet Cords, 2U Rack-Mount, TAA (PDUMH30ATNET)

Alt view image 2 of 3 - Tripp Lite 2.9 kWatts Single-Phase ATS / Switched PDU, LX Platform Interface, 120V Outlets (24 x 5-15/20R, 1 x L5-30R) 2 x L5-30P, 2 x 10.0 Feet Cords, 2U Rack-Mount, TAA (PDUMH30ATNET)

Alt view image 3 of 3 - Tripp Lite 2.9 kWatts Single-Phase ATS / Switched PDU, LX Platform Interface, 120V Outlets (24 x 5-15/20R, 1 x L5-30R) 2 x L5-30P, 2 x 10.0 Feet Cords, 2U Rack-Mount, TAA (PDUMH30ATNET)

Shop All Tripp Lite Products | Visit NDEW Store

Tripp Lite 2.9 kWatts Single-Phase ATS / Switched PDU, LX Platform Interface, 120V Outlets (24 x 5-15/20R, 1 x L5-30R) 2 x L5-30P, 2 x 10.0 Feet Cords, 2U Rack-Mount, TAA (PDUMH30ATNET)

REFURBISHED

Be the first to review this product...

Single phase 30A 120V Auto Transfer Switch / ATS PDU; Highly reliable Solid State Switching. TAA Compliant.
Enables redundant A / B power option for non-redundant network devices
Built-in LX Platform Network Interface
2U rackmount, 2 x L5-30P inputs, 25 switched outlets (24 x 5-15/20R, 1 x L5-30R)
Individually switched outlets and built-in network interface enables remote control and monitoring

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

PDU SWITCHED ATS 120V 30A 24 5-15/20R; 1 L5-30R 2 L5-30P 2URM

Model
Brand	Tripp Lite
Model	PDUMH30ATNET

Details
Type	Switched
Rack Size	2U
Style	Rackmount
Remote Management Protocol	SMTP, SNMPv1, SNMPv2, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols

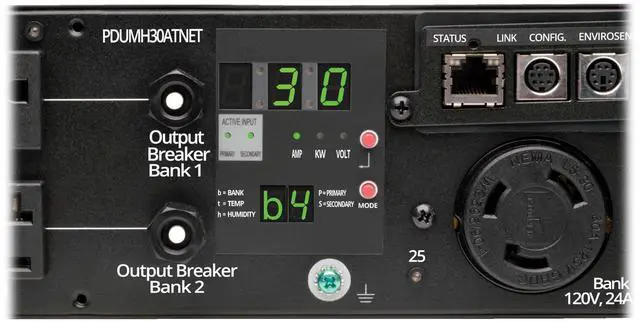

Front Panel LEDs	25 LEDs display power on - off status for each outlet, plus 2 LEDs for power status on Primary and Secondary input connection.
Certifications	Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS Complaint
ROHS	Yes

Input
Input Voltage	100V, 120V, 127V
Maximum Input Current	30A
Input Connector(s)	NEMA L5-30P
Cord Length	10 Feet

Output
Output Voltage	120V
Output Frequency	60 Hz

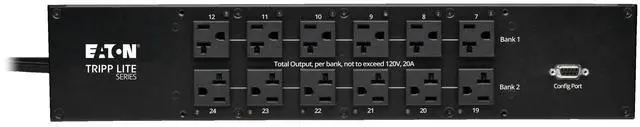

Output Connector(s)	24 x 5-15/20R (switched), 1 x L5-30R (switched)
Overload Protection	Two 20A output breakers protect 12 5-15/20R outlets each

Environmental
Operating Relative Humidity	5 - 95%
Operating Elevation	0 - 10000 Feet
Storage Temperature	-15 - 50 Celcius degree
Storage Relative Humidity	5 - 95%

Feature
Features	120V 30A Power Distribution Unit (PDU) with Auto-Transfer Switch (ATS) and Switched output receptacles (agency derated to 24A continuous) ATS features provide redundant power for critical network equipment with a single input power cord Switched PDU features enable programmable or real-time power control of individual outlets via built-in network interface Visual meter reports output power consumption in amps 25 switched outlets (24 x 5-15/20R & 1 x L5-30R); 2U horizontal rackmount form factor; 12.50" depth Two NEMA L5-30P 10 Feet inputs connect to separate PRIMARY and SECONDARY power sources ATS normally maintains output sourced from the primary input; As primary input power fails or becomes unstable, the ATS switches to power equipment from the secondary input until power on the primary input is restored ATS configurations enable hot-swap UPS protection when used with a single UPS and redundant UPS protection when each input is connected to a separate UPS system (in a two-UPS environment, the primary input cable must be supported by an online UPS similar to Tripp Lite SmartOnline) Advanced ATS configurations using separate mains circuits, backup generators and out of phase utility feeds are fully supported On-board processor evaluates power quality on both inputs to prevent transfer to the secondary source when unavailable or of lower quality than the primary source 3 - 6 millisecond transfer time between primary and secondary inputs DHCP/Manual configuration support; Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols Compatible with optional ENVIROSENSE temperature monitor Front panel LEDs confirm power availability on primary / secondary inputs and each output receptacle

Dimensions & Weight
Dimensions	3.50" x 17.50" x 12.50"
Weight	13.80 lbs.

Details
Package Includes	ATS / Switched PDU with two L5-30P inputs Installable 2U mounting brackets Operating manual
