Learn more about the Tripp Lite PDUMH32HV
Model
Brand
Tripp Lite
Model
PDUMH32HV
Details
Type
Metered
Rack Size
2U
Input
Input Voltage
230 V AC Single-Phase
Input Connector(s)
IEC-309
Cord Length
12 ft
Output
Output Voltage
230V
Output Connector(s)
16 C13, 2 C19
Feature
Features

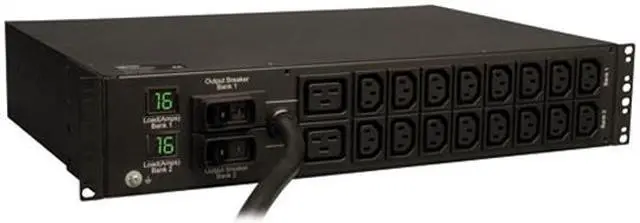

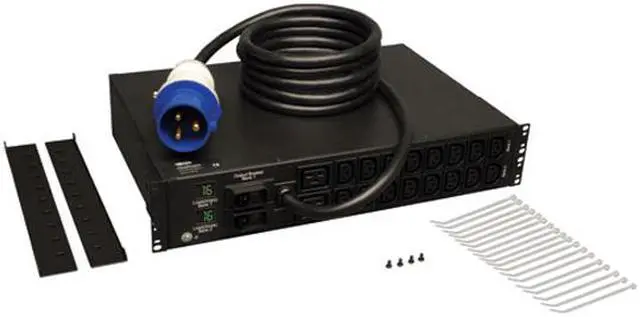

230V 32A metered Power Distribution Unit (PDU) in 2U horizontal rackmount form factor 32A maximum capacity

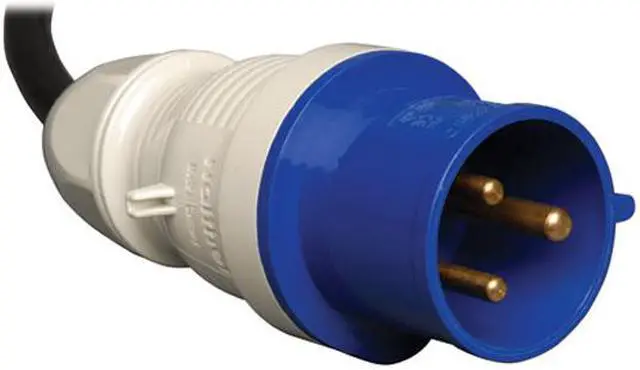

Attached Blue IEC-309 32A input plug with 12 ft. / 3.6m line cord
18 total output receptacles (16 C13, 2 C19)
Outlets are arranged in two separately breakered and metered 16A load banks (each with 8 C13 and 1 C19 outlet)
Current meters offer the ability to visually monitor power consumption levels to prevent mains, generator, UPS or PDU overloads and to ensure proper load balance in complex redundant power applications
Pair of easy to read, two-character LED displays offer continuous PDU current monitoring data in one-amp increments for each metered load bank
Circuit breakers offer protection from overloads and short circuit fault conditions
Switch-free unfiltered electrical pass-through reliably distributes UPS or generator power to critical networking equipment
