How does the automatic transfer switching feature work in this PDU?

The automatic transfer switching feature switches to the secondary power source if the primary source fails or becomes unstable, ensuring uninterrupted operation of connected equipment.

What is the maximum input current for the Tripp Lite ATS/Switched PDU?

The maximum input current for the Tripp Lite ATS/Switched PDU is 32A.

$1,154^.99

Limit 999999 per customer.

Price alert

Add to wish list

Sold by Newegg

Shipped by Newegg

Main image of Tripp Lite ATS/Switched PDU, 7.4kW Single-Phase 230V Outlets (16 C13 & 2 C19), 2 IEC309 32A Blue Cords, 2U Rack-Mount (PDUMH32HVATNET)

Alt view image 2 of 7 - Tripp Lite ATS/Switched PDU, 7.4kW Single-Phase 230V Outlets (16 C13 & 2 C19), 2 IEC309 32A Blue Cords, 2U Rack-Mount (PDUMH32HVATNET)

Alt view image 3 of 7 - Tripp Lite ATS/Switched PDU, 7.4kW Single-Phase 230V Outlets (16 C13 & 2 C19), 2 IEC309 32A Blue Cords, 2U Rack-Mount (PDUMH32HVATNET)

Alt view image 4 of 7 - Tripp Lite ATS/Switched PDU, 7.4kW Single-Phase 230V Outlets (16 C13 & 2 C19), 2 IEC309 32A Blue Cords, 2U Rack-Mount (PDUMH32HVATNET)

Alt view image 5 of 7 - Tripp Lite ATS/Switched PDU, 7.4kW Single-Phase 230V Outlets (16 C13 & 2 C19), 2 IEC309 32A Blue Cords, 2U Rack-Mount (PDUMH32HVATNET)

Alt view image 6 of 7 - Tripp Lite ATS/Switched PDU, 7.4kW Single-Phase 230V Outlets (16 C13 & 2 C19), 2 IEC309 32A Blue Cords, 2U Rack-Mount (PDUMH32HVATNET)

Alt view image 7 of 7 - Tripp Lite ATS/Switched PDU, 7.4kW Single-Phase 230V Outlets (16 C13 & 2 C19), 2 IEC309 32A Blue Cords, 2U Rack-Mount (PDUMH32HVATNET)

Shop All Tripp Lite Products

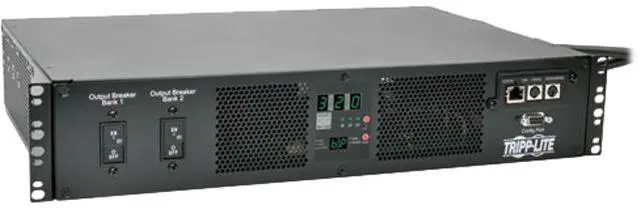

Tripp Lite ATS/Switched PDU, 7.4kW Single-Phase 230V Outlets (16 C13 & 2 C19), 2 IEC309 32A Blue Cords, 2U Rack-Mount (PDUMH32HVATNET)

Be the first to review this product...

Provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations
Dual 3m input cords with IEC309 32A Blue (2P+E) plugs connect to separate primary and secondary single-phase power sources
Dynamic solid-state (TRIAC) automatic transfer switching
Switches to secondary power source if primary source fails or becomes unstable
1–5 minutes transfer time ensures uninterrupted operation of connected equipment

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	Tripp Lite
Model	PDUMH32HVATNET

Details
Type	Switched
Rack Size	1U, 2U
Style	Horizontal
Rack Mounting Kit	2U rackmount

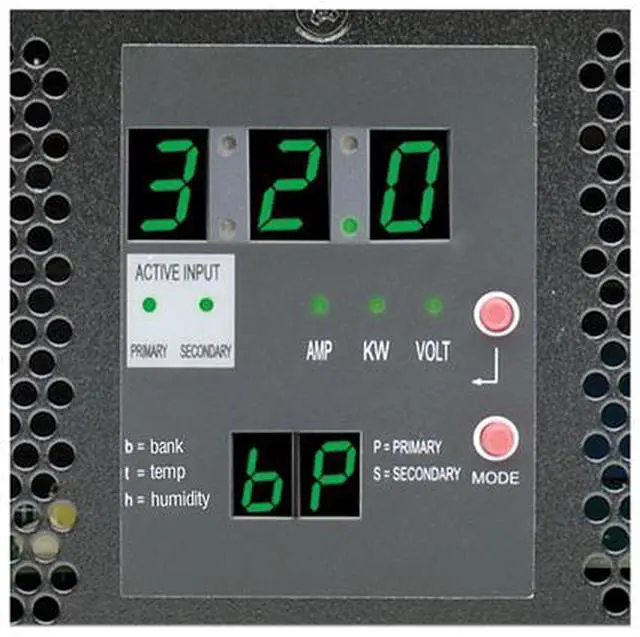

Front Panel LEDs	Front panel LEDs confirm amp / kilowatt / voltage reporting information
Certifications	Tested to CE / IEC 60950-1, EN CLASS A (Emissions), NOM (Mexico)
ROHS	RoHS Complaint, TAA Compliant

Input
Input Voltage	200; 208; 220; 230; 240
Maximum Input Current	32A

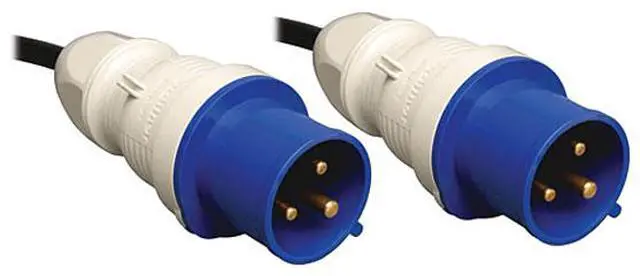

Input Connector(s)	(2) IEC-309 32A BLUE (2P+E)
Cord Length	9.84 ft.

Output
Output Voltage	200, 208, 220, 230, 240V nominal, single phase
Output Frequency	50/60Hz

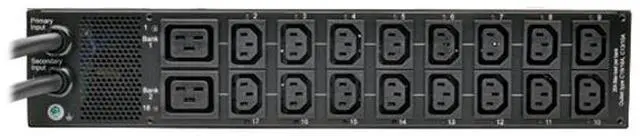

Overload Protection	Includes two 20A output circuit breakers Breaker 1 controls the upper row of 9 outlets (8 C13, 1 C19) Breaker 2 controls the lower row of outlets (8 C13, 1 C19)

Environmental
Operating Elevation	0 - 3000 m
Storage Temperature	5 to 122F (-15 to 50C)
Storage Relative Humidity	Up to 95% (non-condensing)

Feature
Features	Primary and Secondary Inputs for Power Redundancy Automatic Transfer Switching Multifunction Digital LED Display Advanced Network Monitoring Broad Communications Compatibility 20A Circuit Breakers Cord Retention Brackets Mounts Horizontally in 2U of Rack Space TAA-Compliant

Additional Information
First Listed on Newegg	April 05, 2016

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 2 years
Limited Warranty period (labor): 2 years
