Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Allow 2-3 days to ship.

Sold by Newegg

Shipped by Newegg

Add to wish list

Main image of Tripp Lite - PDUMNV20HVLX - Tripp Lite PDU Monitored 3.3-3.7kW 20 C13 4 C19 208/230V 20A LX Platform 0URM - Monitored -

Alt view image 2 of 12 - Tripp Lite - PDUMNV20HVLX - Tripp Lite PDU Monitored 3.3-3.7kW 20 C13 4 C19 208/230V 20A LX Platform 0URM - Monitored -

Alt view image 3 of 12 - Tripp Lite - PDUMNV20HVLX - Tripp Lite PDU Monitored 3.3-3.7kW 20 C13 4 C19 208/230V 20A LX Platform 0URM - Monitored -

Alt view image 4 of 12 - Tripp Lite - PDUMNV20HVLX - Tripp Lite PDU Monitored 3.3-3.7kW 20 C13 4 C19 208/230V 20A LX Platform 0URM - Monitored -

Alt view image 5 of 12 - Tripp Lite - PDUMNV20HVLX - Tripp Lite PDU Monitored 3.3-3.7kW 20 C13 4 C19 208/230V 20A LX Platform 0URM - Monitored -

Alt view image 6 of 12 - Tripp Lite - PDUMNV20HVLX - Tripp Lite PDU Monitored 3.3-3.7kW 20 C13 4 C19 208/230V 20A LX Platform 0URM - Monitored -

Alt view image 7 of 12 - Tripp Lite - PDUMNV20HVLX - Tripp Lite PDU Monitored 3.3-3.7kW 20 C13 4 C19 208/230V 20A LX Platform 0URM - Monitored -

Alt view image 8 of 12 - Tripp Lite - PDUMNV20HVLX - Tripp Lite PDU Monitored 3.3-3.7kW 20 C13 4 C19 208/230V 20A LX Platform 0URM - Monitored -

Alt view image 9 of 12 - Tripp Lite - PDUMNV20HVLX - Tripp Lite PDU Monitored 3.3-3.7kW 20 C13 4 C19 208/230V 20A LX Platform 0URM - Monitored -

Alt view image 10 of 12 - Tripp Lite - PDUMNV20HVLX - Tripp Lite PDU Monitored 3.3-3.7kW 20 C13 4 C19 208/230V 20A LX Platform 0URM - Monitored -

Alt view image 11 of 12 - Tripp Lite - PDUMNV20HVLX - Tripp Lite PDU Monitored 3.3-3.7kW 20 C13 4 C19 208/230V 20A LX Platform 0URM - Monitored -

Alt view image 12 of 12 - Tripp Lite - PDUMNV20HVLX - Tripp Lite PDU Monitored 3.3-3.7kW 20 C13 4 C19 208/230V 20A LX Platform 0URM - Monitored -

Shop All Tripp Lite Products

Tripp Lite - PDUMNV20HVLX - Tripp Lite PDU Monitored 3.3-3.7kW 20 C13 4 C19 208/230V 20A LX Platform 0URM - Monitored -

Be the first to review this product...

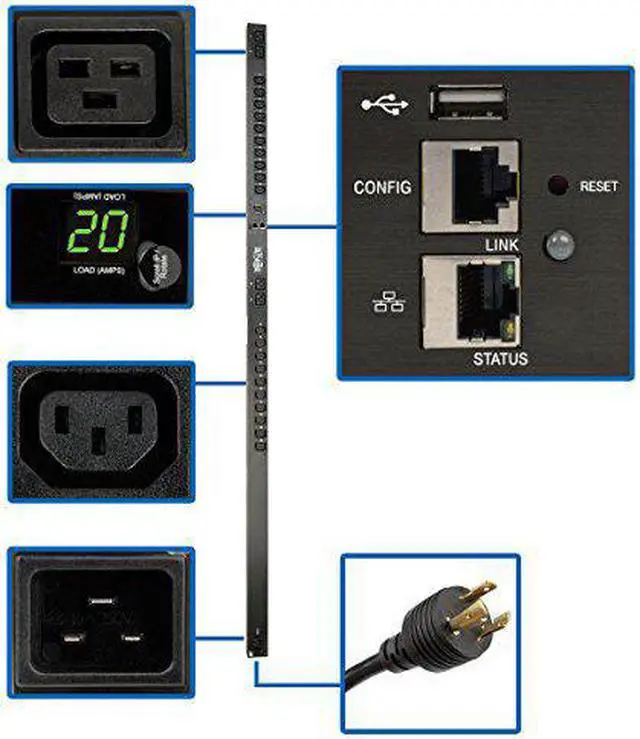

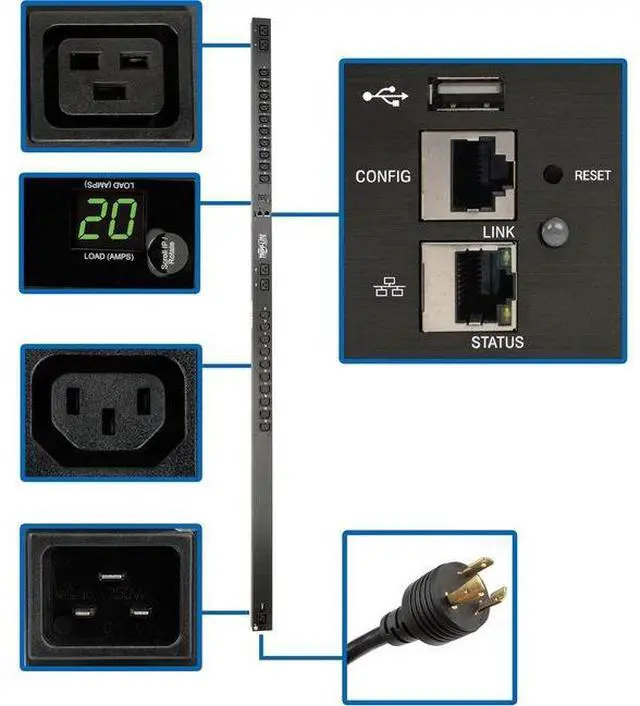

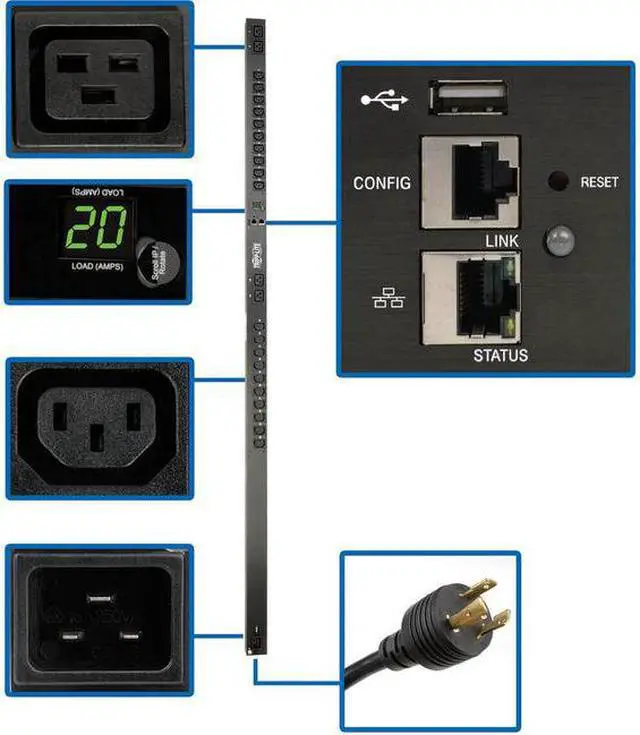

3.3 - 3.7 kWatts 208 / 230V single-phase monitored 0U PDU
24 outlets - 20 x C13, 4 x C19 - with plug-lock insert sleeves
Built-in Java-free LX Platform interface for remote access 24/7

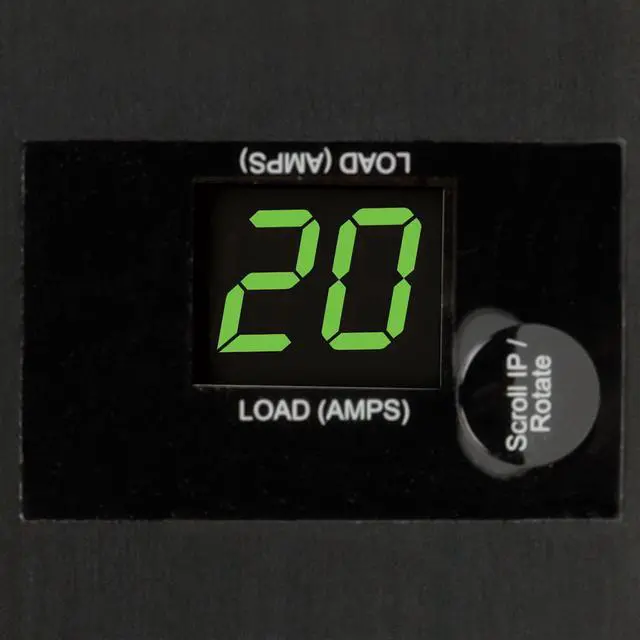

Digital ammeter for on-site load monitoring in real time

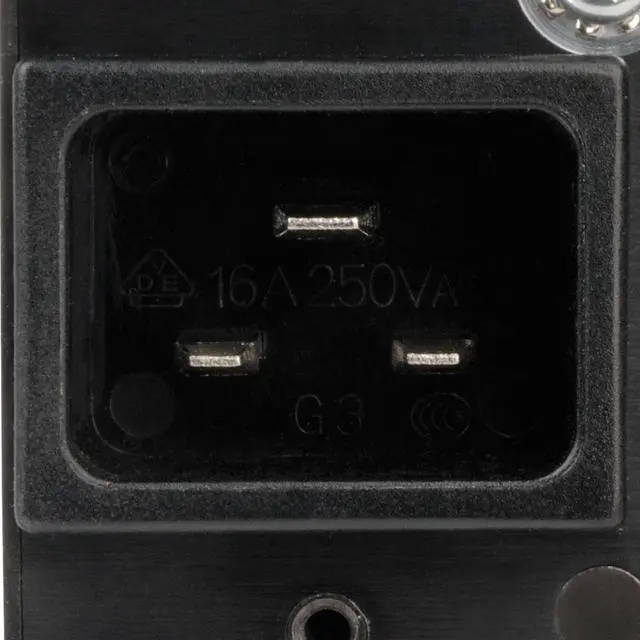

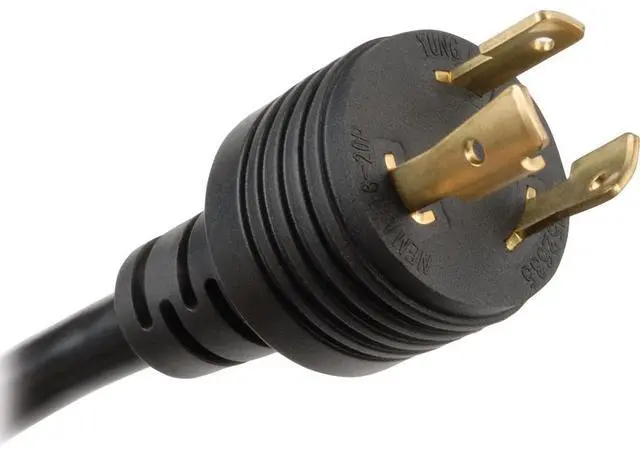

C20 inlet input with detachable 10.0 Feet NEMA L6-20P power cord

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Tripp Lite 3.3 - 3.7 kW Single-Phase Monitored PDU, LX Platform Interface, 208/230V Outlets (20 C13/4 C19), C20/L6-20P, 0U 1.8 m/70 in., TAA - Power distribution unit (rack-mountable) - 20 A - AC 208-230 V - 3.7 kW - 1-phase - Ethernet 10/100, USB, serial
- input: IEC 60320
C20 - output connectors: 24 - 0U - 10 ft - TAA Compliant

Model
Brand	Tripp Lite
Model	PDUMNV20HVLX

Details
Type	Monitored
Rack Size	0U
Style	Vertical
Certifications	Tested to UL60950-1:2007 (USA), CAN/CSA-C22.2 NO. 60950-1: 2005 (Canada), CE (International), FCC Class A (Emissions), NOM (Mexico), RoHS compliant, TAA compliant
ROHS	Yes

Input
Input Voltage	208V, 230V
Maximum Input Current	20A
Input Connector(s)	NEMA L6-20P; IEC-320 C20
Cord Length	10.0 Feet

Output
Output Voltage	208V, 230V
Output Frequency	50/60Hz
Output Connector(s)	20 x C13, 4 x C19

Environmental
Operating Relative Humidity	5 - 95%
Operating Elevation	0 - 3000 m
Storage Temperature	-15 - 60 Degree Celcius
Storage Relative Humidity	5 - 95%

Feature

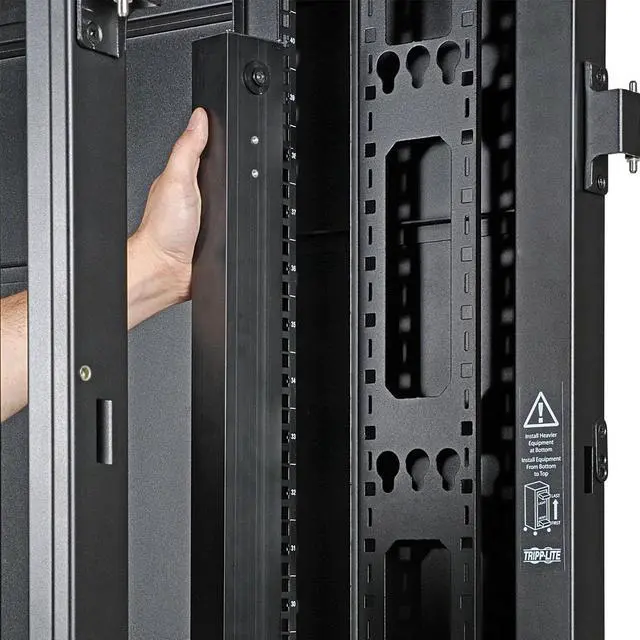

Features	Distributes and Monitors Network-Grade AC Power 20 C13 and 4 C19 Outlets Distribute AC Power Digital Ammeter Built-In LX Platform Interface Broad Communications Compatibility Easy 0U Installation in EIA-Standard 19.0" Racks TAA-Compliant

Dimensions & Weight
Dimensions	2.19" x 2.65" x 70.00"
Weight	8.50 lbs.

Details
Package Includes	PDUMNV20HVLX 3.3 - 3.7 kW Single-Phase Monitored PDU Built-in LX Platform interface Detachable NEMA L6-20P to C19 power cord, 10.0 Feet Configuration cable 24 x Plug-lock inserts Rack-mounting hardware PDUMVROTATEBRKT mounting bracket accessory Owner's manual

Additional Information
First Listed on Newegg	August 23, 2018

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 2 years
Limited Warranty period (labor): 2 years
Read full details

Return Policies

Contact Manufacturer for Assistance
This item is covered by Newegg.com's Manufacturer Only Return Policy.
Read full return policy for details.
