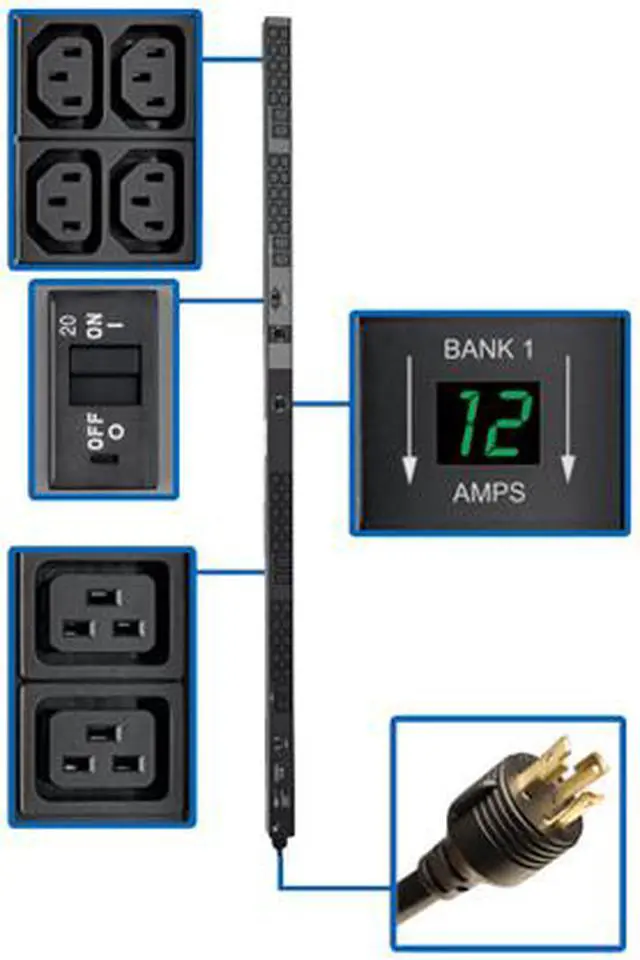

Tripp Lite - PDUMV30HV2 - Tripp Lite PDU Metered Vertical 5.8kw 208/240V 8 C19 40 C13 L6-30P 0U TAA - NEMA L6-30P - 8 x

Be the first to review this product...

Dual load banks with 24 outlets each (4 C19 and 20 C13)
30A 208/240V 5.8kW metered PDU (agency derated to 24A continuous)

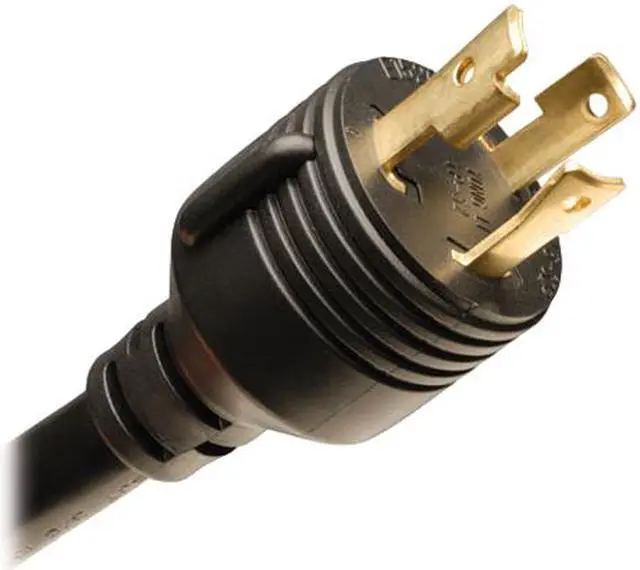

NEMA L6-30P input plug with 10-ft. (3 m) cord
Dedicated 20A circuit breakers protect output

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

PDU METERED VERTICAL 5.8KW 208/240V 8 C19 40 C13 L6-30P 0U TAA

Best Seller Ranking	#16 in Power Distribution Unit

Model
Brand	Tripp Lite
Model	PDUMV30HV2

Details
Type	Metered
Rack Size	0U
Style	Vertical

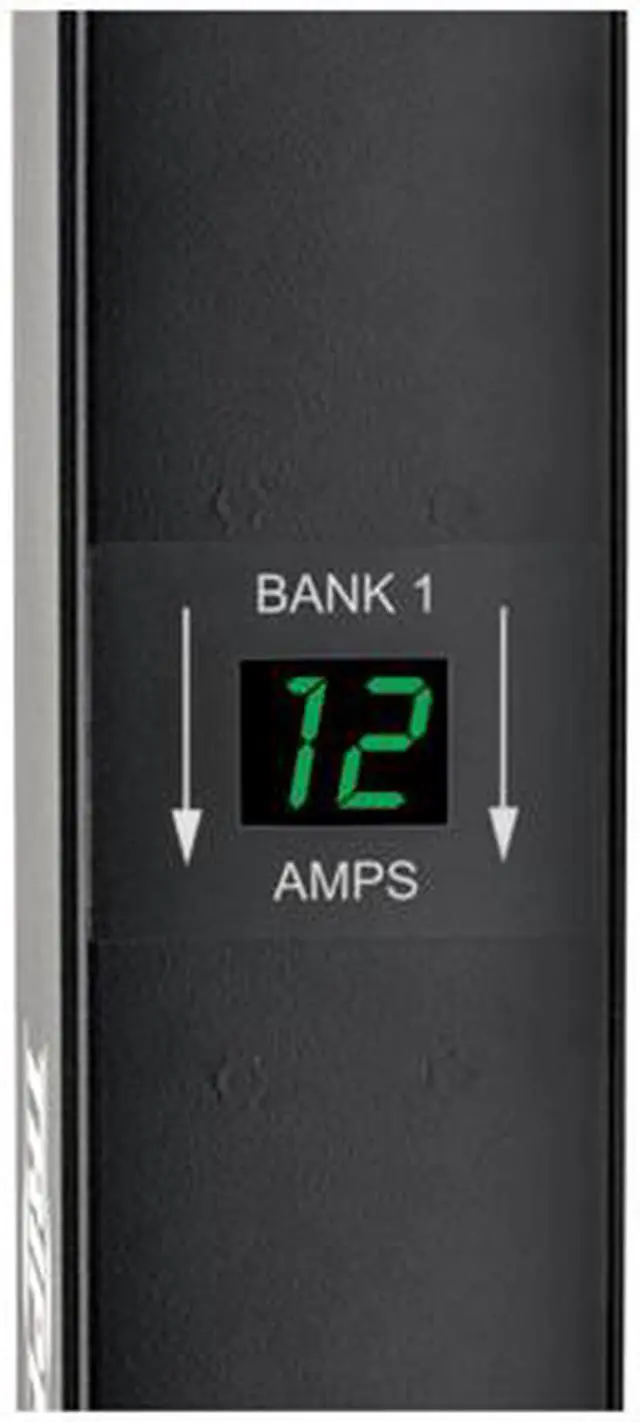

Front Panel LEDs	Set of two digital current meters report output current in two segments
Certifications	Tested to UL/CAN 60950-1 (USA, Canada), NOM (Mexico), FCC Class A (Emissions), TAA Compliant
ROHS	Yes

Input
Input Voltage	200 - 240V
Maximum Input Current	24A
Input Connector(s)	NEMA L6-30P
Cord Length	10 ft

Output
Output Voltage	200 V - 240 V nominal, single phase
Output Frequency	50/60Hz

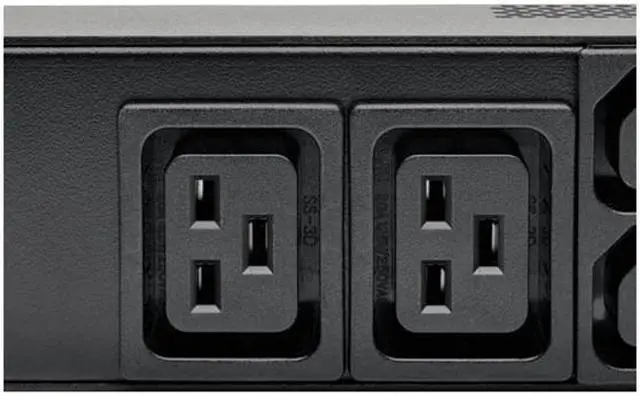

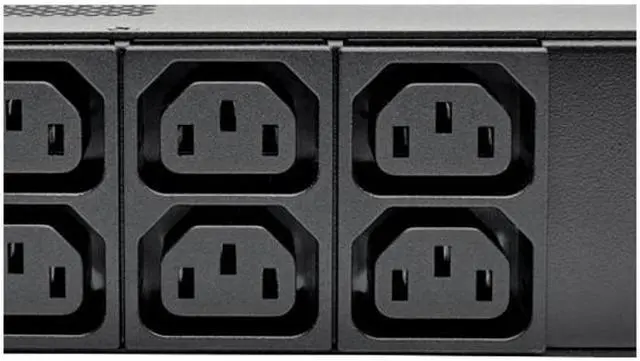

Output Connector(s)	40 x C13; 8 x C19
Overload Protection	Set of 2 20A breakers protect output Bank 1 and Bank 2

Environmental
Operating Environment	0 degrees to 50 degrees C
Operating Relative Humidity	5 - 95%
Operating Elevation	0 - 3000 m
Storage Temperature	-15 - 60 degrees C

Feature
Features	Ideal for server rooms, network closets and data centers Dual load banks with 24 outlets each (4 C19 and 20 C13) Dedicated 20A circuit breakers protect output NEMA L6-30P input plug with 10-ft. (3 m) cord Ready for immediate toolless 0U installation

Dimensions & Weight
Dimensions	70.00" x 2.17" x 2.52"
Weight	12.35 lbs.

Details

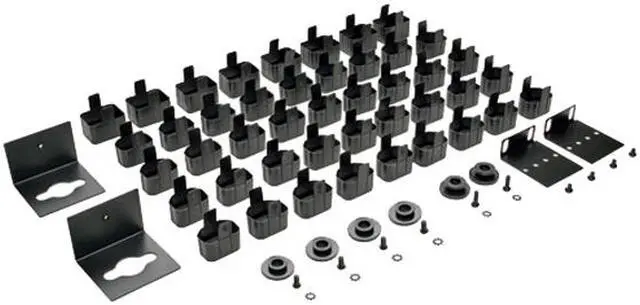

Package Includes	PDUMV30HV2 30A 208/240V 5.8kW Single-Phase Metered PDU Plug-lock inserts (8 C20, 40 C13) Spare installation buttons, 2.9 mm/4.6 mm Ground screw Mounting hardware Owner's Manual

Additional Information
First Listed on Newegg	November 19, 2015

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 2 years
Limited Warranty period (labor): 2 years
